| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_119T01_9000001388_09732cztM0_level2.evt | modeM0/AS1A03_119T01_9000001388_09732cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,068,480 | 88,243,200 |
| Size | 576.1 MB | 84.2 MB |
| Events in quadrant A | 3,980,935 | 530,010 |
| Events in quadrant B | 4,024,587 | 542,128 |
| Events in quadrant C | 3,933,940 | 521,851 |
| Events in quadrant D | 5,782,550 | 493,335 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18428 | 933 |
| B | 0 | 18438 | 923 |
| C | 0 | 18385 | 902 |
| D | 0 | 24531 | 1622 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 182 | 10 |
| B | 0 | 182 | 6 |
| C | 0 | 182 | 6 |
| D | 0 | 182 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8414 | 222 | 2.638460% |
| B | 8416 | 284 | 3.374525% |
| C | 8428 | 217 | 2.574751% |
| D | 8355 | 891 | 10.664273% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9321 | 8767 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9321 | 8772 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9320 | 8772 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9321 | 8713 | 613 | 613 | 6.58% | 7.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9469 | 40.08 | 1029 | 1005 | 211.2 |
| A | 1 | 162 | 8807 | 36.95 | 1029 | 1005 | 211.2 |
| A | 12 | 194 | 8128 | 33.73 | 1029 | 1005 | 211.2 |
| B | 12 | 111 | 23690 | 114.14 | 1030 | 1003 | 198.8 |
| B | 11 | 111 | 19110 | 91.1 | 1030 | 1003 | 198.8 |
| B | 10 | 245 | 15090 | 70.87 | 1030 | 1003 | 198.8 |
| C | 14 | 234 | 12984 | 51.24 | 998 | 1002 | 233.8 |
| C | 8 | 128 | 12418 | 48.82 | 998 | 1002 | 233.8 |
| C | 13 | 61 | 7412 | 27.41 | 998 | 1002 | 233.8 |
| D | 1 | 52 | 2092798 | 8806.24 | 965 | 937 | 237.5 |
| D | 2 | 234 | 34881 | 142.9 | 965 | 937 | 237.5 |
| D | 5 | 233 | 16885 | 67.14 | 965 | 937 | 237.5 |

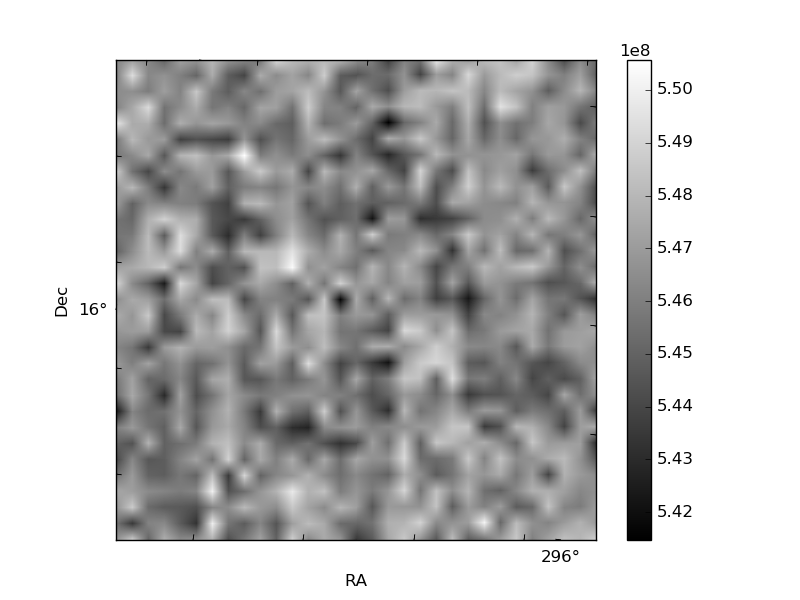

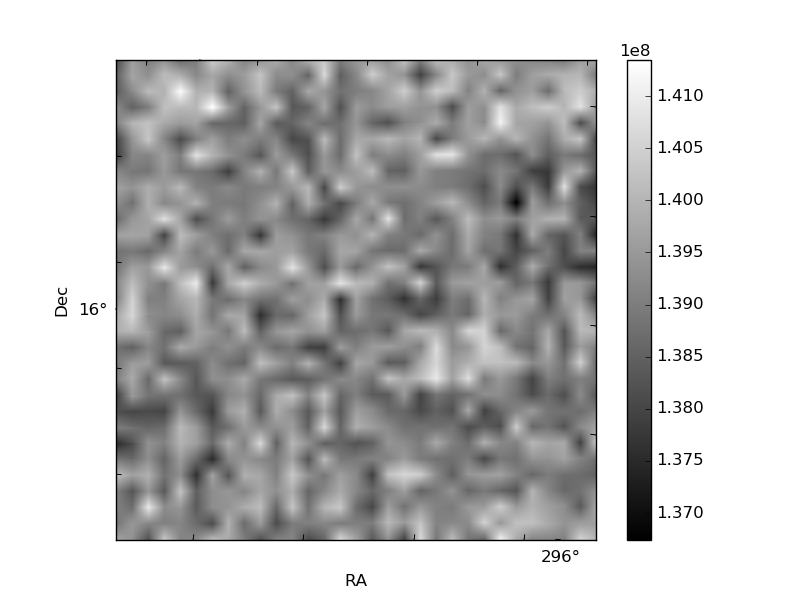

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

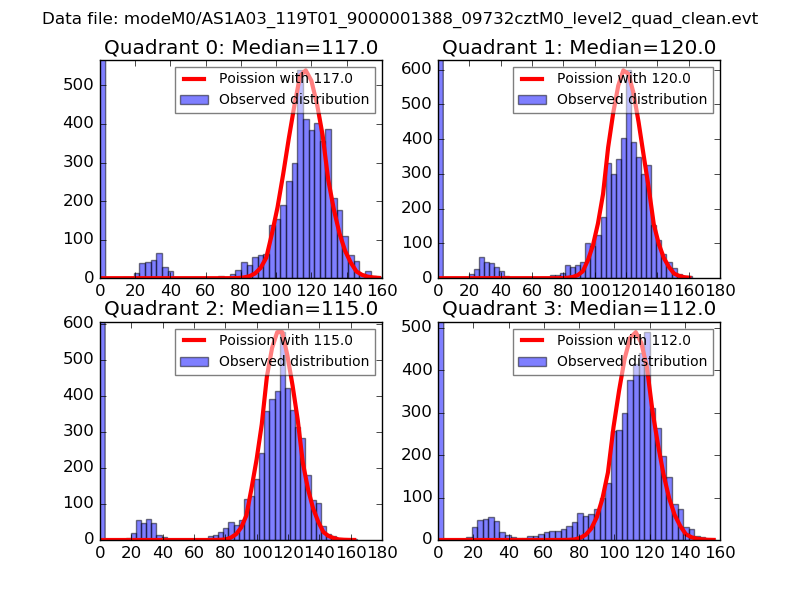

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

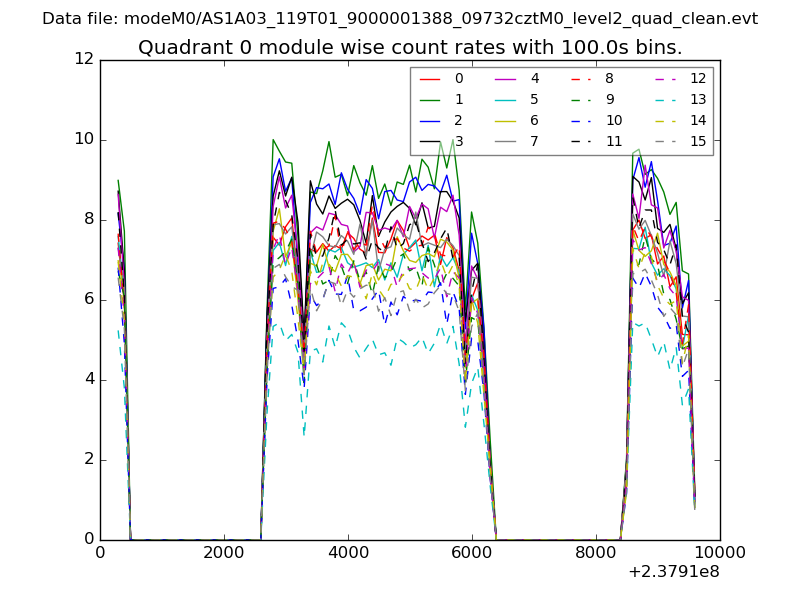

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

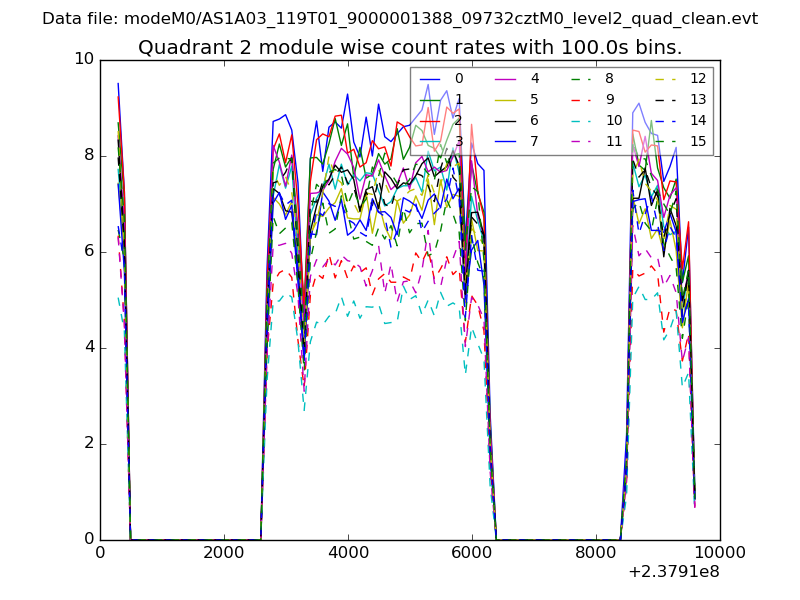

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

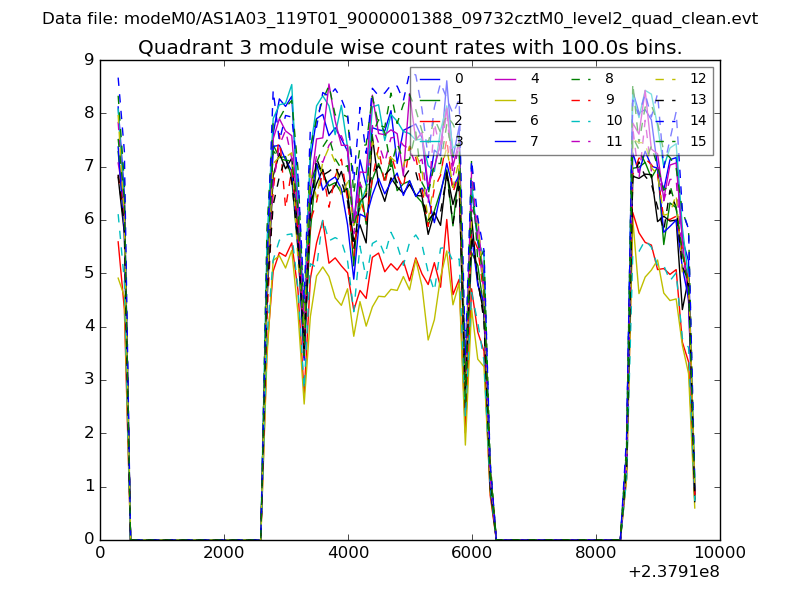

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

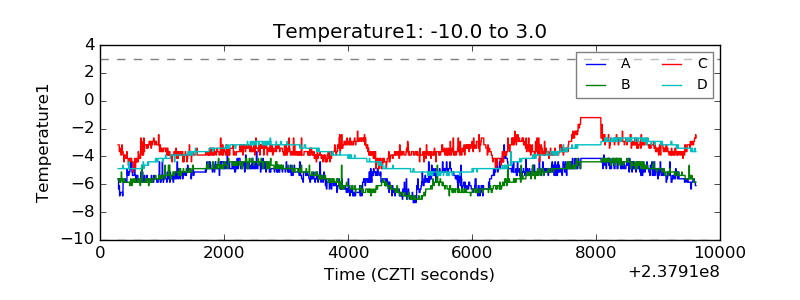

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
