| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_119T01_9000001388_09740cztM0_level2.evt | modeM0/AS1A03_119T01_9000001388_09740cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,444,480 | 84,729,600 |
| Size | 389.5 MB | 80.8 MB |
| Events in quadrant A | 2,983,665 | 542,393 |
| Events in quadrant B | 2,997,997 | 557,742 |
| Events in quadrant C | 2,891,138 | 528,634 |
| Events in quadrant D | 3,080,558 | 509,834 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12728 | 93 |
| B | 0 | 12802 | 142 |
| C | 0 | 12711 | 140 |
| D | 0 | 12993 | 125 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6139 | 30 | 0.488679% |
| B | 6113 | 47 | 0.768853% |
| C | 6118 | 23 | 0.375940% |
| D | 6124 | 15 | 0.244938% |

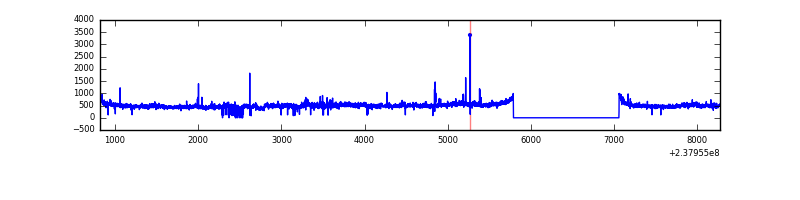

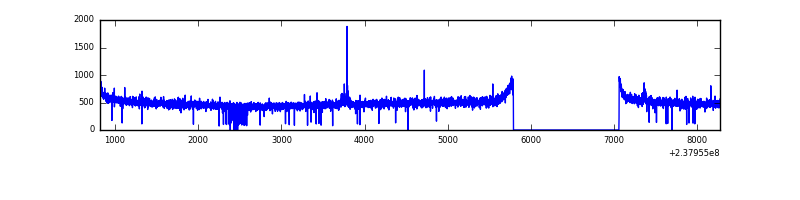

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7454 | 6178 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7454 | 6178 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7454 | 6176 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7454 | 6175 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 15831 | 97.18 | 770 | 756 | 155.1 |
| A | 0 | 226 | 7066 | 40.68 | 770 | 756 | 155.1 |
| A | 12 | 194 | 6248 | 35.4 | 770 | 756 | 155.1 |
| B | 12 | 111 | 16976 | 111.01 | 769 | 752 | 146.2 |
| B | 0 | 229 | 14752 | 95.79 | 769 | 752 | 146.2 |
| B | 11 | 111 | 13496 | 87.2 | 769 | 752 | 146.2 |
| C | 14 | 234 | 15723 | 88.48 | 733 | 739 | 169.4 |
| C | 9 | 237 | 12634 | 70.24 | 733 | 739 | 169.4 |
| C | 13 | 61 | 5693 | 29.25 | 733 | 739 | 169.4 |
| D | 1 | 52 | 267976 | 1420.55 | 727 | 713 | 188.1 |
| D | 8 | 195 | 21490 | 110.43 | 727 | 713 | 188.1 |
| D | 2 | 234 | 17555 | 89.52 | 727 | 713 | 188.1 |

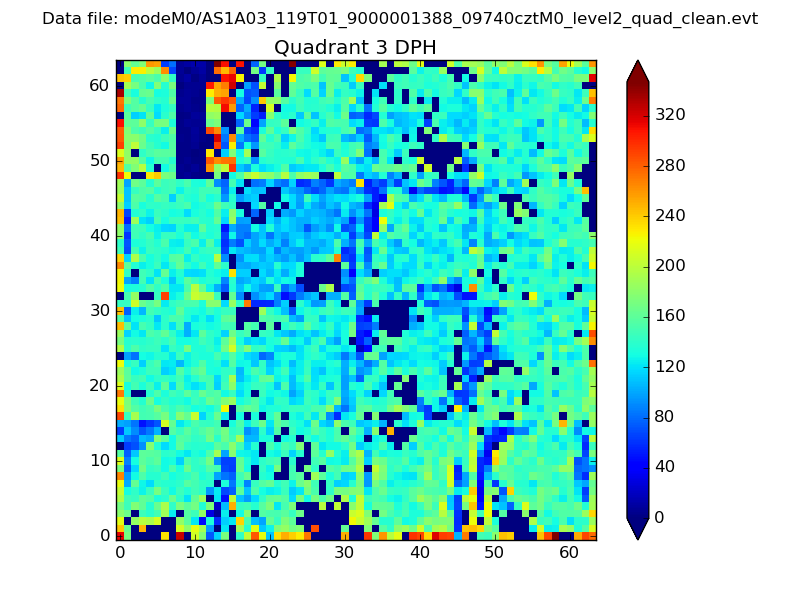

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

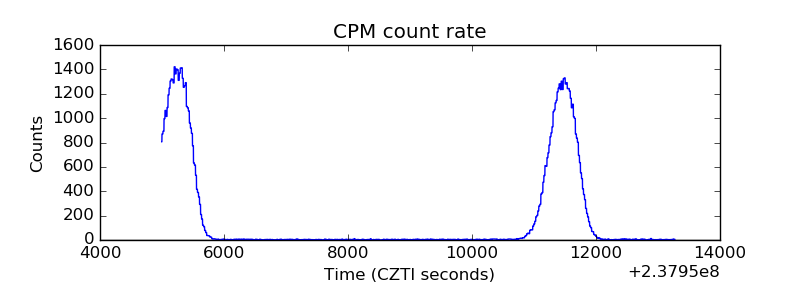

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

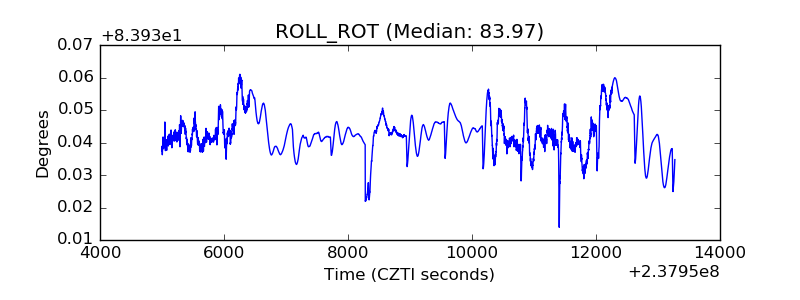

| _ROLL_ROT |  |
| _Roll_DEC |  |

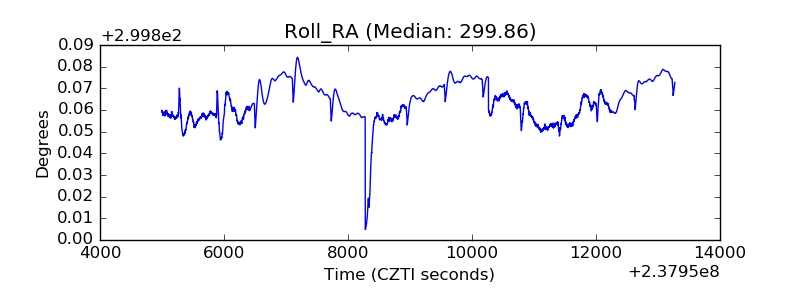

| _Roll_RA |  |
| Veto Counter |  |
