| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_119T01_9000001388_09741cztM0_level2.evt | modeM0/AS1A03_119T01_9000001388_09741cztM0_level2_quad_clean.evt |
| Size (bytes) | 267,333,120 | 45,774,720 |
| Size | 254.9 MB | 43.7 MB |
| Events in quadrant A | 2,023,891 | 279,460 |
| Events in quadrant B | 1,945,489 | 284,229 |
| Events in quadrant C | 1,869,290 | 270,348 |
| Events in quadrant D | 1,977,242 | 263,121 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8833 | 443 |
| B | 0 | 8767 | 514 |
| C | 0 | 8690 | 427 |
| D | 0 | 8835 | 447 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 2 |
| C | 0 | 86 | 6 |
| D | 0 | 86 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4099 | 13 | 0.317151% |
| B | 4064 | 8 | 0.196850% |
| C | 4099 | 4 | 0.097585% |
| D | 4095 | 3 | 0.073260% |

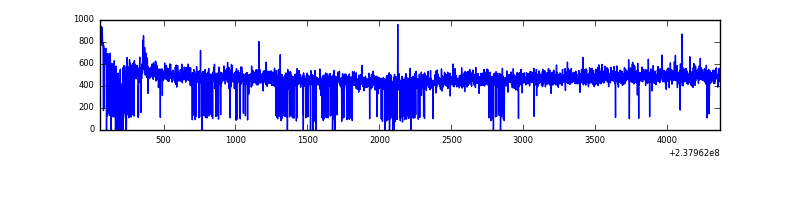

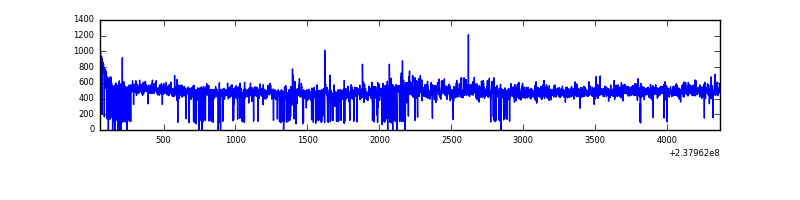

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4307 | 4287 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4307 | 4265 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4307 | 4265 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4307 | 4276 | 1 | 1 | 0.02% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 36177 | 344.61 | 504 | 494 | 103.5 |
| A | 1 | 178 | 15292 | 142.91 | 504 | 494 | 103.5 |
| A | 1 | 161 | 13704 | 127.58 | 504 | 494 | 103.5 |
| B | 12 | 111 | 11058 | 110.47 | 499 | 489 | 95.7 |
| B | 11 | 111 | 8867 | 87.57 | 499 | 489 | 95.7 |
| B | 14 | 111 | 7416 | 72.4 | 499 | 489 | 95.7 |
| C | 13 | 61 | 3605 | 27.86 | 478 | 480 | 112.2 |
| C | 8 | 222 | 2257 | 15.84 | 478 | 480 | 112.2 |
| C | 14 | 234 | 1452 | 8.67 | 478 | 480 | 112.2 |
| D | 1 | 52 | 98918 | 801.73 | 475 | 466 | 122.8 |
| D | 8 | 195 | 62375 | 504.15 | 475 | 466 | 122.8 |
| D | 2 | 234 | 11825 | 92.5 | 475 | 466 | 122.8 |

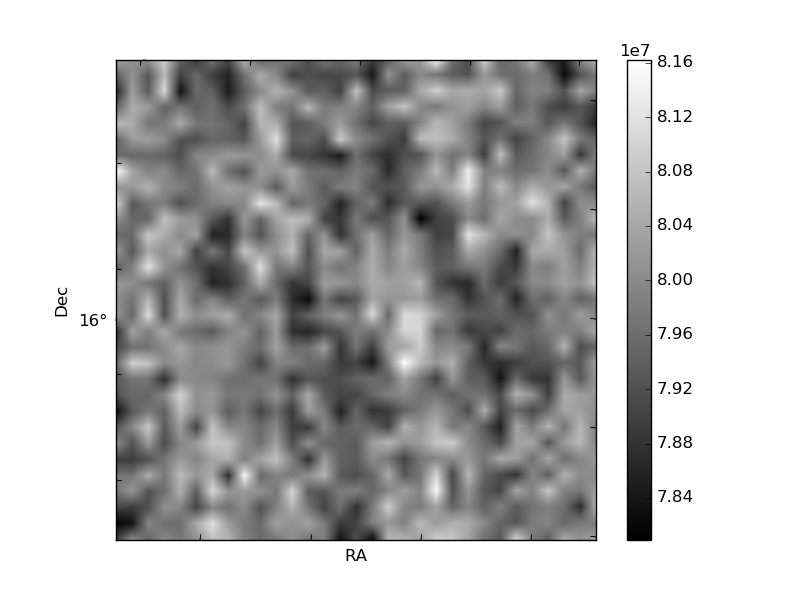

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

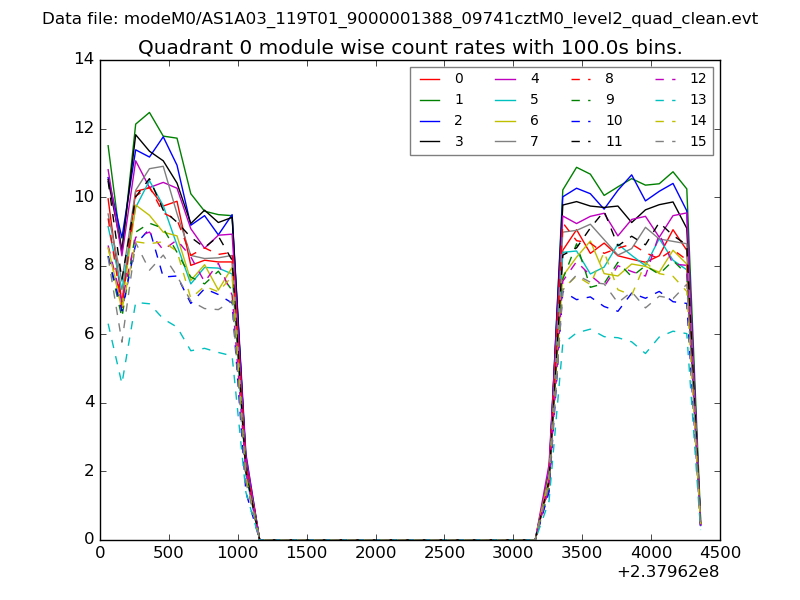

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

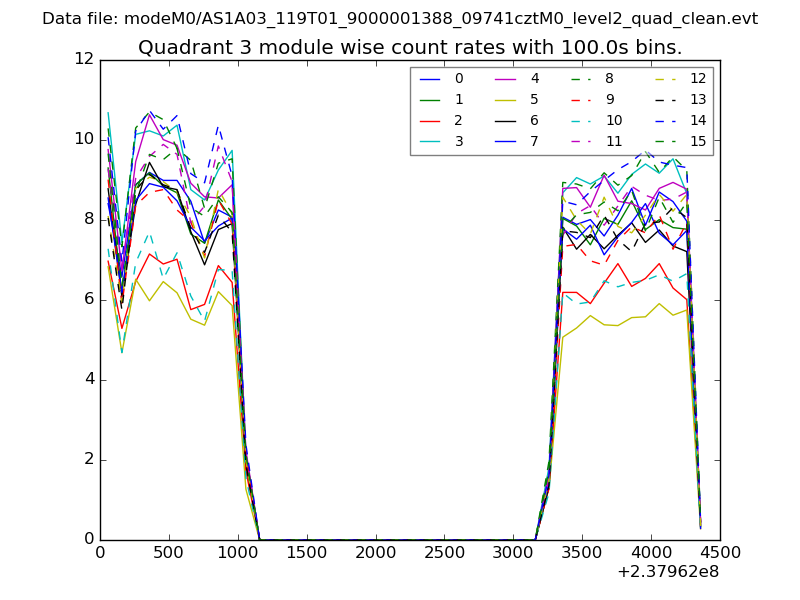

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

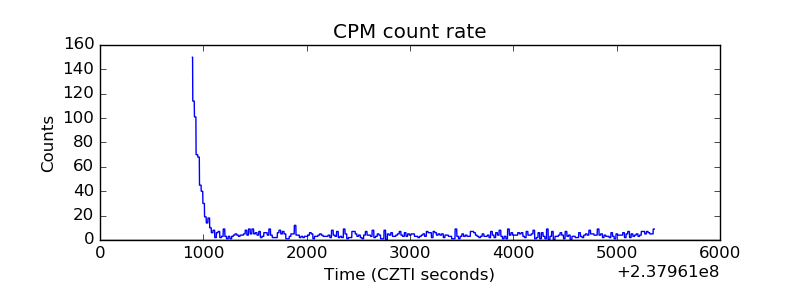

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

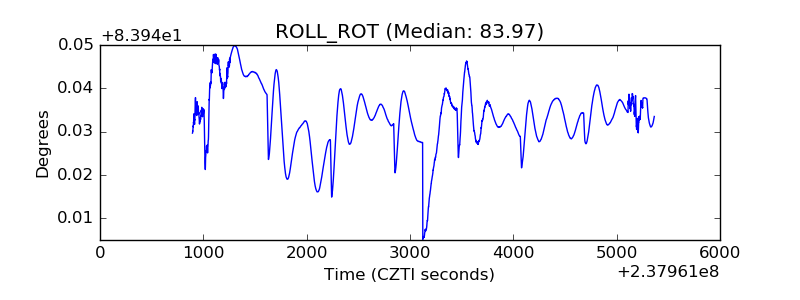

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
