| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_114T01_9000001390_09749cztM0_level2.evt | modeM0/AS1A03_114T01_9000001390_09749cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,213,410,240 | 232,557,120 |
| Size | 1.1 GB | 221.8 MB |
| Events in quadrant A | 8,768,456 | 1,452,812 |
| Events in quadrant B | 8,725,015 | 1,481,768 |
| Events in quadrant C | 8,577,299 | 1,454,236 |
| Events in quadrant D | 9,434,372 | 1,389,056 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38624 | 10 |
| B | 0 | 38293 | 15 |
| C | 0 | 38180 | 7 |
| D | 0 | 40998 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18374 | 255 | 1.387831% |
| B | 18372 | 276 | 1.502286% |
| C | 18375 | 217 | 1.180952% |
| D | 18374 | 409 | 2.225971% |

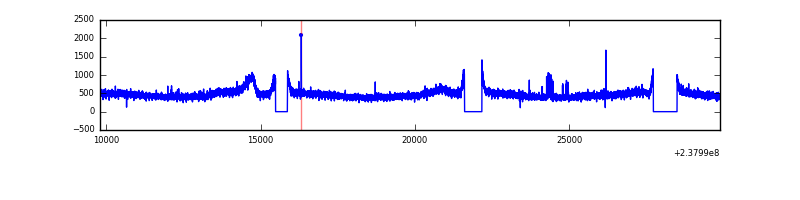

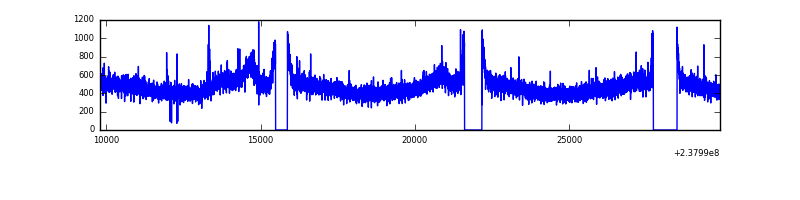

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20097 | 18380 | 1 | 1 | 0.00% | 0.01% |  |
| B | 20097 | 18380 | 0 | 0 | 0.00% | 0.00% |  |
| C | 20097 | 18380 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20097 | 18380 | 187 | 187 | 0.93% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 94490 | 203.7 | 2246 | 2206 | 453.0 |
| A | 0 | 226 | 20255 | 39.84 | 2246 | 2206 | 453.0 |
| A | 12 | 194 | 17927 | 34.7 | 2246 | 2206 | 453.0 |
| B | 12 | 111 | 49884 | 110.51 | 2230 | 2183 | 431.6 |
| B | 11 | 111 | 42162 | 92.62 | 2230 | 2183 | 431.6 |
| B | 0 | 85 | 38303 | 83.68 | 2230 | 2183 | 431.6 |
| C | 9 | 54 | 20204 | 35.03 | 2188 | 2208 | 513.7 |
| C | 13 | 61 | 15942 | 26.73 | 2188 | 2208 | 513.7 |
| C | 1 | 3 | 12510 | 20.05 | 2188 | 2208 | 513.7 |
| D | 1 | 52 | 961746 | 1704.06 | 2158 | 2124 | 563.1 |
| D | 13 | 137 | 163813 | 287.12 | 2158 | 2124 | 563.1 |
| D | 2 | 234 | 64267 | 110.35 | 2158 | 2124 | 563.1 |

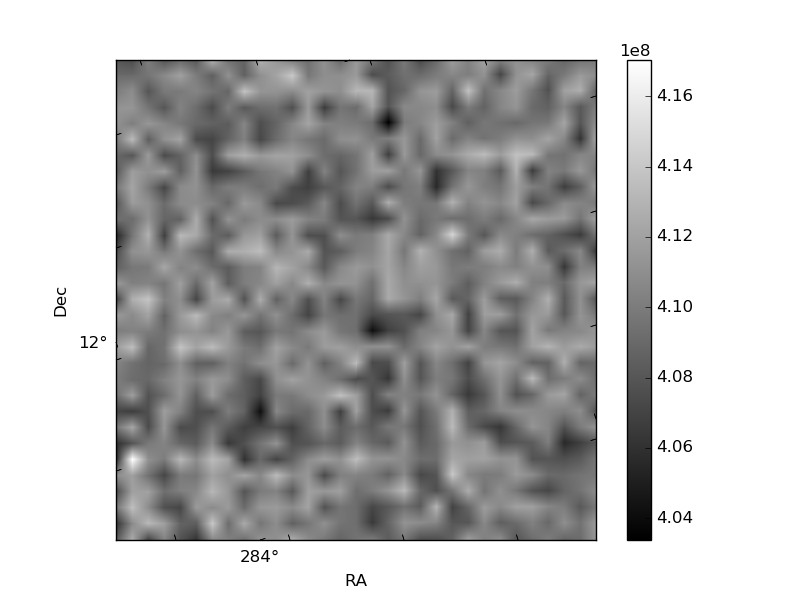

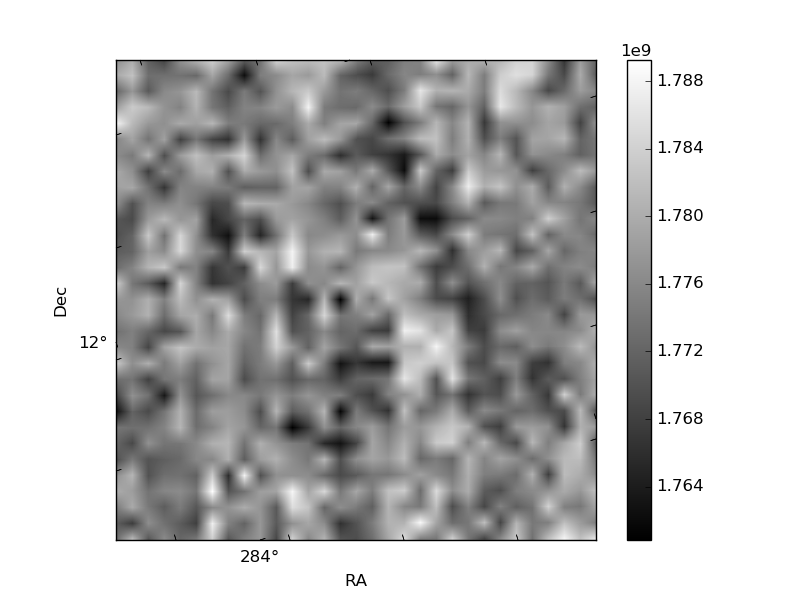

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

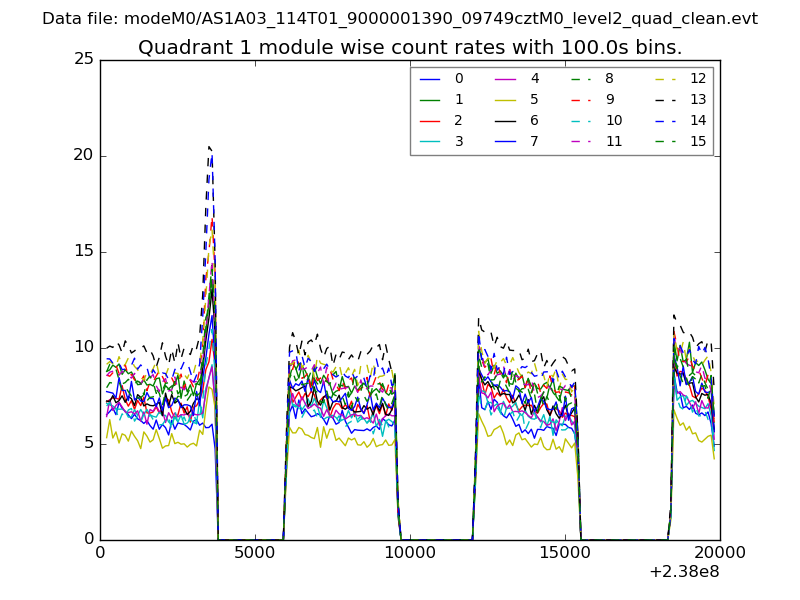

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

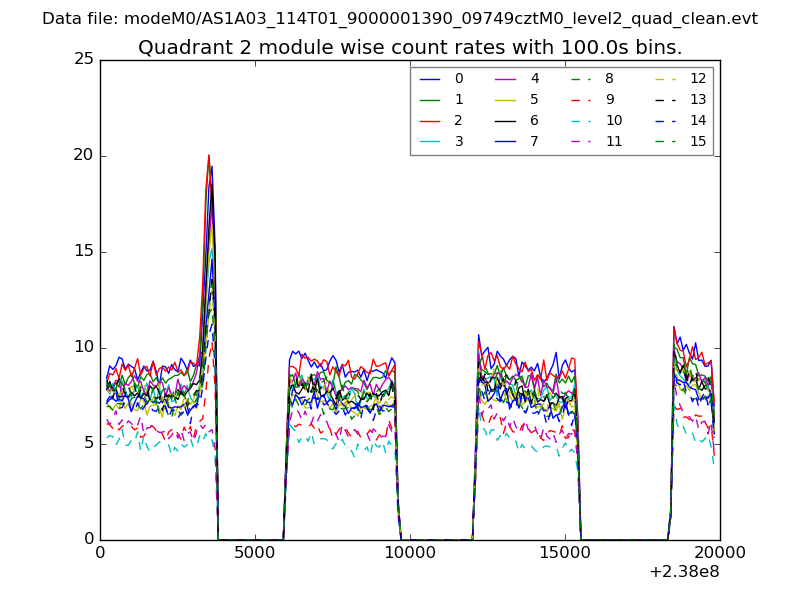

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

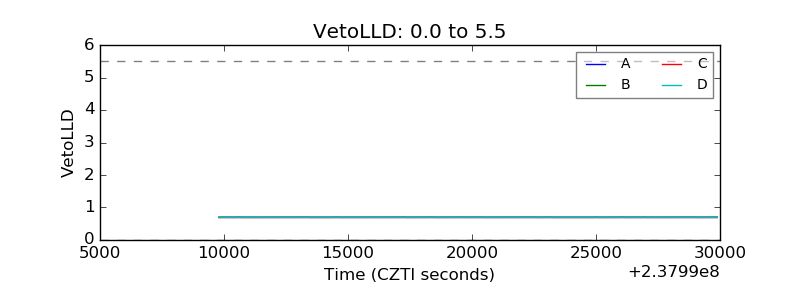

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

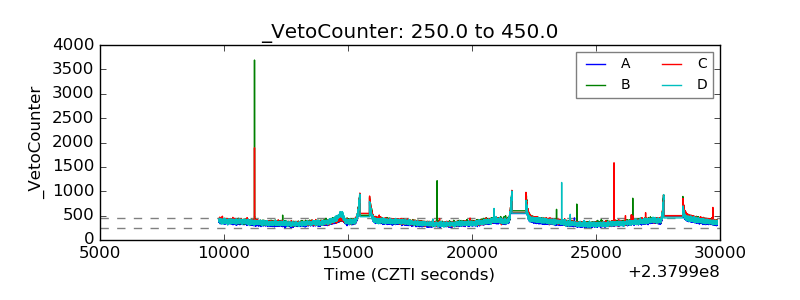

| Veto Counter |  |
