| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_080T01_9000001392_09767cztM0_level2.evt | modeM0/AS1A03_080T01_9000001392_09767cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,010,560 | 90,397,440 |
| Size | 400.6 MB | 86.2 MB |
| Events in quadrant A | 2,958,392 | 574,300 |
| Events in quadrant B | 3,234,263 | 583,645 |
| Events in quadrant C | 2,893,829 | 579,945 |
| Events in quadrant D | 3,196,980 | 552,048 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13211 | 79 |
| B | 0 | 14030 | 83 |
| C | 0 | 13076 | 81 |
| D | 0 | 14168 | 78 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6415 | 41 | 0.639127% |
| B | 6417 | 79 | 1.231105% |
| C | 6414 | 30 | 0.467727% |
| D | 6423 | 83 | 1.292231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6454 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7603 | 6453 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7603 | 6453 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7603 | 6454 | 31 | 31 | 0.41% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 32724 | 208.76 | 754 | 738 | 153.2 |
| A | 8 | 15 | 15155 | 94.09 | 754 | 738 | 153.2 |
| A | 0 | 226 | 6911 | 40.29 | 754 | 738 | 153.2 |
| B | 4 | 239 | 117304 | 803.11 | 763 | 745 | 145.1 |
| B | 0 | 214 | 85477 | 583.82 | 763 | 745 | 145.1 |
| B | 10 | 245 | 22999 | 153.33 | 763 | 745 | 145.1 |
| C | 14 | 128 | 8735 | 46.76 | 738 | 742 | 170.9 |
| C | 13 | 61 | 5667 | 28.81 | 738 | 742 | 170.9 |
| C | 8 | 222 | 2959 | 12.97 | 738 | 742 | 170.9 |
| D | 1 | 52 | 275255 | 1547.61 | 724 | 705 | 177.4 |
| D | 2 | 152 | 60332 | 336.11 | 724 | 705 | 177.4 |
| D | 2 | 16 | 30969 | 170.59 | 724 | 705 | 177.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

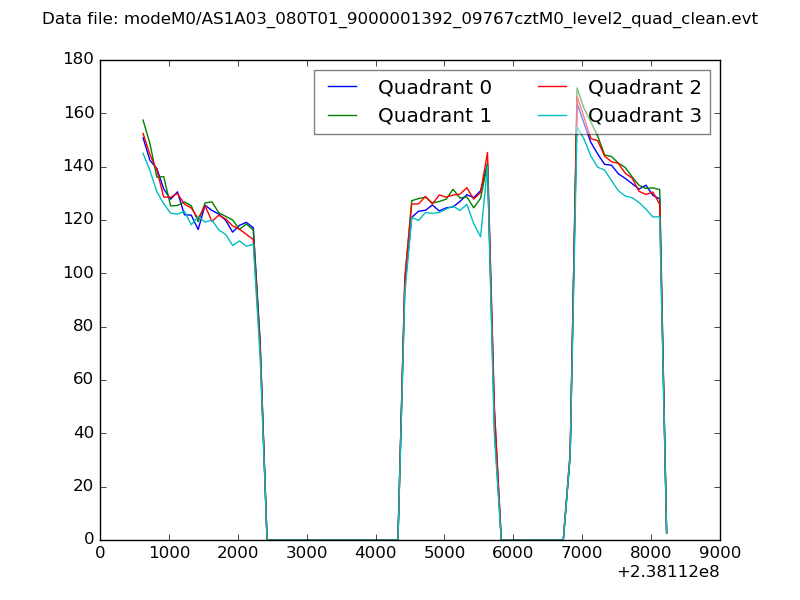

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

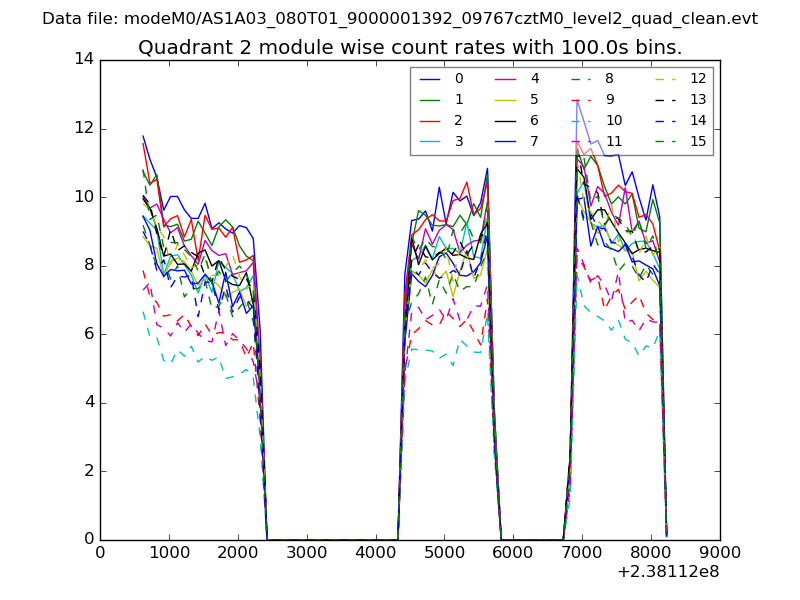

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

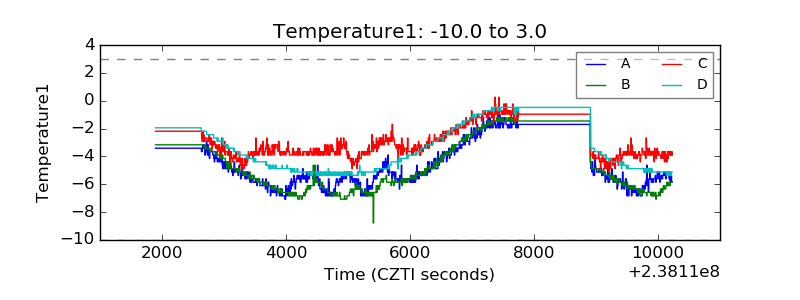

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

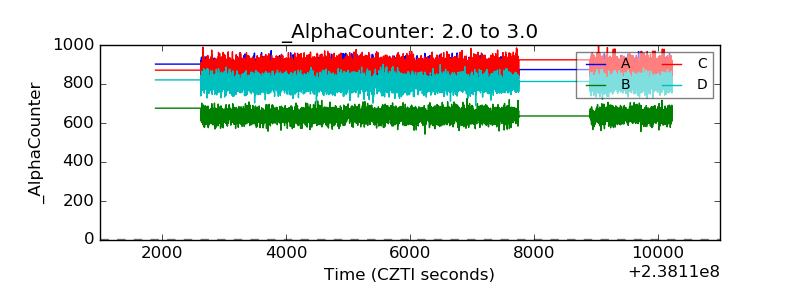

| Alpha Counter |  |

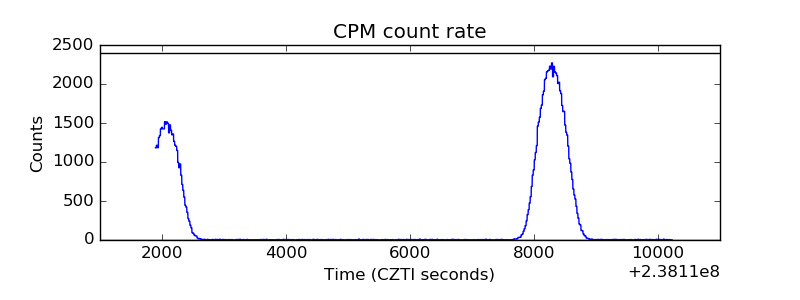

| _CPM_Rate |  |

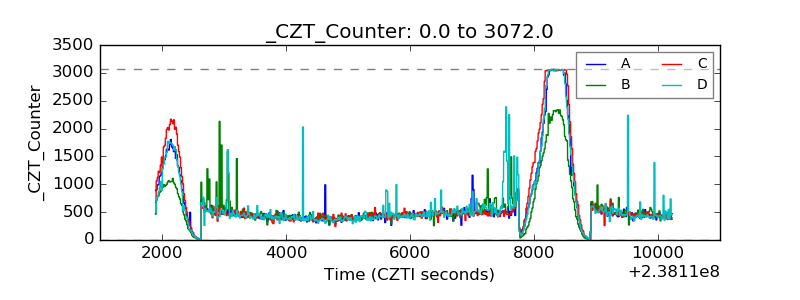

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

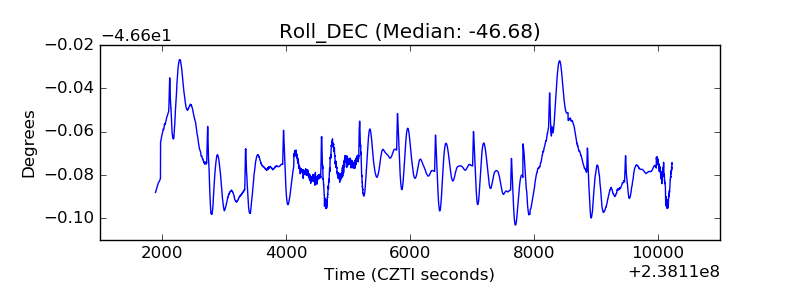

| _Roll_DEC |  |
| _Roll_RA |  |

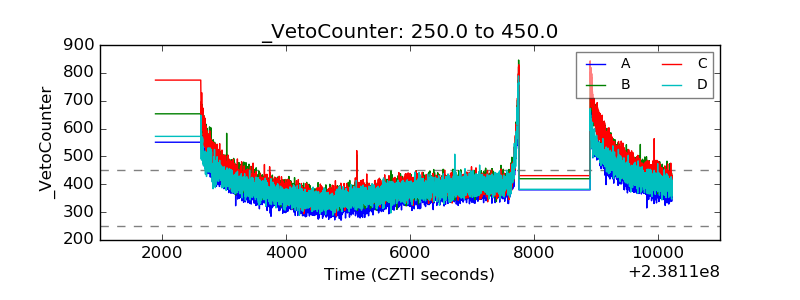

| Veto Counter |  |
