| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_080T01_9000001392_09769cztM0_level2.evt | modeM0/AS1A03_080T01_9000001392_09769cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,502,400 | 79,341,120 |
| Size | 436.3 MB | 75.7 MB |
| Events in quadrant A | 3,118,477 | 486,466 |
| Events in quadrant B | 3,305,161 | 500,331 |
| Events in quadrant C | 3,099,270 | 497,990 |
| Events in quadrant D | 3,894,588 | 467,950 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13315 | 3 |
| B | 0 | 13817 | 2 |
| C | 0 | 13249 | 2 |
| D | 0 | 15841 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 20 | 0.310029% |
| B | 6451 | 41 | 0.635560% |
| C | 6451 | 20 | 0.310029% |
| D | 6451 | 109 | 1.689661% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

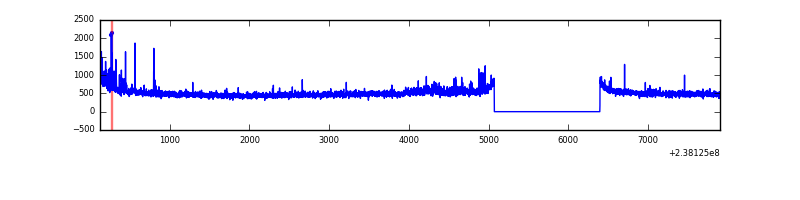

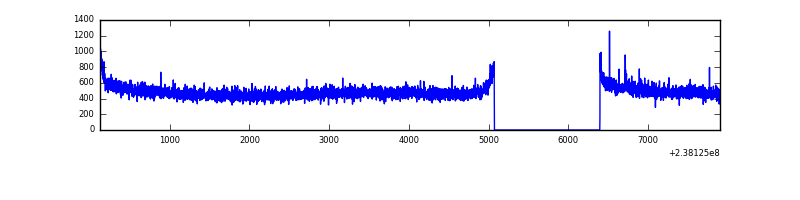

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7776 | 6452 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7776 | 6452 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7776 | 6452 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7776 | 6452 | 67 | 67 | 0.86% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 32866 | 199.99 | 798 | 784 | 160.4 |
| A | 15 | 239 | 7354 | 40.95 | 798 | 784 | 160.4 |
| A | 0 | 226 | 7344 | 40.89 | 798 | 784 | 160.4 |
| B | 0 | 214 | 65598 | 431.17 | 811 | 792 | 150.3 |
| B | 4 | 48 | 61675 | 405.07 | 811 | 792 | 150.3 |
| B | 10 | 245 | 17097 | 108.48 | 811 | 792 | 150.3 |
| C | 12 | 4 | 8600 | 43.15 | 792 | 798 | 180.8 |
| C | 13 | 61 | 6063 | 29.12 | 792 | 798 | 180.8 |
| C | 14 | 67 | 2147 | 7.46 | 792 | 798 | 180.8 |
| D | 1 | 52 | 305414 | 1654.74 | 774 | 755 | 184.1 |
| D | 12 | 233 | 244912 | 1326.13 | 774 | 755 | 184.1 |
| D | 7 | 46 | 157950 | 853.8 | 774 | 755 | 184.1 |

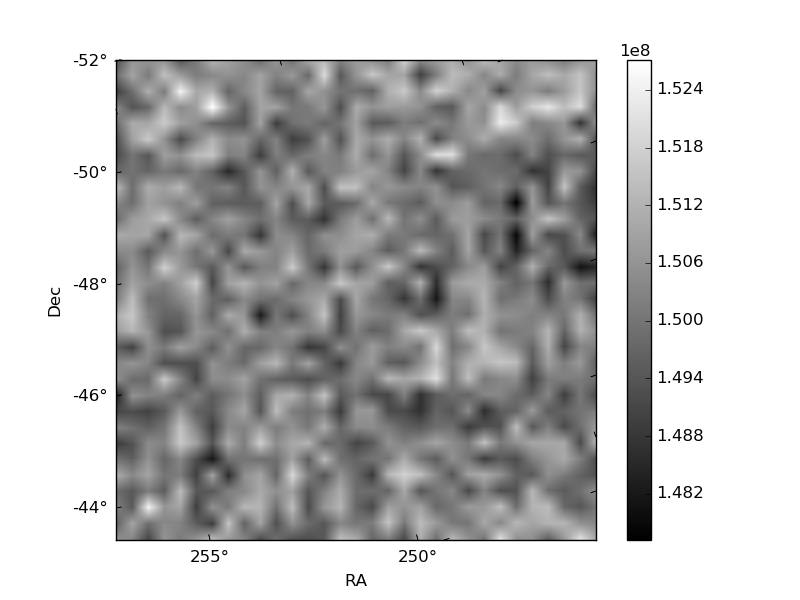

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

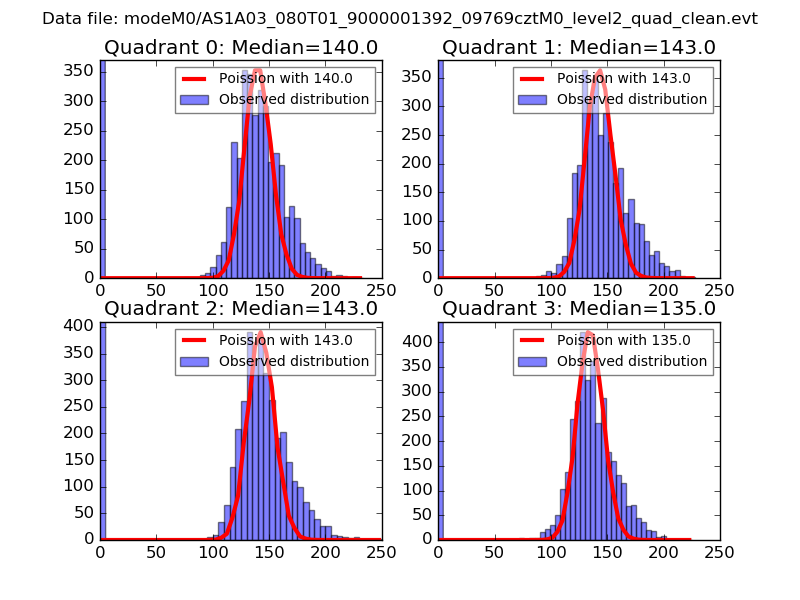

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

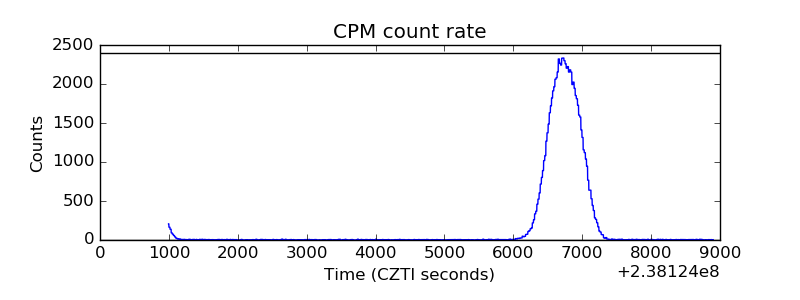

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

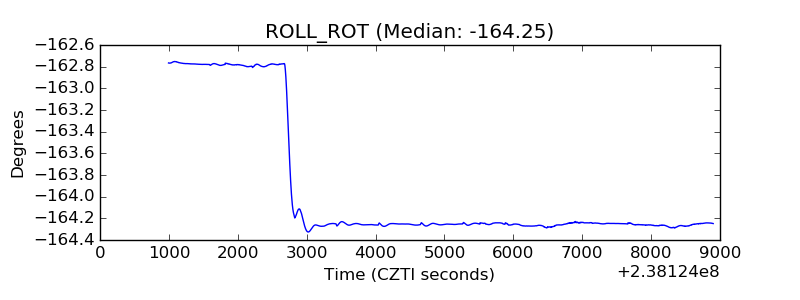

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

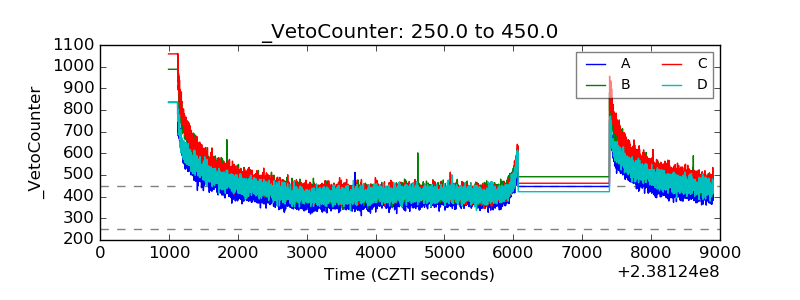

| Veto Counter |  |
