| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T01_9000001394_09789cztM0_level2.evt | modeM0/AS1G05_218T01_9000001394_09789cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,778,240 | 83,041,920 |
| Size | 531.9 MB | 79.2 MB |
| Events in quadrant A | 3,752,941 | 498,411 |
| Events in quadrant B | 3,923,444 | 504,349 |
| Events in quadrant C | 3,690,268 | 493,867 |
| Events in quadrant D | 4,993,314 | 472,807 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 4 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 2 |
| D | 0 | 166 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16633 | 204 |
| B | 0 | 16953 | 221 |
| C | 0 | 16674 | 187 |
| D | 0 | 20508 | 338 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7838 | 213 | 2.717530% |
| B | 7839 | 224 | 2.857507% |
| C | 7850 | 157 | 2.000000% |
| D | 7830 | 371 | 4.738186% |

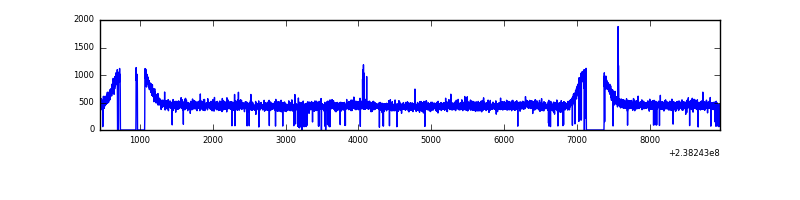

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8508 | 7931 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8510 | 7931 | 7 | 7 | 0.08% | 0.09% |  |
| C | 8510 | 7935 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8510 | 7932 | 148 | 148 | 1.74% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 253 | 11836 | 54.24 | 971 | 948 | 200.7 |
| A | 0 | 226 | 8980 | 40.01 | 971 | 948 | 200.7 |
| A | 13 | 251 | 8083 | 35.54 | 971 | 948 | 200.7 |
| B | 0 | 214 | 52712 | 268.61 | 970 | 945 | 192.7 |
| B | 4 | 239 | 33083 | 166.76 | 970 | 945 | 192.7 |
| B | 0 | 187 | 32532 | 163.9 | 970 | 945 | 192.7 |
| C | 9 | 54 | 9510 | 38.9 | 938 | 944 | 220.2 |
| C | 14 | 234 | 8472 | 34.19 | 938 | 944 | 220.2 |
| C | 13 | 61 | 6968 | 27.36 | 938 | 944 | 220.2 |
| D | 12 | 233 | 437821 | 1862.58 | 931 | 904 | 234.6 |
| D | 2 | 152 | 371420 | 1579.51 | 931 | 904 | 234.6 |
| D | 13 | 104 | 260963 | 1108.63 | 931 | 904 | 234.6 |

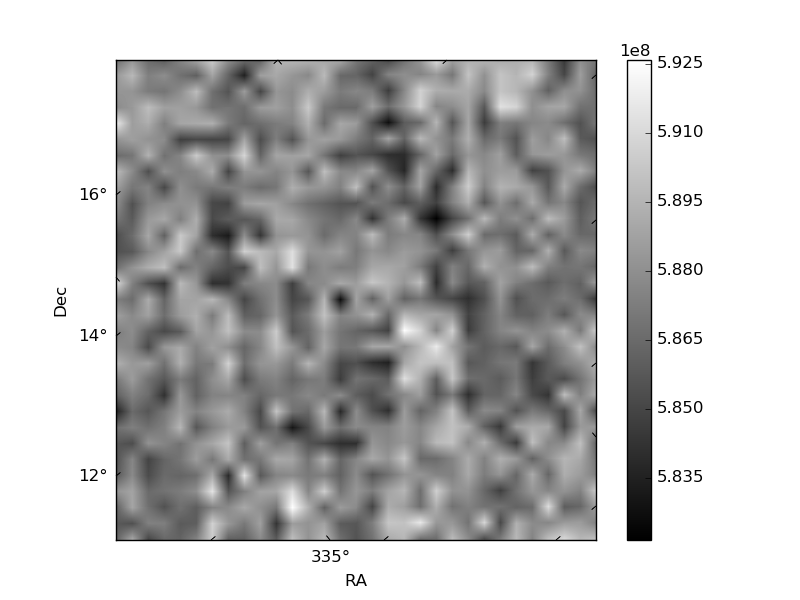

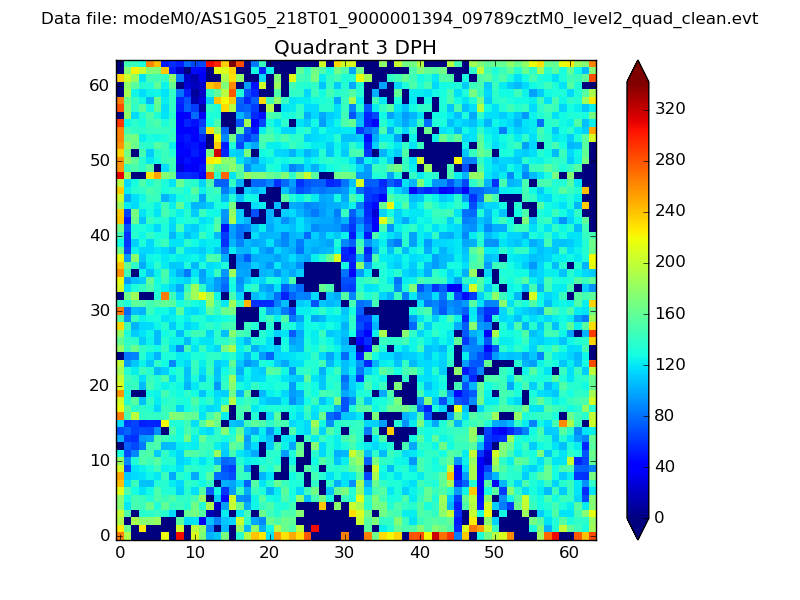

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

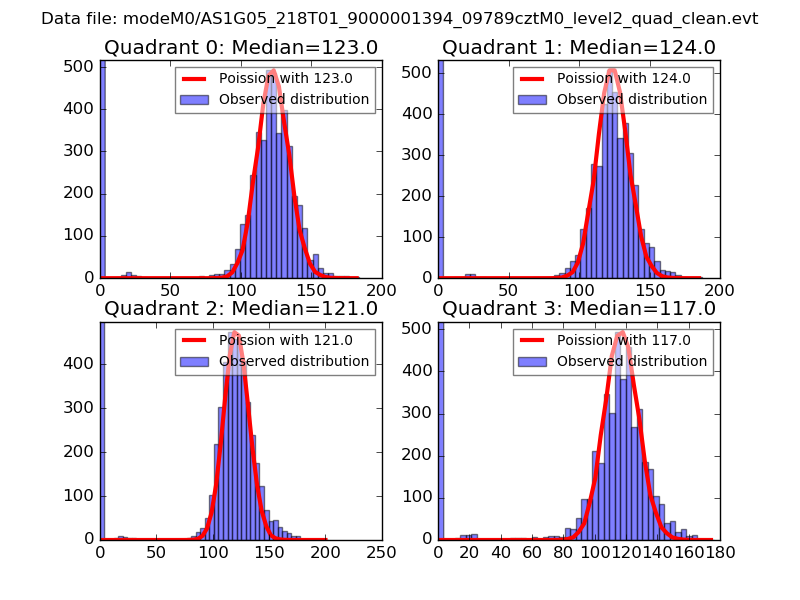

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

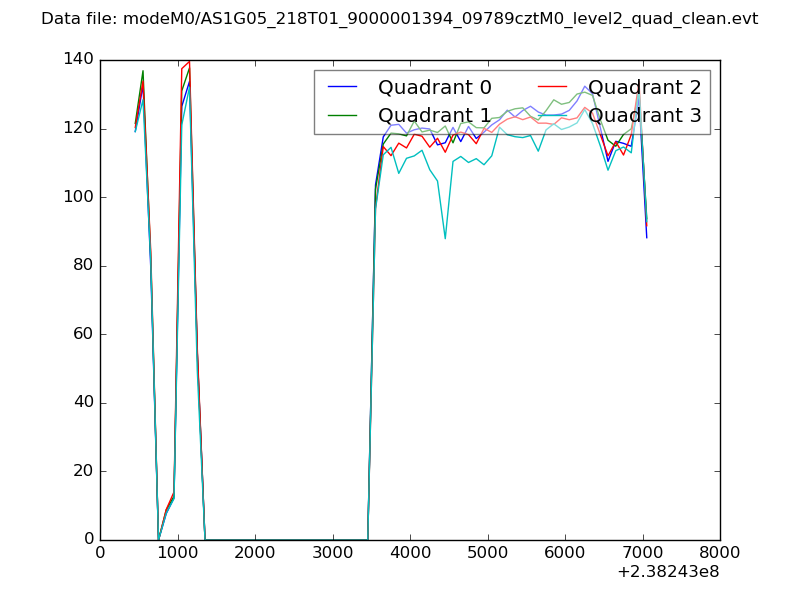

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

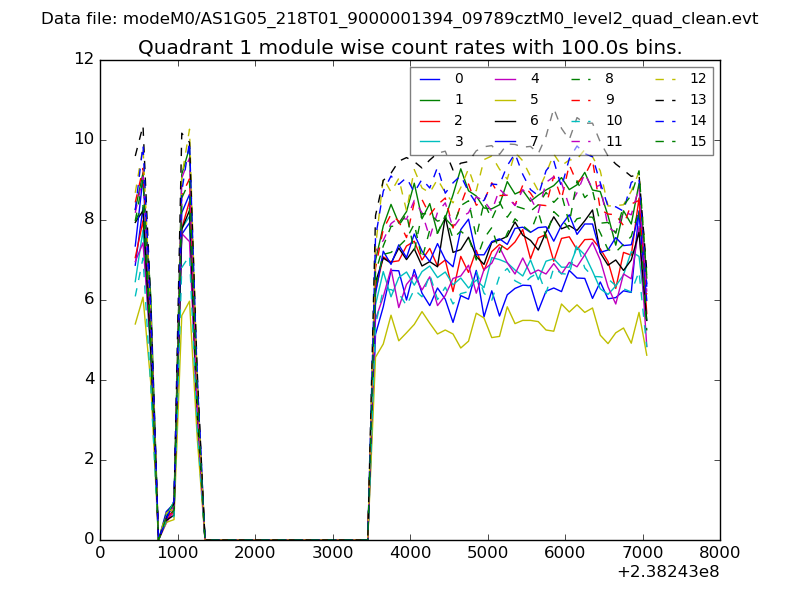

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

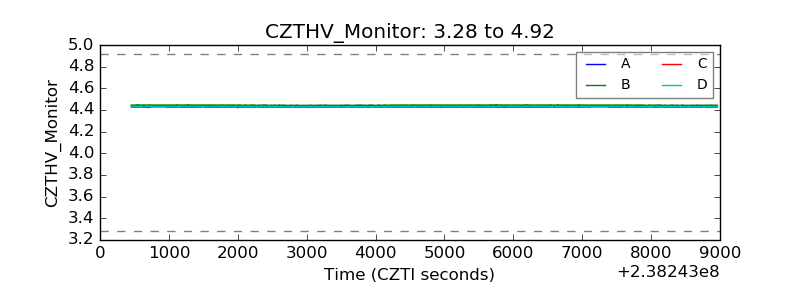

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
