| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T01_9000001394_09804cztM0_level2.evt | modeM0/AS1G05_218T01_9000001394_09804cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,380,480 | 82,670,400 |
| Size | 639.3 MB | 78.8 MB |
| Events in quadrant A | 3,934,266 | 494,682 |
| Events in quadrant B | 4,160,686 | 502,230 |
| Events in quadrant C | 3,862,466 | 489,554 |
| Events in quadrant D | 7,805,128 | 462,551 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 2 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17117 | 82 |
| B | 0 | 17623 | 94 |
| C | 0 | 17175 | 94 |
| D | 0 | 29015 | 328 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7973 | 397 | 4.979305% |
| B | 7969 | 446 | 5.596687% |
| C | 7968 | 329 | 4.129016% |
| D | 7945 | 1168 | 14.701070% |

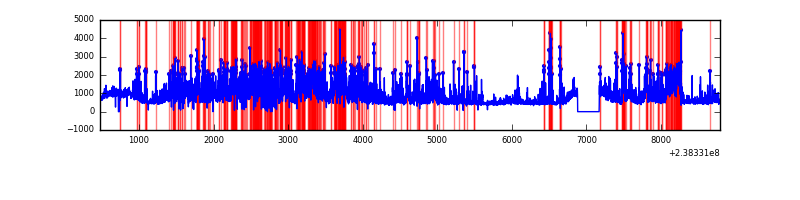

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8316 | 8013 | 7 | 7 | 0.08% | 0.09% |  |
| B | 8316 | 8013 | 14 | 14 | 0.17% | 0.17% |  |
| C | 8316 | 8011 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8316 | 8009 | 546 | 546 | 6.57% | 6.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 46253 | 217.51 | 1005 | 982 | 208.1 |
| A | 0 | 226 | 9057 | 38.8 | 1005 | 982 | 208.1 |
| A | 12 | 194 | 8375 | 35.52 | 1005 | 982 | 208.1 |
| B | 0 | 214 | 94551 | 470.23 | 999 | 972 | 199.0 |
| B | 4 | 239 | 73461 | 364.25 | 999 | 972 | 199.0 |
| B | 4 | 142 | 31778 | 154.8 | 999 | 972 | 199.0 |
| C | 14 | 234 | 17937 | 73.64 | 974 | 975 | 230.3 |
| C | 5 | 128 | 17697 | 72.6 | 974 | 975 | 230.3 |
| C | 8 | 128 | 13242 | 53.26 | 974 | 975 | 230.3 |
| D | 1 | 52 | 3562131 | 14638.32 | 941 | 914 | 243.3 |
| D | 2 | 152 | 299115 | 1225.75 | 941 | 914 | 243.3 |
| D | 9 | 85 | 96236 | 391.82 | 941 | 914 | 243.3 |

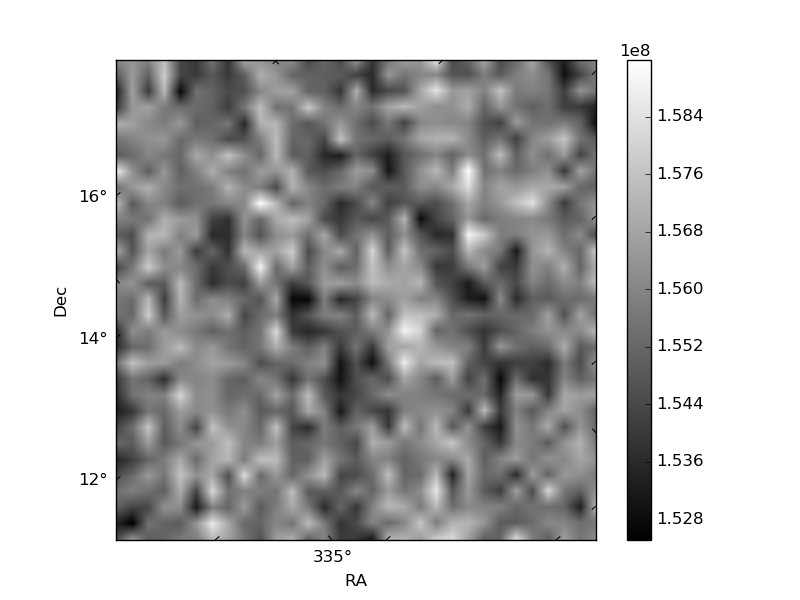

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

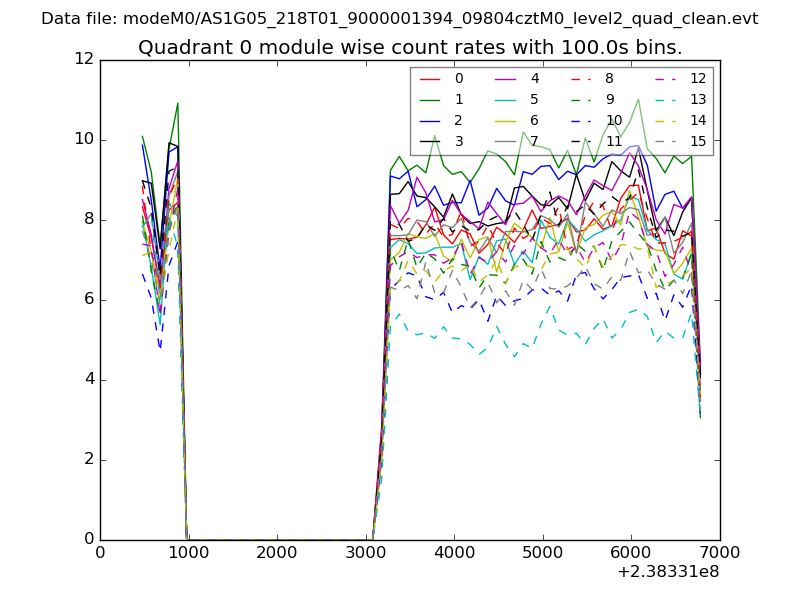

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

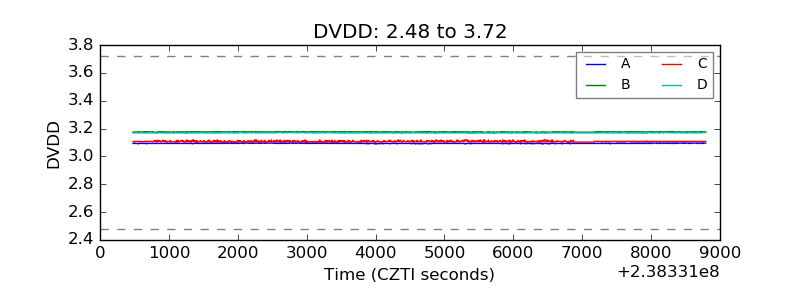

| D_VDD |  |

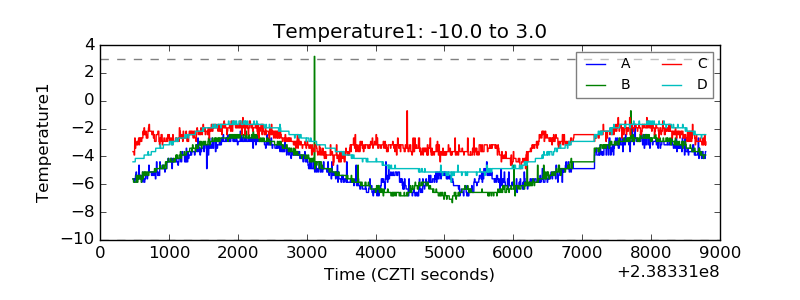

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

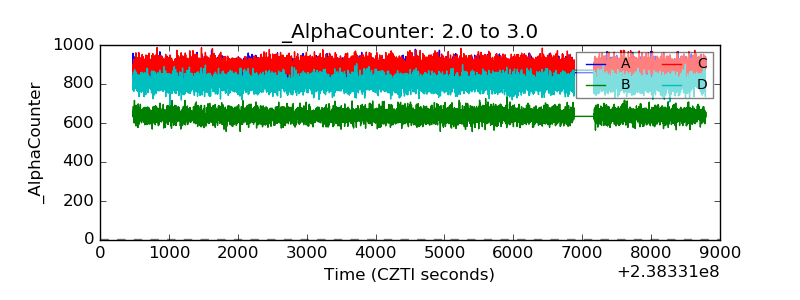

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

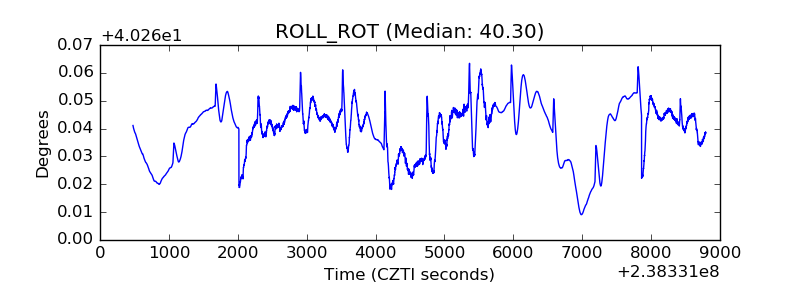

| _ROLL_ROT |  |
| _Roll_DEC |  |

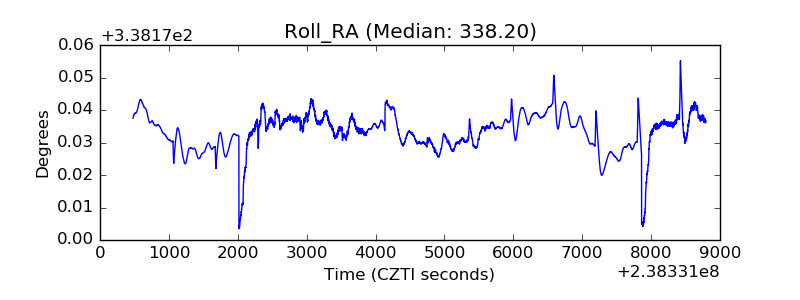

| _Roll_RA |  |
| Veto Counter |  |
