| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T01_9000001394_09812cztM0_level2.evt | modeM0/AS1G05_218T01_9000001394_09812cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,728,640 | 127,477,440 |
| Size | 601.5 MB | 121.6 MB |
| Events in quadrant A | 4,557,469 | 804,086 |
| Events in quadrant B | 4,654,518 | 822,979 |
| Events in quadrant C | 4,455,066 | 796,634 |
| Events in quadrant D | 4,776,568 | 765,758 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 26 |
| B | 0 | 218 | 12 |
| C | 0 | 218 | 24 |
| D | 0 | 218 | 12 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21849 | 2044 |
| B | 0 | 22248 | 2129 |
| C | 0 | 21874 | 2040 |
| D | 0 | 23096 | 2183 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 2 |
| B | 0 | 25 | 1 |
| C | 0 | 25 | 2 |
| D | 0 | 25 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9678 | 31 | 0.320314% |
| B | 9658 | 58 | 0.600538% |
| C | 9681 | 29 | 0.299556% |
| D | 9638 | 52 | 0.539531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

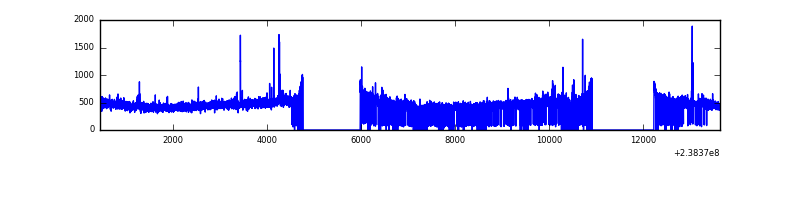

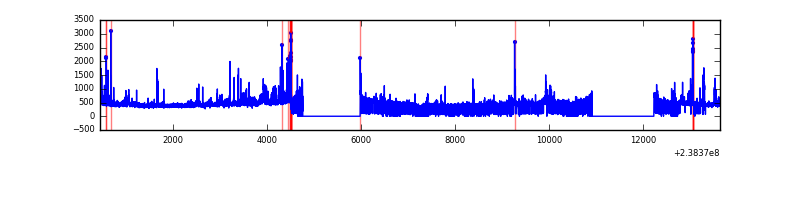

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13184 | 10362 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13184 | 10355 | 0 | 0 | 0.00% | 0.00% |  |
| C | 13184 | 10356 | 4 | 4 | 0.03% | 0.04% |  |
| D | 13184 | 10335 | 22 | 22 | 0.17% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 31450 | 129.4 | 1170 | 1150 | 234.2 |
| A | 0 | 226 | 10478 | 39.84 | 1170 | 1150 | 234.2 |
| A | 12 | 194 | 9467 | 35.52 | 1170 | 1150 | 234.2 |
| B | 0 | 85 | 37112 | 162.57 | 1174 | 1148 | 221.2 |
| B | 0 | 229 | 27925 | 121.04 | 1174 | 1148 | 221.2 |
| B | 12 | 111 | 24929 | 107.5 | 1174 | 1148 | 221.2 |
| C | 10 | 22 | 18865 | 67.56 | 1136 | 1144 | 262.3 |
| C | 13 | 61 | 8477 | 27.96 | 1136 | 1144 | 262.3 |
| C | 0 | 207 | 3478 | 8.9 | 1136 | 1144 | 262.3 |
| D | 2 | 152 | 243998 | 836.63 | 1117 | 1094 | 290.3 |
| D | 1 | 52 | 127730 | 436.17 | 1117 | 1094 | 290.3 |
| D | 2 | 234 | 39646 | 132.78 | 1117 | 1094 | 290.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

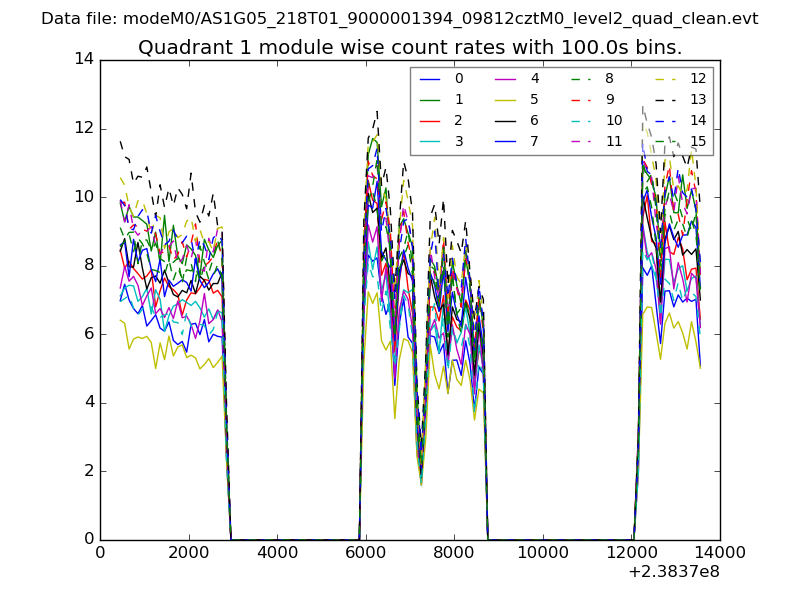

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

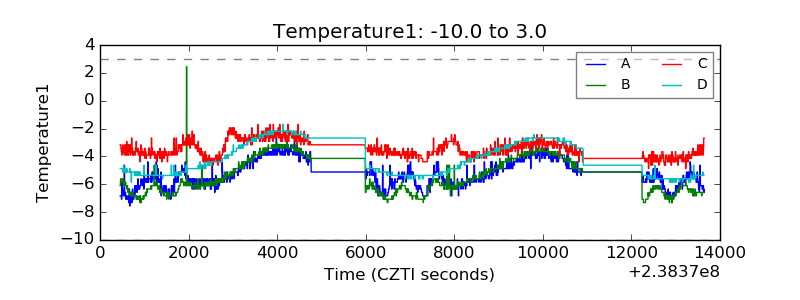

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

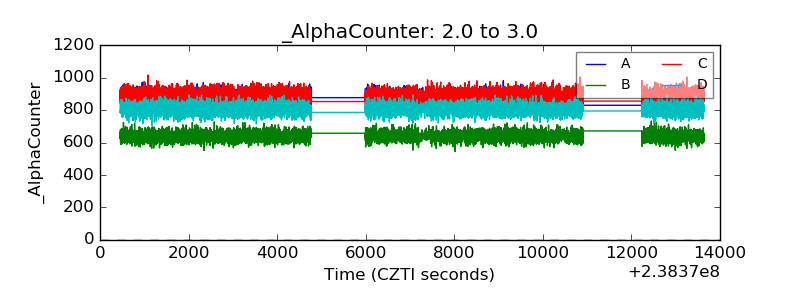

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

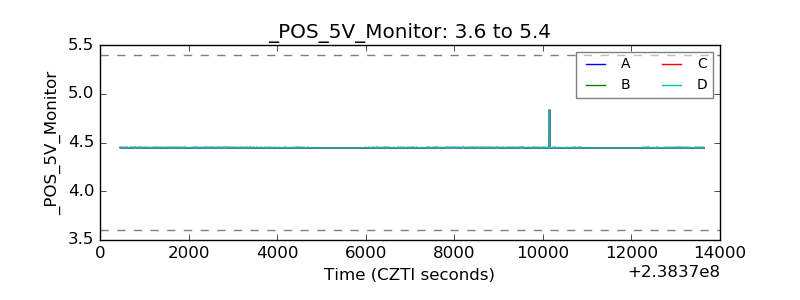

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

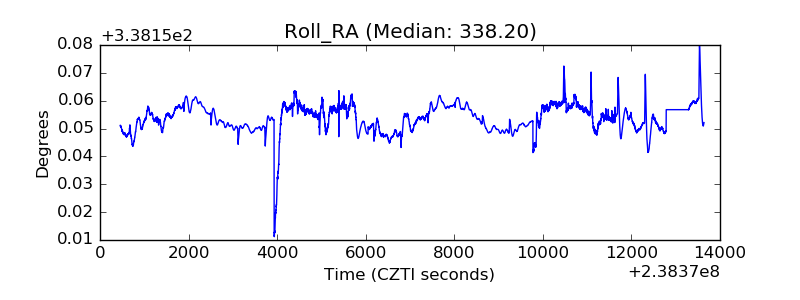

| _Roll_RA |  |
| Veto Counter |  |
