| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T01_9000001394_09815cztM0_level2.evt | modeM0/AS1G05_218T01_9000001394_09815cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,961,280 | 82,981,440 |
| Size | 439.6 MB | 79.1 MB |
| Events in quadrant A | 3,136,966 | 517,869 |
| Events in quadrant B | 3,194,863 | 527,895 |
| Events in quadrant C | 3,009,155 | 511,167 |
| Events in quadrant D | 4,170,814 | 495,663 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13519 | 2 |
| B | 0 | 13662 | 1 |
| C | 0 | 13449 | 1 |
| D | 0 | 16867 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6593 | 73 | 1.107235% |
| B | 6593 | 92 | 1.395419% |
| C | 6593 | 37 | 0.561201% |
| D | 6593 | 166 | 2.517822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7623 | 6594 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7623 | 6594 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7623 | 6594 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7623 | 6594 | 87 | 87 | 1.14% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 16082 | 93.73 | 803 | 787 | 163.2 |
| A | 8 | 15 | 15642 | 91.04 | 803 | 787 | 163.2 |
| A | 0 | 226 | 7449 | 40.83 | 803 | 787 | 163.2 |
| B | 0 | 85 | 28813 | 181.69 | 799 | 781 | 154.3 |
| B | 4 | 48 | 26046 | 163.75 | 799 | 781 | 154.3 |
| B | 12 | 111 | 17597 | 108.99 | 799 | 781 | 154.3 |
| C | 13 | 61 | 5861 | 28.5 | 768 | 773 | 178.6 |
| C | 0 | 207 | 5138 | 24.45 | 768 | 773 | 178.6 |
| C | 10 | 22 | 4225 | 19.33 | 768 | 773 | 178.6 |
| D | 1 | 52 | 982734 | 4928.19 | 763 | 748 | 199.3 |
| D | 2 | 14 | 81038 | 402.94 | 763 | 748 | 199.3 |
| D | 2 | 152 | 78589 | 390.65 | 763 | 748 | 199.3 |

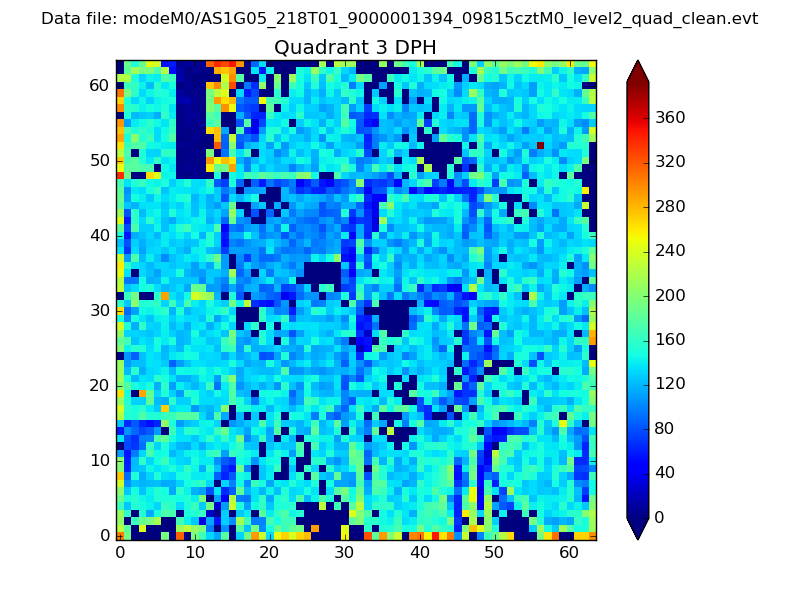

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

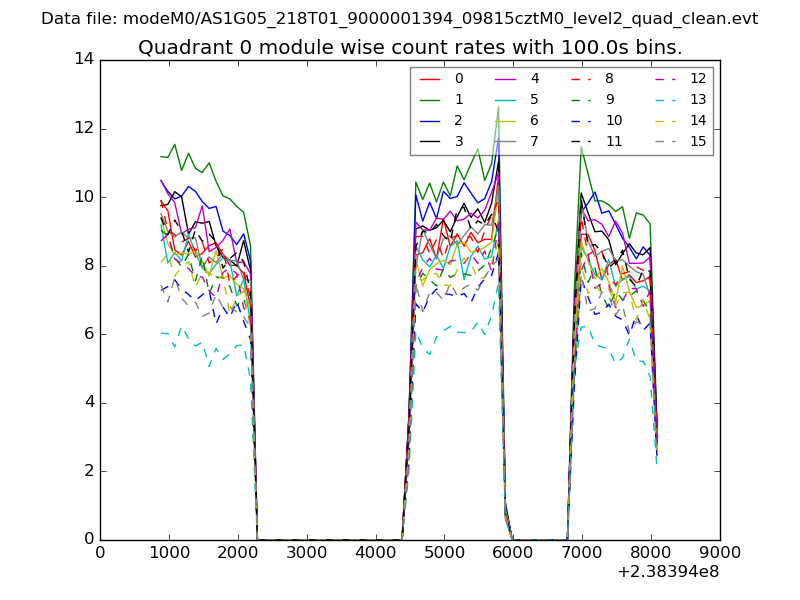

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

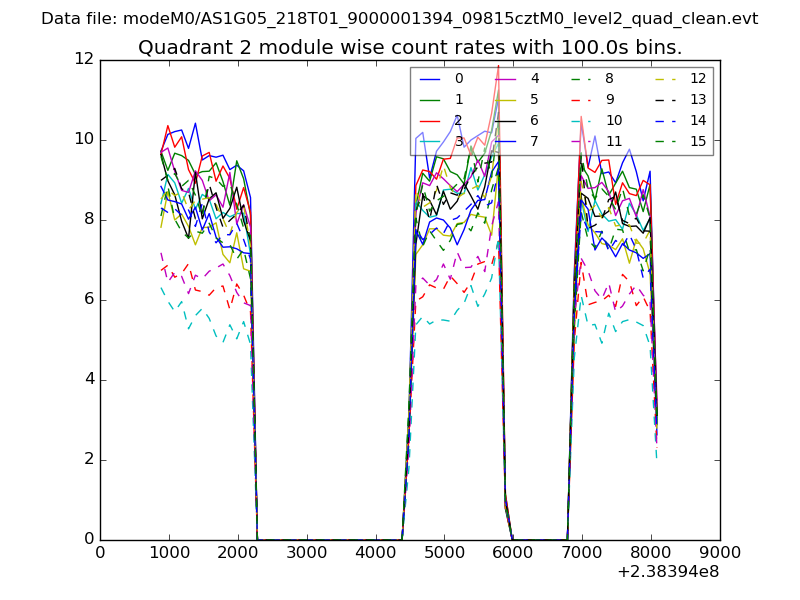

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

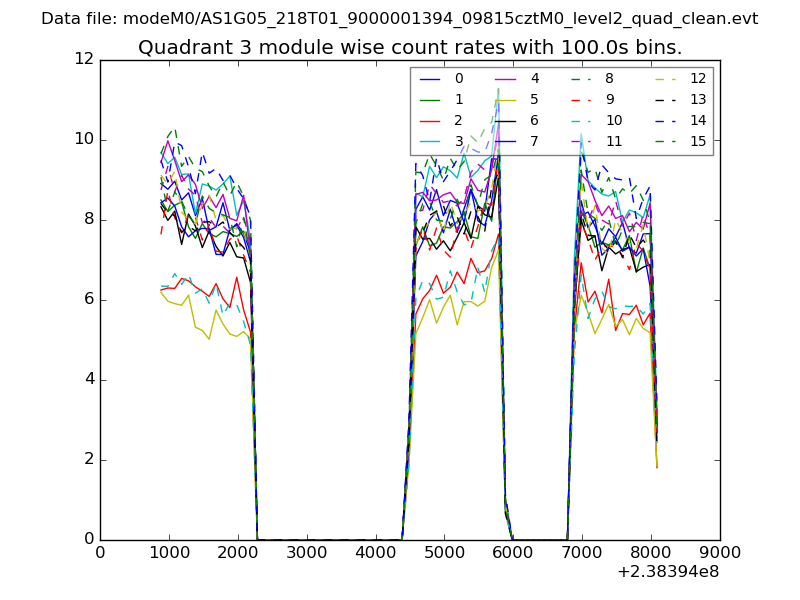

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

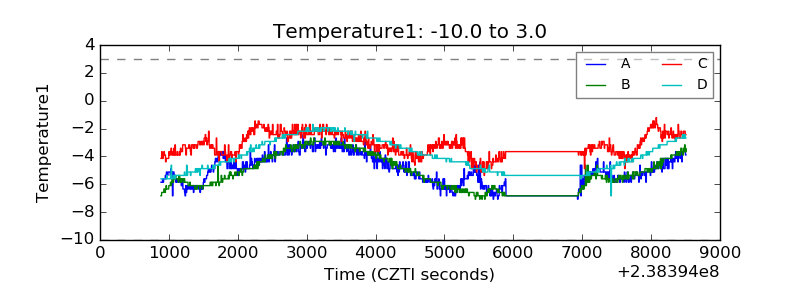

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
