| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_020T01_9000001398_09823cztM0_level2.evt | modeM0/AS1G07_020T01_9000001398_09823cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,416,640 | 88,450,560 |
| Size | 581.2 MB | 84.4 MB |
| Events in quadrant A | 3,115,007 | 571,982 |
| Events in quadrant B | 4,708,093 | 558,596 |
| Events in quadrant C | 2,968,668 | 567,842 |
| Events in quadrant D | 7,215,575 | 517,035 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13810 | 3 |
| B | 0 | 18473 | 2 |
| C | 0 | 13532 | 2 |
| D | 0 | 26165 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6634 | 32 | 0.482364% |
| B | 6634 | 355 | 5.351221% |
| C | 6634 | 23 | 0.346699% |
| D | 6634 | 367 | 5.532107% |

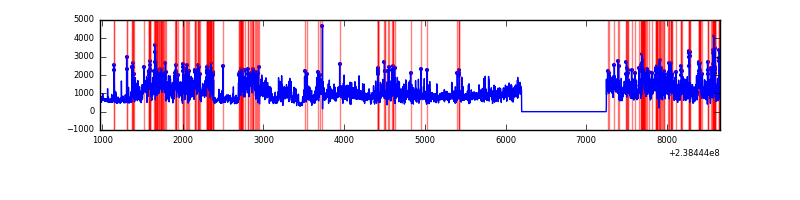

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6635 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7684 | 6635 | 176 | 176 | 2.29% | 2.65% |  |
| C | 7684 | 6635 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7684 | 6635 | 274 | 274 | 3.57% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 63590 | 387.62 | 788 | 773 | 162.1 |
| A | 0 | 226 | 7388 | 40.82 | 788 | 773 | 162.1 |
| A | 8 | 4 | 6864 | 37.59 | 788 | 773 | 162.1 |
| B | 4 | 173 | 907034 | 6060.08 | 784 | 766 | 149.5 |
| B | 0 | 85 | 259499 | 1730.11 | 784 | 766 | 149.5 |
| B | 4 | 239 | 183044 | 1218.87 | 784 | 766 | 149.5 |
| C | 13 | 61 | 5763 | 27.98 | 760 | 764 | 178.7 |
| C | 14 | 67 | 1991 | 6.87 | 760 | 764 | 178.7 |
| C | 3 | 202 | 1912 | 6.42 | 760 | 764 | 178.7 |
| D | 5 | 113 | 3569740 | 19572.31 | 739 | 723 | 182.4 |
| D | 2 | 152 | 329339 | 1802.11 | 739 | 723 | 182.4 |
| D | 7 | 71 | 128926 | 703.06 | 739 | 723 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

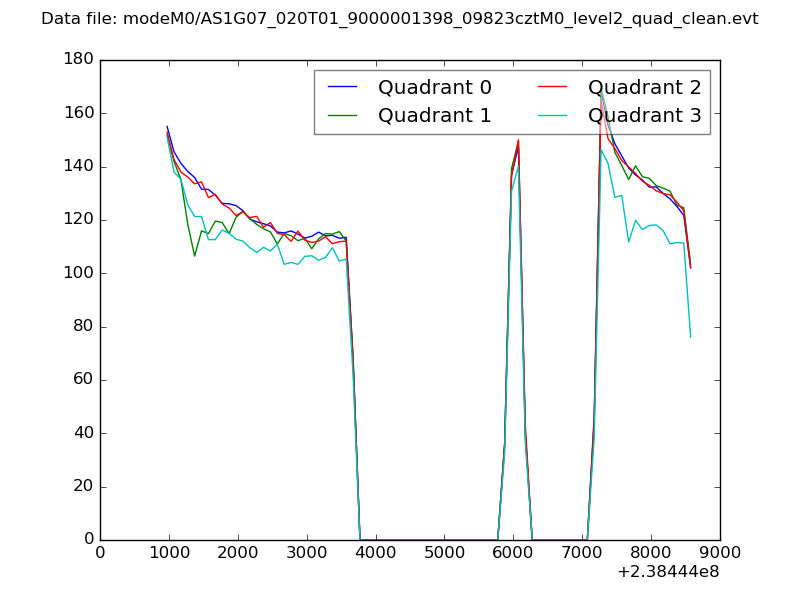

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

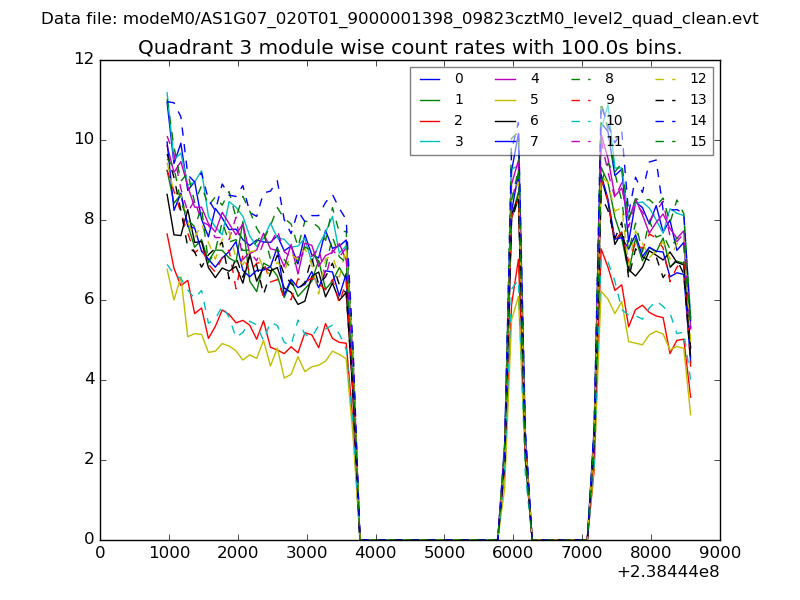

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

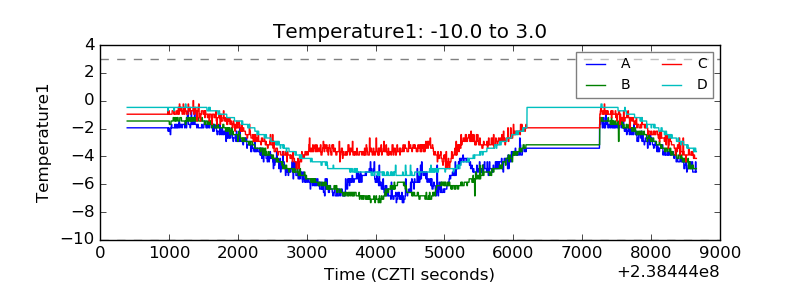

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

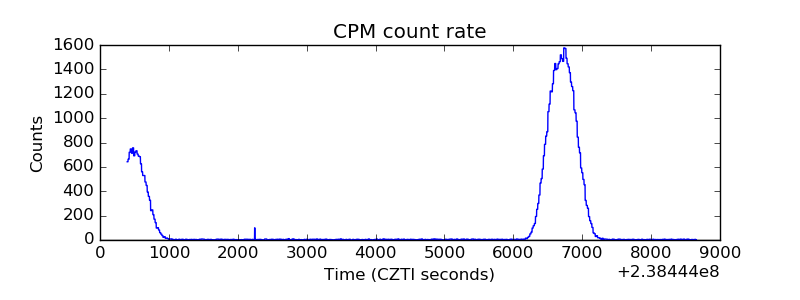

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

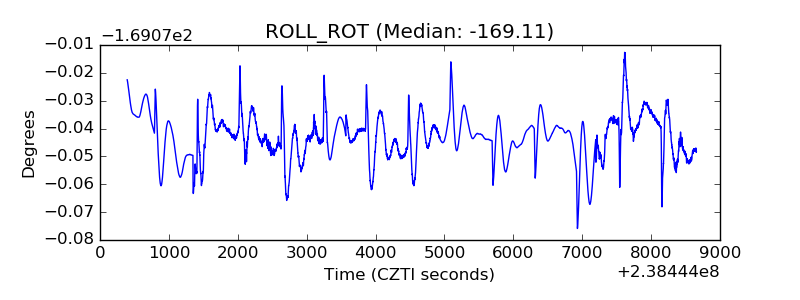

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
