| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_020T01_9000001398_09826cztM0_level2.evt | modeM0/AS1G07_020T01_9000001398_09826cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,925,120 | 88,548,480 |
| Size | 480.6 MB | 84.4 MB |
| Events in quadrant A | 2,992,876 | 569,807 |
| Events in quadrant B | 3,207,231 | 589,354 |
| Events in quadrant C | 2,910,819 | 575,624 |
| Events in quadrant D | 5,727,385 | 511,235 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12948 | 3 |
| B | 0 | 13536 | 2 |
| C | 0 | 12758 | 2 |
| D | 0 | 21296 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6233 | 26 | 0.417135% |
| B | 6233 | 52 | 0.834269% |
| C | 6233 | 12 | 0.192524% |
| D | 6233 | 323 | 5.182095% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7508 | 6234 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7508 | 6234 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7508 | 6234 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7508 | 6234 | 355 | 355 | 4.73% | 5.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 17512 | 107.69 | 765 | 751 | 155.6 |
| A | 15 | 174 | 9719 | 57.62 | 765 | 751 | 155.6 |
| A | 14 | 111 | 9475 | 56.05 | 765 | 751 | 155.6 |
| B | 4 | 239 | 61150 | 413.19 | 777 | 760 | 146.2 |
| B | 0 | 214 | 31341 | 209.23 | 777 | 760 | 146.2 |
| B | 0 | 219 | 26450 | 175.77 | 777 | 760 | 146.2 |
| C | 13 | 61 | 5512 | 27.46 | 745 | 750 | 173.4 |
| C | 10 | 22 | 4512 | 21.7 | 745 | 750 | 173.4 |
| C | 12 | 4 | 2120 | 7.9 | 745 | 750 | 173.4 |
| D | 5 | 113 | 1024265 | 5818.75 | 713 | 697 | 175.9 |
| D | 7 | 46 | 994619 | 5650.22 | 713 | 697 | 175.9 |
| D | 7 | 71 | 240135 | 1361.15 | 713 | 697 | 175.9 |

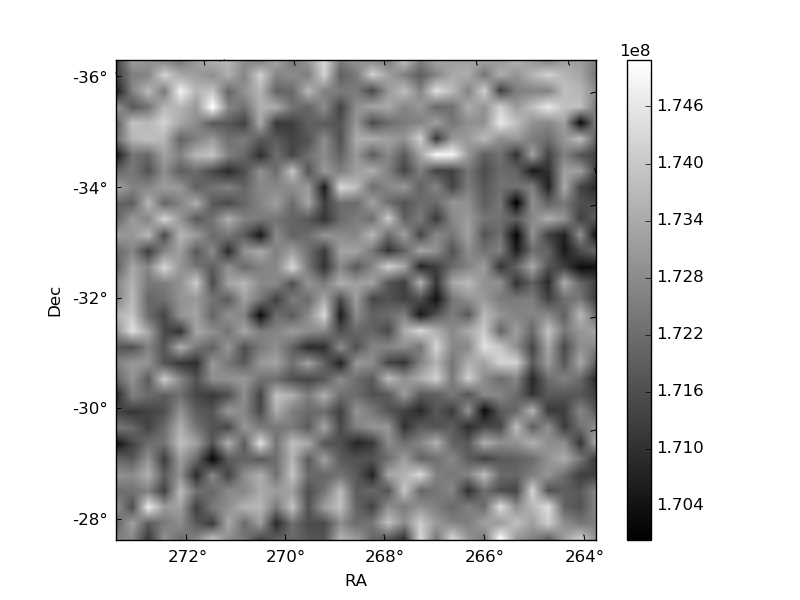

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

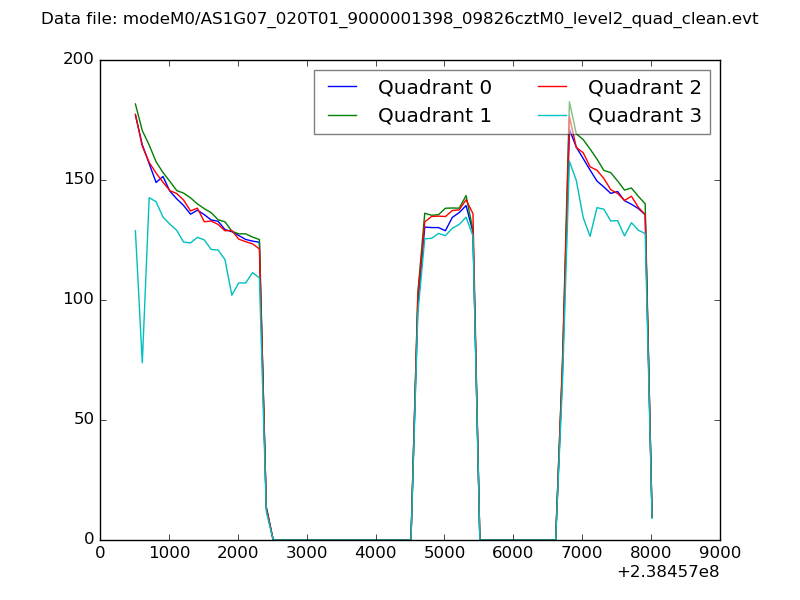

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

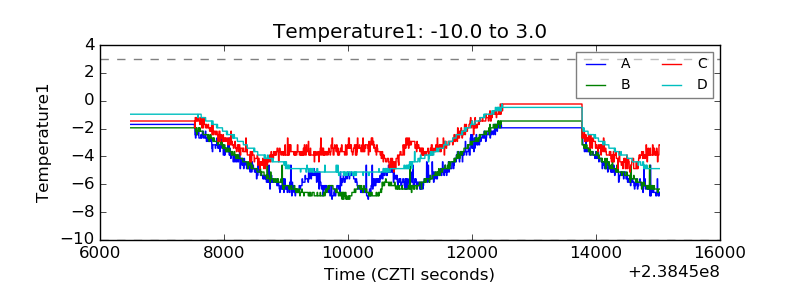

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

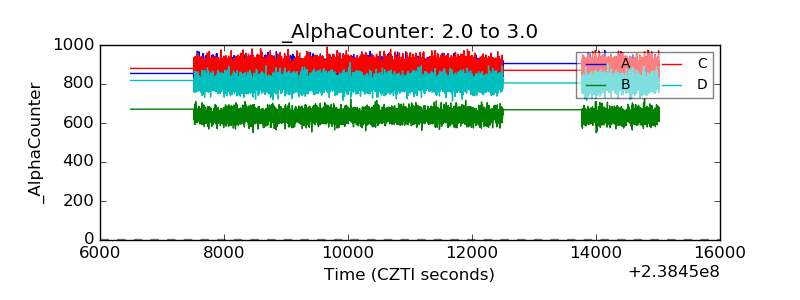

| Alpha Counter |  |
| _CPM_Rate |  |

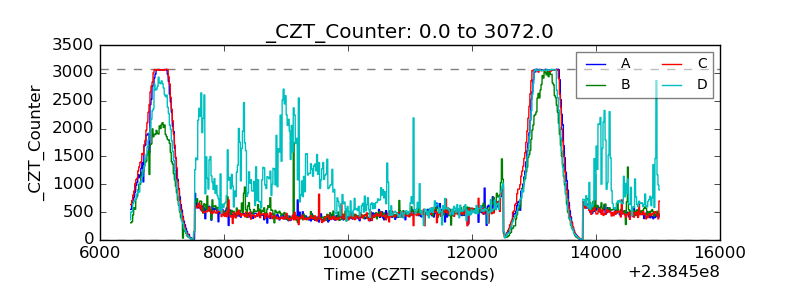

| CZT Counter |  |
| +2.5 Volts monitor |  |

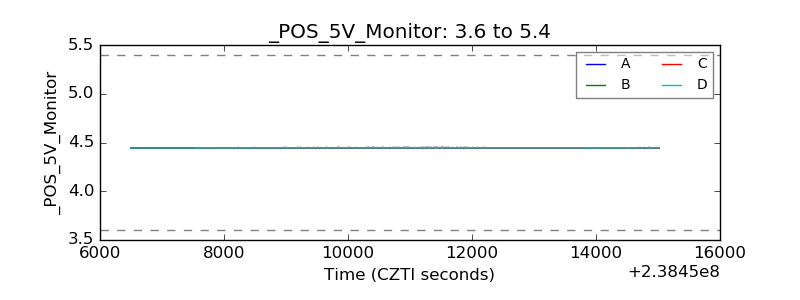

| +5 Volts monitor |  |
| _ROLL_ROT |  |

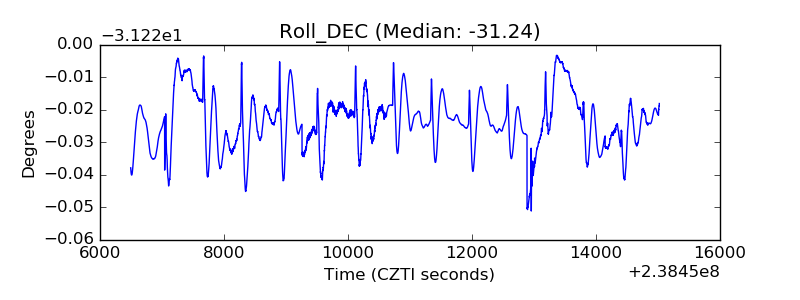

| _Roll_DEC |  |

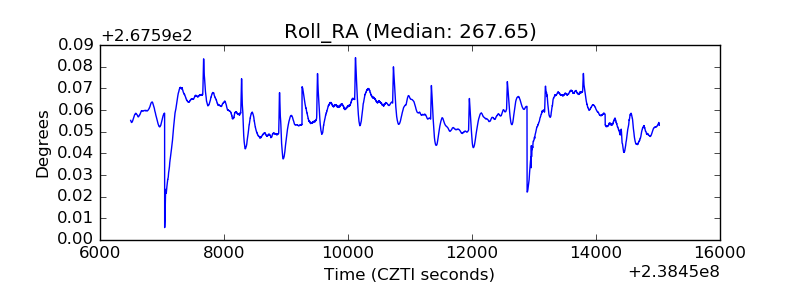

| _Roll_RA |  |
| Veto Counter |  |
