| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_020T01_9000001398_09830cztM0_level2.evt | modeM0/AS1G07_020T01_9000001398_09830cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,635,840 | 69,131,520 |
| Size | 482.2 MB | 65.9 MB |
| Events in quadrant A | 3,170,520 | 409,520 |
| Events in quadrant B | 3,267,414 | 416,037 |
| Events in quadrant C | 3,136,693 | 412,193 |
| Events in quadrant D | 5,279,069 | 383,232 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13958 | 2 |
| B | 0 | 14048 | 1 |
| C | 0 | 13954 | 1 |
| D | 0 | 20391 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6777 | 55 | 0.811569% |
| B | 6777 | 75 | 1.106684% |
| C | 6777 | 72 | 1.062417% |
| D | 6777 | 175 | 2.582264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7652 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7652 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7652 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7652 | 6778 | 52 | 52 | 0.68% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 4 | 9874 | 54.06 | 818 | 799 | 167.9 |
| A | 0 | 226 | 7513 | 39.99 | 818 | 799 | 167.9 |
| A | 12 | 194 | 6735 | 35.36 | 818 | 799 | 167.9 |
| B | 0 | 214 | 18056 | 108.47 | 825 | 803 | 159.1 |
| B | 4 | 239 | 18031 | 108.32 | 825 | 803 | 159.1 |
| B | 12 | 111 | 17791 | 106.81 | 825 | 803 | 159.1 |
| C | 13 | 61 | 5925 | 27.4 | 802 | 806 | 186.8 |
| C | 0 | 207 | 3397 | 13.87 | 802 | 806 | 186.8 |
| C | 14 | 67 | 3306 | 13.38 | 802 | 806 | 186.8 |
| D | 7 | 46 | 1588223 | 8398.4 | 781 | 766 | 189.0 |
| D | 1 | 52 | 455855 | 2407.64 | 781 | 766 | 189.0 |
| D | 2 | 152 | 79368 | 415.84 | 781 | 766 | 189.0 |

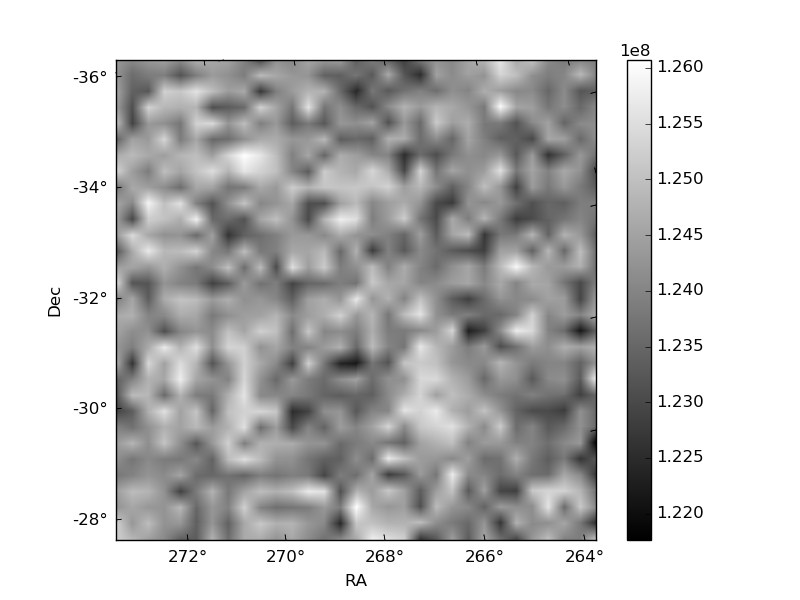

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

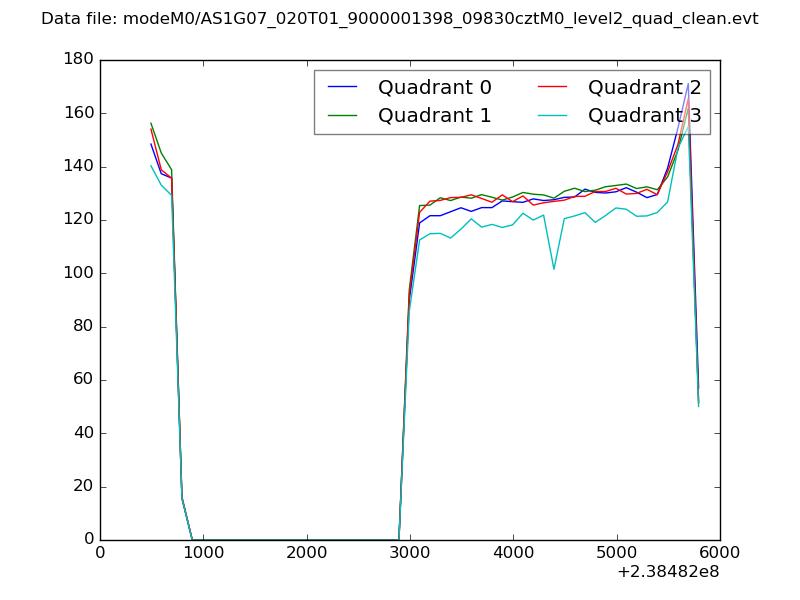

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

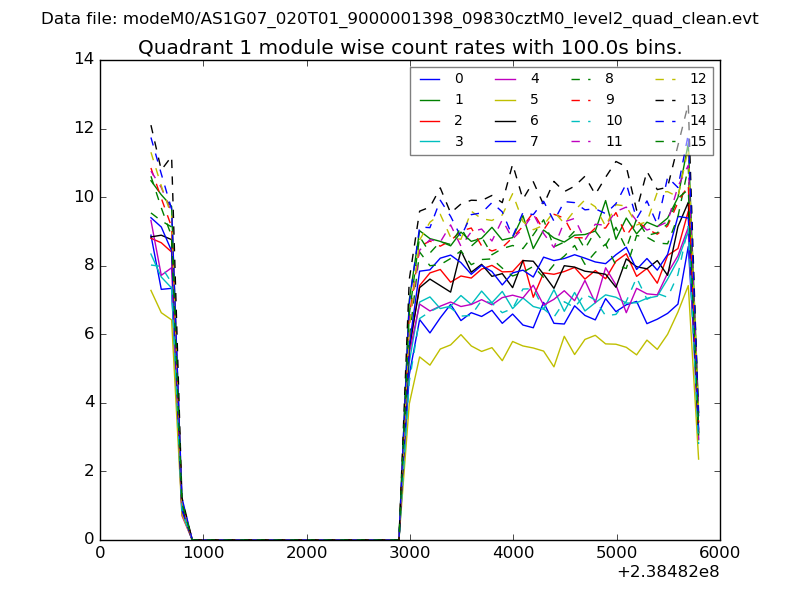

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

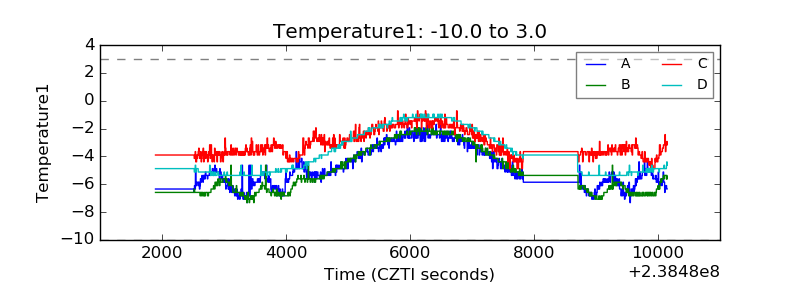

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

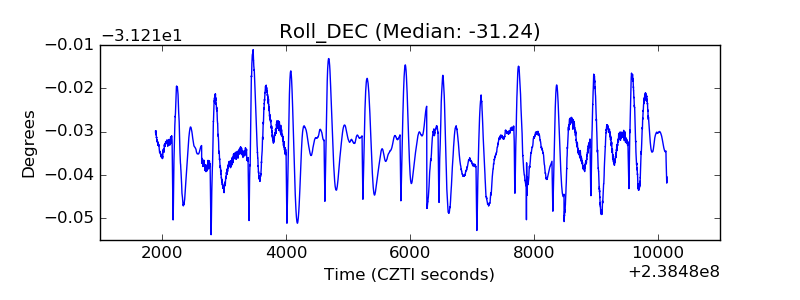

| _Roll_DEC |  |

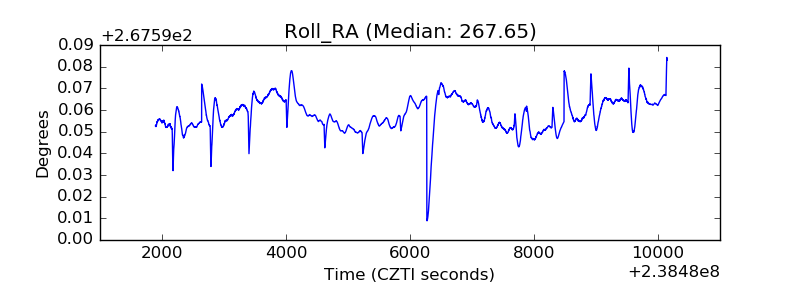

| _Roll_RA |  |
| Veto Counter |  |
