| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_020T01_9000001398_09832cztM0_level2.evt | modeM0/AS1G07_020T01_9000001398_09832cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,162,880 | 77,777,280 |
| Size | 517.0 MB | 74.2 MB |
| Events in quadrant A | 3,630,366 | 456,836 |
| Events in quadrant B | 3,843,705 | 465,428 |
| Events in quadrant C | 3,636,139 | 461,954 |
| Events in quadrant D | 4,782,732 | 431,998 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16196 | 75 |
| B | 0 | 16544 | 89 |
| C | 0 | 16266 | 72 |
| D | 0 | 19609 | 125 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 2 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 2 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7749 | 287 | 3.703704% |
| B | 7743 | 333 | 4.300659% |
| C | 7750 | 227 | 2.929032% |
| D | 7745 | 478 | 6.171724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7854 | 7781 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7854 | 7781 | 12 | 12 | 0.15% | 0.15% |  |
| C | 7854 | 7784 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7854 | 7785 | 230 | 230 | 2.93% | 2.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8427 | 38.76 | 940 | 917 | 193.8 |
| A | 12 | 194 | 7614 | 34.56 | 940 | 917 | 193.8 |
| A | 14 | 111 | 4841 | 20.25 | 940 | 917 | 193.8 |
| B | 0 | 214 | 93371 | 499.27 | 944 | 916 | 185.2 |
| B | 4 | 173 | 25256 | 131.44 | 944 | 916 | 185.2 |
| B | 12 | 111 | 20803 | 107.39 | 944 | 916 | 185.2 |
| C | 8 | 128 | 15469 | 67.58 | 922 | 924 | 215.2 |
| C | 8 | 112 | 8422 | 34.84 | 922 | 924 | 215.2 |
| C | 13 | 61 | 6976 | 28.12 | 922 | 924 | 215.2 |
| D | 1 | 52 | 832741 | 3783.56 | 902 | 875 | 219.9 |
| D | 7 | 46 | 149514 | 676.05 | 902 | 875 | 219.9 |
| D | 7 | 71 | 96744 | 436.04 | 902 | 875 | 219.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

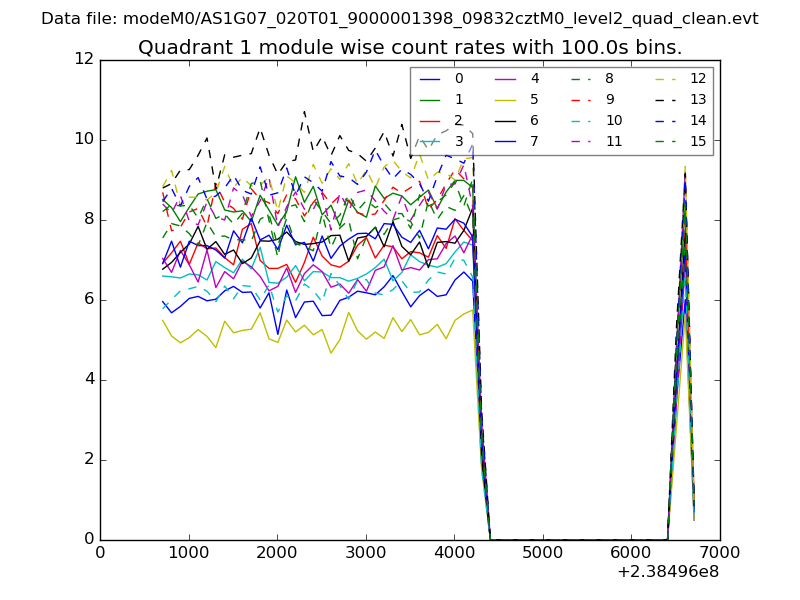

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

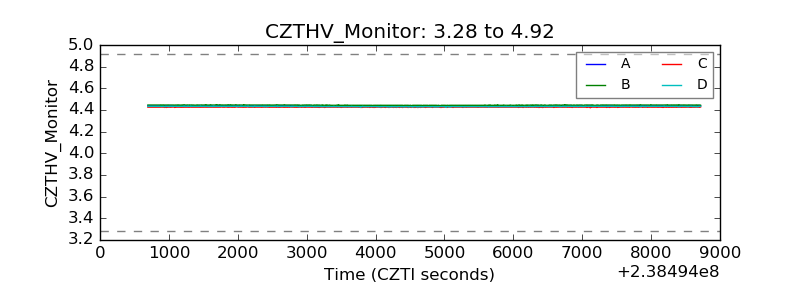

| CZT HV Monitor |  |
| D_VDD |  |

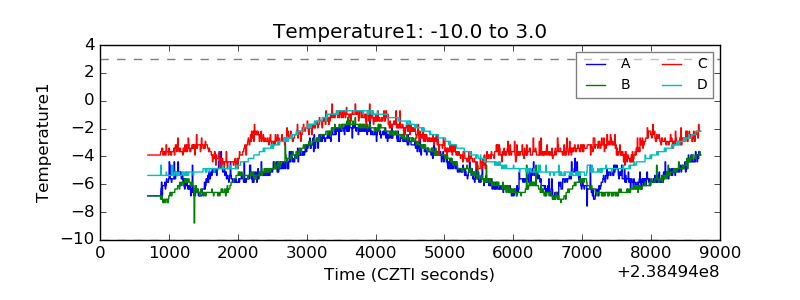

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

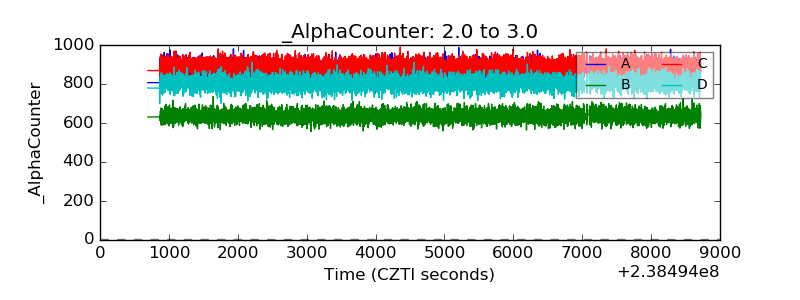

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

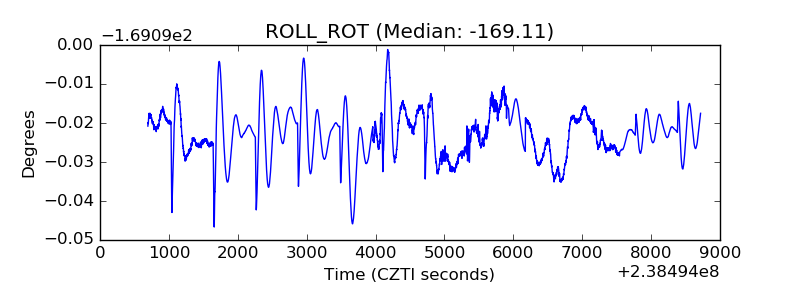

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
