| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_117T06_9000001404_09870cztM0_level2.evt | modeM0/AS1A03_117T06_9000001404_09870cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,557,760 | 87,652,800 |
| Size | 418.2 MB | 83.6 MB |
| Events in quadrant A | 2,948,214 | 558,649 |
| Events in quadrant B | 3,300,468 | 582,459 |
| Events in quadrant C | 3,124,757 | 560,721 |
| Events in quadrant D | 3,494,394 | 527,144 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12821 | 93 |
| B | 0 | 13724 | 86 |
| C | 0 | 13412 | 89 |
| D | 0 | 14664 | 84 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6084 | 37 | 0.608153% |
| B | 6094 | 119 | 1.952740% |
| C | 6096 | 48 | 0.787402% |
| D | 6092 | 58 | 0.952068% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7457 | 6125 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7457 | 6127 | 53 | 53 | 0.71% | 0.87% |  |
| C | 7457 | 6126 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7457 | 6125 | 7 | 7 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 4 | 19658 | 122.89 | 760 | 746 | 153.9 |
| A | 0 | 226 | 6897 | 39.97 | 760 | 746 | 153.9 |
| A | 15 | 174 | 6652 | 38.38 | 760 | 746 | 153.9 |
| B | 4 | 81 | 320006 | 2207.03 | 765 | 748 | 144.7 |
| B | 12 | 111 | 16614 | 109.68 | 765 | 748 | 144.7 |
| B | 11 | 111 | 13571 | 88.65 | 765 | 748 | 144.7 |
| C | 9 | 236 | 146077 | 850.27 | 746 | 753 | 170.9 |
| C | 4 | 254 | 46705 | 268.86 | 746 | 753 | 170.9 |
| C | 1 | 3 | 13233 | 73.02 | 746 | 753 | 170.9 |
| D | 1 | 52 | 574245 | 3011.52 | 729 | 713 | 190.4 |
| D | 10 | 172 | 80570 | 419.31 | 729 | 713 | 190.4 |
| D | 13 | 104 | 28932 | 148.17 | 729 | 713 | 190.4 |

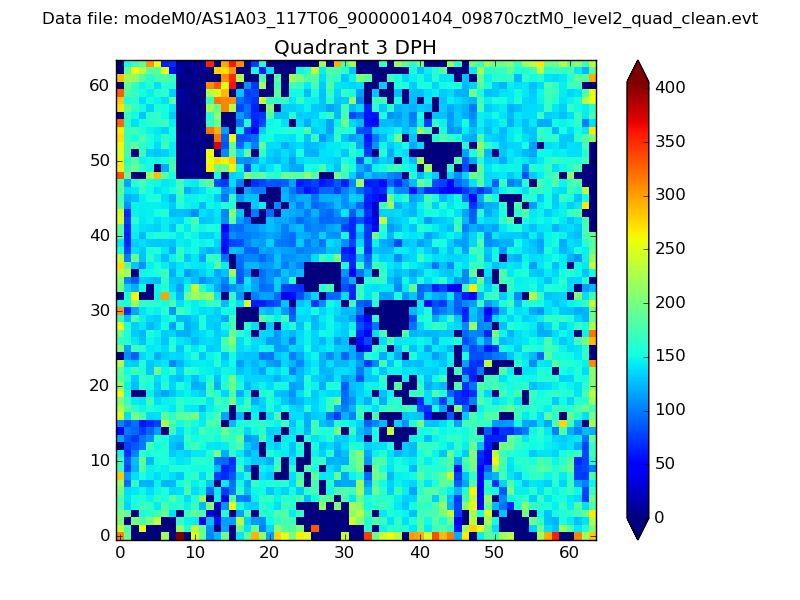

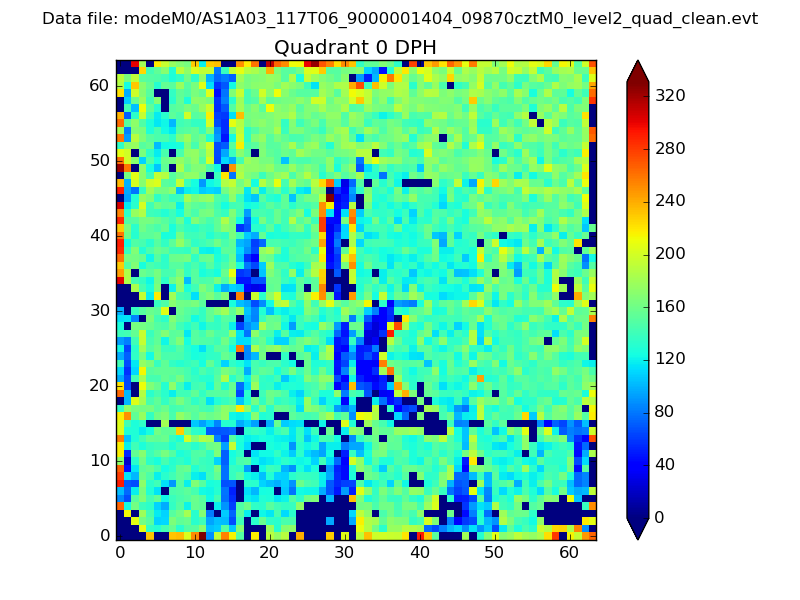

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

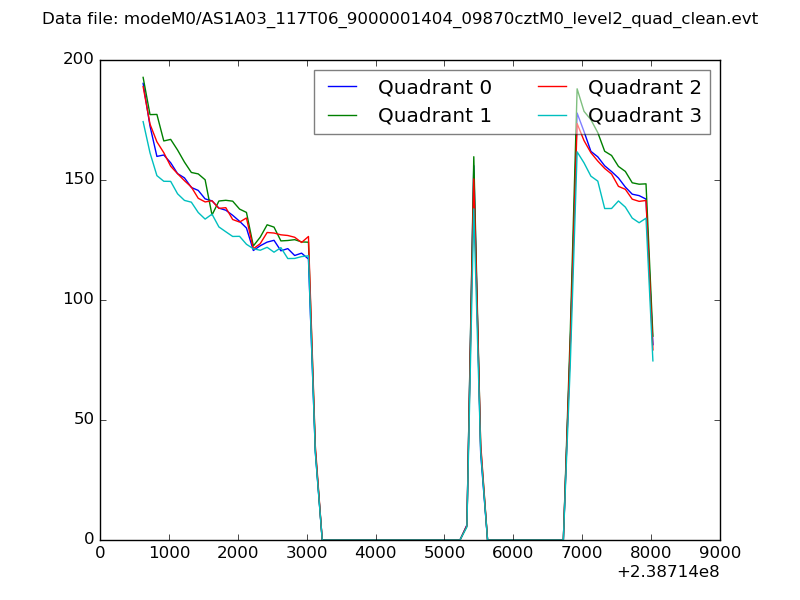

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

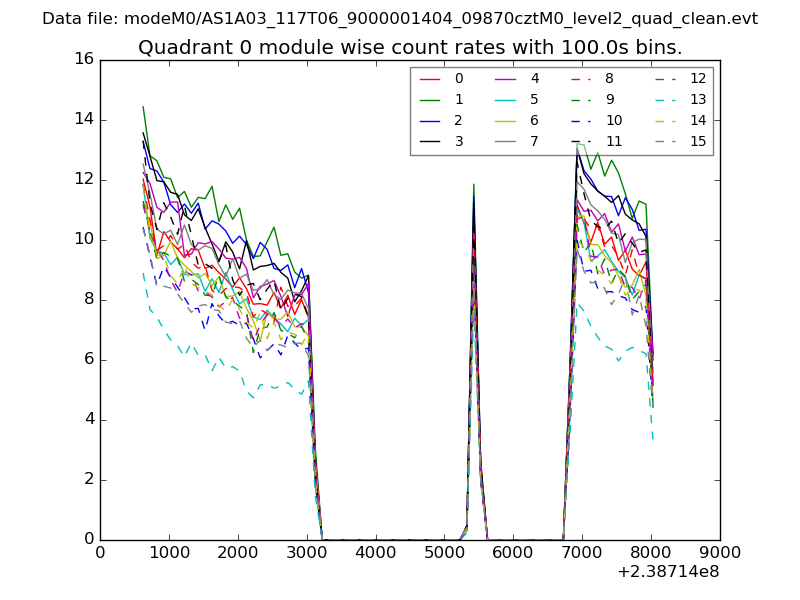

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

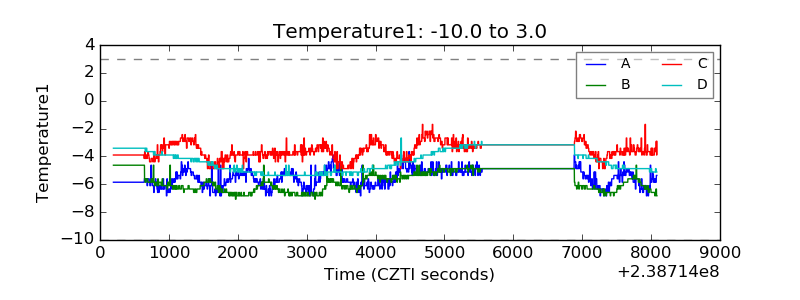

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

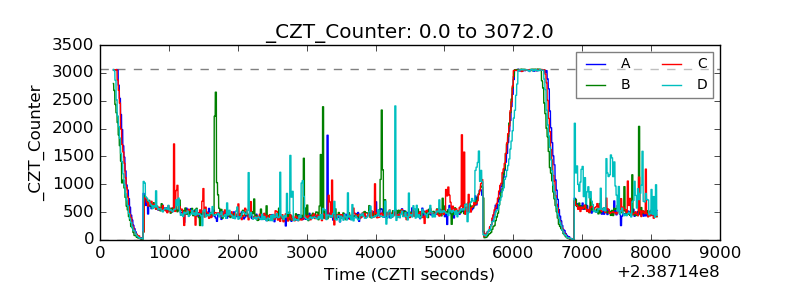

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

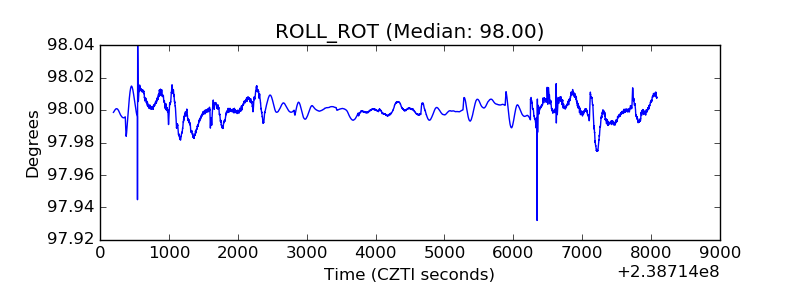

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
