| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_117T06_9000001404_09874cztM0_level2.evt | modeM0/AS1A03_117T06_9000001404_09874cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,499,840 | 84,706,560 |
| Size | 526.0 MB | 80.8 MB |
| Events in quadrant A | 3,347,370 | 532,523 |
| Events in quadrant B | 3,443,648 | 548,435 |
| Events in quadrant C | 4,395,448 | 511,550 |
| Events in quadrant D | 5,028,518 | 472,434 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14901 | 10 |
| B | 0 | 15016 | 4 |
| C | 0 | 18089 | 13 |
| D | 0 | 20029 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7170 | 173 | 2.412831% |
| B | 7172 | 186 | 2.593419% |
| C | 7169 | 444 | 6.193332% |
| D | 7173 | 685 | 9.549700% |

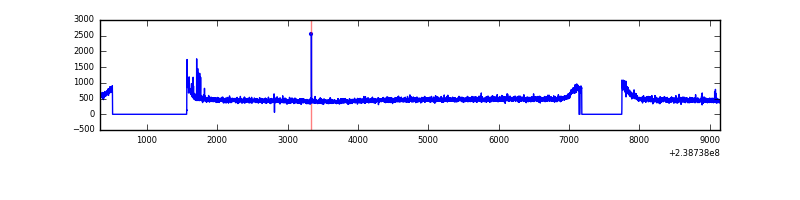

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8812 | 7175 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8813 | 7176 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8813 | 7176 | 164 | 164 | 1.86% | 2.29% |  |
| D | 8813 | 7176 | 514 | 514 | 5.83% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7978 | 40.46 | 868 | 850 | 176.2 |
| A | 12 | 194 | 6772 | 33.62 | 868 | 850 | 176.2 |
| A | 13 | 253 | 5266 | 25.07 | 868 | 850 | 176.2 |
| B | 0 | 85 | 23159 | 131.56 | 872 | 850 | 169.6 |
| B | 4 | 81 | 22467 | 127.48 | 872 | 850 | 169.6 |
| B | 12 | 111 | 20578 | 116.34 | 872 | 850 | 169.6 |
| C | 4 | 254 | 1060792 | 5493.13 | 824 | 828 | 193.0 |
| C | 1 | 3 | 54516 | 278.23 | 824 | 828 | 193.0 |
| C | 14 | 234 | 37019 | 187.56 | 824 | 828 | 193.0 |
| D | 10 | 253 | 1516663 | 7276.22 | 802 | 784 | 208.3 |
| D | 1 | 52 | 322170 | 1542.65 | 802 | 784 | 208.3 |
| D | 10 | 172 | 83224 | 395.71 | 802 | 784 | 208.3 |

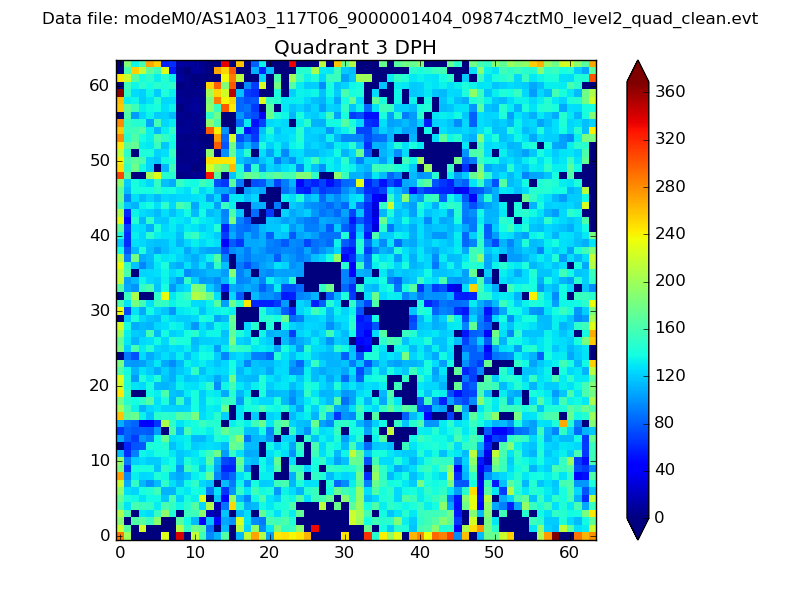

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

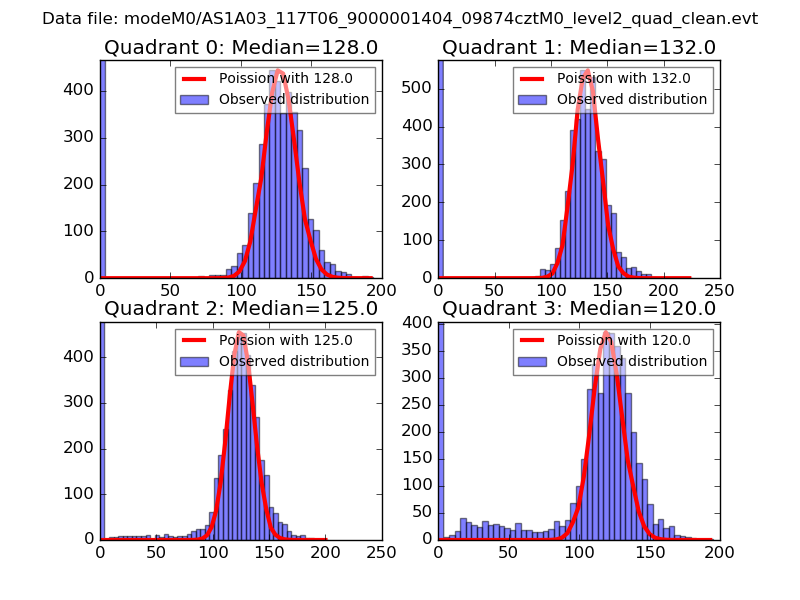

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

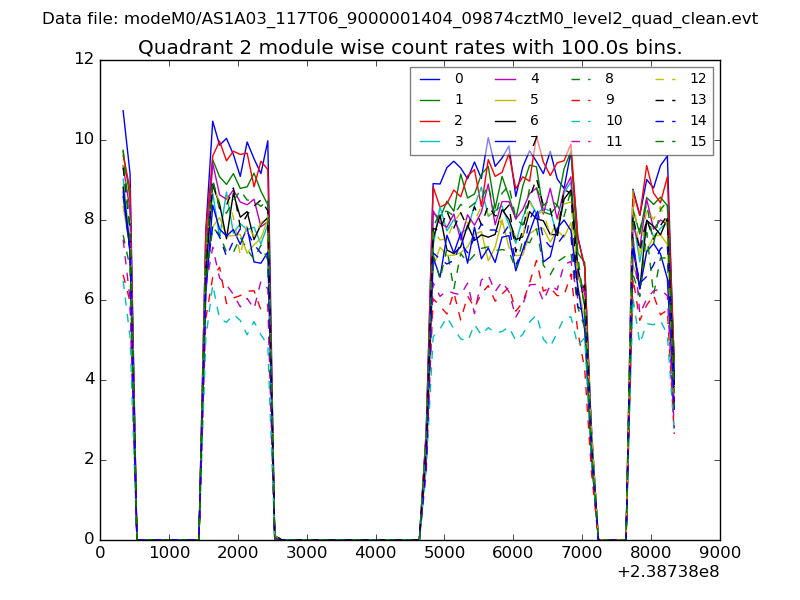

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

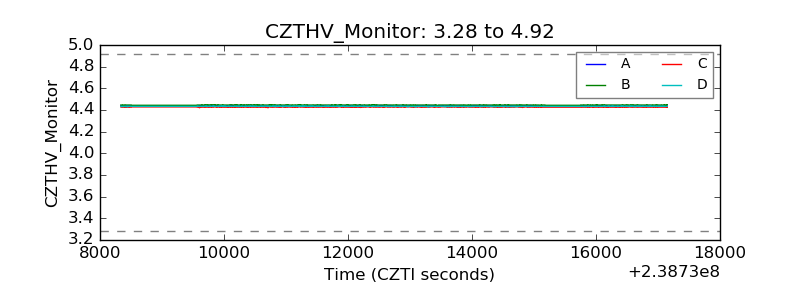

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

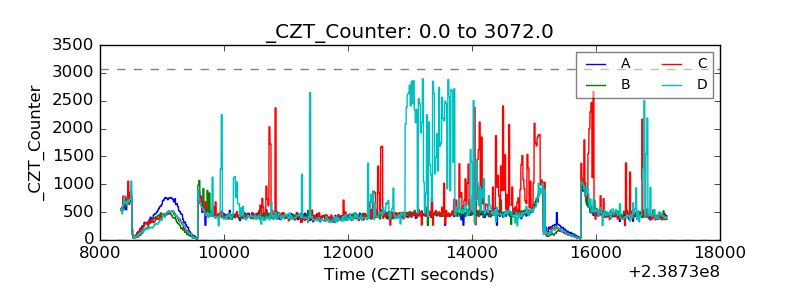

| CZT Counter |  |
| +2.5 Volts monitor |  |

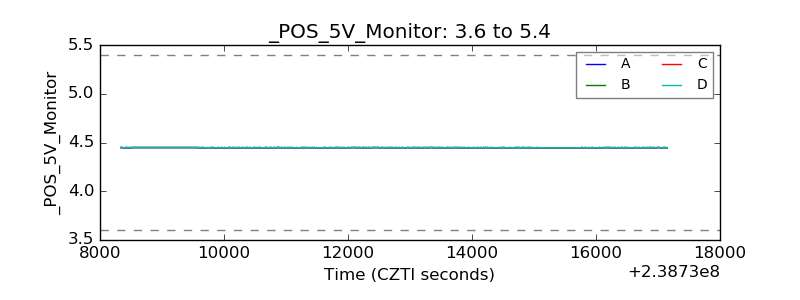

| +5 Volts monitor |  |

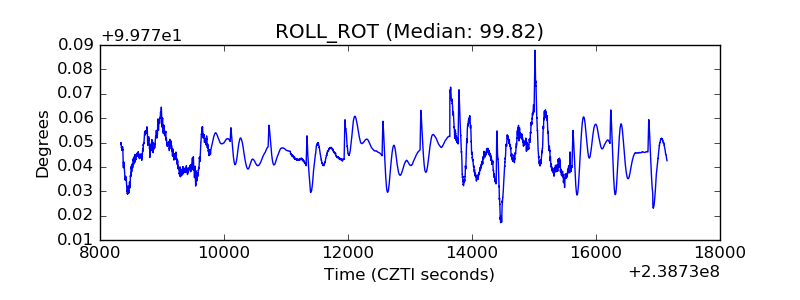

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
