| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_117T06_9000001404_09880cztM0_level2.evt | modeM0/AS1A03_117T06_9000001404_09880cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,677,760 | 95,264,640 |
| Size | 492.7 MB | 90.9 MB |
| Events in quadrant A | 3,603,566 | 594,874 |
| Events in quadrant B | 3,635,737 | 612,266 |
| Events in quadrant C | 4,018,906 | 582,206 |
| Events in quadrant D | 3,873,681 | 567,338 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15792 | 10 |
| B | 0 | 15757 | 10 |
| C | 0 | 17067 | 8 |
| D | 0 | 16599 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7593 | 97 | 1.277492% |
| B | 7593 | 117 | 1.540893% |
| C | 7593 | 245 | 3.226656% |
| D | 7593 | 109 | 1.435533% |

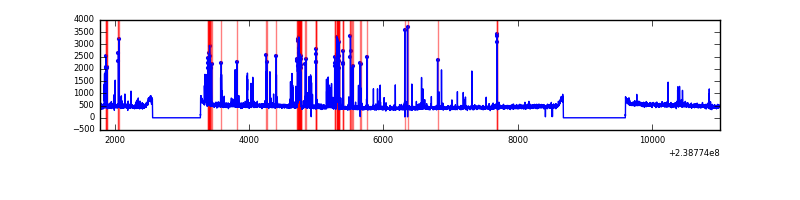

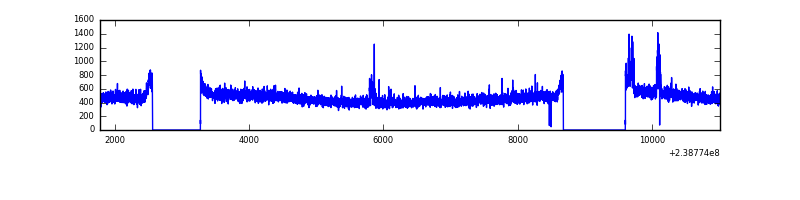

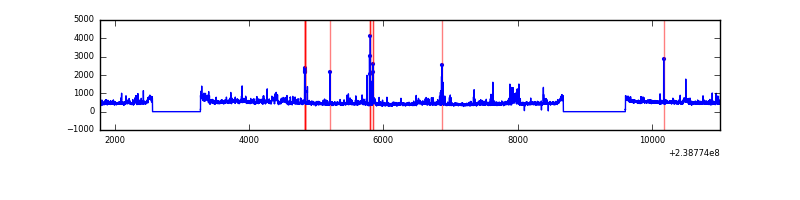

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9236 | 7598 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9236 | 7598 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9236 | 7598 | 87 | 87 | 0.94% | 1.15% |  |
| D | 9236 | 7598 | 13 | 13 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 72148 | 385.25 | 914 | 895 | 185.0 |
| A | 15 | 239 | 9218 | 45.0 | 914 | 895 | 185.0 |
| A | 0 | 226 | 8255 | 39.79 | 914 | 895 | 185.0 |
| B | 4 | 81 | 71022 | 395.2 | 915 | 890 | 177.5 |
| B | 12 | 111 | 21731 | 117.44 | 915 | 890 | 177.5 |
| B | 11 | 111 | 18137 | 97.19 | 915 | 890 | 177.5 |
| C | 4 | 254 | 520981 | 2526.55 | 881 | 885 | 205.9 |
| C | 14 | 234 | 31852 | 150.43 | 881 | 885 | 205.9 |
| C | 9 | 221 | 17528 | 80.85 | 881 | 885 | 205.9 |
| D | 2 | 16 | 257003 | 1110.77 | 881 | 863 | 230.6 |
| D | 1 | 52 | 150698 | 649.77 | 881 | 863 | 230.6 |
| D | 2 | 14 | 49113 | 209.24 | 881 | 863 | 230.6 |

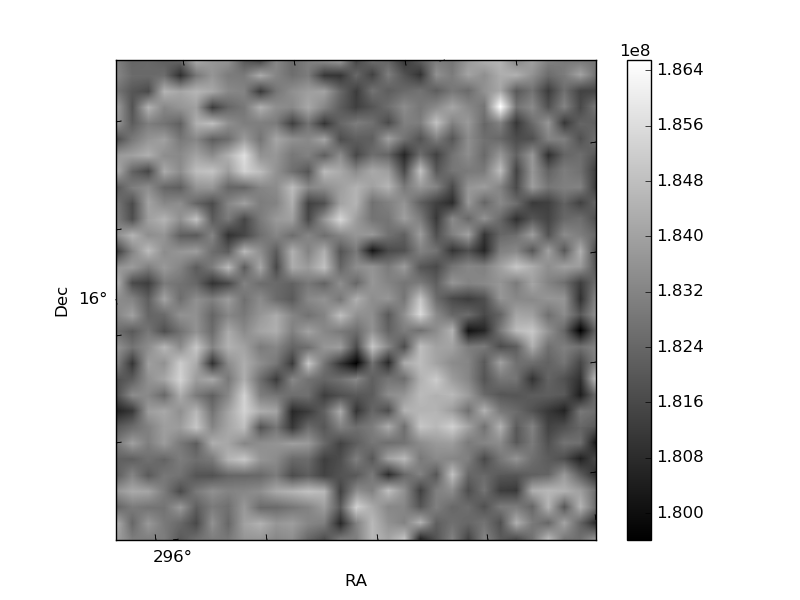

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

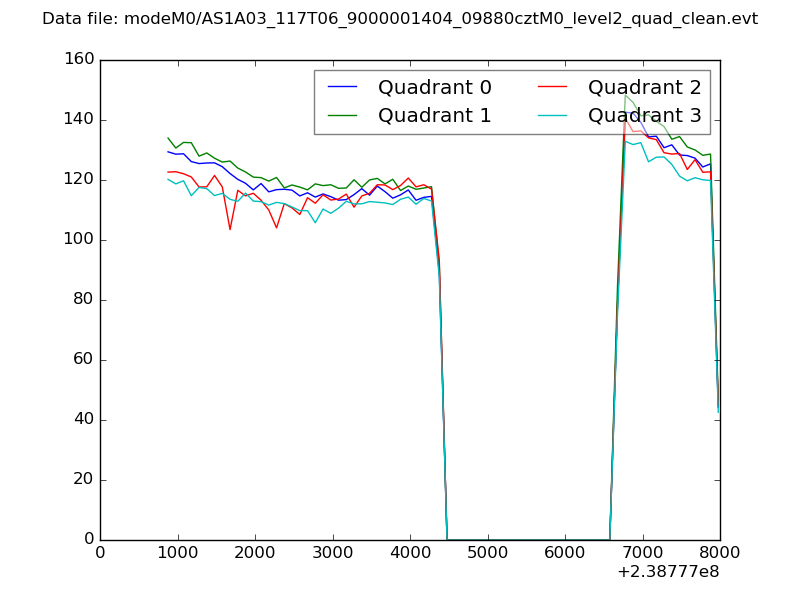

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

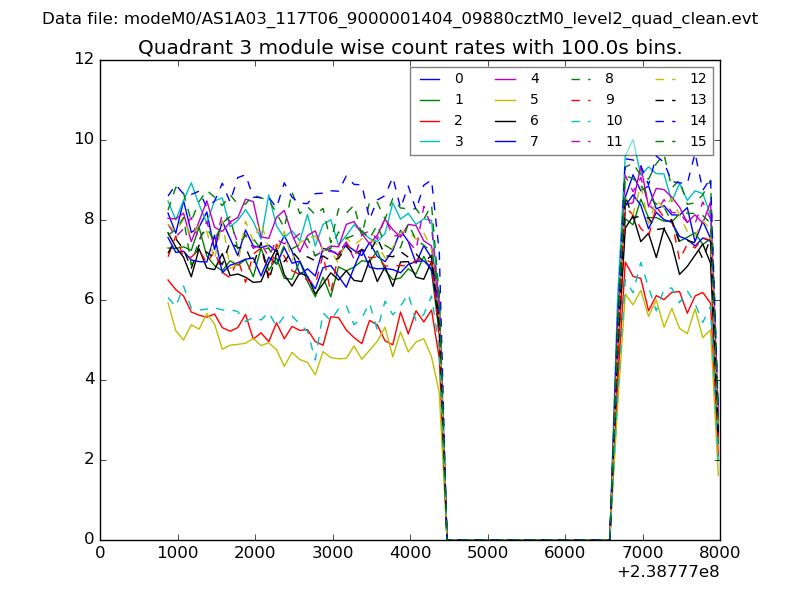

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

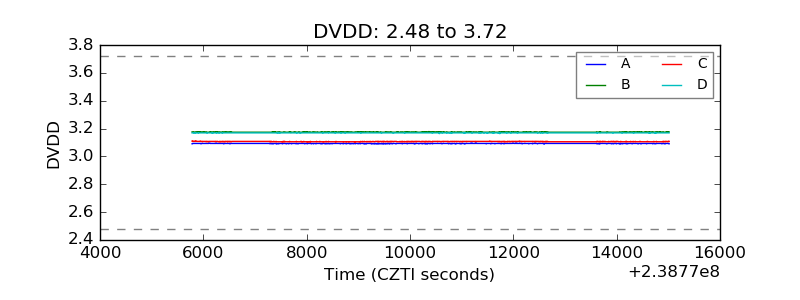

| D_VDD |  |

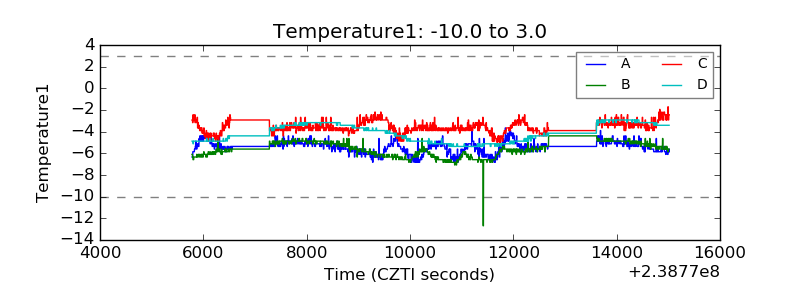

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
