| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_117T06_9000001404_09881cztM0_level2.evt | modeM0/AS1A03_117T06_9000001404_09881cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,076,480 | 97,931,520 |
| Size | 456.9 MB | 93.4 MB |
| Events in quadrant A | 3,489,672 | 618,473 |
| Events in quadrant B | 3,464,399 | 638,039 |
| Events in quadrant C | 3,533,491 | 614,356 |
| Events in quadrant D | 3,527,236 | 588,823 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15257 | 3 |
| B | 0 | 15118 | 2 |
| C | 0 | 15441 | 4 |
| D | 0 | 15565 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7269 | 81 | 1.114321% |
| B | 7269 | 100 | 1.375705% |
| C | 7268 | 100 | 1.375894% |
| D | 7269 | 82 | 1.128078% |

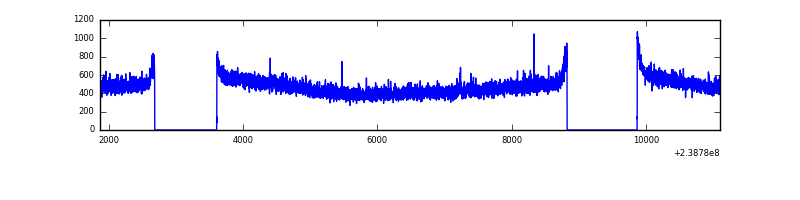

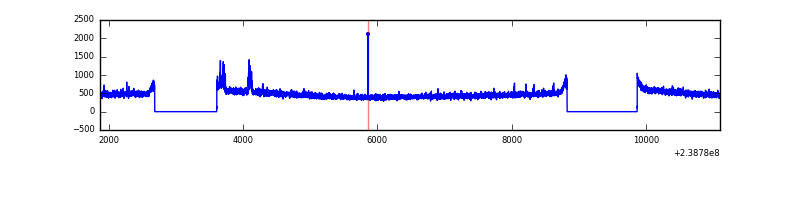

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9239 | 7271 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9239 | 7271 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9239 | 7271 | 11 | 11 | 0.12% | 0.15% |  |
| D | 9239 | 7271 | 9 | 9 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 55502 | 305.49 | 883 | 865 | 178.8 |
| A | 15 | 239 | 35968 | 196.27 | 883 | 865 | 178.8 |
| A | 0 | 226 | 8001 | 39.9 | 883 | 865 | 178.8 |
| B | 12 | 111 | 20693 | 115.7 | 887 | 862 | 171.4 |
| B | 11 | 111 | 17080 | 94.62 | 887 | 862 | 171.4 |
| B | 14 | 111 | 13699 | 74.9 | 887 | 862 | 171.4 |
| C | 4 | 254 | 125388 | 619.72 | 865 | 869 | 200.9 |
| C | 14 | 234 | 27714 | 133.61 | 865 | 869 | 200.9 |
| C | 13 | 61 | 6446 | 27.76 | 865 | 869 | 200.9 |
| D | 1 | 52 | 164861 | 731.93 | 856 | 837 | 224.1 |
| D | 8 | 195 | 35019 | 152.53 | 856 | 837 | 224.1 |
| D | 2 | 14 | 34131 | 148.57 | 856 | 837 | 224.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

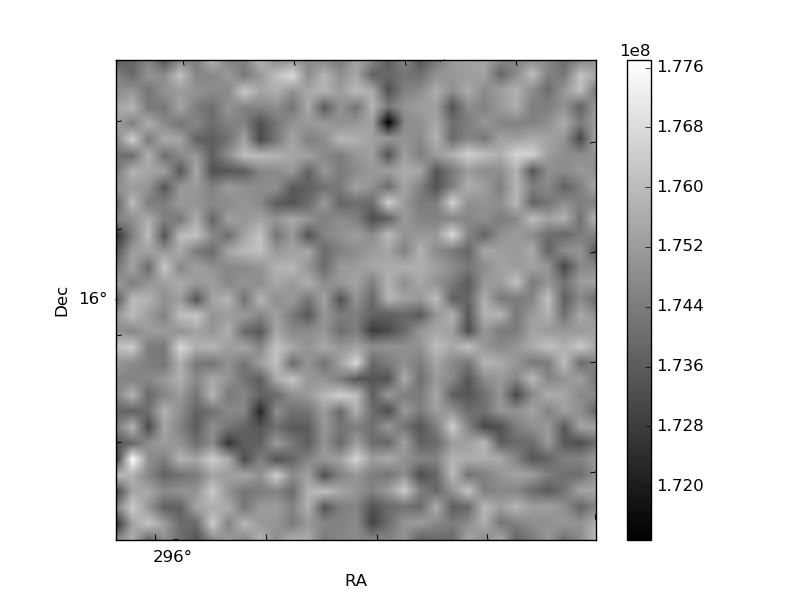

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

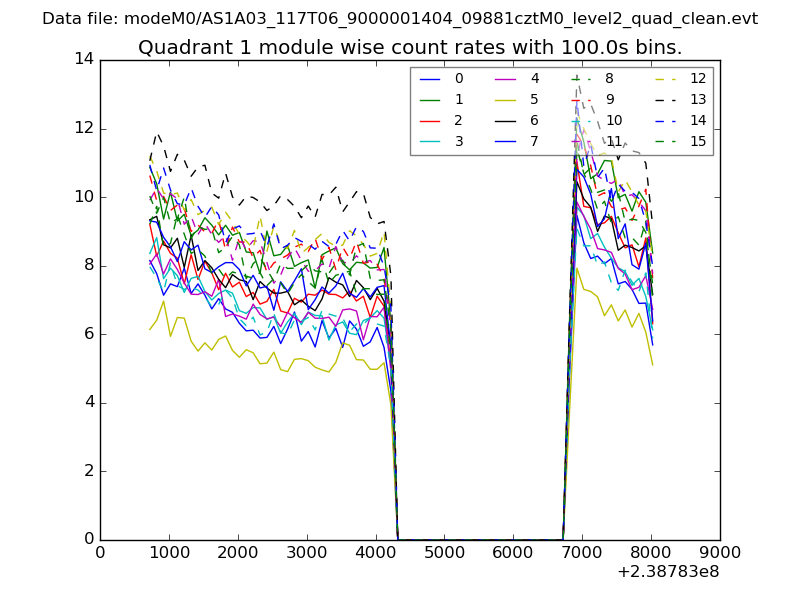

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

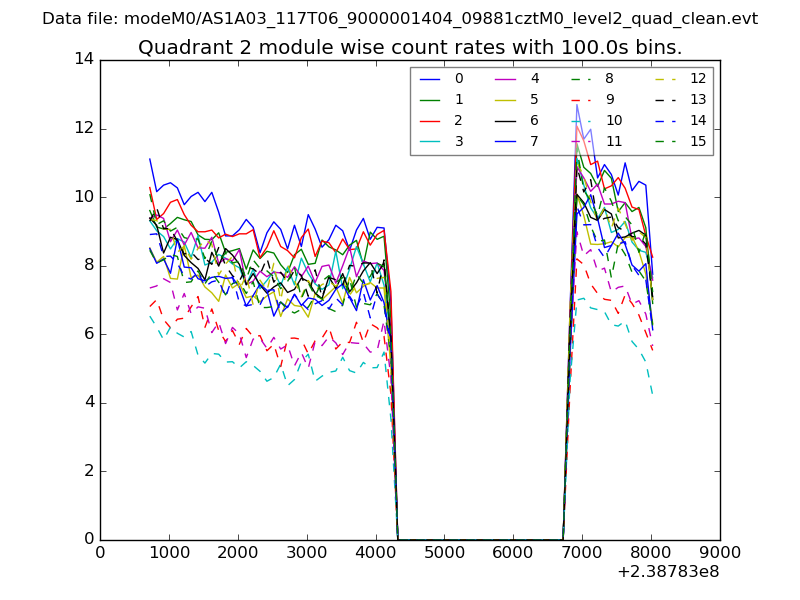

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

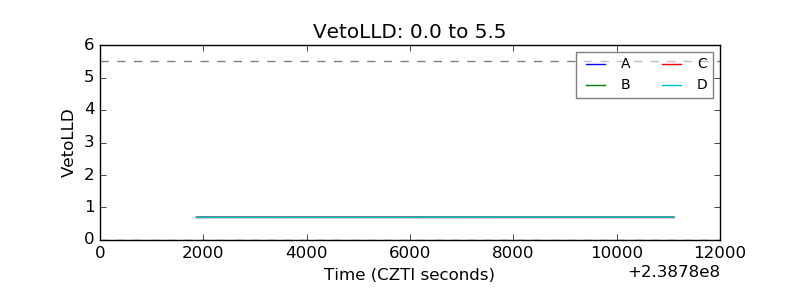

| Veto LLD |  |

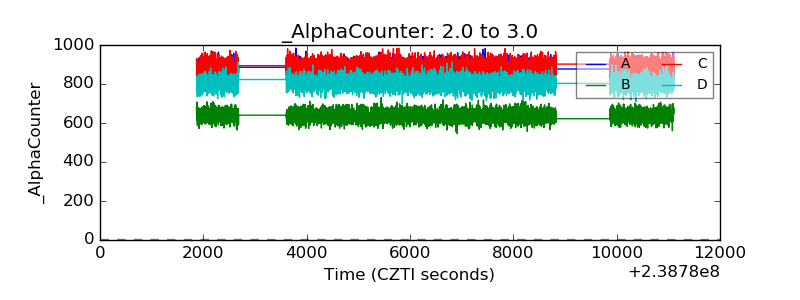

| Alpha Counter |  |
| _CPM_Rate |  |

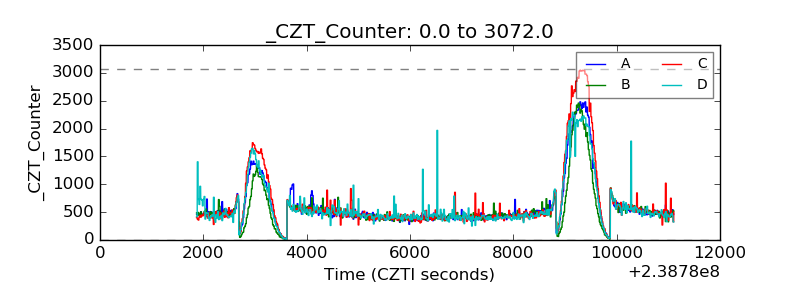

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
