| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_046T01_9000001408_09900cztM0_level2.evt | modeM0/AS1G07_046T01_9000001408_09900cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,025,920 | 86,103,360 |
| Size | 386.3 MB | 82.1 MB |
| Events in quadrant A | 2,886,069 | 548,807 |
| Events in quadrant B | 2,986,997 | 574,056 |
| Events in quadrant C | 2,857,551 | 553,256 |
| Events in quadrant D | 3,130,652 | 515,739 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12913 | 525 |
| B | 0 | 13097 | 515 |
| C | 0 | 12875 | 503 |
| D | 0 | 13604 | 601 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 2 |
| B | 0 | 126 | 4 |
| C | 0 | 126 | 2 |
| D | 0 | 126 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 2 |
| B | 0 | 18 | 1 |
| C | 0 | 18 | 1 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5938 | 29 | 0.488380% |
| B | 5947 | 44 | 0.739869% |
| C | 5943 | 22 | 0.370183% |
| D | 5936 | 69 | 1.162399% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6126 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7542 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7544 | 6118 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7543 | 6120 | 32 | 32 | 0.42% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 10722 | 66.51 | 747 | 733 | 150.2 |
| A | 0 | 226 | 6805 | 40.43 | 747 | 733 | 150.2 |
| A | 12 | 194 | 5862 | 34.15 | 747 | 733 | 150.2 |
| B | 4 | 81 | 24260 | 165.22 | 756 | 740 | 142.4 |
| B | 12 | 111 | 16333 | 109.53 | 756 | 740 | 142.4 |
| B | 11 | 111 | 13491 | 89.57 | 756 | 740 | 142.4 |
| C | 9 | 221 | 6463 | 33.99 | 729 | 737 | 168.5 |
| C | 13 | 61 | 5351 | 27.39 | 729 | 737 | 168.5 |
| C | 14 | 67 | 3986 | 19.29 | 729 | 737 | 168.5 |
| D | 2 | 16 | 144824 | 783.97 | 709 | 695 | 183.8 |
| D | 1 | 52 | 122831 | 664.34 | 709 | 695 | 183.8 |
| D | 8 | 195 | 88323 | 476.64 | 709 | 695 | 183.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

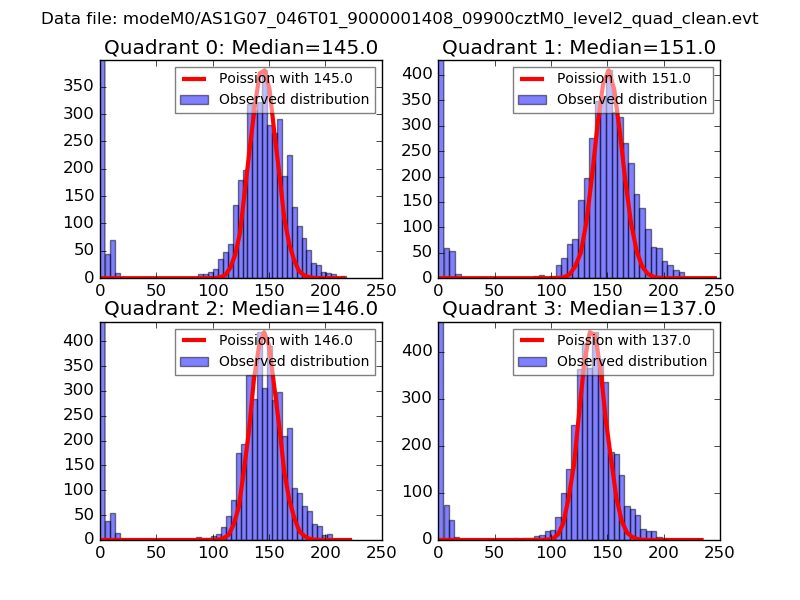

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

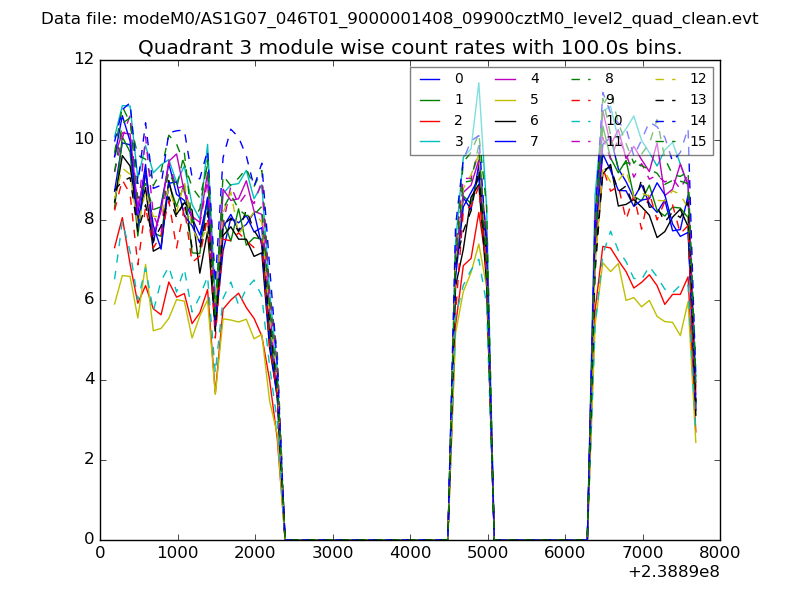

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

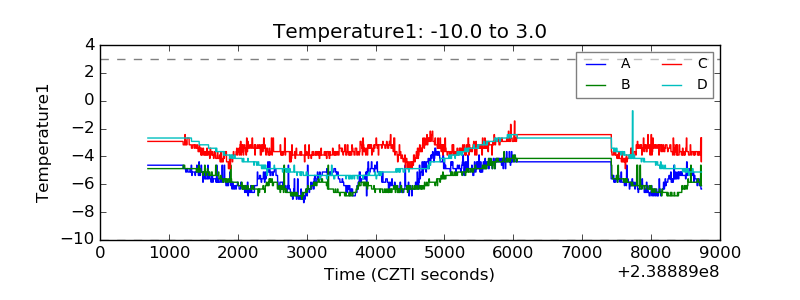

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

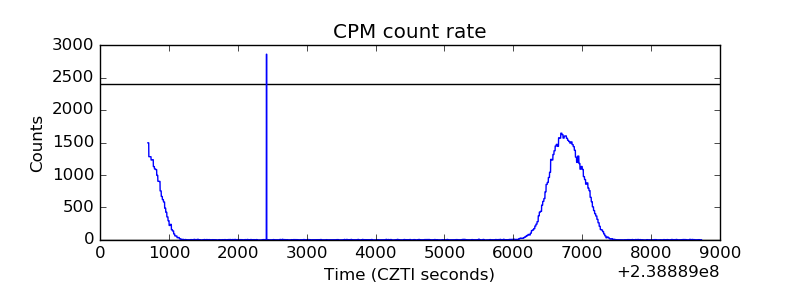

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
