| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_009T01_9000001412_09917cztM0_level2.evt | modeM0/AS1A03_009T01_9000001412_09917cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,660,800 | 83,177,280 |
| Size | 488.0 MB | 79.3 MB |
| Events in quadrant A | 3,314,498 | 508,381 |
| Events in quadrant B | 3,548,376 | 513,401 |
| Events in quadrant C | 3,300,907 | 514,522 |
| Events in quadrant D | 4,844,611 | 482,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14841 | 3 |
| B | 0 | 15306 | 2 |
| C | 0 | 14840 | 2 |
| D | 0 | 19065 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7183 | 76 | 1.058054% |
| B | 7183 | 107 | 1.489628% |
| C | 7183 | 73 | 1.016288% |
| D | 7183 | 319 | 4.441041% |

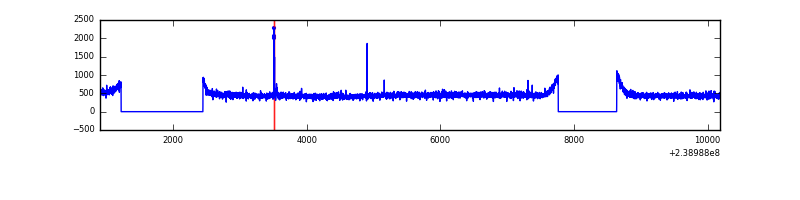

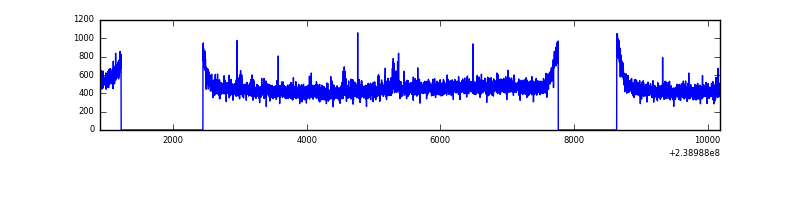

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9282 | 7182 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9282 | 7182 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9283 | 7183 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9283 | 7183 | 233 | 233 | 2.51% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 27172 | 152.36 | 853 | 835 | 172.9 |
| A | 0 | 226 | 7794 | 40.25 | 853 | 835 | 172.9 |
| A | 12 | 194 | 7197 | 36.8 | 853 | 835 | 172.9 |
| B | 0 | 214 | 64034 | 381.58 | 865 | 843 | 165.6 |
| B | 0 | 219 | 25765 | 150.49 | 865 | 843 | 165.6 |
| B | 4 | 239 | 20361 | 117.86 | 865 | 843 | 165.6 |
| C | 9 | 221 | 16815 | 81.99 | 838 | 841 | 194.8 |
| C | 13 | 61 | 6380 | 28.43 | 838 | 841 | 194.8 |
| C | 8 | 128 | 4926 | 20.97 | 838 | 841 | 194.8 |
| D | 10 | 253 | 540199 | 2597.58 | 811 | 789 | 207.7 |
| D | 8 | 195 | 482875 | 2321.53 | 811 | 789 | 207.7 |
| D | 1 | 52 | 232723 | 1116.9 | 811 | 789 | 207.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

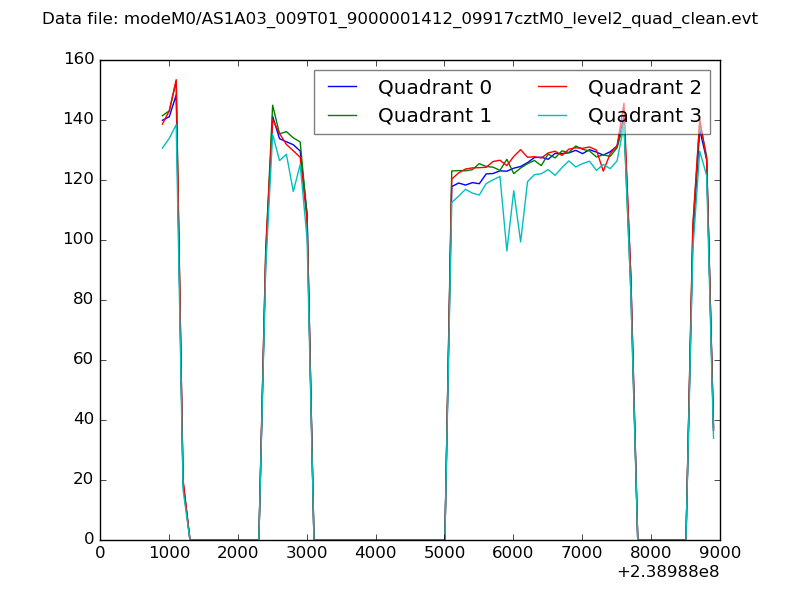

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

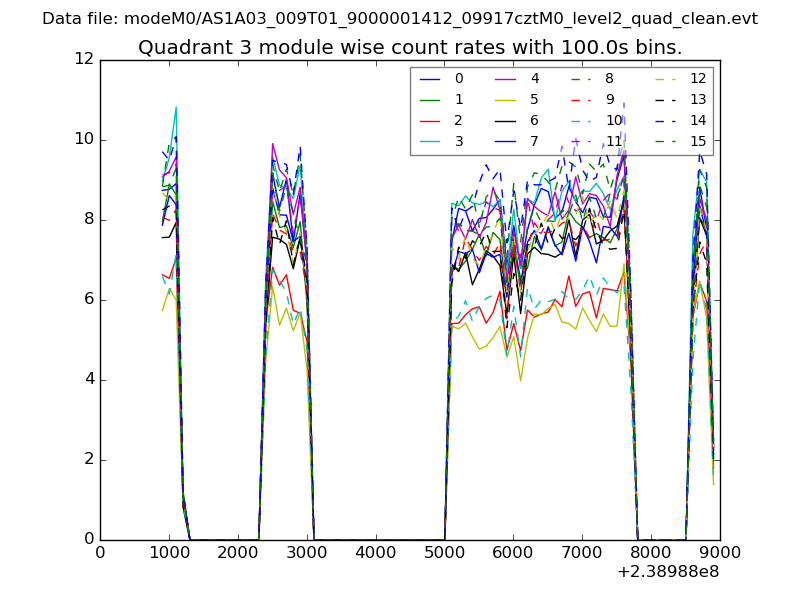

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

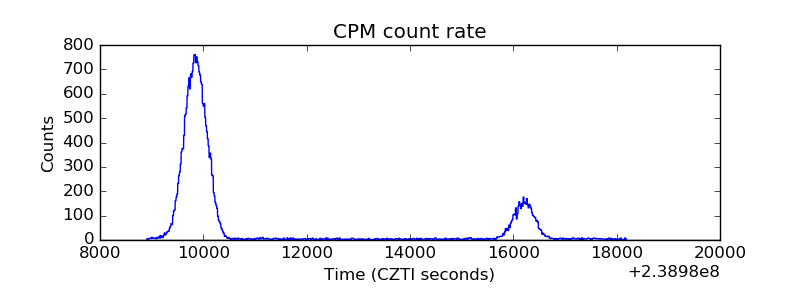

| _CPM_Rate |  |

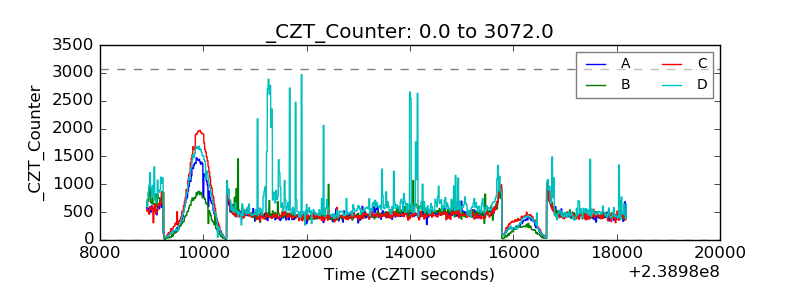

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

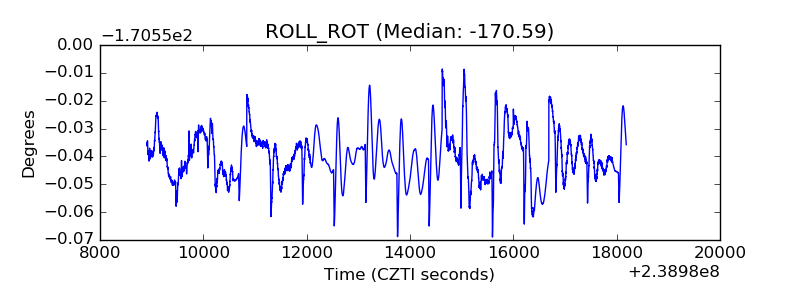

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

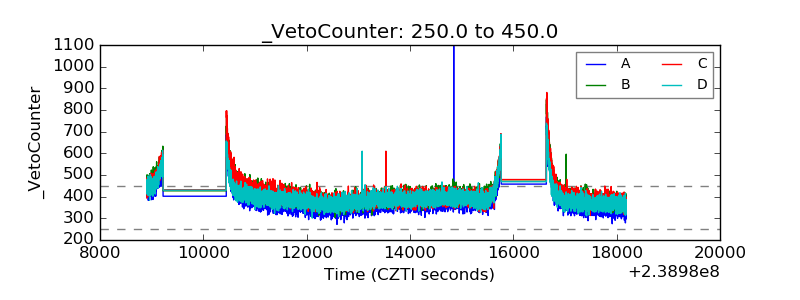

| Veto Counter |  |
