| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_009T01_9000001412_09918cztM0_level2.evt | modeM0/AS1A03_009T01_9000001412_09918cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,382,720 | 81,944,640 |
| Size | 511.5 MB | 78.1 MB |
| Events in quadrant A | 3,454,468 | 493,470 |
| Events in quadrant B | 3,687,143 | 496,007 |
| Events in quadrant C | 3,444,811 | 499,741 |
| Events in quadrant D | 5,150,350 | 471,708 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15600 | 3 |
| B | 0 | 15994 | 2 |
| C | 0 | 15630 | 2 |
| D | 0 | 20553 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7474 | 169 | 2.261172% |
| B | 7474 | 221 | 2.956917% |
| C | 7474 | 177 | 2.368210% |
| D | 7474 | 289 | 3.866738% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8729 | 7474 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8729 | 7474 | 9 | 9 | 0.10% | 0.12% |  |
| C | 8728 | 7473 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8729 | 7474 | 78 | 78 | 0.89% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 15724 | 81.46 | 892 | 873 | 182.3 |
| A | 0 | 226 | 8145 | 39.89 | 892 | 873 | 182.3 |
| A | 12 | 194 | 7445 | 36.05 | 892 | 873 | 182.3 |
| B | 0 | 214 | 51212 | 290.63 | 900 | 875 | 173.2 |
| B | 4 | 81 | 44564 | 252.25 | 900 | 875 | 173.2 |
| B | 4 | 239 | 29102 | 162.97 | 900 | 875 | 173.2 |
| C | 8 | 128 | 9839 | 43.73 | 877 | 880 | 204.9 |
| C | 13 | 61 | 6624 | 28.03 | 877 | 880 | 204.9 |
| C | 12 | 4 | 6411 | 26.99 | 877 | 880 | 204.9 |
| D | 8 | 195 | 611159 | 2806.71 | 861 | 835 | 217.5 |
| D | 2 | 16 | 557398 | 2559.48 | 861 | 835 | 217.5 |
| D | 1 | 52 | 391986 | 1798.79 | 861 | 835 | 217.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

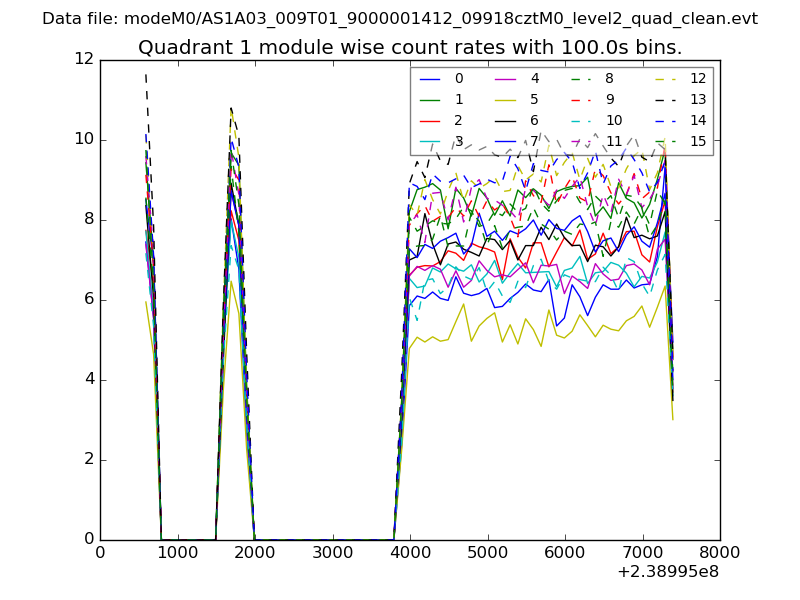

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

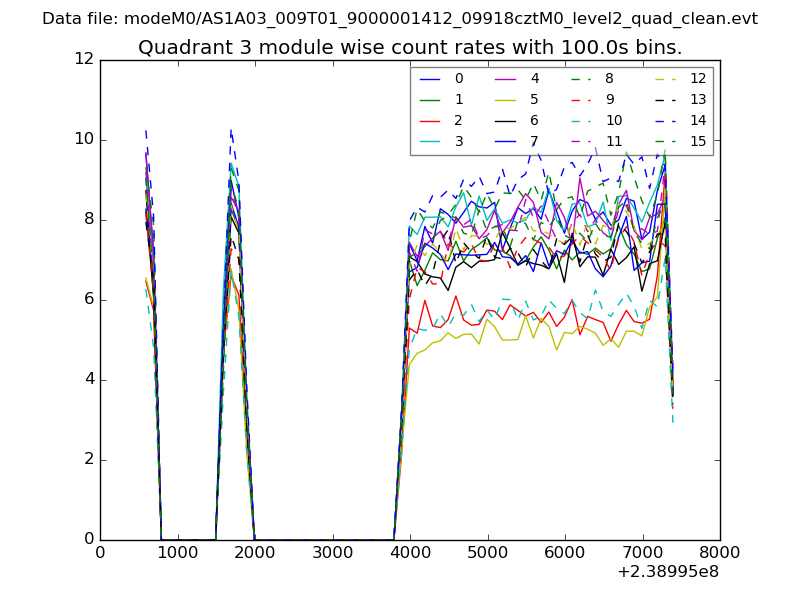

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
