| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_029T01_9000001416_09926cztM0_level2.evt | modeM0/AS1A02_029T01_9000001416_09926cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,817,600 | 85,913,280 |
| Size | 503.4 MB | 81.9 MB |
| Events in quadrant A | 3,461,551 | 563,805 |
| Events in quadrant B | 3,136,747 | 568,773 |
| Events in quadrant C | 2,839,658 | 556,961 |
| Events in quadrant D | 6,120,038 | 472,428 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14626 | 2 |
| B | 0 | 13570 | 1 |
| C | 0 | 12859 | 1 |
| D | 0 | 22652 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 95 | 1.509374% |
| B | 6294 | 53 | 0.842072% |
| C | 6294 | 18 | 0.285987% |
| D | 6294 | 846 | 13.441373% |

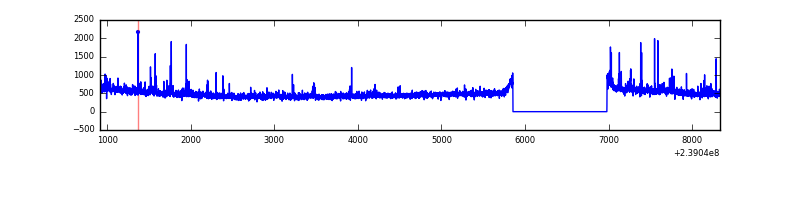

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7419 | 6294 | 23 | 23 | 0.31% | 0.37% |  |
| B | 7419 | 6294 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7419 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7419 | 6294 | 860 | 860 | 11.59% | 13.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 506623 | 3264.01 | 759 | 745 | 155.0 |
| A | 14 | 111 | 16792 | 103.54 | 759 | 745 | 155.0 |
| A | 8 | 15 | 15545 | 95.49 | 759 | 745 | 155.0 |
| B | 4 | 81 | 51545 | 346.76 | 760 | 742 | 146.5 |
| B | 4 | 239 | 45377 | 304.66 | 760 | 742 | 146.5 |
| B | 0 | 219 | 20994 | 138.23 | 760 | 742 | 146.5 |
| C | 13 | 61 | 5618 | 28.76 | 726 | 730 | 170.0 |
| C | 14 | 67 | 4085 | 19.74 | 726 | 730 | 170.0 |
| C | 12 | 4 | 2670 | 11.41 | 726 | 730 | 170.0 |
| D | 2 | 16 | 922807 | 5285.72 | 675 | 659 | 174.5 |
| D | 12 | 233 | 904146 | 5178.75 | 675 | 659 | 174.5 |
| D | 8 | 195 | 645241 | 3694.72 | 675 | 659 | 174.5 |

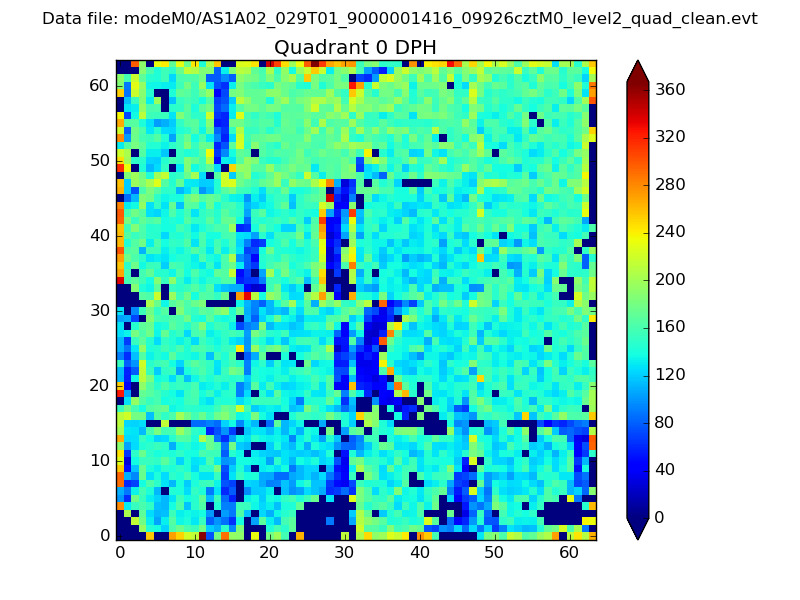

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

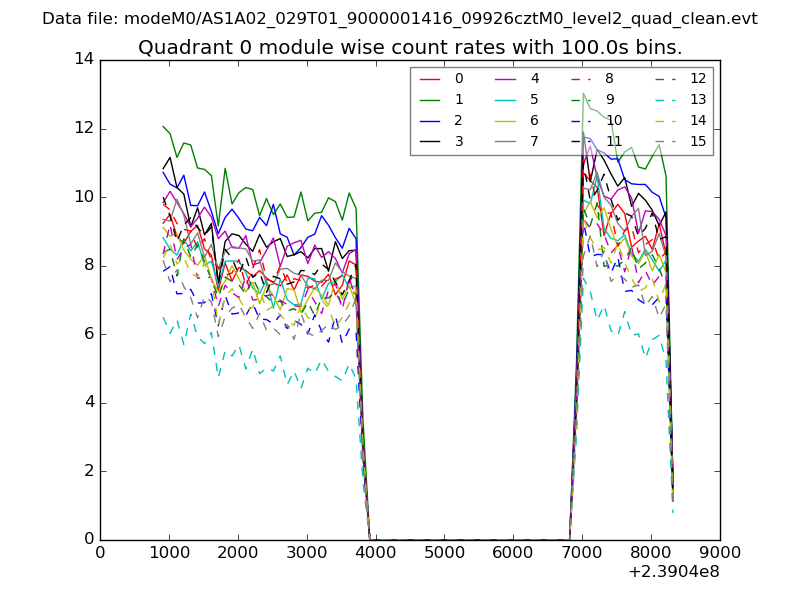

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

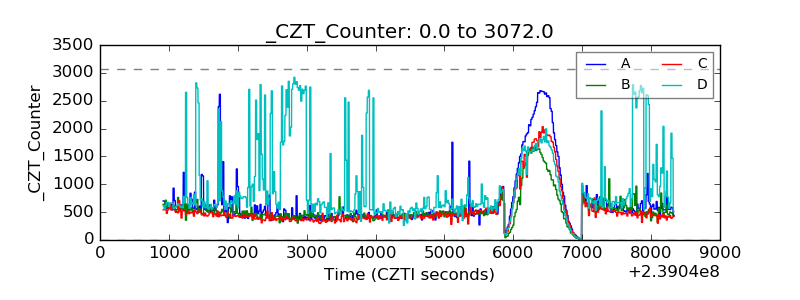

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

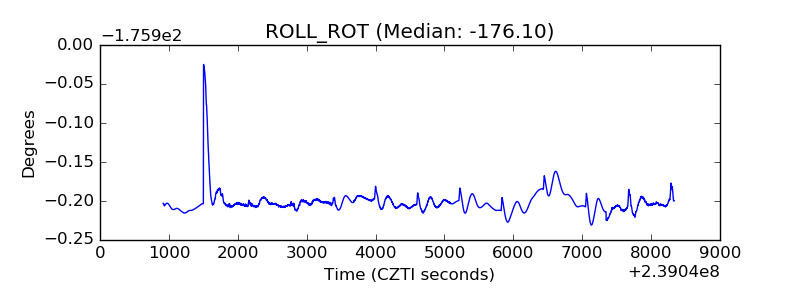

| _ROLL_ROT |  |

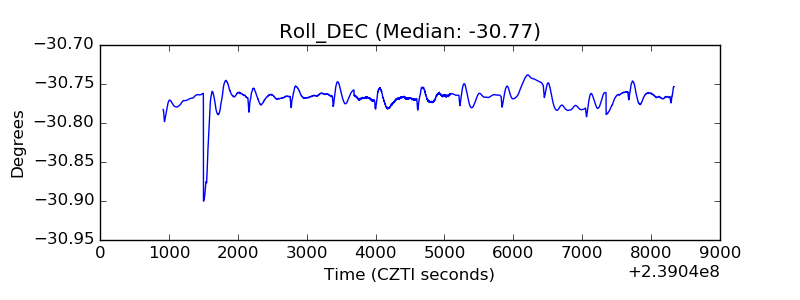

| _Roll_DEC |  |

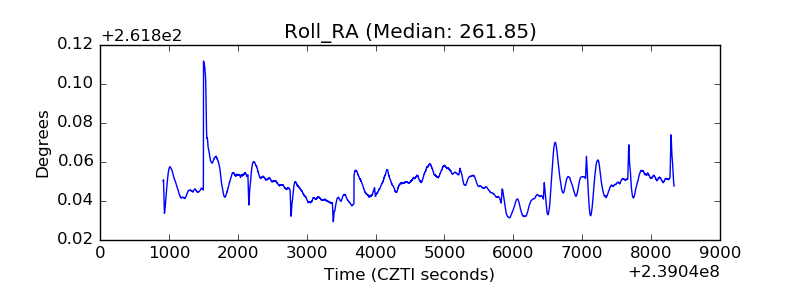

| _Roll_RA |  |

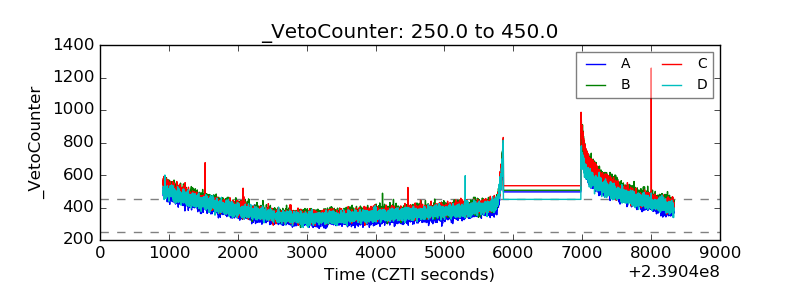

| Veto Counter |  |
