| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_029T01_9000001416_09929cztM0_level2.evt | modeM0/AS1A02_029T01_9000001416_09929cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,205,120 | 86,777,280 |
| Size | 471.3 MB | 82.8 MB |
| Events in quadrant A | 3,482,173 | 566,028 |
| Events in quadrant B | 3,292,618 | 582,950 |
| Events in quadrant C | 2,894,921 | 568,267 |
| Events in quadrant D | 4,883,146 | 484,329 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 1 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 2 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14472 | 125 |
| B | 0 | 13757 | 147 |
| C | 0 | 12769 | 119 |
| D | 0 | 18977 | 424 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6116 | 57 | 0.931982% |
| B | 6108 | 75 | 1.227898% |
| C | 6111 | 20 | 0.327279% |
| D | 6090 | 462 | 7.586207% |

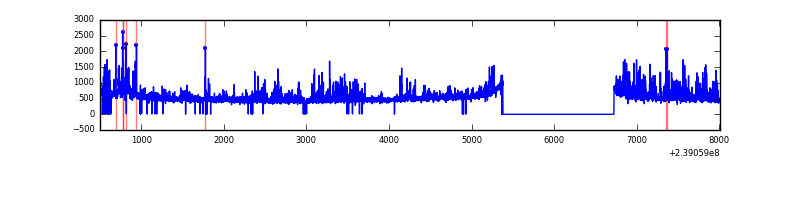

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6161 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7510 | 6164 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7510 | 6163 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7510 | 6132 | 491 | 491 | 6.54% | 8.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 470267 | 3039.27 | 759 | 746 | 154.5 |
| A | 8 | 15 | 84676 | 543.29 | 759 | 746 | 154.5 |
| A | 0 | 226 | 7377 | 42.92 | 759 | 746 | 154.5 |
| B | 0 | 85 | 164092 | 1114.43 | 771 | 756 | 146.6 |
| B | 0 | 219 | 46564 | 312.54 | 771 | 756 | 146.6 |
| B | 4 | 239 | 23440 | 154.77 | 771 | 756 | 146.6 |
| C | 12 | 4 | 8269 | 43.78 | 739 | 745 | 171.9 |
| C | 13 | 61 | 5648 | 28.53 | 739 | 745 | 171.9 |
| C | 14 | 67 | 3984 | 18.85 | 739 | 745 | 171.9 |
| D | 2 | 16 | 969484 | 5431.83 | 684 | 667 | 178.4 |
| D | 1 | 52 | 504655 | 2825.69 | 684 | 667 | 178.4 |
| D | 8 | 195 | 225614 | 1261.2 | 684 | 667 | 178.4 |

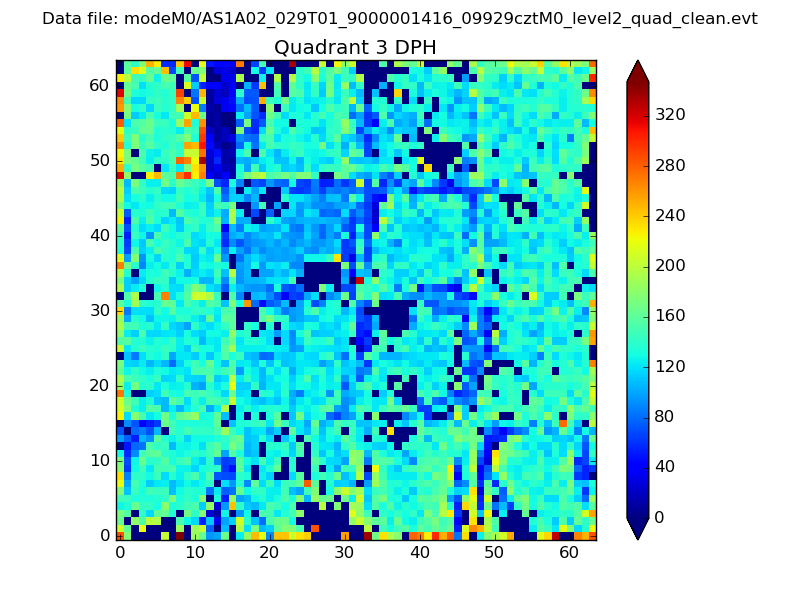

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

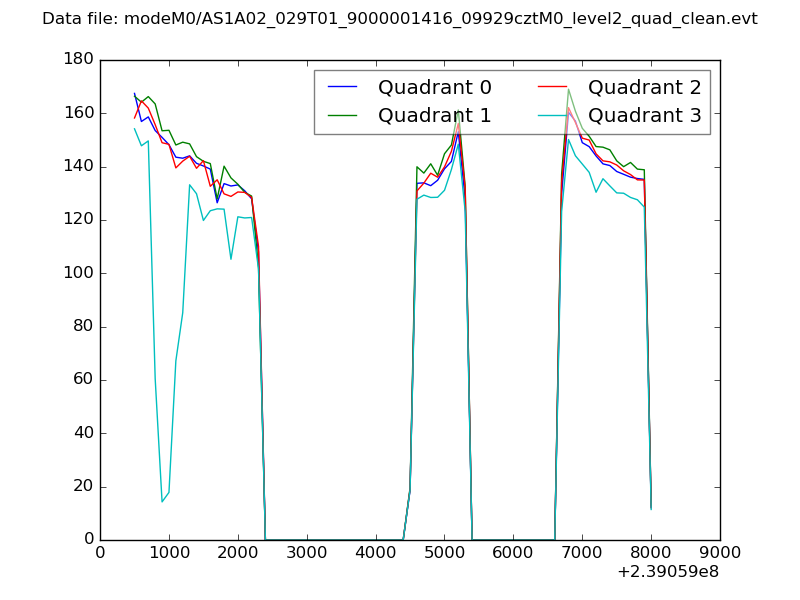

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

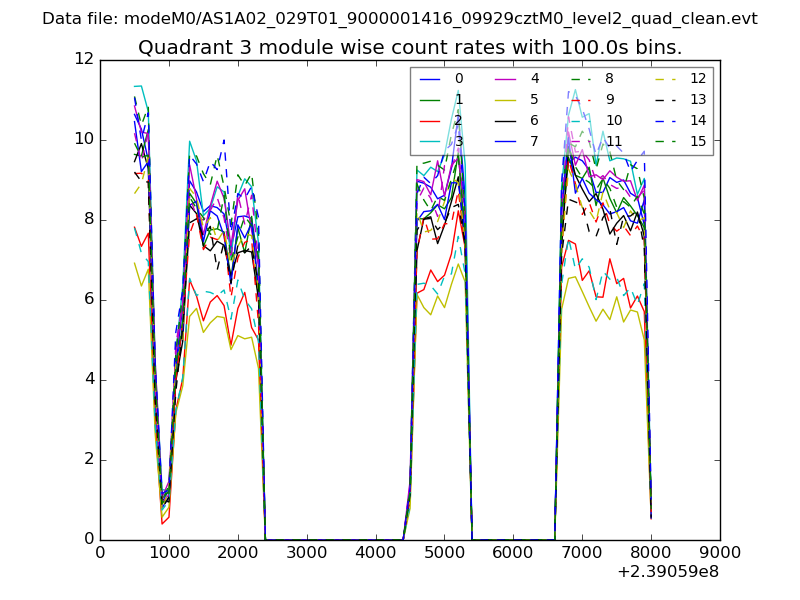

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

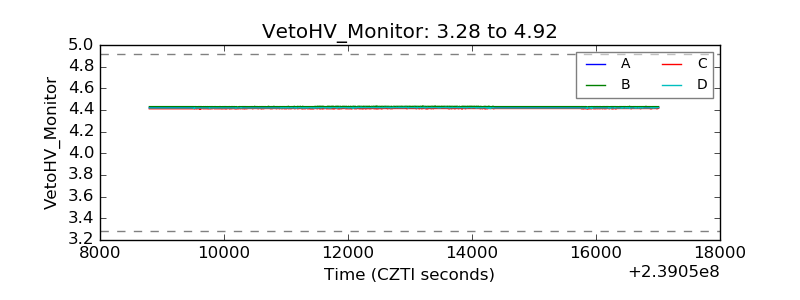

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

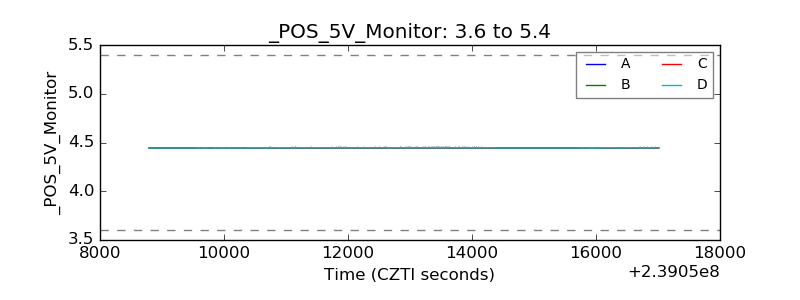

| +5 Volts monitor |  |

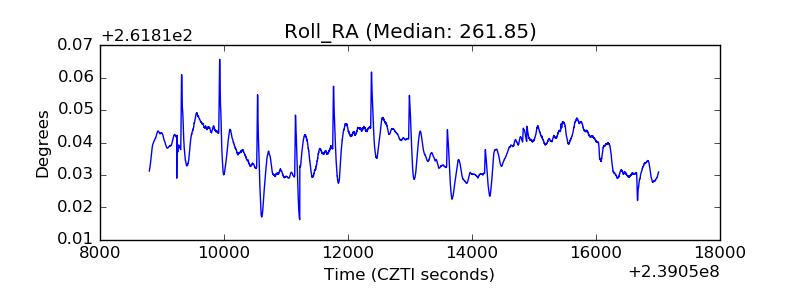

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
