| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_107T01_9000001418_09934cztM0_level2.evt | modeM0/AS1A03_107T01_9000001418_09934cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,348,800 | 82,811,520 |
| Size | 587.8 MB | 79.0 MB |
| Events in quadrant A | 6,176,959 | 465,189 |
| Events in quadrant B | 3,906,146 | 509,633 |
| Events in quadrant C | 3,645,440 | 509,072 |
| Events in quadrant D | 4,406,661 | 479,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24343 | 592 |
| B | 0 | 17193 | 319 |
| C | 0 | 16806 | 294 |
| D | 0 | 18874 | 406 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 4 |
| B | 0 | 164 | 4 |
| C | 0 | 164 | 6 |
| D | 0 | 164 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7807 | 863 | 11.054182% |
| B | 7835 | 256 | 3.267390% |
| C | 7843 | 162 | 2.065536% |
| D | 7817 | 207 | 2.648075% |

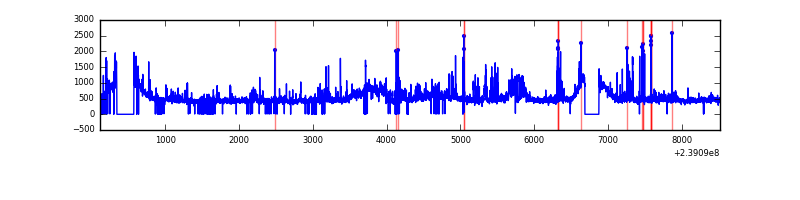

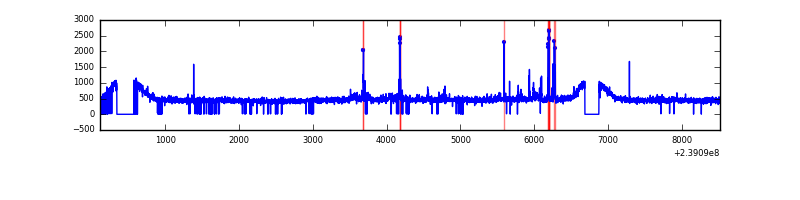

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8393 | 7940 | 595 | 595 | 7.09% | 7.49% |  |
| B | 8400 | 7966 | 14 | 14 | 0.17% | 0.18% |  |
| C | 8399 | 7968 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8400 | 7957 | 18 | 18 | 0.21% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2650289 | 14159.95 | 909 | 888 | 187.1 |
| A | 15 | 174 | 12959 | 64.51 | 909 | 888 | 187.1 |
| A | 0 | 226 | 8132 | 38.72 | 909 | 888 | 187.1 |
| B | 4 | 81 | 45360 | 238.06 | 955 | 930 | 186.6 |
| B | 0 | 214 | 38898 | 203.44 | 955 | 930 | 186.6 |
| B | 0 | 219 | 28068 | 145.41 | 955 | 930 | 186.6 |
| C | 13 | 61 | 6955 | 27.31 | 931 | 936 | 220.4 |
| C | 12 | 4 | 5736 | 21.78 | 931 | 936 | 220.4 |
| C | 8 | 128 | 4862 | 17.81 | 931 | 936 | 220.4 |
| D | 2 | 16 | 243449 | 1041.65 | 915 | 889 | 232.9 |
| D | 8 | 195 | 189221 | 808.77 | 915 | 889 | 232.9 |
| D | 1 | 52 | 184453 | 788.29 | 915 | 889 | 232.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

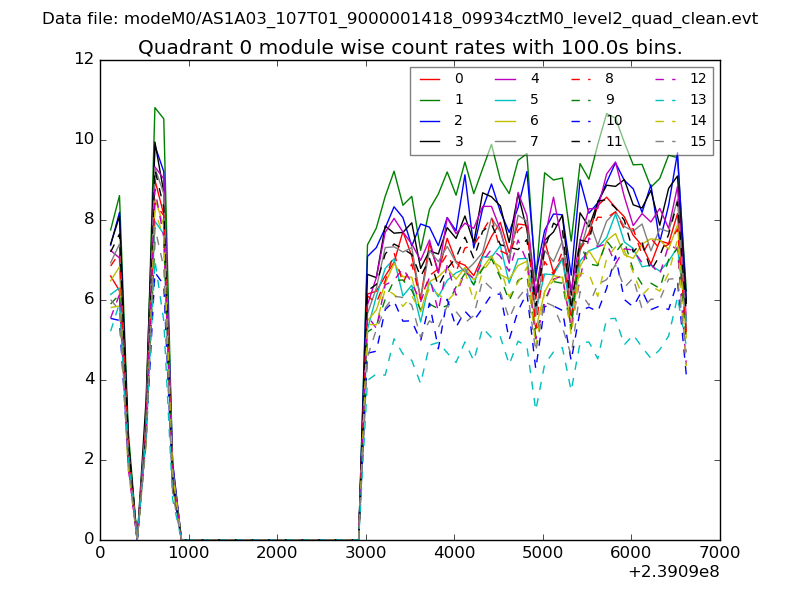

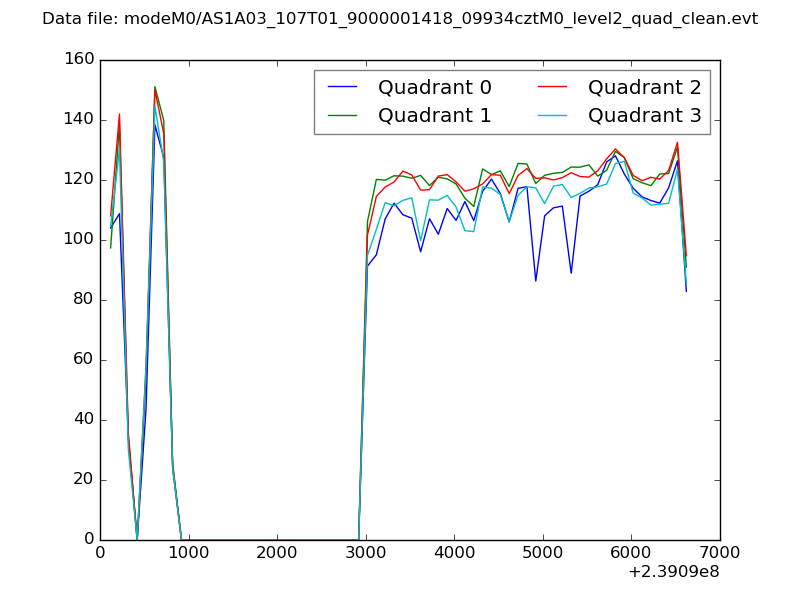

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

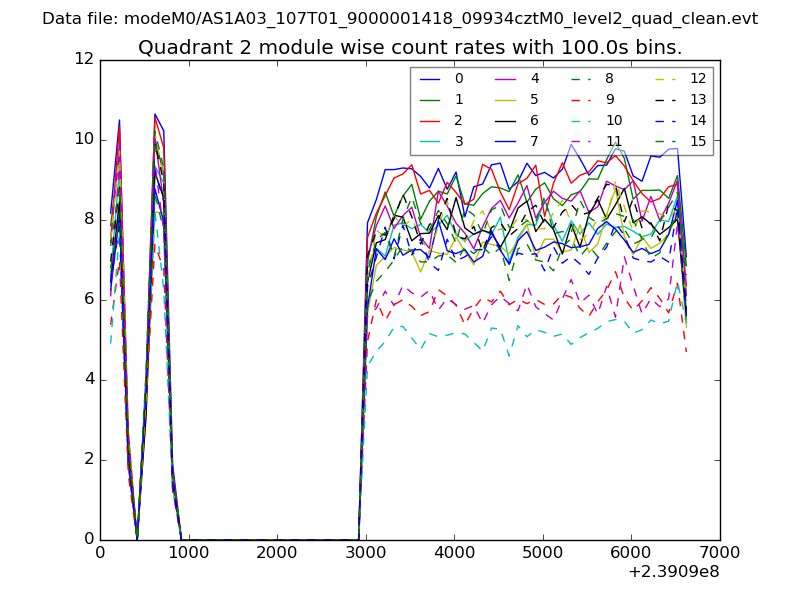

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

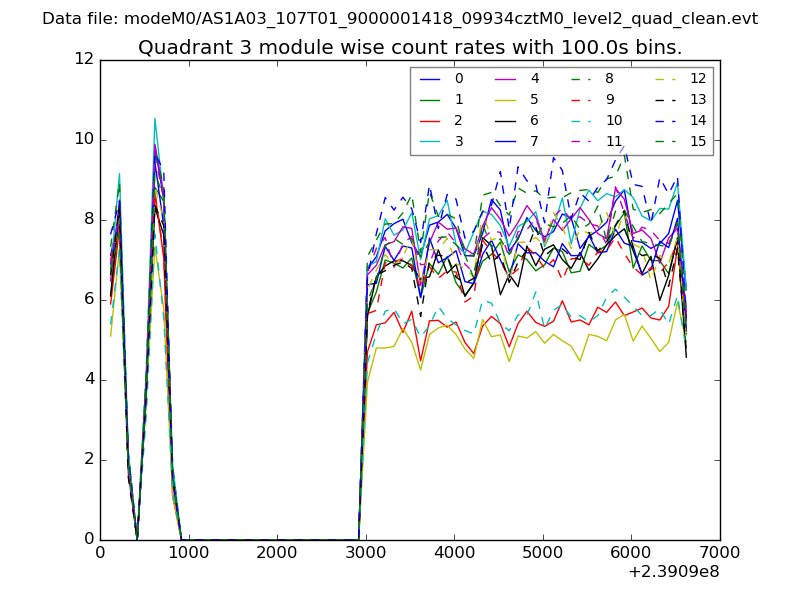

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

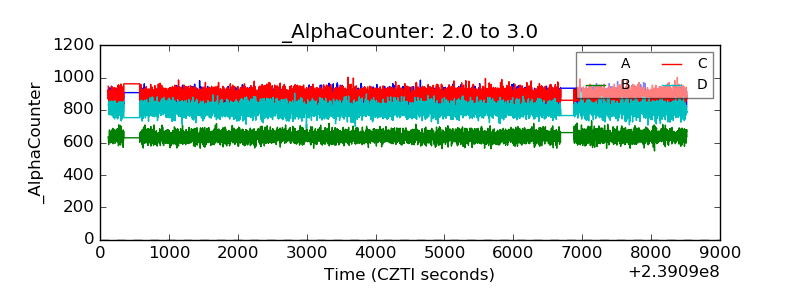

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

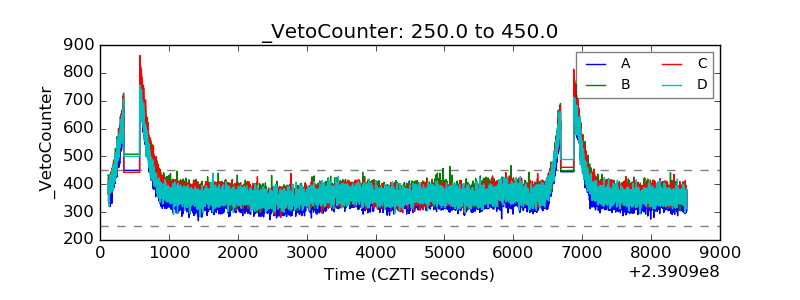

| Veto Counter |  |
