| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_016T01_9000001420_09939cztM0_level2.evt | modeM0/AS1G07_016T01_9000001420_09939cztM0_level2_quad_clean.evt |
| Size (bytes) | 256,006,080 | 34,404,480 |
| Size | 244.1 MB | 32.8 MB |
| Events in quadrant A | 1,806,491 | 207,767 |
| Events in quadrant B | 1,922,206 | 204,983 |
| Events in quadrant C | 1,554,322 | 204,027 |
| Events in quadrant D | 2,245,162 | 190,905 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7504 | 2 |
| B | 0 | 7868 | 1 |
| C | 0 | 6772 | 1 |
| D | 0 | 8812 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3289 | 31 | 0.942536% |
| B | 3289 | 99 | 3.010033% |
| C | 3289 | 8 | 0.243235% |
| D | 3289 | 93 | 2.827607% |

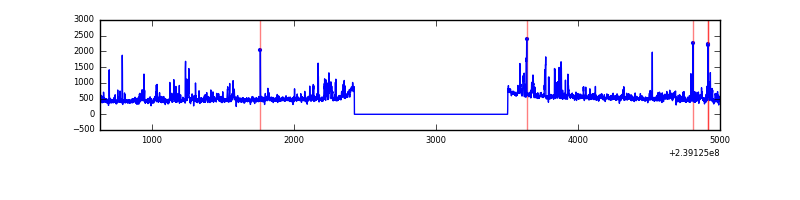

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4369 | 3289 | 5 | 5 | 0.11% | 0.15% |  |
| B | 4369 | 3289 | 52 | 52 | 1.19% | 1.58% |  |
| C | 4369 | 3289 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4369 | 3289 | 66 | 66 | 1.51% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 225838 | 2668.64 | 409 | 401 | 84.5 |
| A | 15 | 174 | 3854 | 40.88 | 409 | 401 | 84.5 |
| A | 0 | 226 | 3729 | 39.4 | 409 | 401 | 84.5 |
| B | 4 | 81 | 261363 | 3299.18 | 407 | 396 | 79.1 |
| B | 0 | 219 | 27993 | 348.88 | 407 | 396 | 79.1 |
| B | 0 | 214 | 15583 | 192.0 | 407 | 396 | 79.1 |
| C | 7 | 247 | 4328 | 42.72 | 395 | 396 | 92.0 |
| C | 14 | 234 | 4000 | 39.15 | 395 | 396 | 92.0 |
| C | 14 | 67 | 3114 | 29.53 | 395 | 396 | 92.0 |
| D | 2 | 16 | 224612 | 2182.56 | 389 | 380 | 102.7 |
| D | 12 | 233 | 123328 | 1196.71 | 389 | 380 | 102.7 |
| D | 1 | 52 | 110490 | 1071.75 | 389 | 380 | 102.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

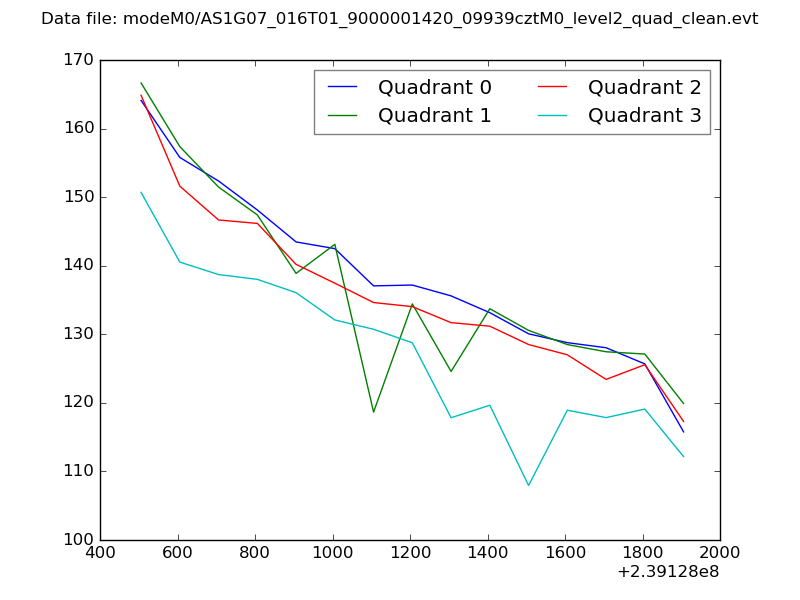

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

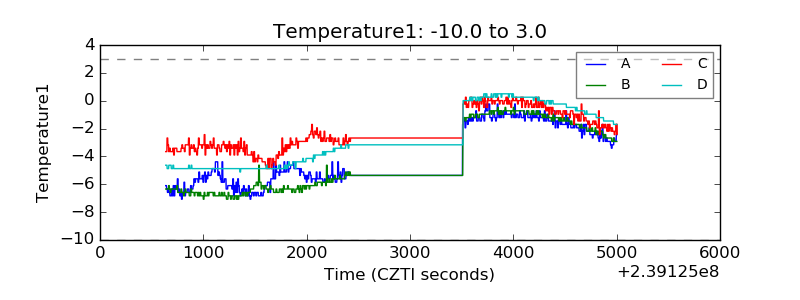

| Temperature 1 |  |
| Veto HV Monitor |  |

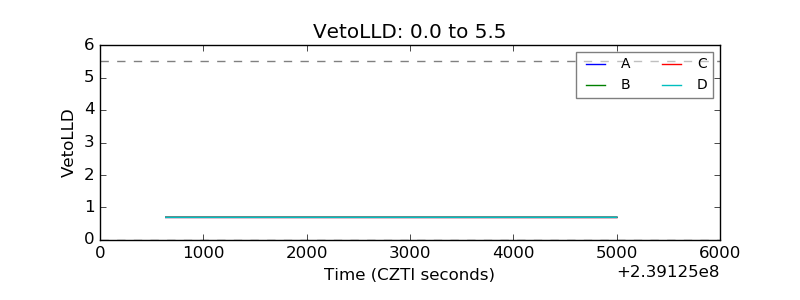

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

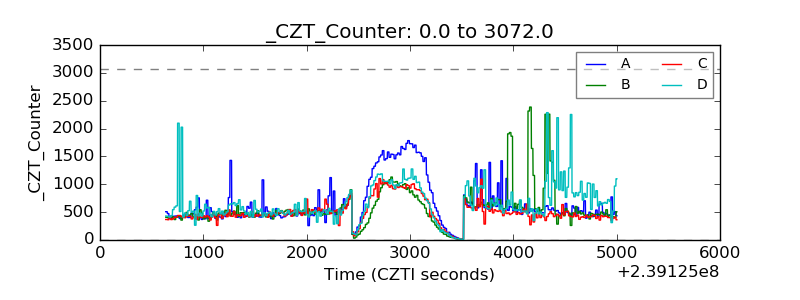

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

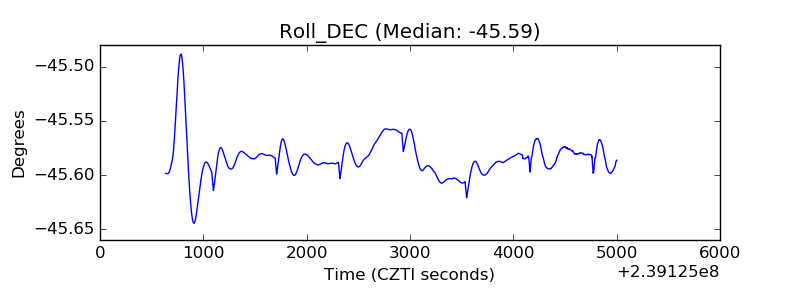

| _Roll_DEC |  |

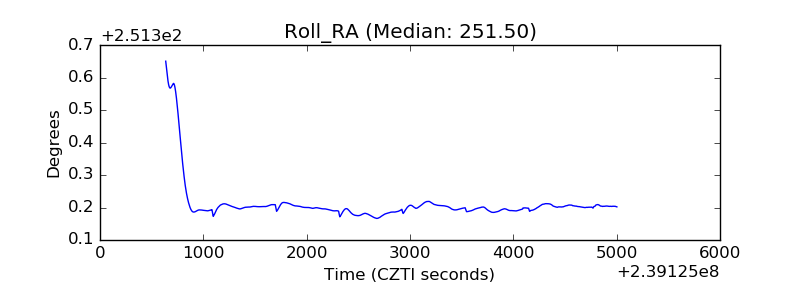

| _Roll_RA |  |
| Veto Counter |  |
