| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_016T01_9000001420_09945cztM0_level2.evt | modeM0/AS1G07_016T01_9000001420_09945cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,923,520 | 75,879,360 |
| Size | 427.2 MB | 72.4 MB |
| Events in quadrant A | 2,773,718 | 477,463 |
| Events in quadrant B | 3,112,988 | 480,489 |
| Events in quadrant C | 2,748,215 | 484,337 |
| Events in quadrant D | 4,520,167 | 433,819 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 4 |
| D | 0 | 128 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12652 | 284 |
| B | 0 | 13732 | 401 |
| C | 0 | 12596 | 258 |
| D | 0 | 18628 | 1101 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6047 | 11 | 0.181908% |
| B | 6029 | 69 | 1.144468% |
| C | 6063 | 5 | 0.082467% |
| D | 5954 | 240 | 4.030904% |

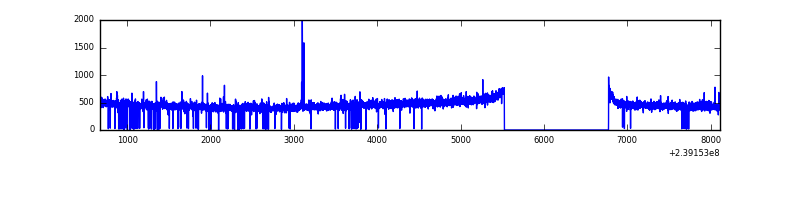

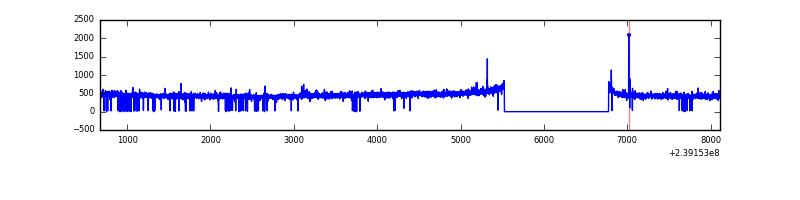

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

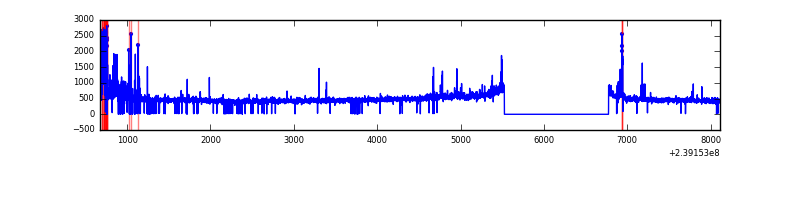

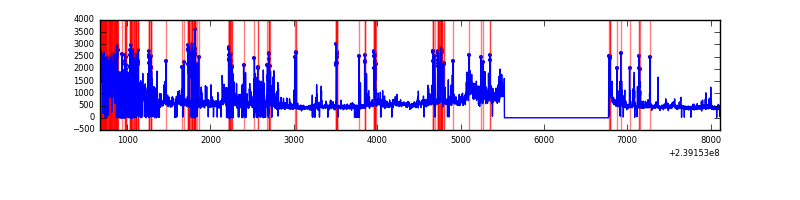

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7438 | 6178 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7438 | 6171 | 30 | 30 | 0.40% | 0.49% |  |
| C | 7438 | 6178 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7438 | 6119 | 280 | 280 | 3.76% | 4.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 14617 | 96.85 | 711 | 696 | 143.7 |
| A | 8 | 15 | 11144 | 72.69 | 711 | 696 | 143.7 |
| A | 0 | 226 | 6674 | 41.59 | 711 | 696 | 143.7 |
| B | 4 | 81 | 132247 | 964.38 | 718 | 702 | 136.4 |
| B | 4 | 239 | 94261 | 685.9 | 718 | 702 | 136.4 |
| B | 0 | 214 | 46466 | 335.5 | 718 | 702 | 136.4 |
| C | 7 | 247 | 13653 | 80.46 | 698 | 703 | 161.0 |
| C | 13 | 61 | 5277 | 28.42 | 698 | 703 | 161.0 |
| C | 14 | 234 | 4421 | 23.1 | 698 | 703 | 161.0 |
| D | 2 | 16 | 901977 | 5190.8 | 662 | 644 | 173.6 |
| D | 10 | 253 | 258206 | 1483.31 | 662 | 644 | 173.6 |
| D | 1 | 52 | 217026 | 1246.15 | 662 | 644 | 173.6 |

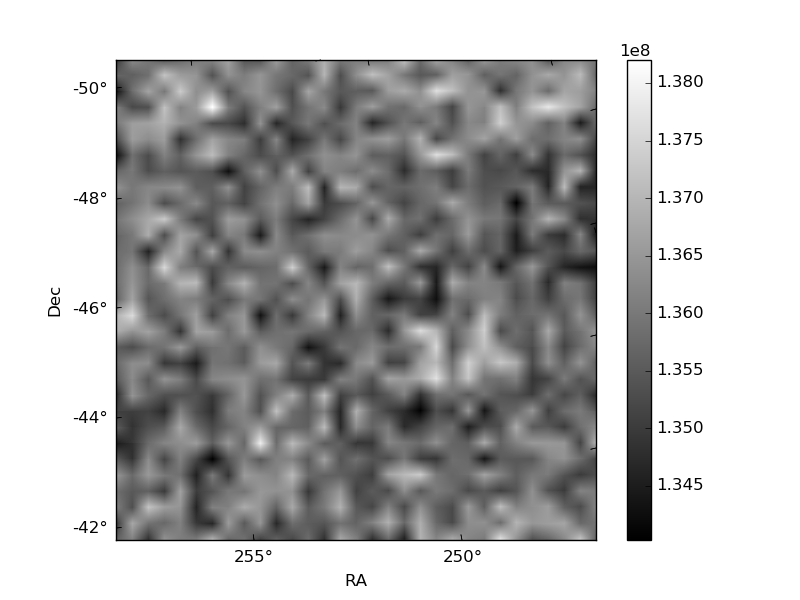

Histogram calculated using DETX and DETY for each event in the final _common_clean file

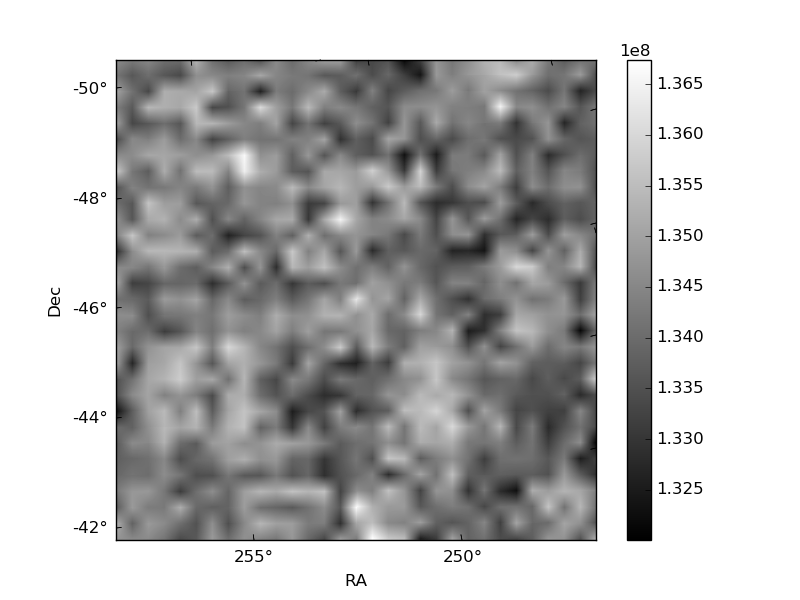

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

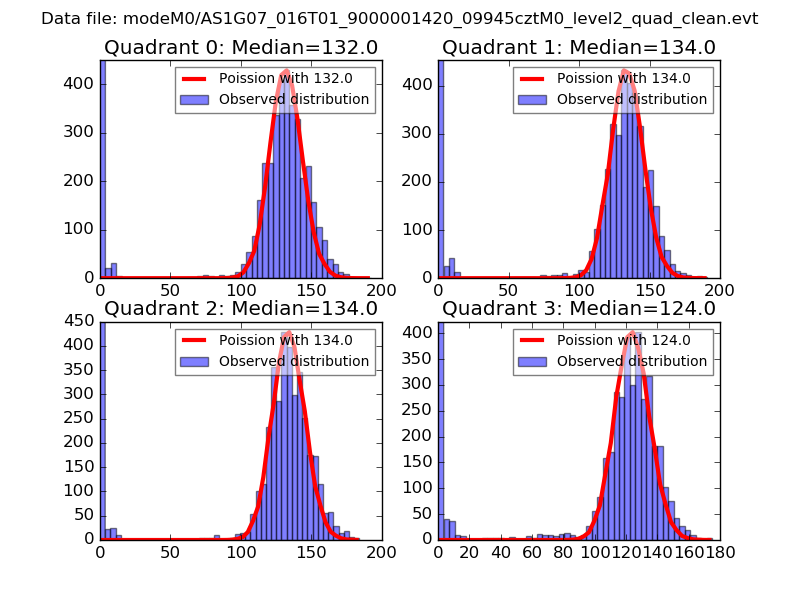

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

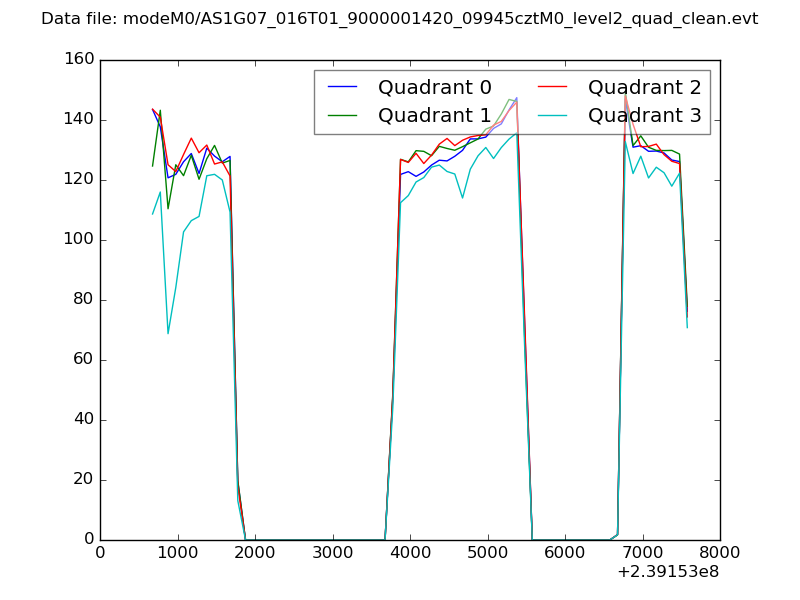

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

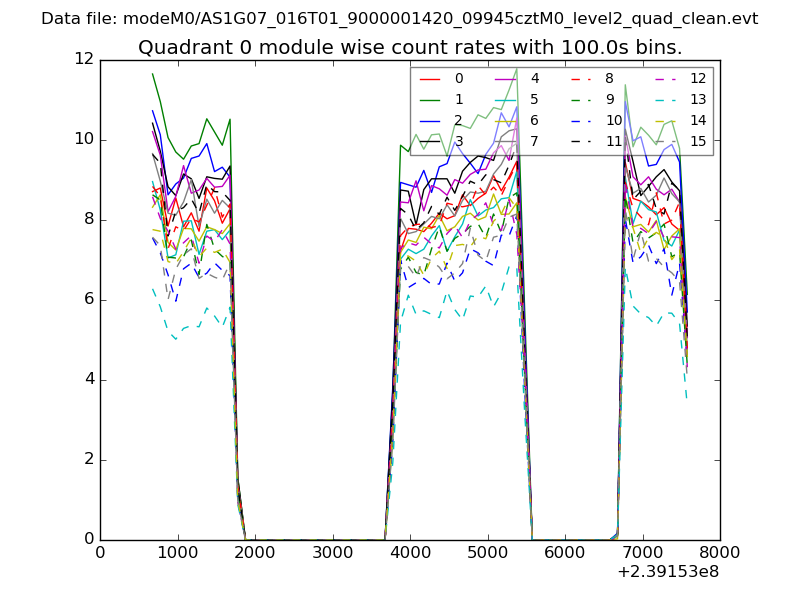

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

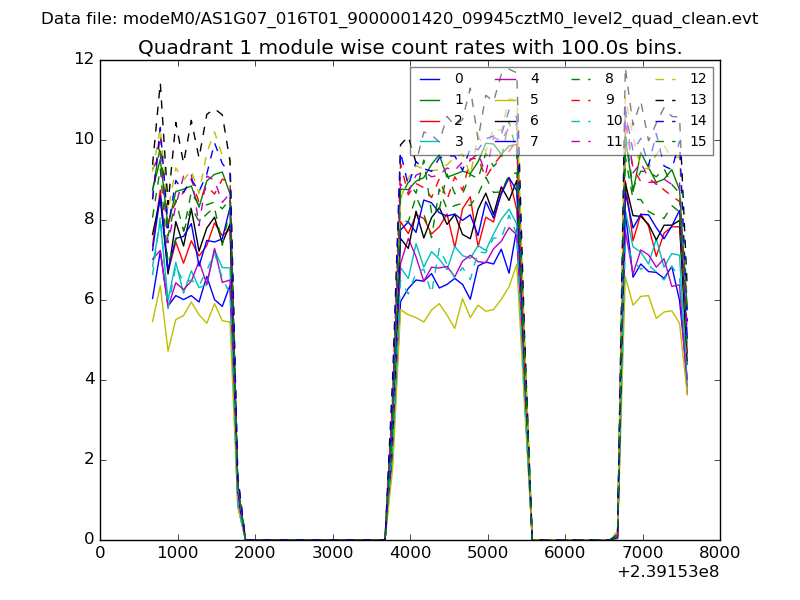

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

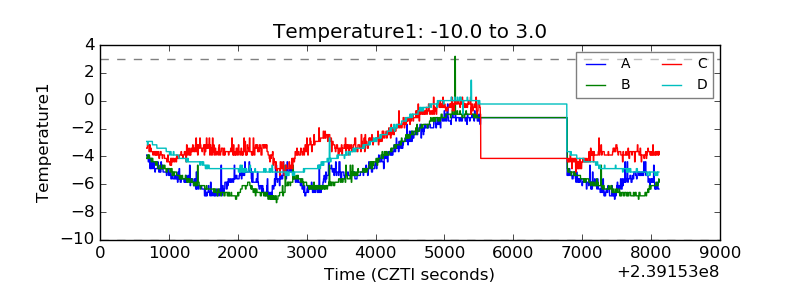

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

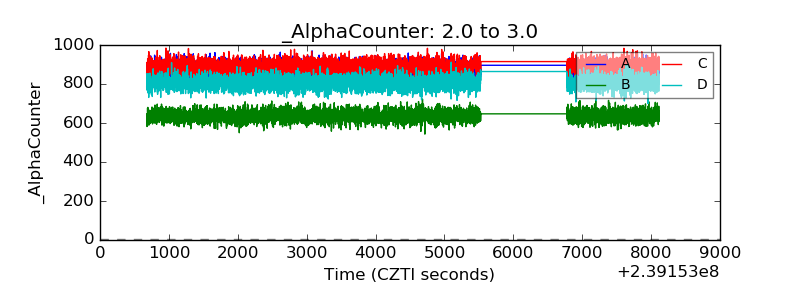

| Alpha Counter |  |

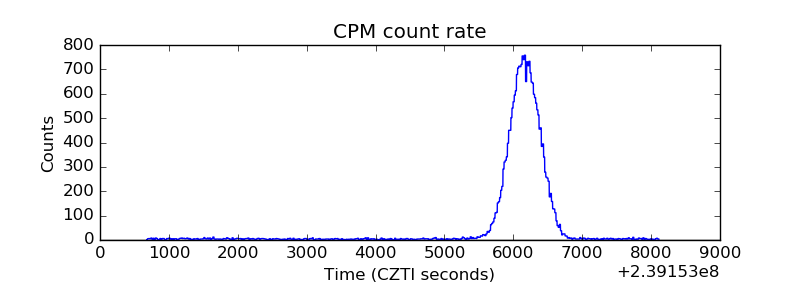

| _CPM_Rate |  |

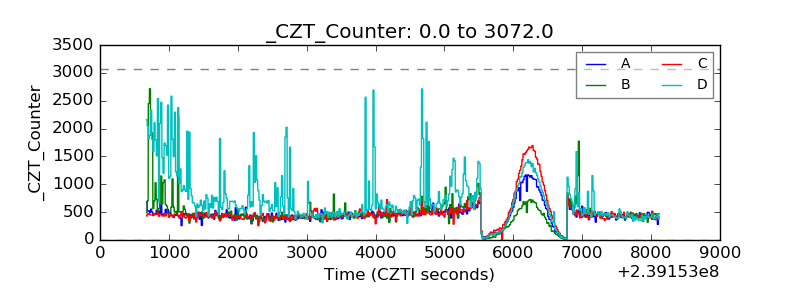

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

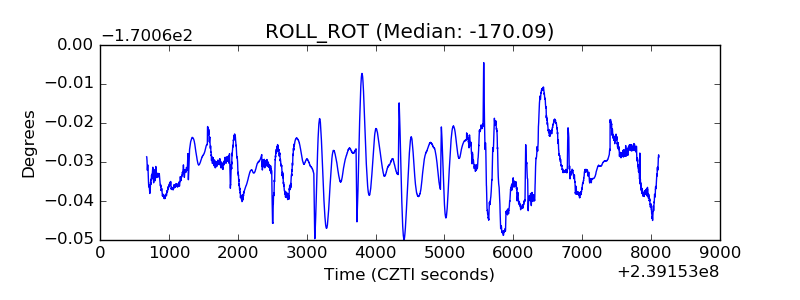

| _ROLL_ROT |  |

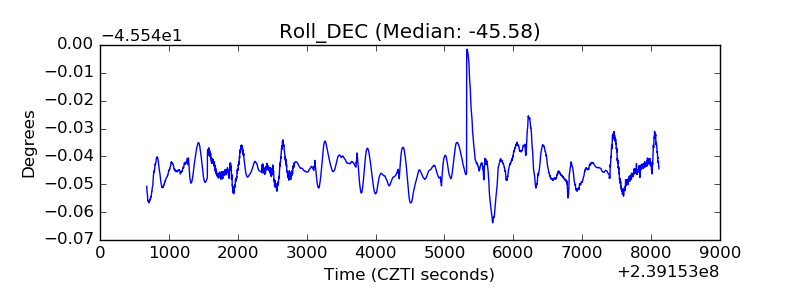

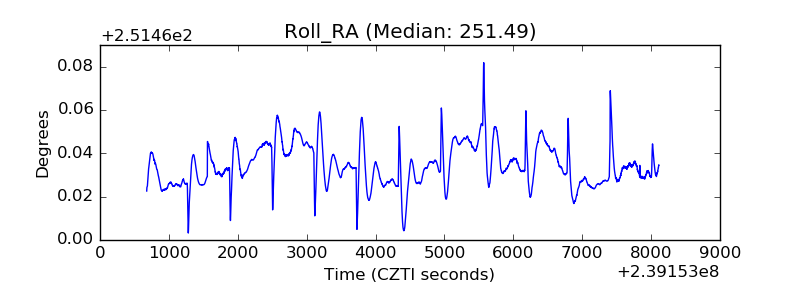

| _Roll_DEC |  |
| _Roll_RA |  |

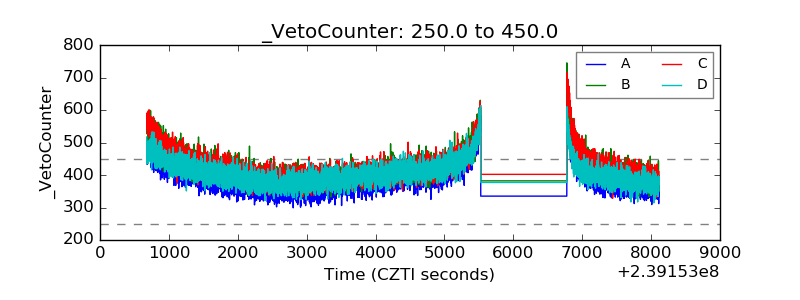

| Veto Counter |  |
