| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_016T01_9000001420_09953cztM0_level2.evt | modeM0/AS1G07_016T01_9000001420_09953cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,858,560 | 85,337,280 |
| Size | 433.8 MB | 81.4 MB |
| Events in quadrant A | 2,949,347 | 549,289 |
| Events in quadrant B | 3,319,082 | 547,943 |
| Events in quadrant C | 2,661,585 | 548,418 |
| Events in quadrant D | 4,432,045 | 513,525 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12612 | 2 |
| B | 0 | 14020 | 1 |
| C | 0 | 12350 | 5 |
| D | 0 | 17269 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6087 | 47 | 0.772137% |
| B | 6087 | 84 | 1.379990% |
| C | 6085 | 20 | 0.328677% |
| D | 6087 | 171 | 2.809266% |

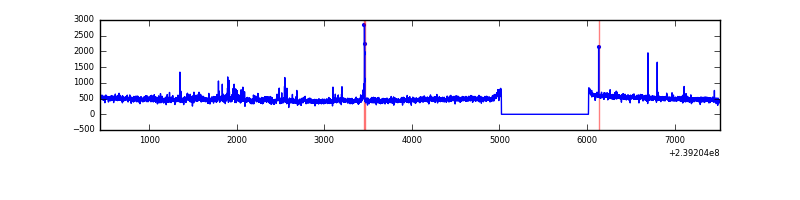

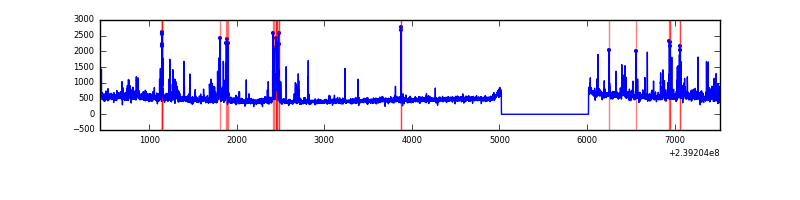

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7082 | 6087 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7082 | 6087 | 26 | 26 | 0.37% | 0.43% |  |
| C | 7082 | 6087 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7082 | 6087 | 136 | 136 | 1.92% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 114722 | 786.39 | 708 | 691 | 145.0 |
| A | 13 | 14 | 34308 | 231.83 | 708 | 691 | 145.0 |
| A | 15 | 239 | 29620 | 199.5 | 708 | 691 | 145.0 |
| B | 4 | 239 | 226330 | 1648.69 | 708 | 690 | 136.9 |
| B | 0 | 214 | 115052 | 835.61 | 708 | 690 | 136.9 |
| B | 4 | 81 | 101853 | 739.17 | 708 | 690 | 136.9 |
| C | 13 | 61 | 5112 | 28.0 | 680 | 682 | 158.2 |
| C | 14 | 234 | 4691 | 25.34 | 680 | 682 | 158.2 |
| C | 8 | 222 | 2993 | 14.61 | 680 | 682 | 158.2 |
| D | 8 | 195 | 573529 | 3150.87 | 669 | 653 | 181.8 |
| D | 2 | 16 | 453094 | 2488.47 | 669 | 653 | 181.8 |
| D | 10 | 253 | 326437 | 1791.84 | 669 | 653 | 181.8 |

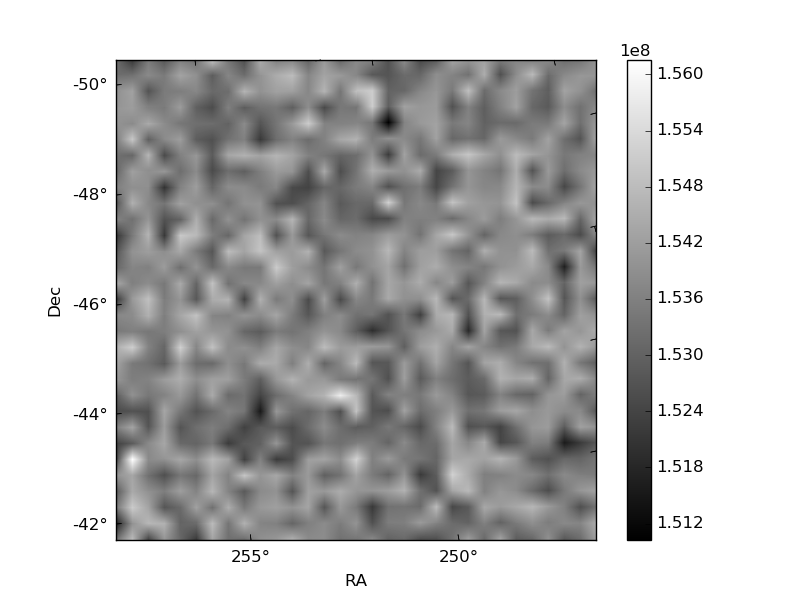

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

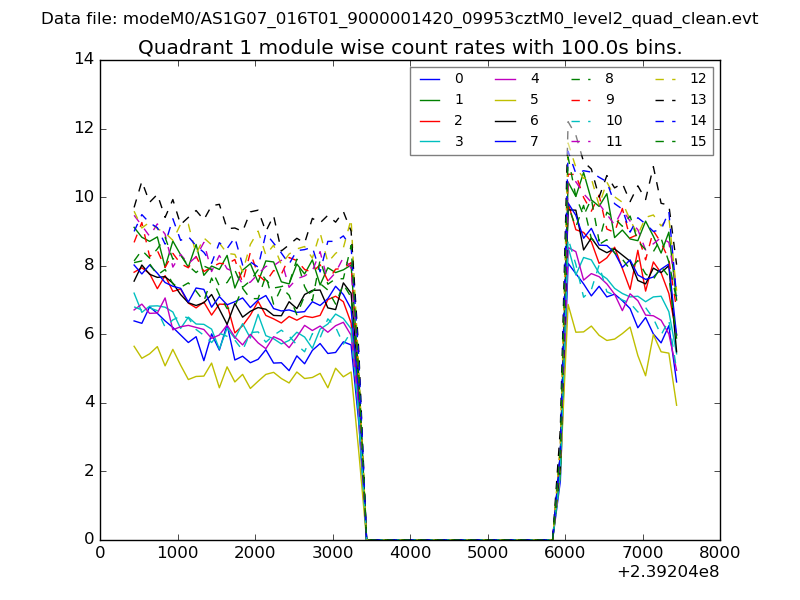

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

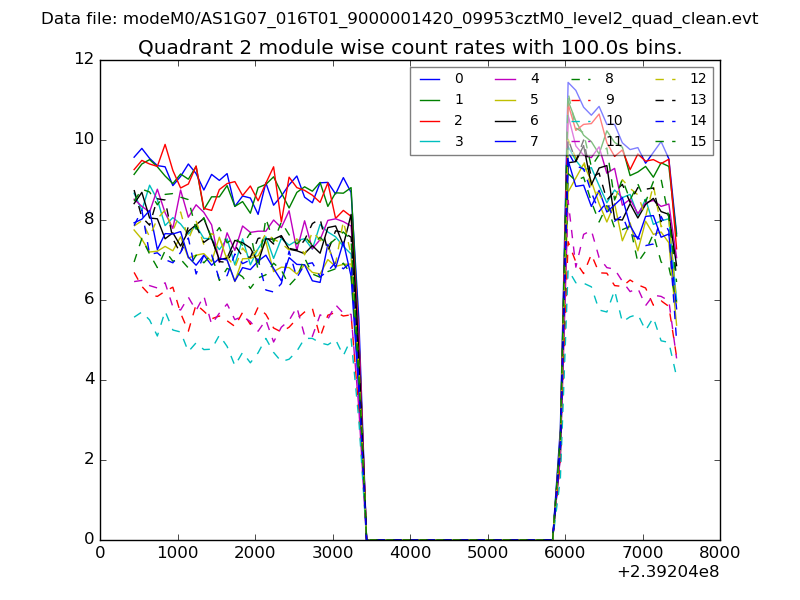

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

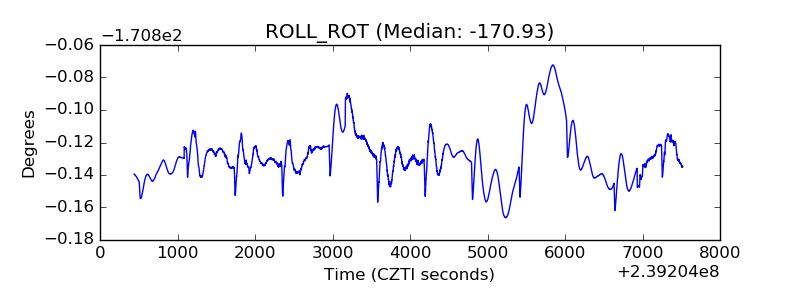

| _ROLL_ROT |  |

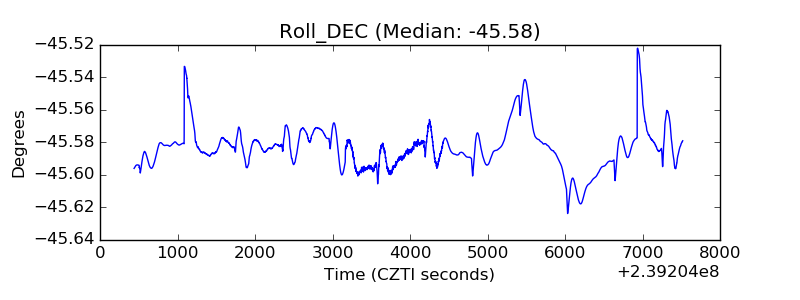

| _Roll_DEC |  |
| _Roll_RA |  |

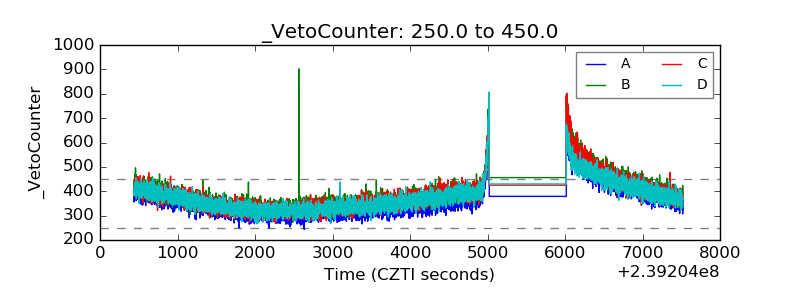

| Veto Counter |  |
