| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_016T01_9000001420_09957cztM0_level2.evt | modeM0/AS1G07_016T01_9000001420_09957cztM0_level2_quad_clean.evt |
| Size (bytes) | 117,662,400 | 28,149,120 |
| Size | 112.2 MB | 26.8 MB |
| Events in quadrant A | 750,334 | 190,823 |
| Events in quadrant B | 789,845 | 192,352 |
| Events in quadrant C | 624,626 | 188,260 |
| Events in quadrant D | 1,298,710 | 174,131 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3207 | 0 |
| B | 0 | 3297 | 0 |
| C | 0 | 2871 | 0 |
| D | 0 | 4900 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1431 | 2 | 0.139762% |
| B | 1431 | 9 | 0.628931% |
| C | 1431 | 0 | 0.000000% |
| D | 1431 | 28 | 1.956674% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

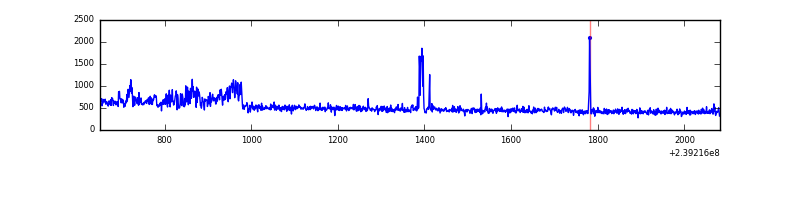

| A | 1431 | 1431 | 1 | 1 | 0.07% | 0.07% |  |
| B | 1431 | 1431 | 7 | 7 | 0.49% | 0.49% |  |

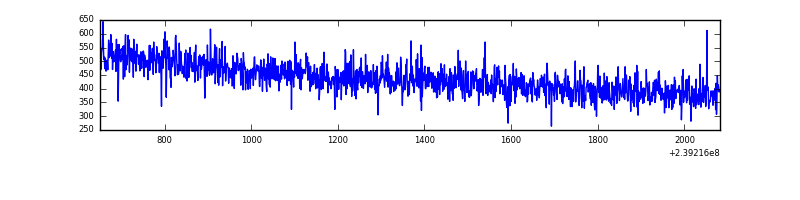

| C | 1431 | 1431 | 0 | 0 | 0.00% | 0.00% |  |

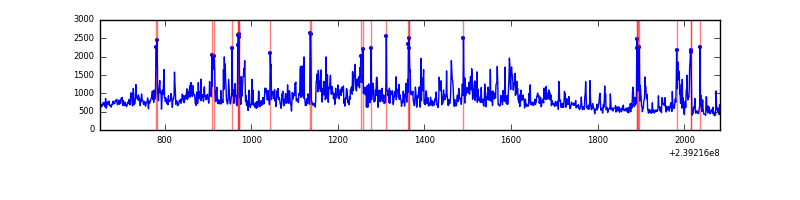

| D | 1431 | 1431 | 28 | 28 | 1.96% | 1.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 61145 | 1640.32 | 172 | 168 | 37.2 |
| A | 15 | 174 | 18685 | 498.12 | 172 | 168 | 37.2 |
| A | 13 | 14 | 6651 | 174.4 | 172 | 168 | 37.2 |
| B | 4 | 239 | 47098 | 1339.07 | 171 | 167 | 35.0 |
| B | 4 | 81 | 39354 | 1118.11 | 171 | 167 | 35.0 |
| B | 0 | 229 | 19702 | 557.38 | 171 | 167 | 35.0 |
| C | 13 | 61 | 1198 | 27.1 | 160 | 161 | 38.3 |
| C | 8 | 222 | 575 | 10.82 | 160 | 161 | 38.3 |
| C | 14 | 67 | 518 | 9.33 | 160 | 161 | 38.3 |
| D | 8 | 195 | 208346 | 5032.92 | 160 | 155 | 41.4 |
| D | 2 | 152 | 186153 | 4496.41 | 160 | 155 | 41.4 |
| D | 12 | 233 | 108990 | 2631.03 | 160 | 155 | 41.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

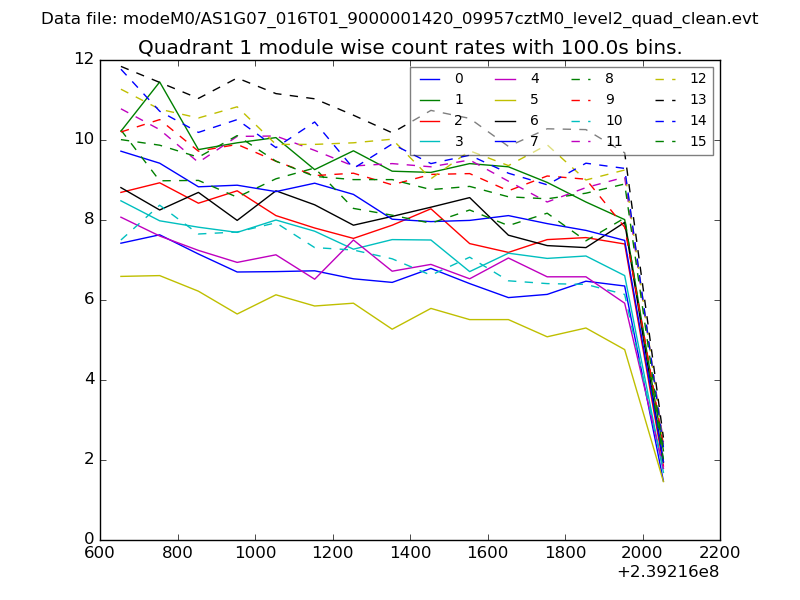

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

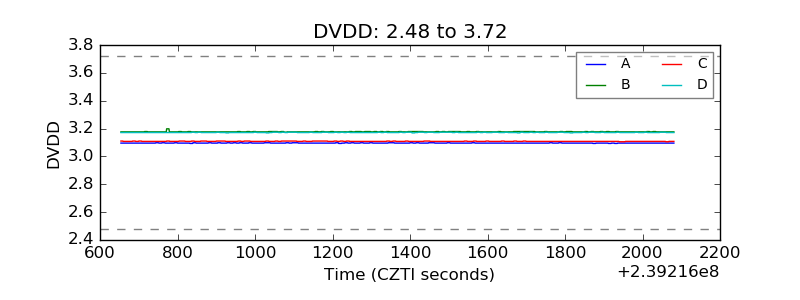

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

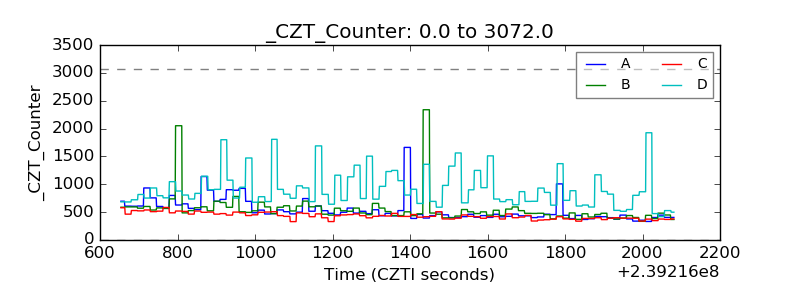

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

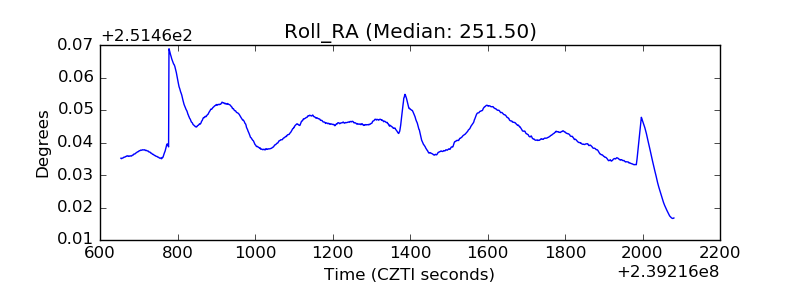

| _Roll_RA |  |
| Veto Counter |  |
