| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_047T01_9000001424_09968cztM0_level2.evt | modeM0/AS1G07_047T01_9000001424_09968cztM0_level2_quad_clean.evt |
| Size (bytes) | 406,667,520 | 85,432,320 |
| Size | 387.8 MB | 81.5 MB |
| Events in quadrant A | 2,643,147 | 553,960 |
| Events in quadrant B | 2,961,669 | 558,683 |
| Events in quadrant C | 2,528,908 | 557,485 |
| Events in quadrant D | 3,795,744 | 519,894 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12388 | 612 |
| B | 0 | 13335 | 681 |
| C | 0 | 12105 | 529 |
| D | 0 | 15931 | 895 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 6 |
| B | 0 | 120 | 2 |
| C | 0 | 120 | 2 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 2 |
| B | 0 | 11 | 1 |
| C | 0 | 11 | 1 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5662 | 51 | 0.900742% |
| B | 5662 | 67 | 1.183327% |
| C | 5693 | 32 | 0.562094% |
| D | 5653 | 199 | 3.520255% |

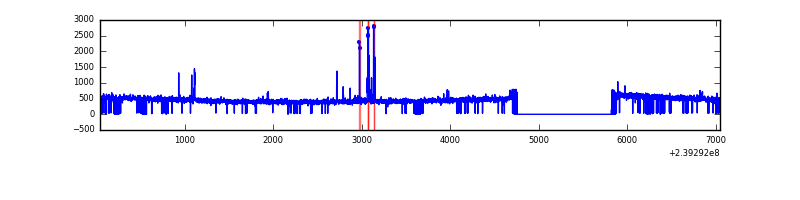

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7010 | 5853 | 7 | 7 | 0.10% | 0.12% |  |
| B | 7009 | 5863 | 22 | 22 | 0.31% | 0.38% |  |
| C | 7010 | 5873 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7010 | 5852 | 130 | 130 | 1.85% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 54398 | 391.63 | 671 | 657 | 137.2 |
| A | 0 | 226 | 6234 | 40.64 | 671 | 657 | 137.2 |
| A | 12 | 194 | 5622 | 36.18 | 671 | 657 | 137.2 |
| B | 0 | 214 | 65208 | 496.94 | 671 | 656 | 129.9 |
| B | 10 | 245 | 56646 | 431.03 | 671 | 656 | 129.9 |
| B | 4 | 81 | 54392 | 413.67 | 671 | 656 | 129.9 |
| C | 13 | 61 | 4742 | 27.21 | 647 | 649 | 150.4 |
| C | 8 | 222 | 3078 | 16.15 | 647 | 649 | 150.4 |
| C | 14 | 67 | 1985 | 8.88 | 647 | 649 | 150.4 |
| D | 1 | 52 | 513173 | 3067.53 | 636 | 616 | 167.1 |
| D | 2 | 152 | 149109 | 888.69 | 636 | 616 | 167.1 |
| D | 2 | 16 | 142865 | 851.32 | 636 | 616 | 167.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

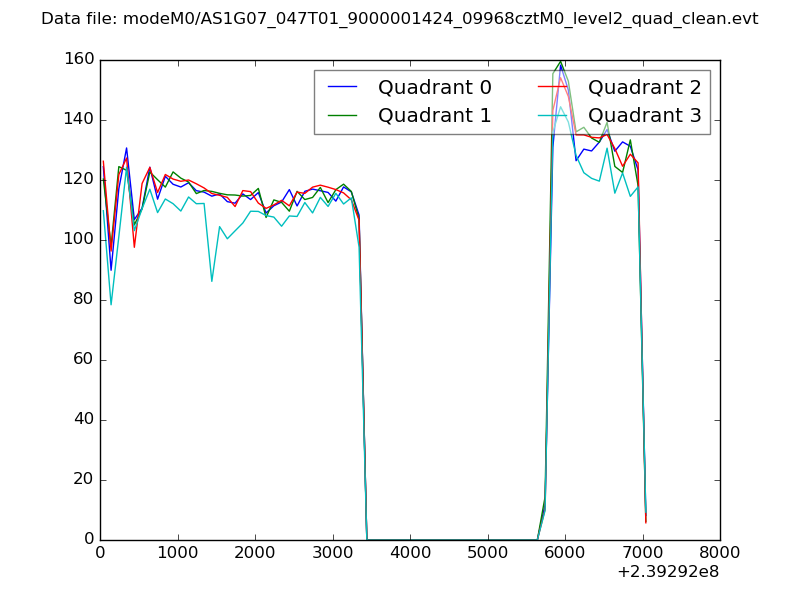

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

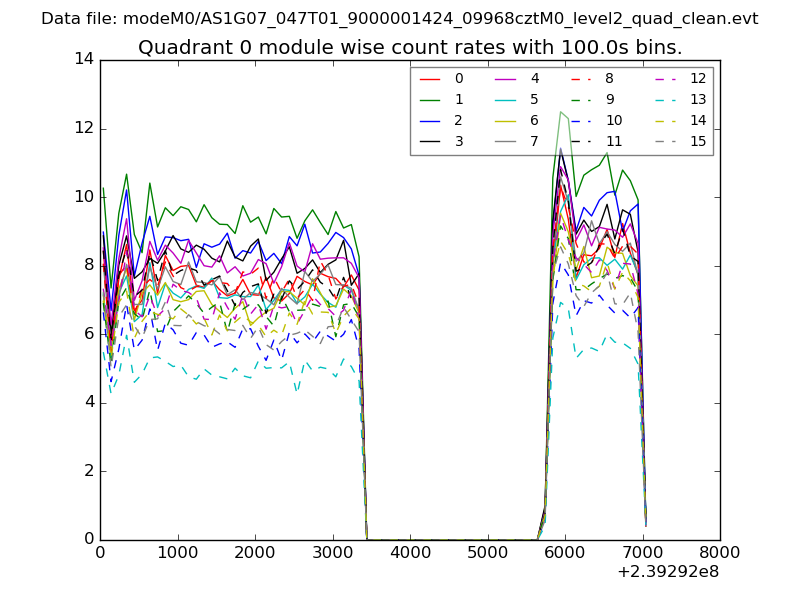

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

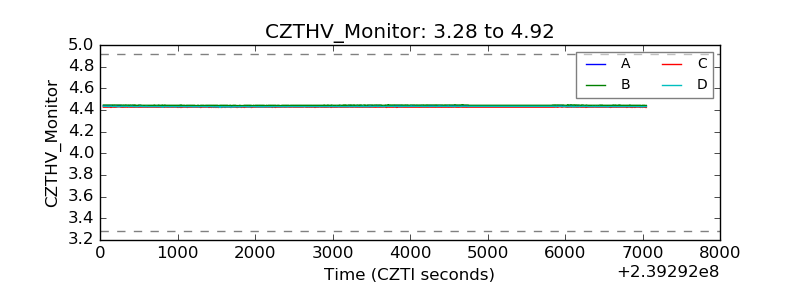

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

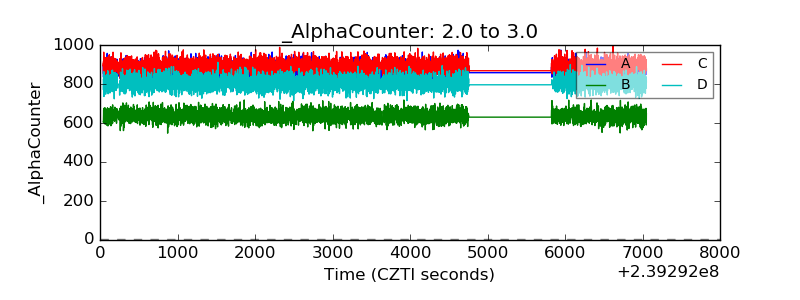

| Alpha Counter |  |
| _CPM_Rate |  |

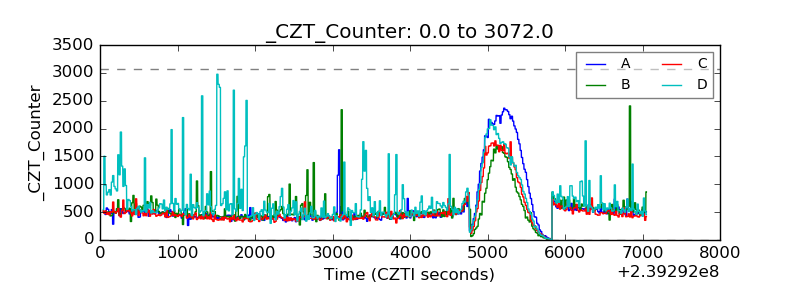

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

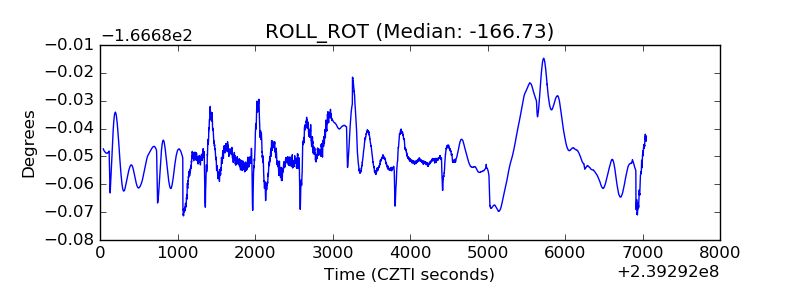

| _ROLL_ROT |  |
| _Roll_DEC |  |

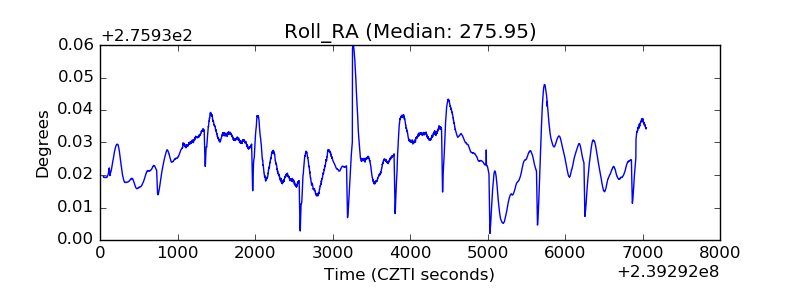

| _Roll_RA |  |
| Veto Counter |  |
