| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_074T01_9000001426_09980cztM0_level2.evt | modeM0/AS1G07_074T01_9000001426_09980cztM0_level2_quad_clean.evt |
| Size (bytes) | 969,828,480 | 135,069,120 |
| Size | 924.9 MB | 128.8 MB |
| Events in quadrant A | 10,430,600 | 765,405 |
| Events in quadrant B | 5,593,854 | 870,637 |
| Events in quadrant C | 5,085,962 | 877,049 |
| Events in quadrant D | 7,490,612 | 789,287 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 1 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46213 | 7769 |
| B | 0 | 27583 | 3455 |
| C | 0 | 26687 | 3206 |
| D | 0 | 36399 | 6603 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 268 | 32 |
| B | 0 | 268 | 30 |
| C | 0 | 268 | 38 |
| D | 0 | 268 | 34 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11120 | 1917 | 17.239209% |
| B | 11505 | 191 | 1.660148% |
| C | 11538 | 142 | 1.230716% |
| D | 11244 | 541 | 4.811455% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

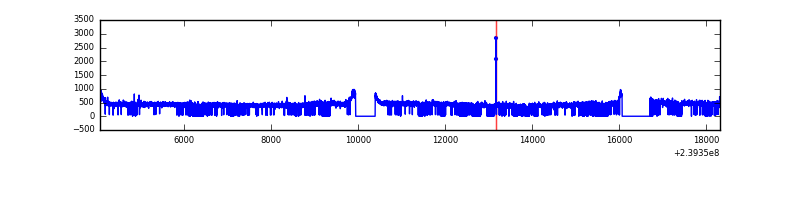

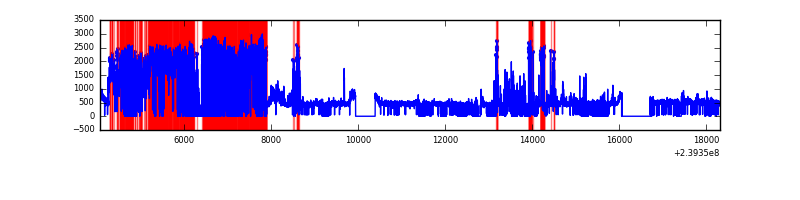

| A | 14236 | 11971 | 1638 | 1638 | 11.51% | 13.68% |  |
| B | 14236 | 12380 | 3 | 3 | 0.02% | 0.02% |  |
| C | 14236 | 12416 | 2 | 2 | 0.01% | 0.02% |  |
| D | 14236 | 12104 | 374 | 374 | 2.63% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 5512752 | 21860.53 | 1237 | 1205 | 252.1 |
| A | 15 | 174 | 98002 | 383.93 | 1237 | 1205 | 252.1 |
| A | 4 | 2 | 35372 | 135.52 | 1237 | 1205 | 252.1 |
| B | 11 | 51 | 139262 | 540.5 | 1331 | 1298 | 255.3 |
| B | 0 | 214 | 106966 | 413.98 | 1331 | 1298 | 255.3 |
| B | 4 | 239 | 54379 | 207.96 | 1331 | 1298 | 255.3 |
| C | 8 | 128 | 9983 | 28.74 | 1297 | 1301 | 302.1 |
| C | 13 | 61 | 9721 | 27.87 | 1297 | 1301 | 302.1 |
| C | 8 | 208 | 7165 | 19.41 | 1297 | 1301 | 302.1 |
| D | 2 | 16 | 1528412 | 4929.49 | 1243 | 1209 | 309.8 |
| D | 2 | 33 | 409671 | 1318.43 | 1243 | 1209 | 309.8 |
| D | 1 | 52 | 252837 | 812.2 | 1243 | 1209 | 309.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

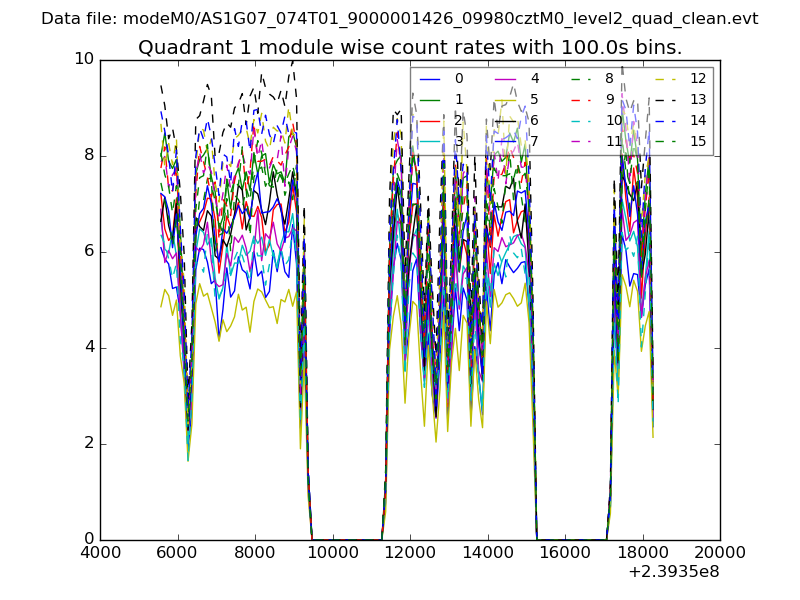

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

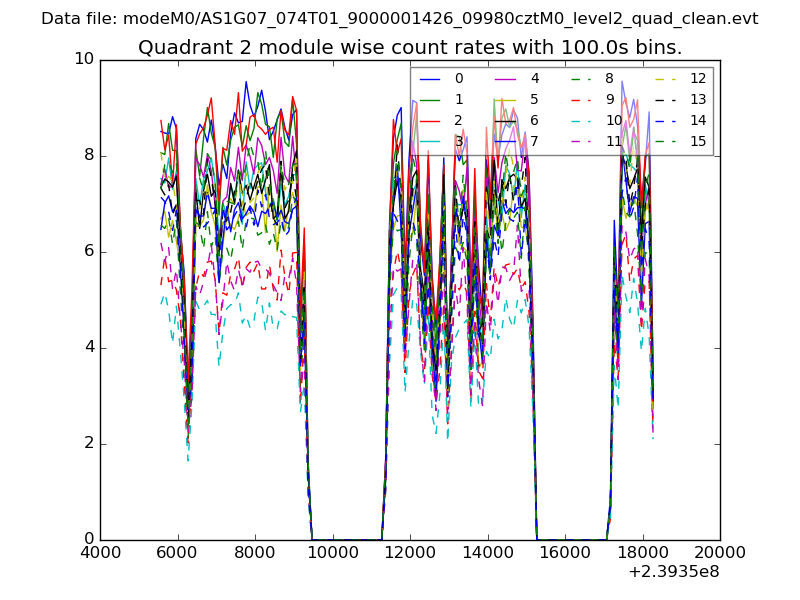

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

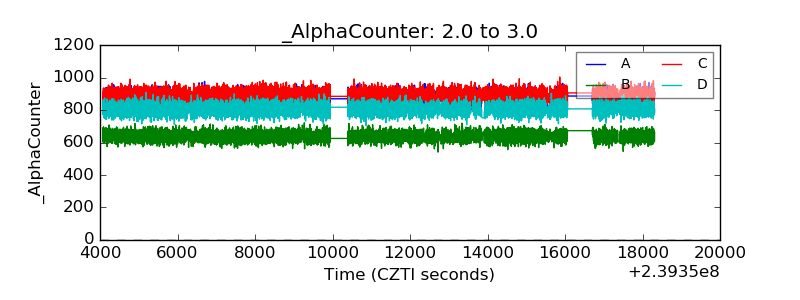

| Alpha Counter |  |

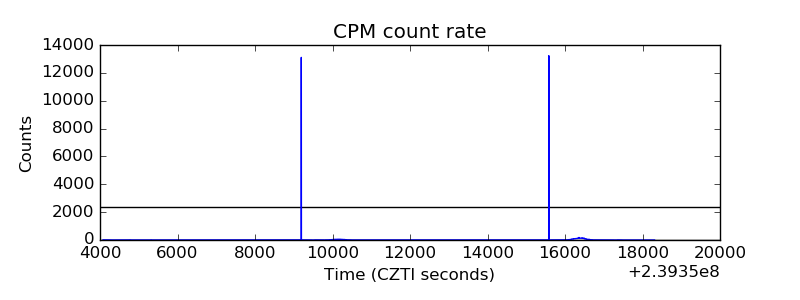

| _CPM_Rate |  |

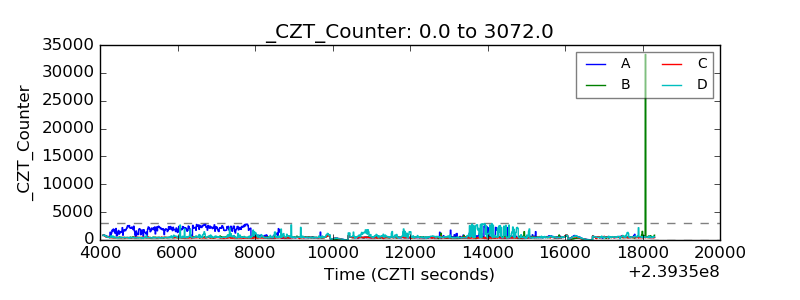

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

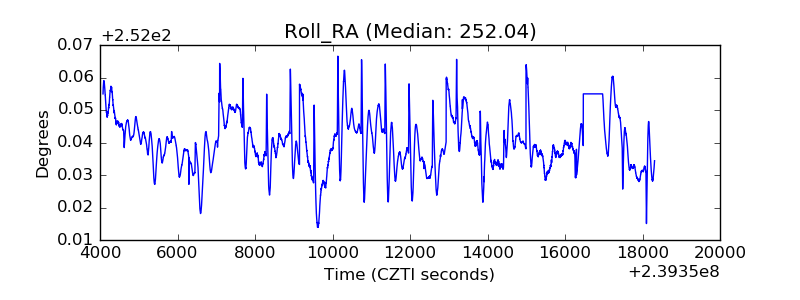

| _Roll_RA |  |
| Veto Counter |  |
