| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_074T01_9000001426_09981cztM0_level2.evt | modeM0/AS1G07_074T01_9000001426_09981cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,166,720 | 89,881,920 |
| Size | 494.2 MB | 85.7 MB |
| Events in quadrant A | 3,759,595 | 575,492 |
| Events in quadrant B | 3,276,978 | 585,757 |
| Events in quadrant C | 2,732,718 | 590,545 |
| Events in quadrant D | 5,507,729 | 542,153 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15702 | 507 |
| B | 0 | 14006 | 409 |
| C | 0 | 12824 | 293 |
| D | 0 | 21275 | 848 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 2 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6113 | 136 | 2.224767% |
| B | 6110 | 99 | 1.620295% |
| C | 6142 | 53 | 0.862911% |
| D | 6070 | 674 | 11.103789% |

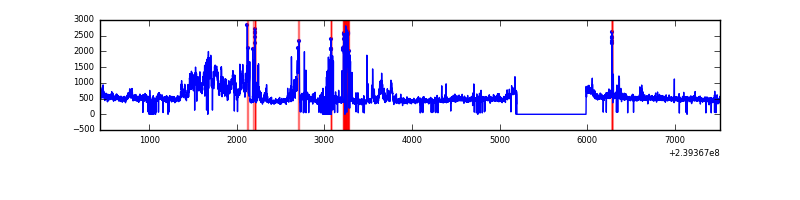

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7079 | 6224 | 55 | 55 | 0.78% | 0.88% |  |
| B | 7079 | 6230 | 20 | 20 | 0.28% | 0.32% |  |
| C | 7079 | 6250 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7079 | 6194 | 595 | 595 | 8.41% | 9.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 744758 | 5070.1 | 708 | 691 | 146.8 |
| A | 8 | 15 | 179849 | 1220.79 | 708 | 691 | 146.8 |
| A | 15 | 174 | 111069 | 752.12 | 708 | 691 | 146.8 |
| B | 4 | 239 | 167492 | 1197.64 | 711 | 694 | 139.3 |
| B | 0 | 214 | 131214 | 937.16 | 711 | 694 | 139.3 |
| B | 11 | 51 | 75170 | 534.75 | 711 | 694 | 139.3 |
| C | 14 | 234 | 30592 | 187.06 | 690 | 692 | 159.8 |
| C | 13 | 61 | 5150 | 27.89 | 690 | 692 | 159.8 |
| C | 14 | 67 | 4909 | 26.38 | 690 | 692 | 159.8 |
| D | 2 | 16 | 2323065 | 13751.28 | 649 | 629 | 168.9 |
| D | 8 | 195 | 360084 | 2128.35 | 649 | 629 | 168.9 |
| D | 1 | 52 | 177076 | 1044.75 | 649 | 629 | 168.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

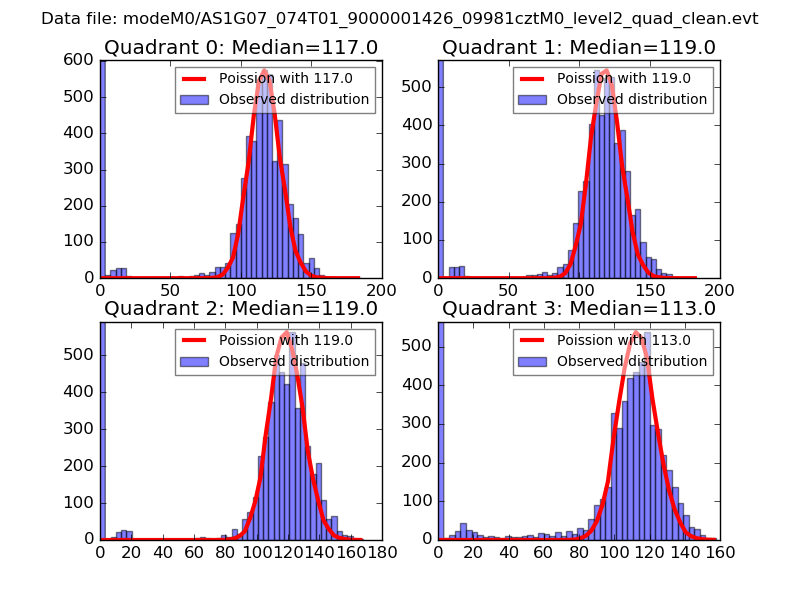

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

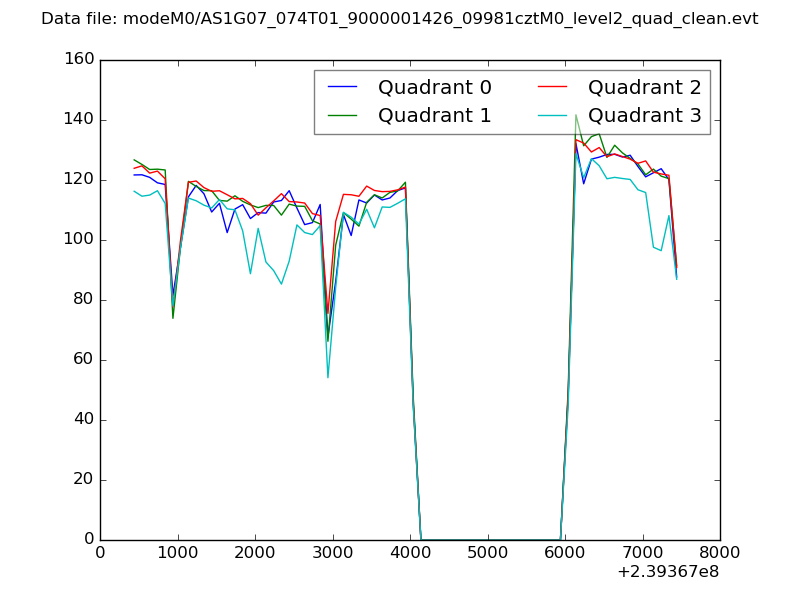

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

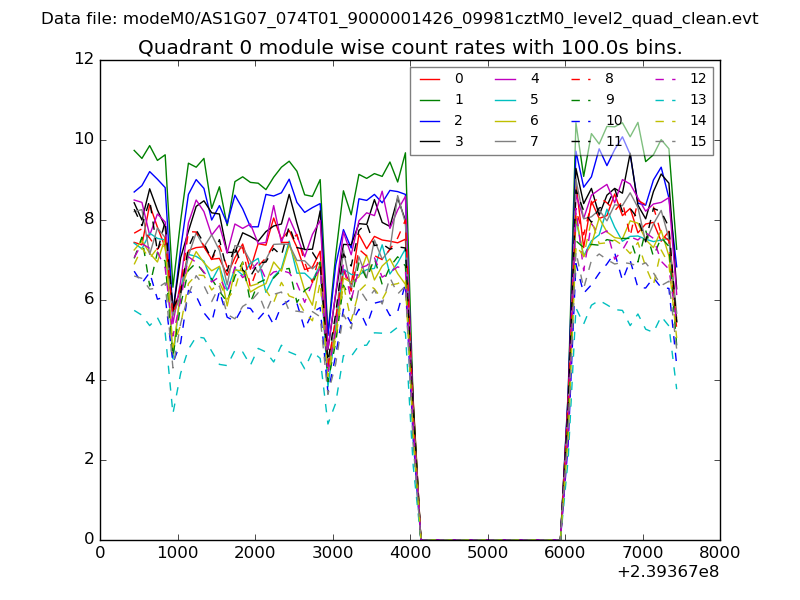

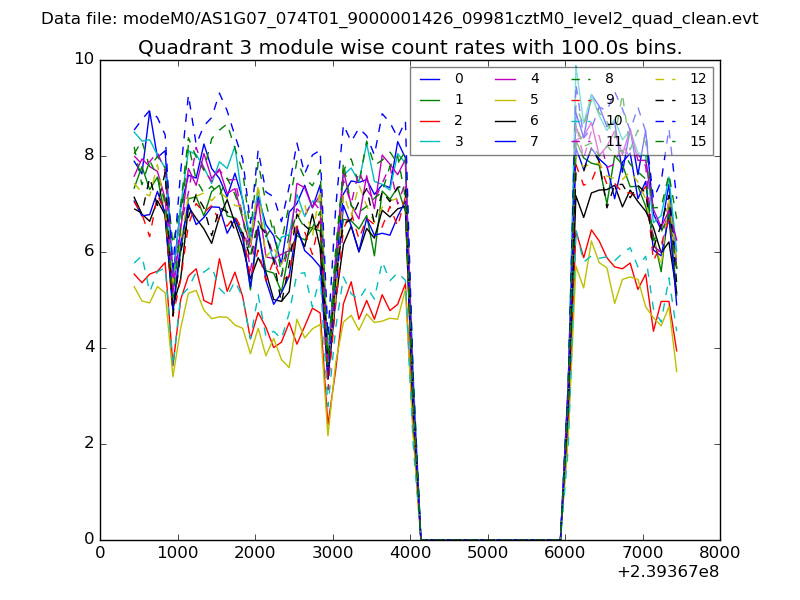

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

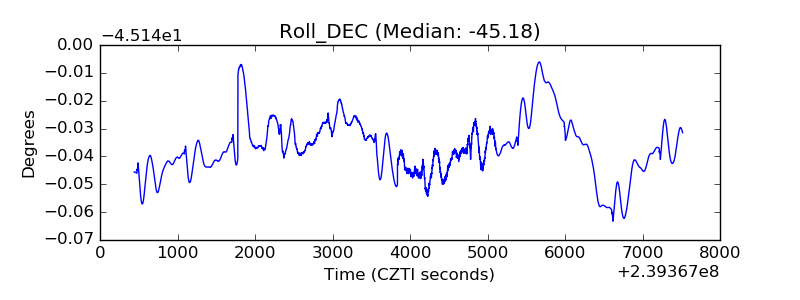

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
