| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_074T01_9000001426_09989cztM0_level2.evt | modeM0/AS1G07_074T01_9000001426_09989cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,495,040 | 83,030,400 |
| Size | 443.0 MB | 79.2 MB |
| Events in quadrant A | 3,001,469 | 524,882 |
| Events in quadrant B | 3,371,763 | 531,336 |
| Events in quadrant C | 2,867,695 | 529,921 |
| Events in quadrant D | 4,385,479 | 475,607 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13432 | 72 |
| B | 0 | 14567 | 82 |
| C | 0 | 13227 | 53 |
| D | 0 | 17308 | 77 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 22 | 0.339401% |
| B | 6482 | 91 | 1.403888% |
| C | 6488 | 8 | 0.123305% |
| D | 6480 | 344 | 5.308642% |

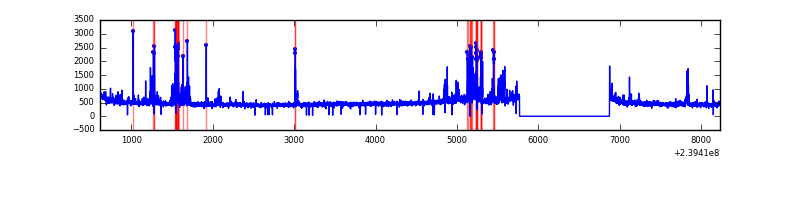

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6514 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7618 | 6513 | 46 | 46 | 0.60% | 0.71% |  |
| C | 7618 | 6514 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7618 | 6514 | 349 | 349 | 4.58% | 5.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 63341 | 408.14 | 746 | 729 | 153.4 |
| A | 8 | 15 | 57526 | 370.23 | 746 | 729 | 153.4 |
| A | 14 | 111 | 7404 | 43.51 | 746 | 729 | 153.4 |
| B | 4 | 239 | 189017 | 1307.97 | 754 | 737 | 143.9 |
| B | 4 | 81 | 125918 | 869.62 | 754 | 737 | 143.9 |
| B | 0 | 214 | 38725 | 263.9 | 754 | 737 | 143.9 |
| C | 5 | 32 | 12854 | 71.53 | 729 | 733 | 169.5 |
| C | 8 | 208 | 6540 | 34.27 | 729 | 733 | 169.5 |
| C | 13 | 61 | 5424 | 27.68 | 729 | 733 | 169.5 |
| D | 1 | 52 | 1356009 | 7254.99 | 689 | 676 | 186.8 |
| D | 8 | 195 | 165013 | 879.68 | 689 | 676 | 186.8 |
| D | 2 | 16 | 109139 | 580.59 | 689 | 676 | 186.8 |

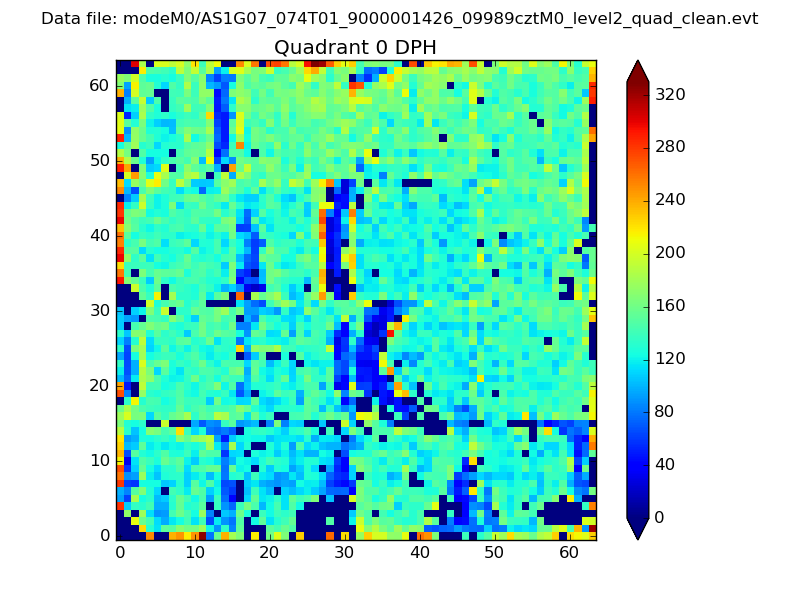

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

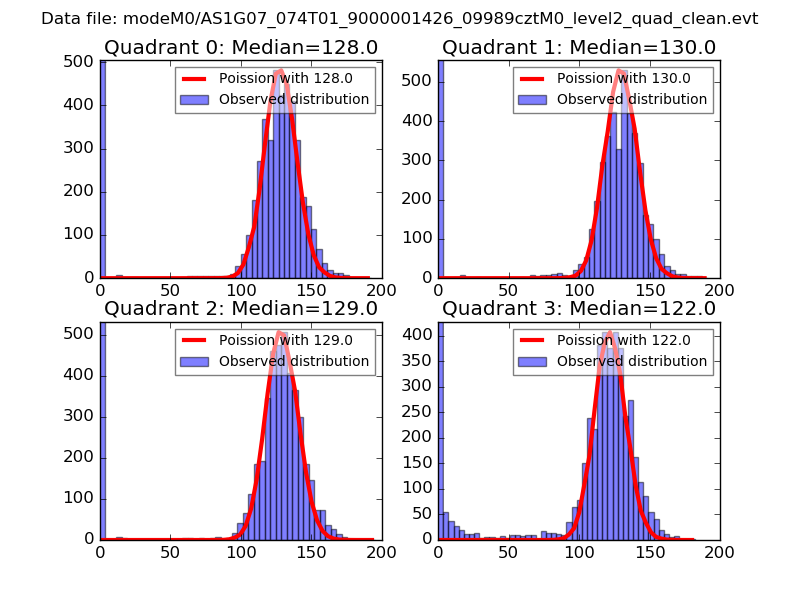

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

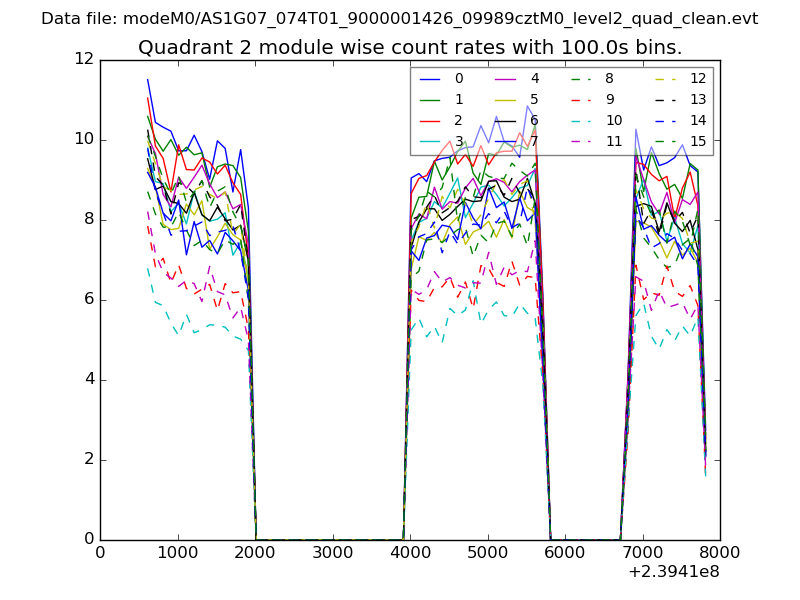

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

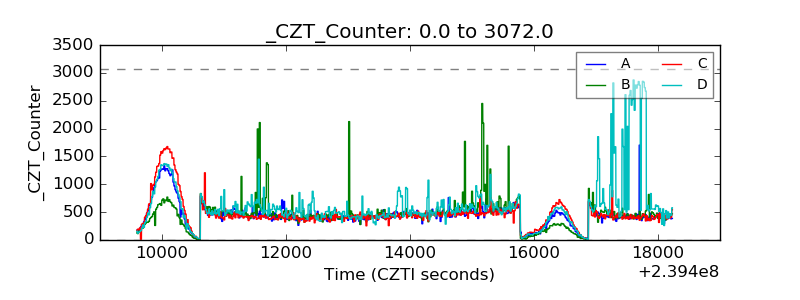

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

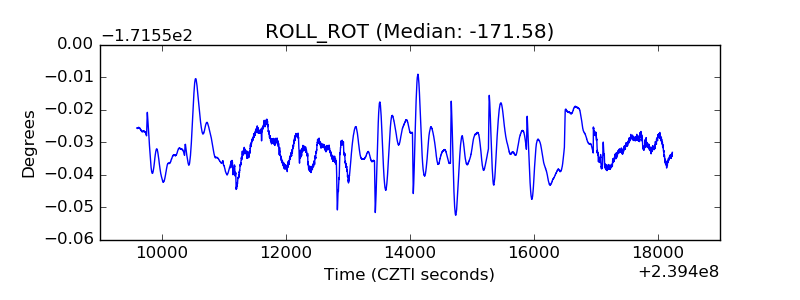

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

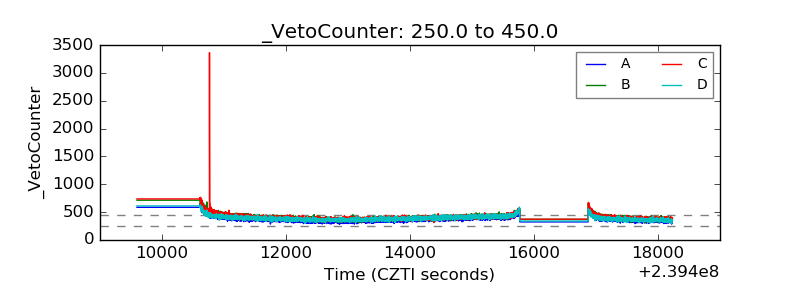

| Veto Counter |  |
