| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_002T02_9000001432_10002cztM0_level2.evt | modeM0/AS1G07_002T02_9000001432_10002cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,719,680 | 95,846,400 |
| Size | 443.2 MB | 91.4 MB |
| Events in quadrant A | 3,186,154 | 620,816 |
| Events in quadrant B | 3,247,469 | 638,271 |
| Events in quadrant C | 3,042,931 | 630,594 |
| Events in quadrant D | 4,173,549 | 577,823 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 14 |
| B | 0 | 134 | 6 |
| C | 0 | 134 | 6 |
| D | 0 | 134 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14340 | 759 |
| B | 0 | 14718 | 864 |
| C | 0 | 13910 | 817 |
| D | 0 | 18326 | 1853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 1 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6280 | 62 | 0.987261% |
| B | 6260 | 93 | 1.485623% |
| C | 6244 | 44 | 0.704676% |
| D | 6156 | 224 | 3.638726% |

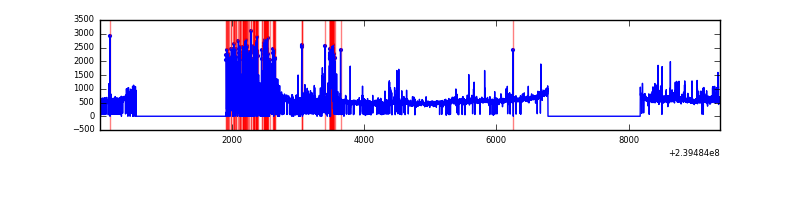

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9373 | 6577 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9373 | 6574 | 7 | 7 | 0.07% | 0.11% |  |
| C | 9373 | 6581 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9372 | 6491 | 130 | 130 | 1.39% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 148907 | 932.28 | 788 | 773 | 158.9 |
| A | 0 | 226 | 7180 | 40.32 | 788 | 773 | 158.9 |
| A | 12 | 194 | 6539 | 36.29 | 788 | 773 | 158.9 |
| B | 0 | 219 | 49758 | 326.71 | 796 | 778 | 149.9 |
| B | 0 | 214 | 31092 | 202.2 | 796 | 778 | 149.9 |
| B | 4 | 239 | 23982 | 154.77 | 796 | 778 | 149.9 |
| C | 13 | 61 | 5602 | 26.83 | 779 | 786 | 179.5 |
| C | 8 | 222 | 2180 | 7.77 | 779 | 786 | 179.5 |
| C | 14 | 67 | 2032 | 6.94 | 779 | 786 | 179.5 |
| D | 1 | 52 | 714733 | 3973.36 | 747 | 732 | 179.7 |
| D | 8 | 195 | 455524 | 2530.88 | 747 | 732 | 179.7 |
| D | 12 | 233 | 84578 | 466.6 | 747 | 732 | 179.7 |

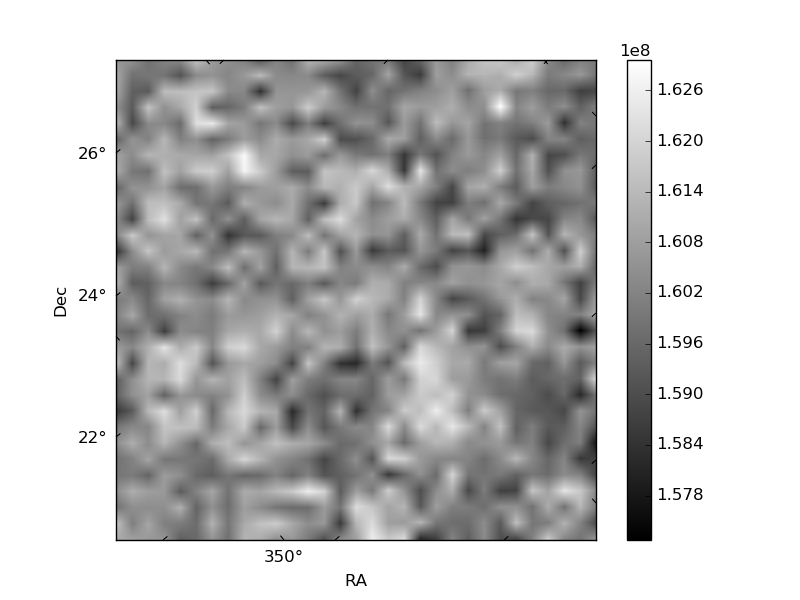

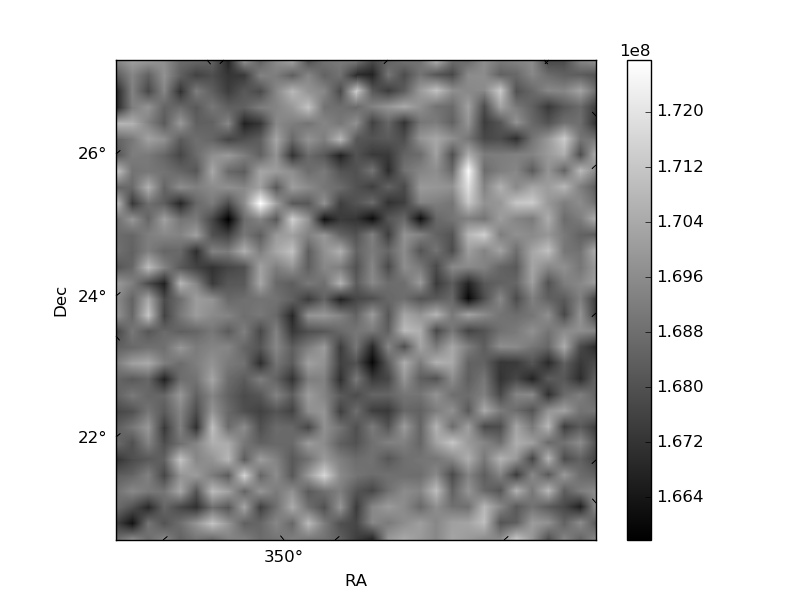

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

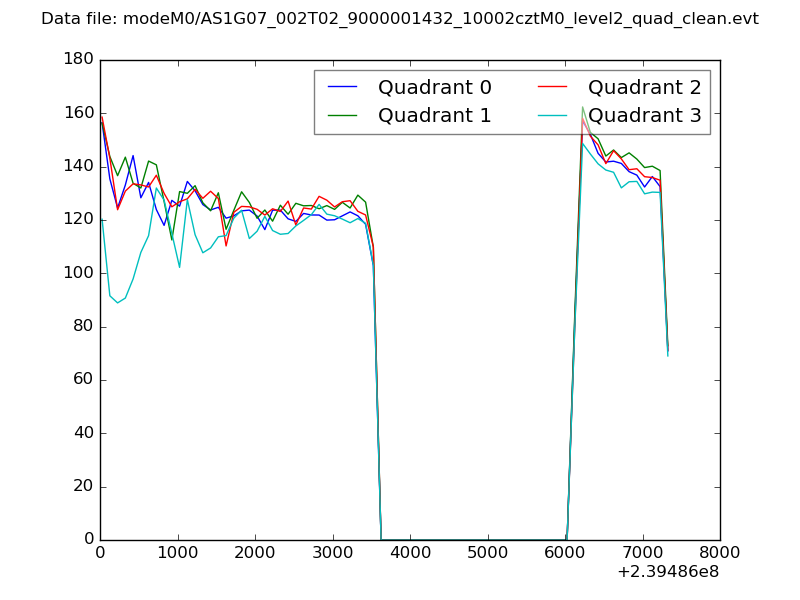

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

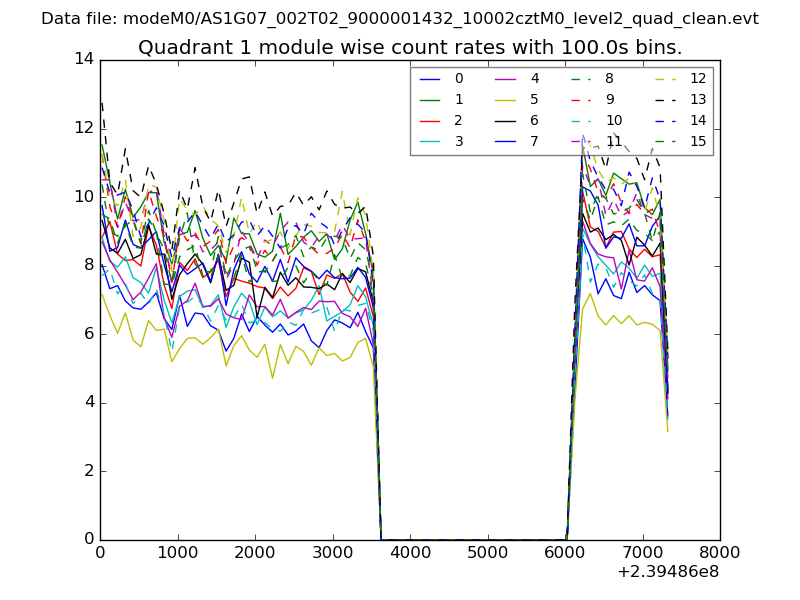

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

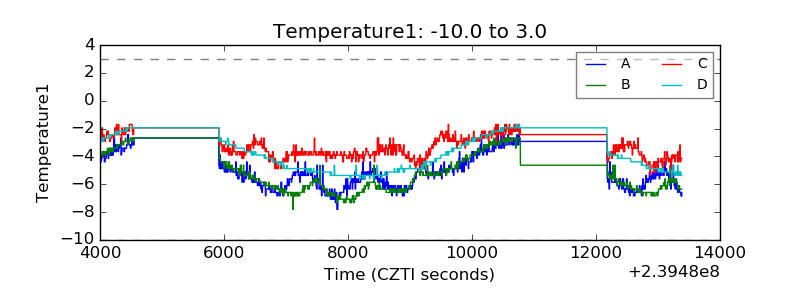

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

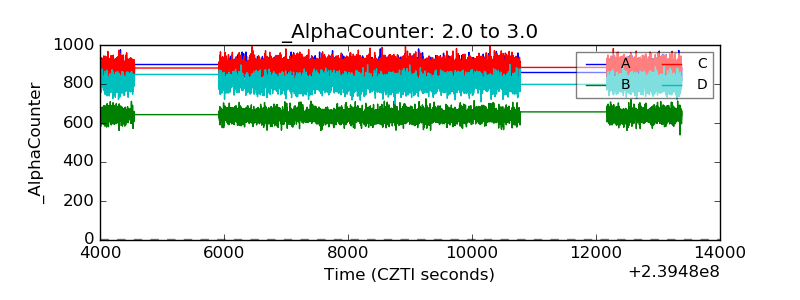

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

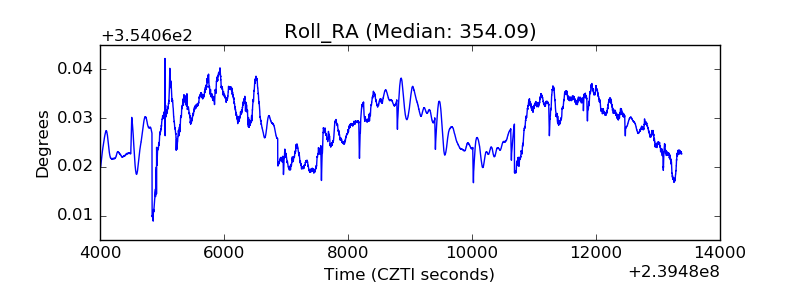

| _Roll_RA |  |
| Veto Counter |  |
