| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_002T02_9000001432_10003cztM0_level2.evt | modeM0/AS1G07_002T02_9000001432_10003cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,603,840 | 87,969,600 |
| Size | 401.1 MB | 83.9 MB |
| Events in quadrant A | 2,889,630 | 563,287 |
| Events in quadrant B | 2,875,348 | 575,809 |
| Events in quadrant C | 2,783,243 | 572,475 |
| Events in quadrant D | 3,783,922 | 536,062 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 6 |
| C | 0 | 128 | 4 |
| D | 0 | 128 | 6 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13276 | 720 |
| B | 0 | 13269 | 741 |
| C | 0 | 12977 | 626 |
| D | 0 | 16235 | 1028 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5951 | 22 | 0.369686% |
| B | 5943 | 45 | 0.757193% |
| C | 5987 | 21 | 0.350760% |
| D | 5902 | 140 | 2.372077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

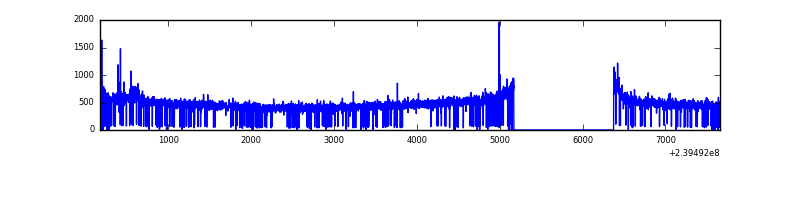

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7484 | 6246 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7484 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7484 | 6251 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7484 | 6225 | 25 | 25 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 132608 | 907.48 | 715 | 700 | 145.4 |
| A | 13 | 251 | 7041 | 43.62 | 715 | 700 | 145.4 |
| A | 0 | 226 | 6503 | 39.92 | 715 | 700 | 145.4 |
| B | 0 | 219 | 32006 | 228.27 | 724 | 708 | 137.1 |
| B | 12 | 111 | 15323 | 106.6 | 724 | 708 | 137.1 |
| B | 11 | 111 | 12690 | 87.39 | 724 | 708 | 137.1 |
| C | 5 | 128 | 9875 | 55.39 | 711 | 715 | 165.4 |
| C | 13 | 61 | 5262 | 27.5 | 711 | 715 | 165.4 |
| C | 8 | 222 | 2191 | 8.93 | 711 | 715 | 165.4 |
| D | 2 | 16 | 392567 | 2298.55 | 682 | 665 | 170.5 |
| D | 8 | 195 | 368400 | 2156.81 | 682 | 665 | 170.5 |
| D | 1 | 52 | 264822 | 1549.31 | 682 | 665 | 170.5 |

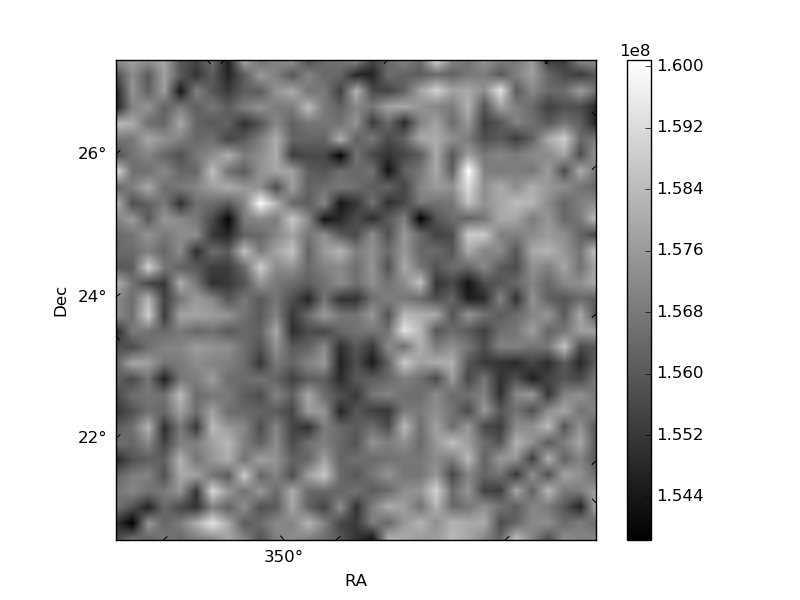

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

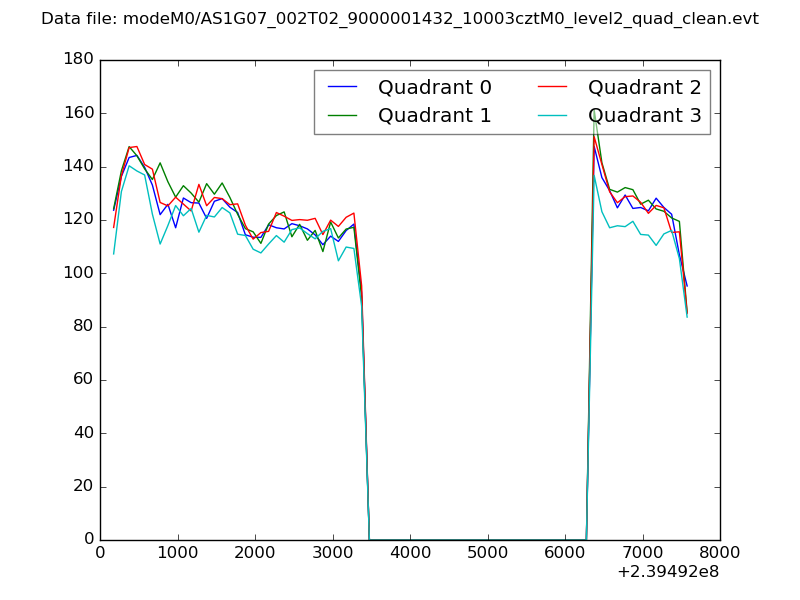

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

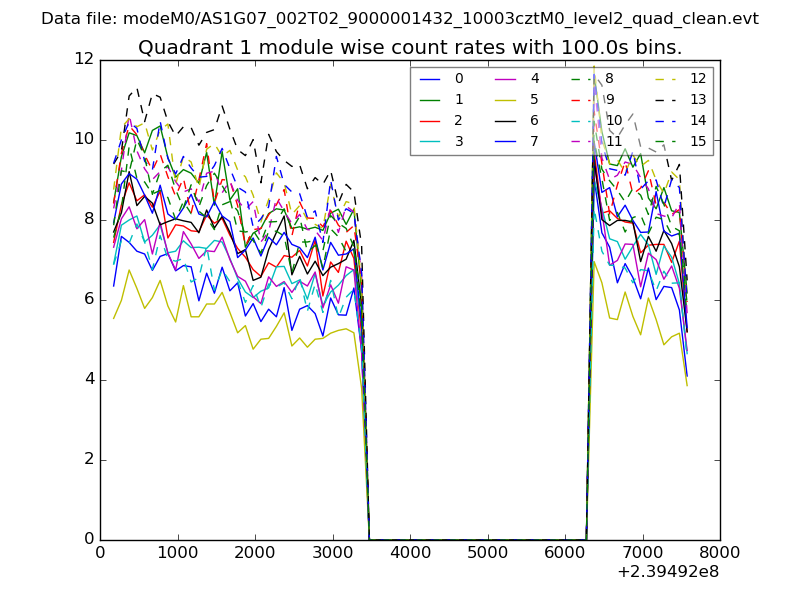

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

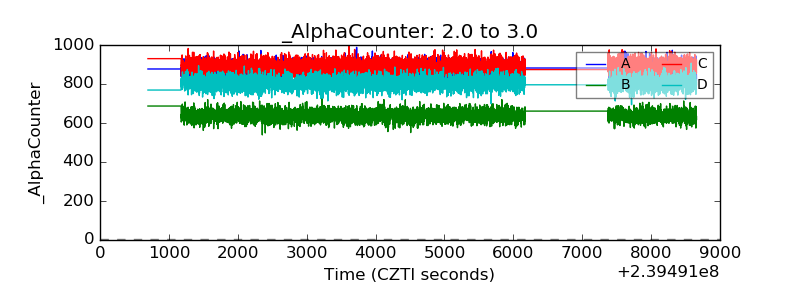

| Alpha Counter |  |
| _CPM_Rate |  |

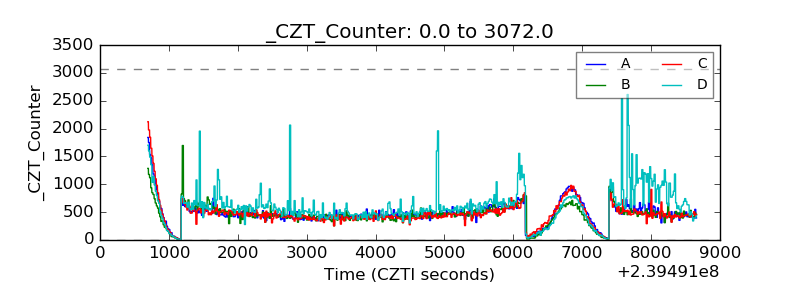

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

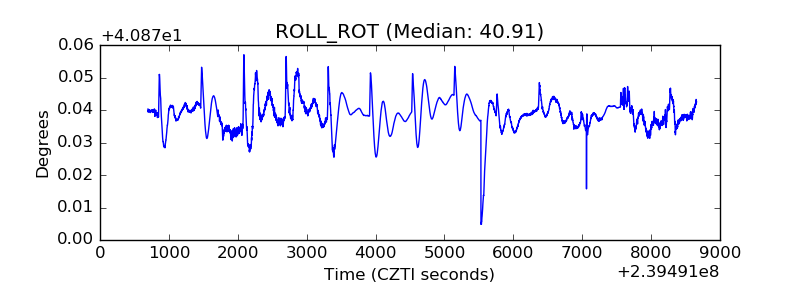

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

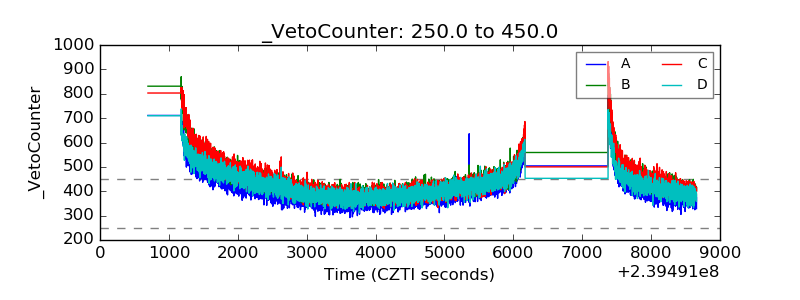

| Veto Counter |  |
