| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_002T02_9000001432_10005cztM0_level2.evt | modeM0/AS1G07_002T02_9000001432_10005cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,574,884,800 | 295,286,400 |
| Size | 1.5 GB | 281.6 MB |
| Events in quadrant A | 11,057,716 | 1,857,051 |
| Events in quadrant B | 10,527,505 | 1,910,090 |
| Events in quadrant C | 9,963,990 | 1,897,065 |
| Events in quadrant D | 14,663,972 | 1,769,423 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 460 | 18 |
| B | 0 | 460 | 8 |
| C | 0 | 460 | 10 |
| D | 0 | 460 | 18 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49167 | 1580 |
| B | 0 | 48059 | 1565 |
| C | 0 | 46587 | 1502 |
| D | 0 | 60604 | 2361 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 2 |
| B | 0 | 39 | 3 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21967 | 195 | 0.887695% |
| B | 21960 | 183 | 0.833333% |
| C | 21949 | 66 | 0.300697% |
| D | 21839 | 787 | 3.603645% |

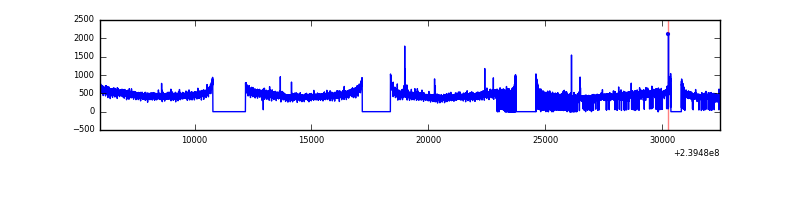

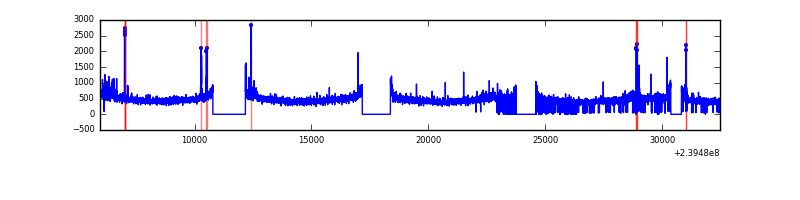

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26516 | 22380 | 63 | 63 | 0.24% | 0.28% |  |
| B | 26516 | 22359 | 14 | 14 | 0.05% | 0.06% |  |
| C | 26516 | 22385 | 1 | 1 | 0.00% | 0.00% |  |
| D | 26516 | 22299 | 523 | 523 | 1.97% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1049319 | 2001.15 | 2597 | 2543 | 523.1 |
| A | 0 | 226 | 23520 | 40.1 | 2597 | 2543 | 523.1 |
| A | 13 | 251 | 21380 | 36.01 | 2597 | 2543 | 523.1 |
| B | 0 | 219 | 117104 | 231.5 | 2624 | 2565 | 494.8 |
| B | 10 | 252 | 81567 | 159.67 | 2624 | 2565 | 494.8 |
| B | 12 | 111 | 56101 | 108.2 | 2624 | 2565 | 494.8 |
| C | 5 | 128 | 19273 | 28.47 | 2549 | 2570 | 586.7 |
| C | 13 | 61 | 18762 | 27.6 | 2549 | 2570 | 586.7 |
| C | 14 | 67 | 8335 | 9.83 | 2549 | 2570 | 586.7 |
| D | 8 | 195 | 1674283 | 2767.66 | 2473 | 2415 | 604.1 |
| D | 1 | 52 | 1538563 | 2542.98 | 2473 | 2415 | 604.1 |
| D | 2 | 16 | 788508 | 1301.32 | 2473 | 2415 | 604.1 |

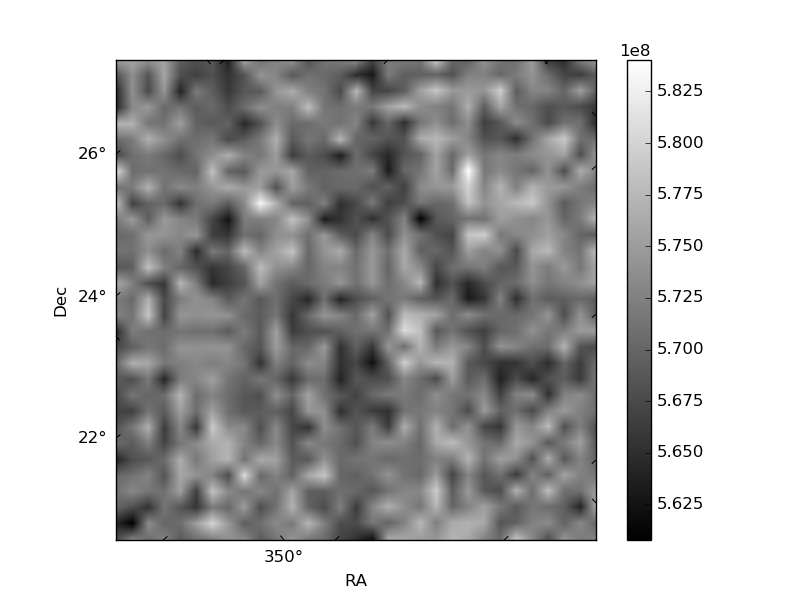

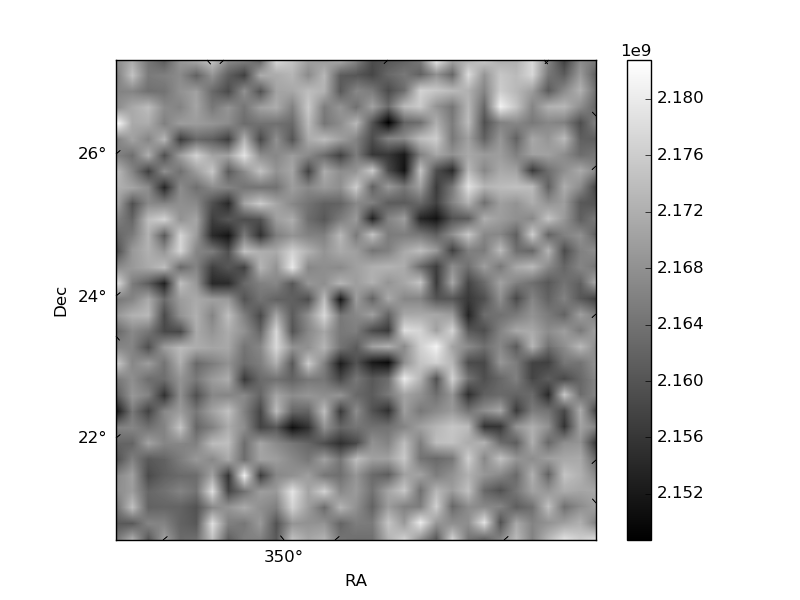

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

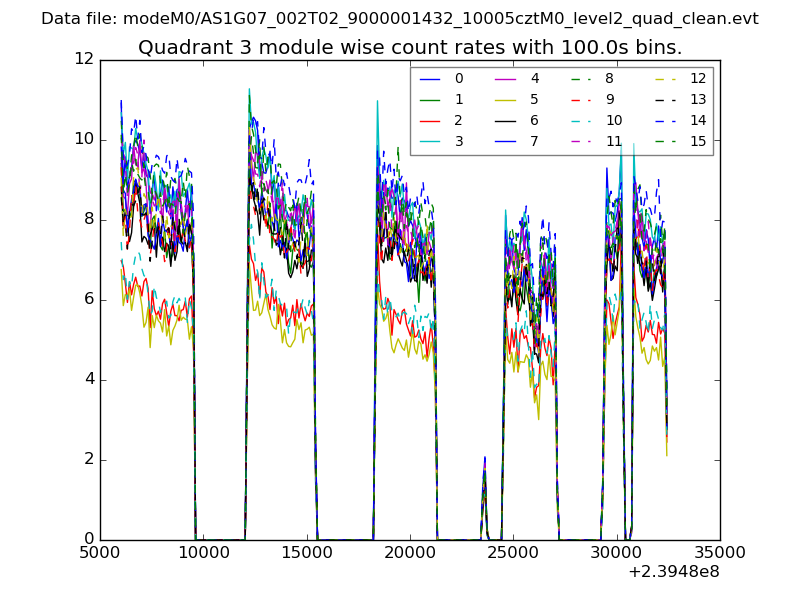

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

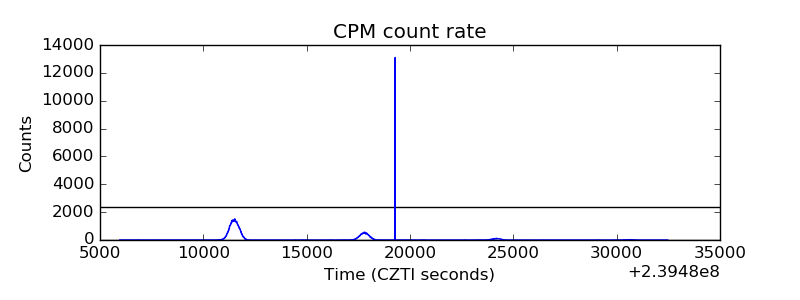

| _CPM_Rate |  |

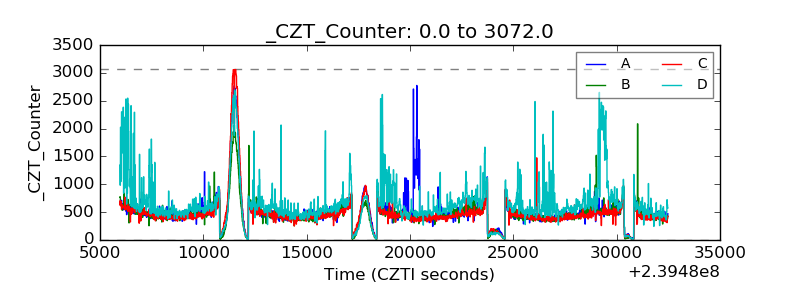

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

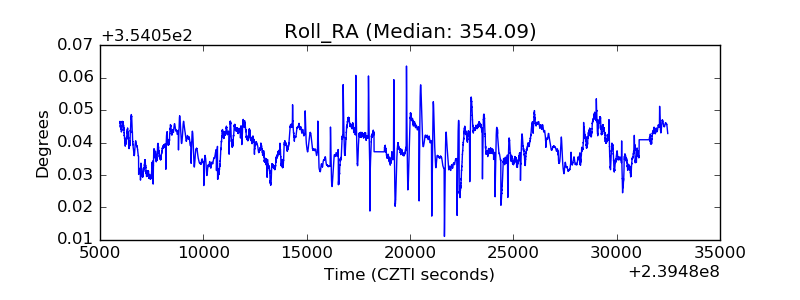

| _Roll_RA |  |
| Veto Counter |  |
