| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_005T01_9000001430_09998cztM0_level2.evt | modeM0/AS1G07_005T01_9000001430_09998cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,803,200 | 53,426,880 |
| Size | 366.0 MB | 51.0 MB |
| Events in quadrant A | 2,924,593 | 310,040 |
| Events in quadrant B | 2,726,355 | 324,044 |
| Events in quadrant C | 2,398,296 | 314,666 |
| Events in quadrant D | 3,217,189 | 302,266 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 3 |
| B | 0 | 11 | 3 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15163 | 3180 |
| B | 0 | 14612 | 3030 |
| C | 0 | 13277 | 2552 |
| D | 0 | 17708 | 4767 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 18 |
| B | 0 | 132 | 16 |
| C | 0 | 132 | 24 |
| D | 0 | 130 | 28 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5215 | 29 | 0.556088% |
| B | 5260 | 56 | 1.064639% |
| C | 5284 | 3 | 0.056775% |
| D | 5063 | 135 | 2.666403% |

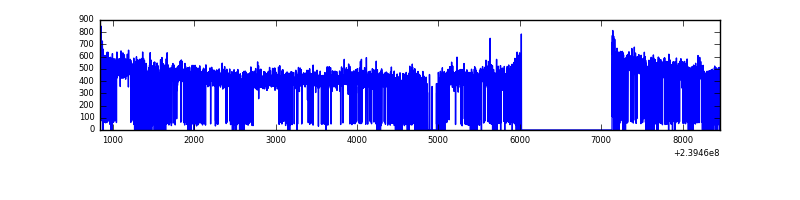

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 5985 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7615 | 5994 | 18 | 18 | 0.24% | 0.30% |  |
| C | 7613 | 6042 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7614 | 5819 | 87 | 87 | 1.14% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 500597 | 3904.25 | 625 | 610 | 128.1 |
| A | 14 | 111 | 14012 | 104.65 | 625 | 610 | 128.1 |
| A | 0 | 226 | 5802 | 40.54 | 625 | 610 | 128.1 |
| B | 4 | 239 | 119270 | 986.19 | 631 | 617 | 120.3 |
| B | 10 | 247 | 51362 | 421.77 | 631 | 617 | 120.3 |
| B | 4 | 81 | 32987 | 269.05 | 631 | 617 | 120.3 |
| C | 13 | 61 | 4595 | 27.86 | 614 | 618 | 142.8 |
| C | 8 | 222 | 1770 | 8.07 | 614 | 618 | 142.8 |
| C | 3 | 202 | 1605 | 6.91 | 614 | 618 | 142.8 |
| D | 12 | 233 | 430288 | 2779.75 | 578 | 564 | 154.6 |
| D | 8 | 195 | 169665 | 1093.86 | 578 | 564 | 154.6 |
| D | 2 | 16 | 161145 | 1038.75 | 578 | 564 | 154.6 |

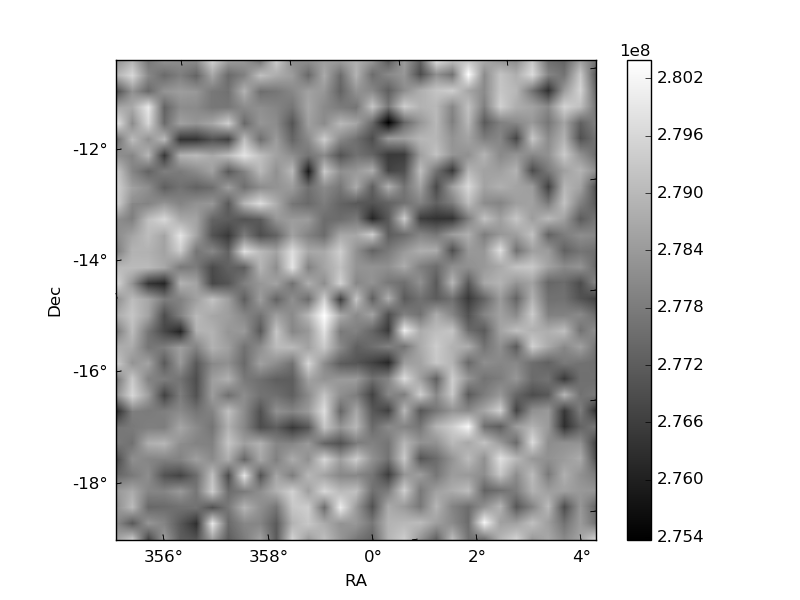

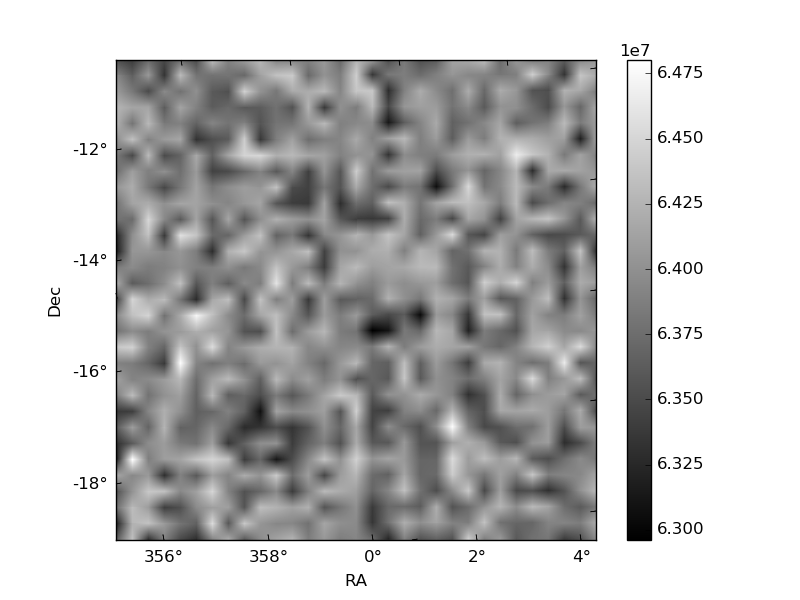

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

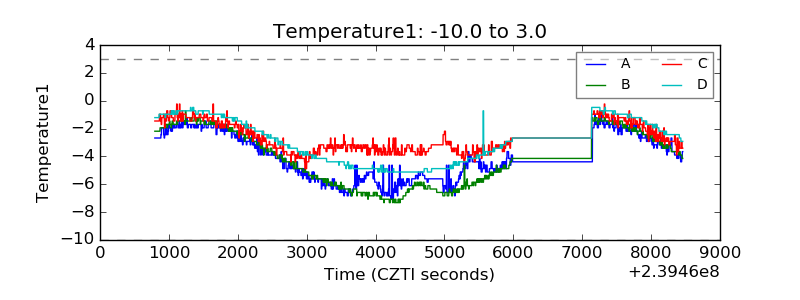

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

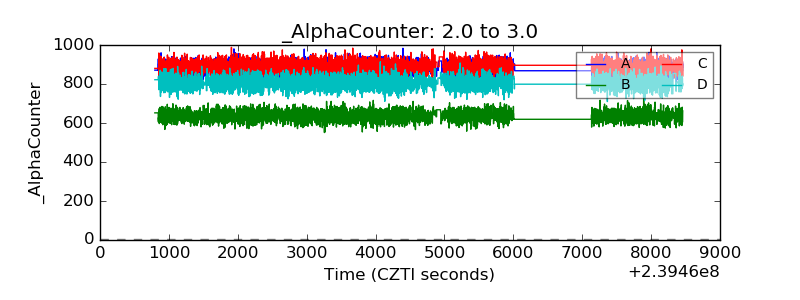

| Alpha Counter |  |

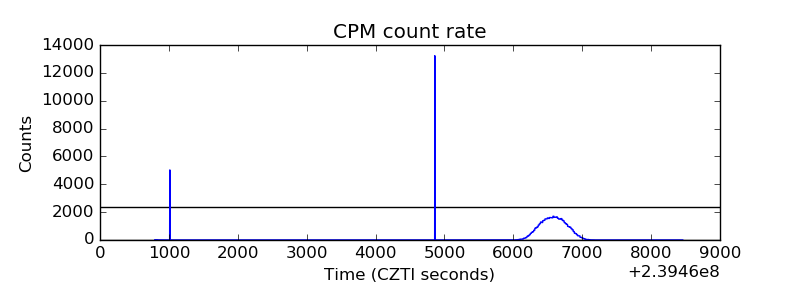

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

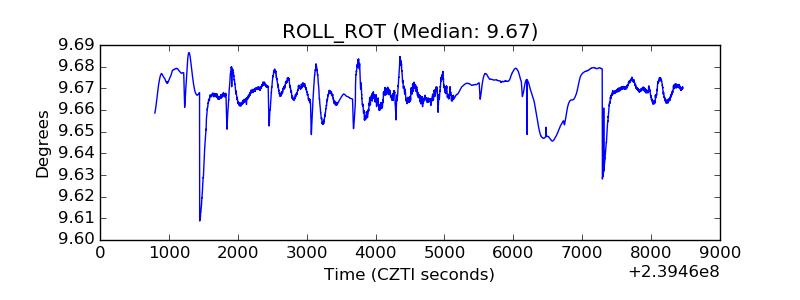

| _ROLL_ROT |  |

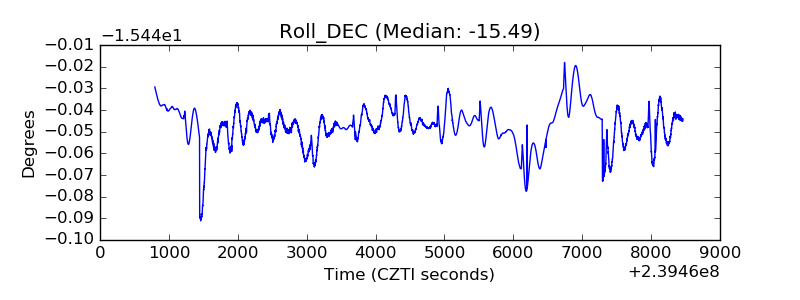

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
