| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10015cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10015cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,765,760 | 107,712,000 |
| Size | 477.6 MB | 102.7 MB |
| Events in quadrant A | 3,328,588 | 707,803 |
| Events in quadrant B | 3,411,175 | 723,536 |
| Events in quadrant C | 3,039,344 | 713,144 |
| Events in quadrant D | 4,944,280 | 663,011 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14232 | 3 |
| B | 0 | 14338 | 2 |
| C | 0 | 13519 | 2 |
| D | 0 | 19239 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 64 | 0.980843% |
| B | 6525 | 65 | 0.996169% |
| C | 6525 | 29 | 0.444444% |
| D | 6525 | 372 | 5.701149% |

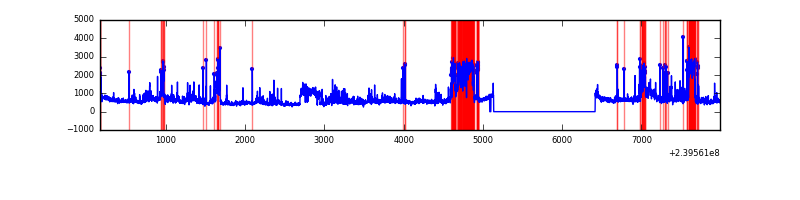

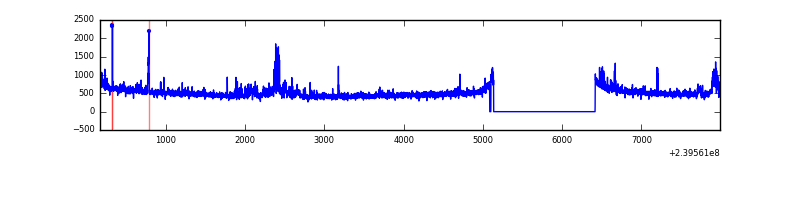

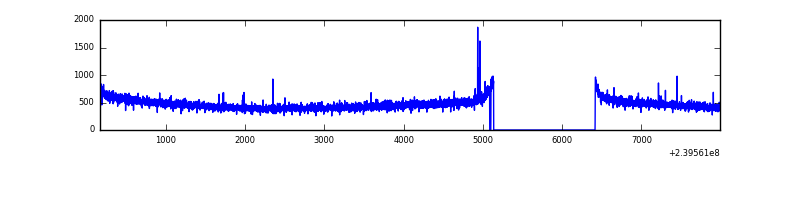

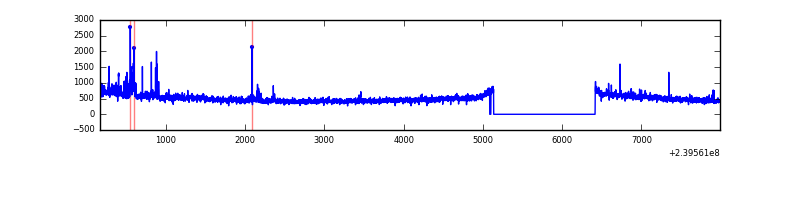

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7820 | 6526 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7820 | 6526 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7820 | 6526 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7820 | 6526 | 312 | 312 | 3.99% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 189928 | 1188.27 | 799 | 784 | 159.2 |
| A | 15 | 174 | 31296 | 191.69 | 799 | 784 | 159.2 |
| A | 13 | 251 | 26169 | 159.48 | 799 | 784 | 159.2 |
| B | 0 | 219 | 101139 | 658.9 | 806 | 788 | 152.3 |
| B | 5 | 255 | 49629 | 320.69 | 806 | 788 | 152.3 |
| B | 0 | 197 | 27690 | 176.64 | 806 | 788 | 152.3 |
| C | 8 | 128 | 10276 | 53.67 | 771 | 776 | 177.0 |
| C | 14 | 234 | 8189 | 41.88 | 771 | 776 | 177.0 |
| C | 13 | 61 | 5811 | 28.44 | 771 | 776 | 177.0 |
| D | 2 | 16 | 657606 | 3392.99 | 741 | 724 | 193.6 |
| D | 2 | 14 | 455784 | 2350.52 | 741 | 724 | 193.6 |
| D | 8 | 195 | 377608 | 1946.72 | 741 | 724 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

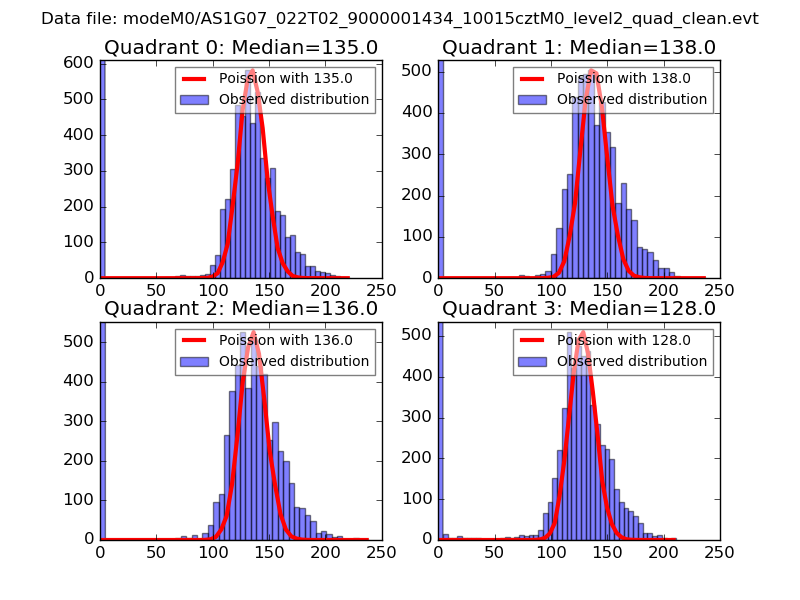

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

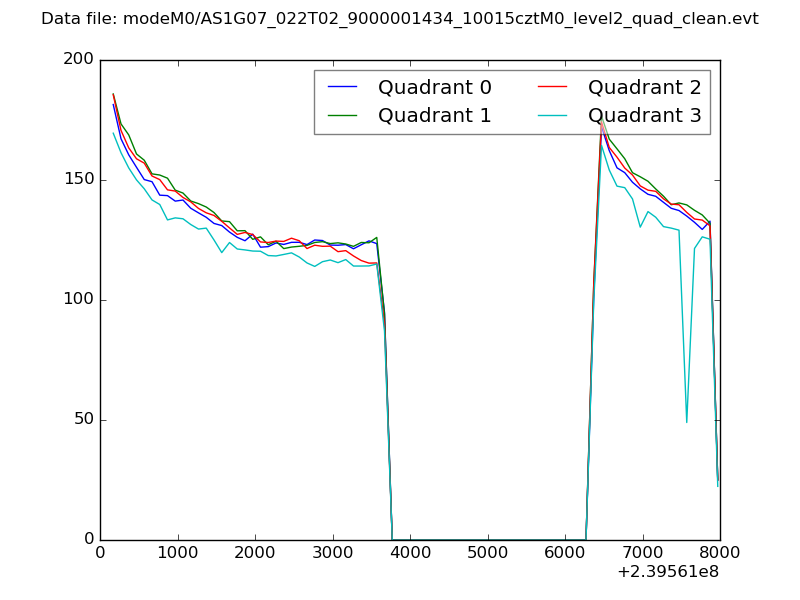

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

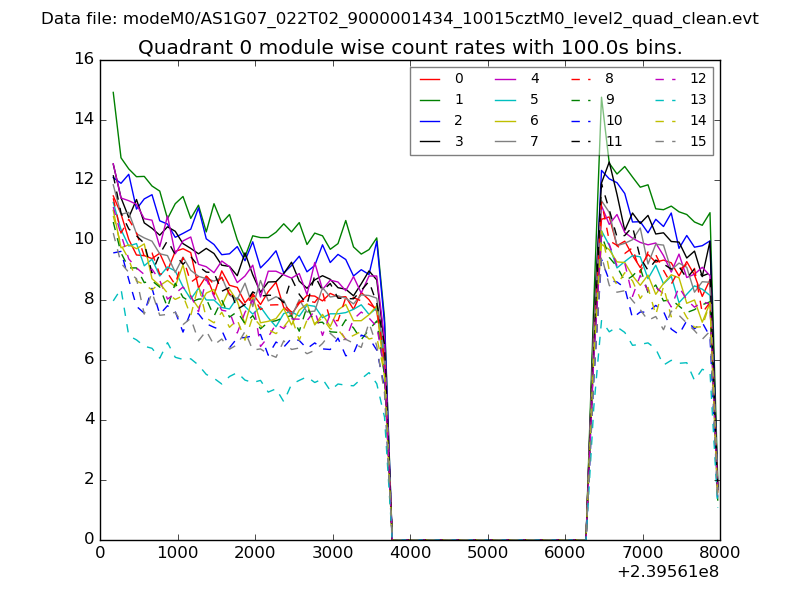

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

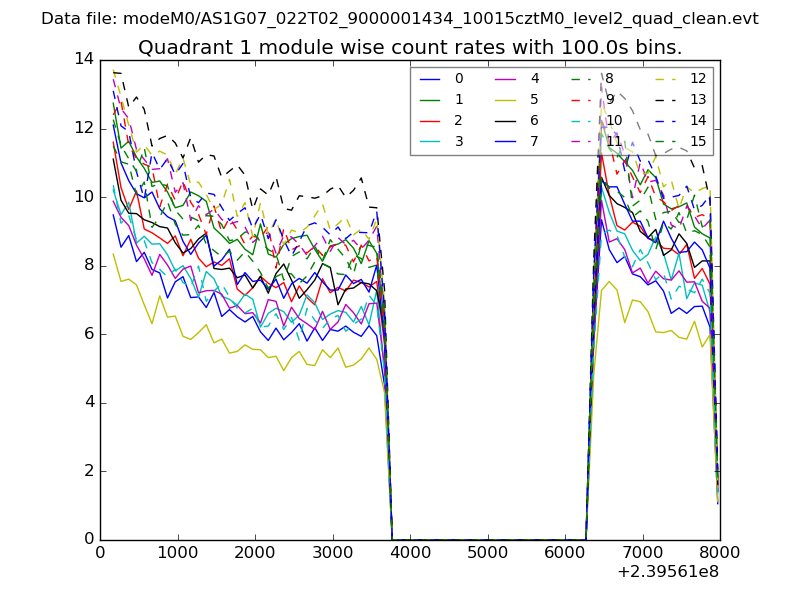

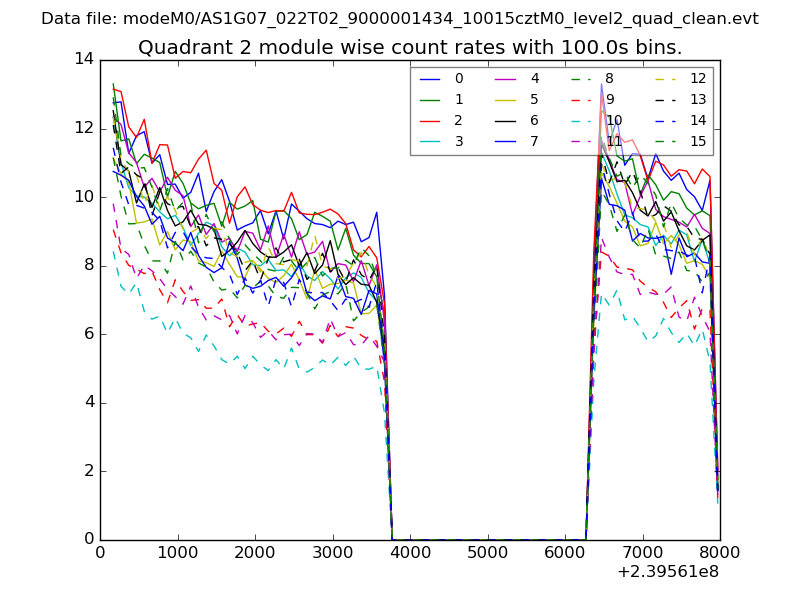

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

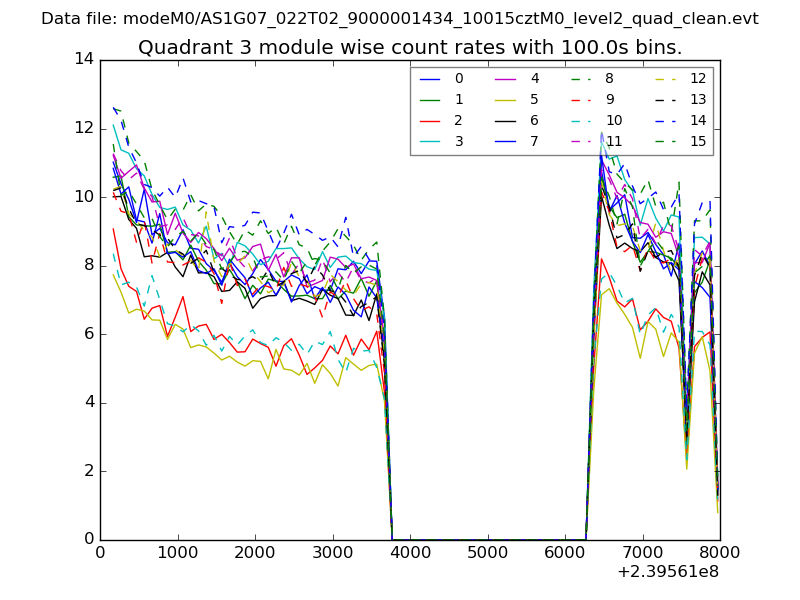

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

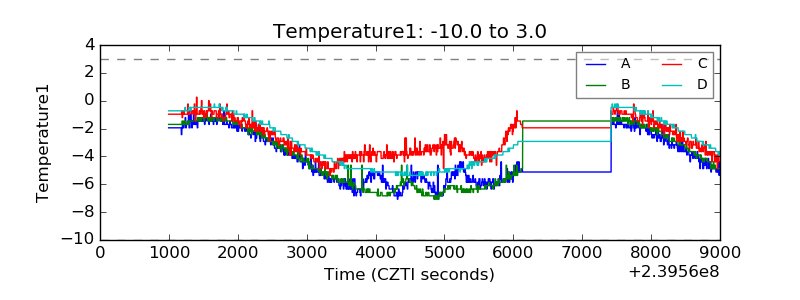

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

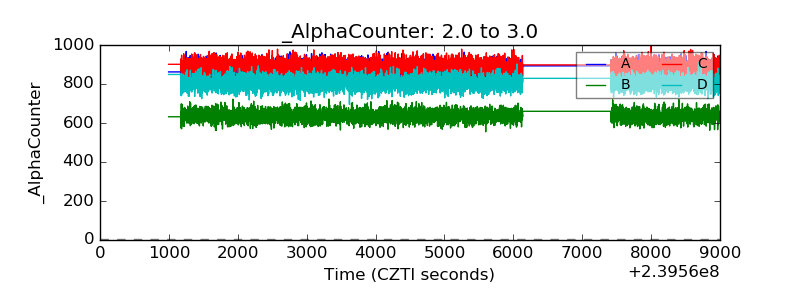

| Alpha Counter |  |

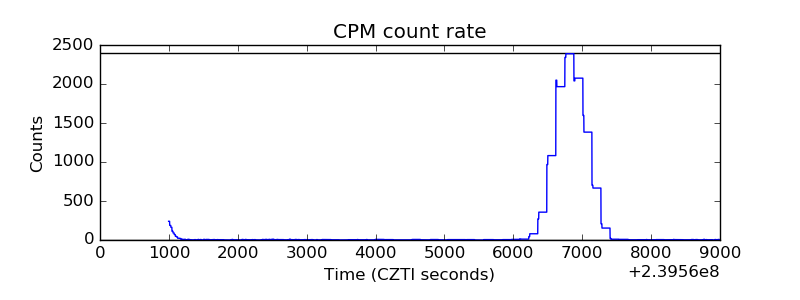

| _CPM_Rate |  |

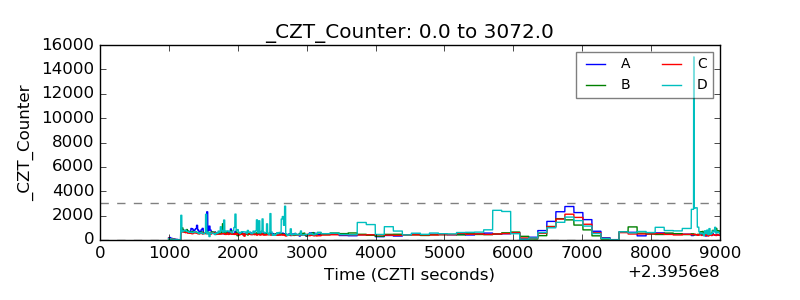

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

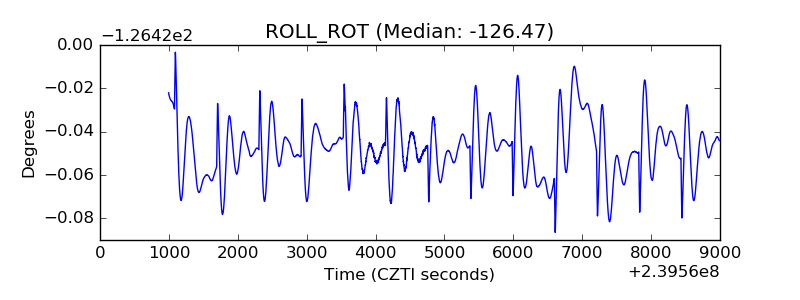

| _ROLL_ROT |  |

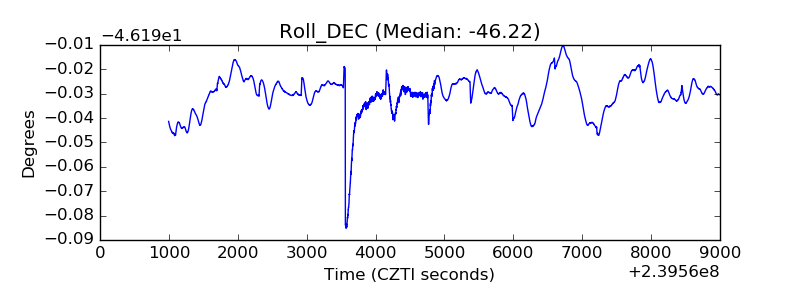

| _Roll_DEC |  |

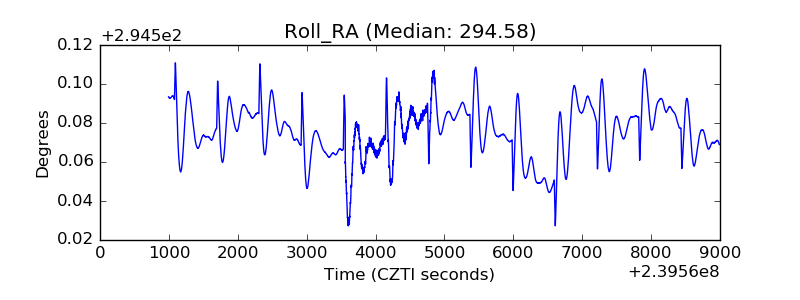

| _Roll_RA |  |

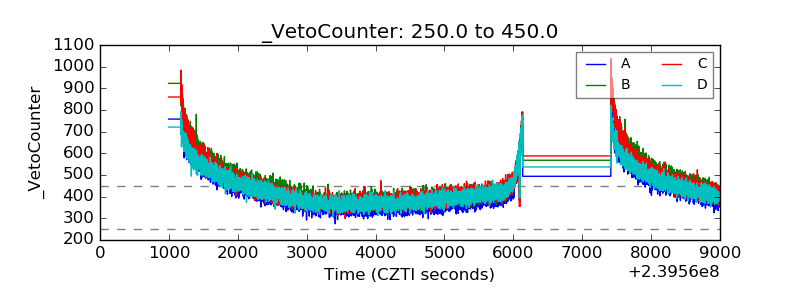

| Veto Counter |  |
