| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10018cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10018cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,478,720 | 96,416,640 |
| Size | 445.8 MB | 92.0 MB |
| Events in quadrant A | 3,088,435 | 609,854 |
| Events in quadrant B | 3,391,706 | 623,814 |
| Events in quadrant C | 2,960,919 | 625,099 |
| Events in quadrant D | 4,255,354 | 588,106 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13901 | 3 |
| B | 0 | 14834 | 2 |
| C | 0 | 13764 | 2 |
| D | 0 | 17267 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6788 | 9 | 0.132587% |
| B | 6788 | 44 | 0.648203% |
| C | 6788 | 6 | 0.088391% |
| D | 6788 | 32 | 0.471420% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7848 | 6789 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7848 | 6789 | 15 | 15 | 0.19% | 0.22% |  |
| C | 7848 | 6789 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7848 | 6789 | 36 | 36 | 0.46% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 101953 | 646.02 | 771 | 753 | 156.7 |
| A | 13 | 251 | 13529 | 81.56 | 771 | 753 | 156.7 |
| A | 0 | 226 | 7211 | 41.23 | 771 | 753 | 156.7 |
| B | 4 | 81 | 172579 | 1158.15 | 784 | 766 | 148.4 |
| B | 4 | 239 | 67596 | 450.48 | 784 | 766 | 148.4 |
| B | 0 | 214 | 43134 | 285.59 | 784 | 766 | 148.4 |
| C | 13 | 61 | 5624 | 27.73 | 758 | 761 | 175.4 |
| C | 14 | 67 | 2557 | 10.24 | 758 | 761 | 175.4 |
| C | 8 | 222 | 2307 | 8.81 | 758 | 761 | 175.4 |
| D | 8 | 195 | 461406 | 2462.04 | 741 | 722 | 187.1 |
| D | 2 | 16 | 444459 | 2371.47 | 741 | 722 | 187.1 |
| D | 1 | 52 | 222645 | 1186.03 | 741 | 722 | 187.1 |

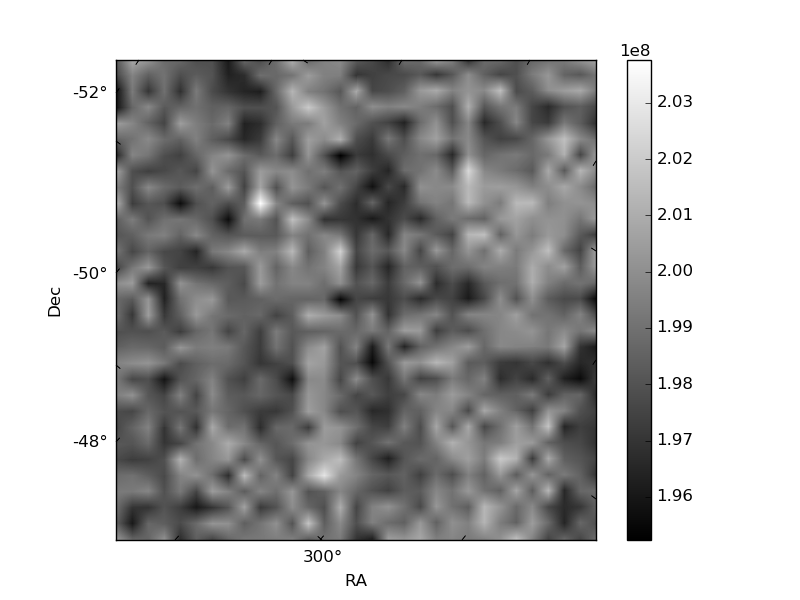

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

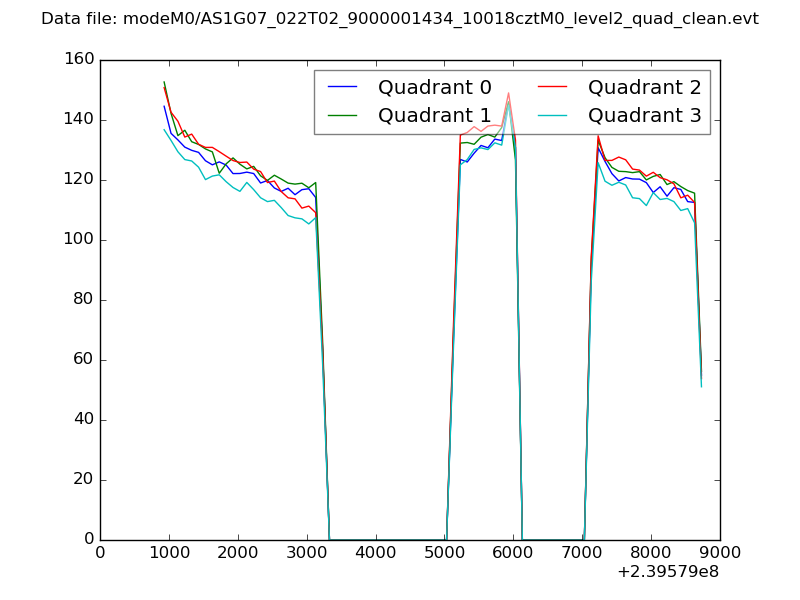

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

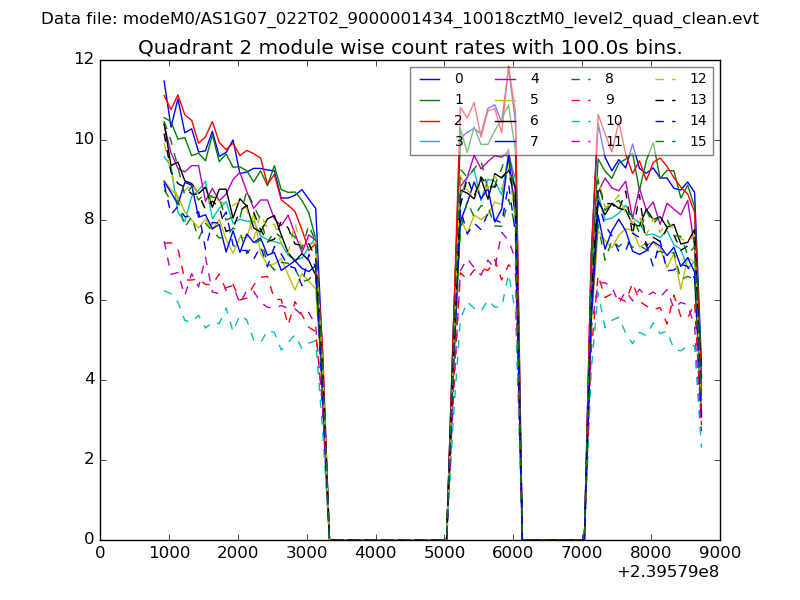

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

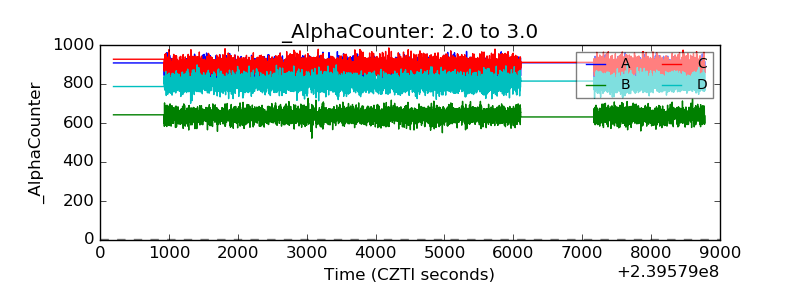

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

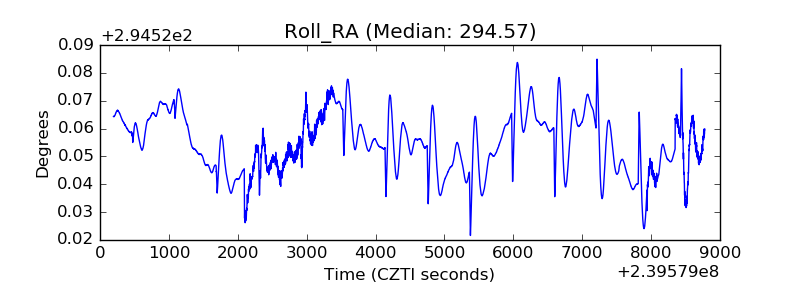

| _Roll_RA |  |
| Veto Counter |  |
