| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10019cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10019cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,337,280 | 107,568,000 |
| Size | 519.1 MB | 102.6 MB |
| Events in quadrant A | 3,948,606 | 682,685 |
| Events in quadrant B | 3,651,122 | 695,871 |
| Events in quadrant C | 3,330,776 | 699,896 |
| Events in quadrant D | 5,046,316 | 657,844 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17033 | 3 |
| B | 0 | 16116 | 2 |
| C | 0 | 15376 | 4 |
| D | 0 | 20293 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7487 | 53 | 0.707894% |
| B | 7487 | 79 | 1.055162% |
| C | 7486 | 32 | 0.427465% |
| D | 7487 | 334 | 4.461066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9172 | 7489 | 21 | 21 | 0.23% | 0.28% |  |
| B | 9172 | 7489 | 14 | 14 | 0.15% | 0.19% |  |
| C | 9172 | 7489 | 6 | 6 | 0.07% | 0.08% |  |
| D | 9172 | 7488 | 271 | 271 | 2.95% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 585963 | 3368.97 | 853 | 836 | 173.7 |
| A | 15 | 174 | 53955 | 305.84 | 853 | 836 | 173.7 |
| A | 13 | 251 | 23639 | 131.29 | 853 | 836 | 173.7 |
| B | 4 | 239 | 92087 | 544.83 | 868 | 845 | 167.5 |
| B | 4 | 81 | 86379 | 510.74 | 868 | 845 | 167.5 |
| B | 0 | 214 | 43862 | 256.87 | 868 | 845 | 167.5 |
| C | 14 | 234 | 41541 | 208.77 | 841 | 845 | 194.9 |
| C | 13 | 61 | 6234 | 27.65 | 841 | 845 | 194.9 |
| C | 14 | 67 | 4858 | 20.59 | 841 | 845 | 194.9 |
| D | 10 | 157 | 715618 | 3527.26 | 816 | 795 | 202.7 |
| D | 1 | 52 | 472813 | 2329.15 | 816 | 795 | 202.7 |
| D | 8 | 195 | 233984 | 1150.66 | 816 | 795 | 202.7 |

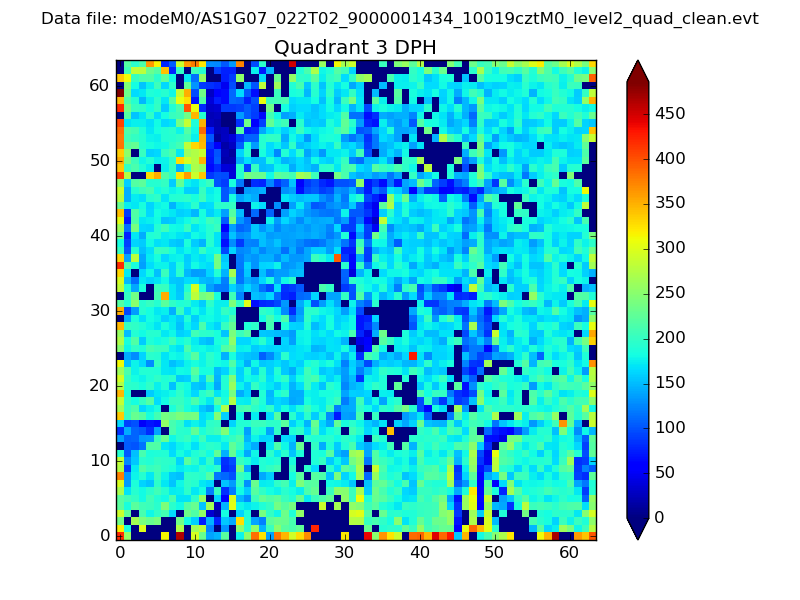

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

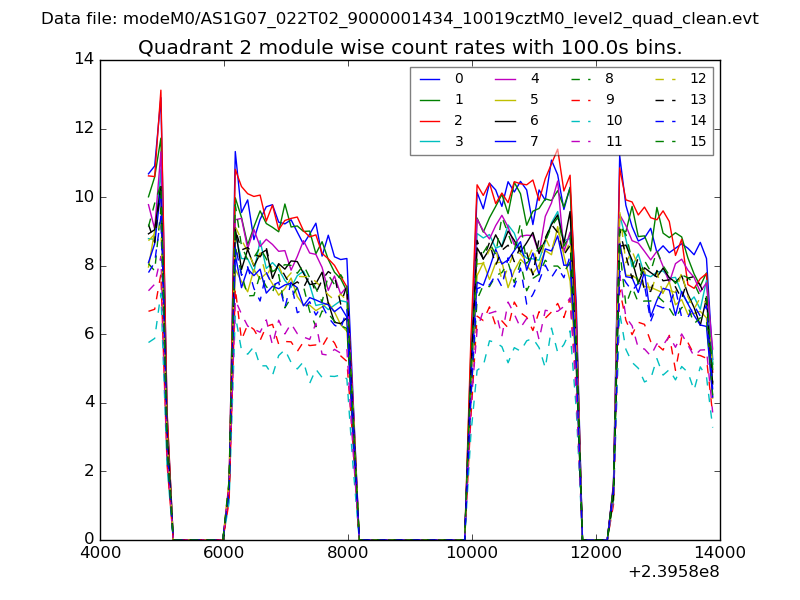

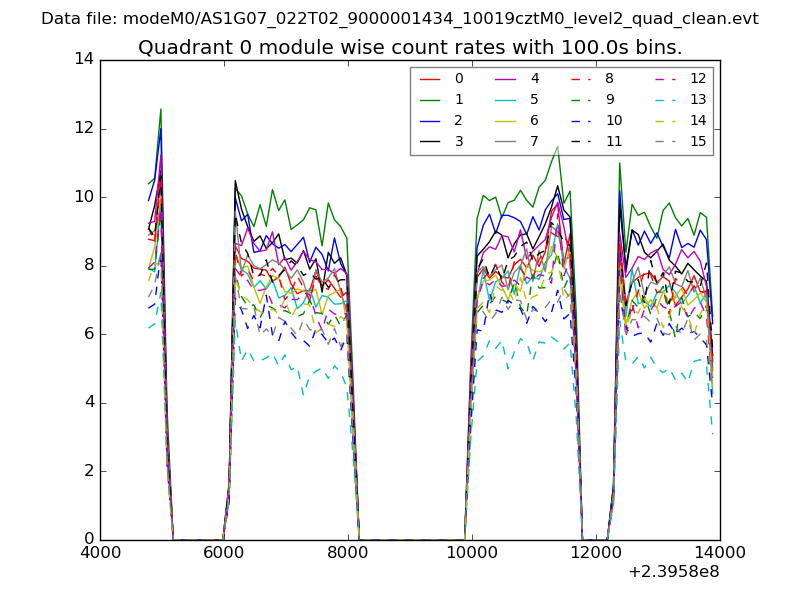

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

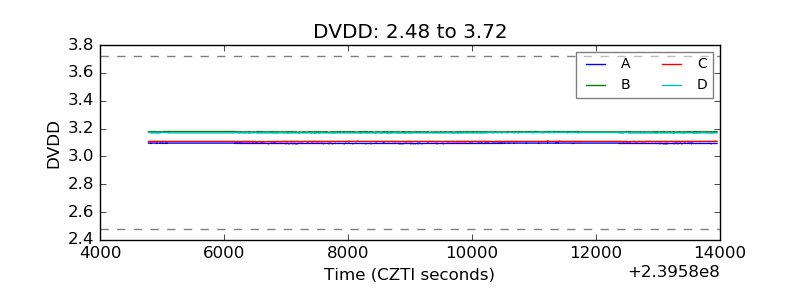

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

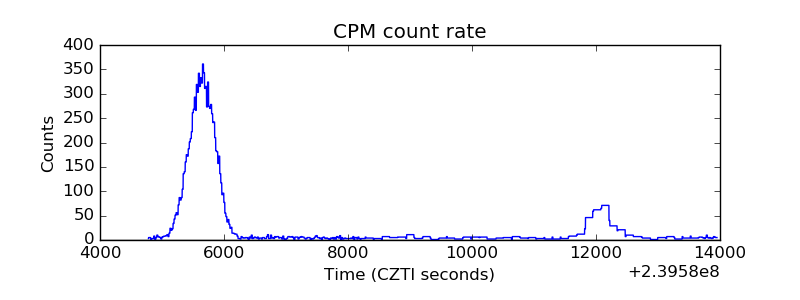

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

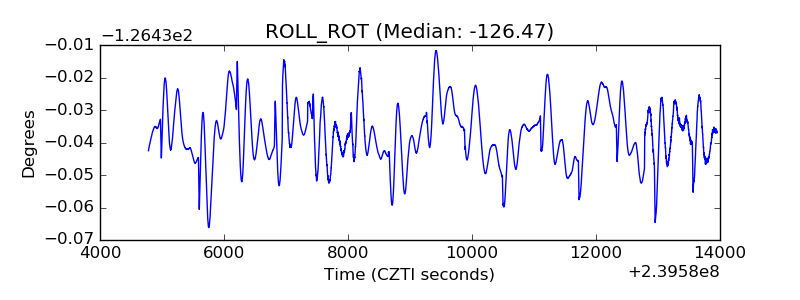

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

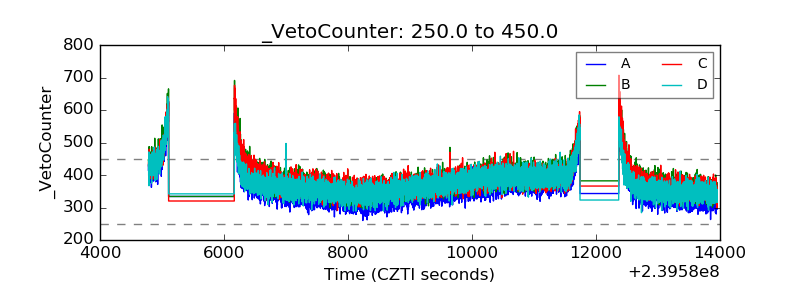

| Veto Counter |  |
