| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10033cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10033cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,237,472,640 | 226,745,280 |
| Size | 1.2 GB | 216.2 MB |
| Events in quadrant A | 8,051,979 | 1,431,376 |
| Events in quadrant B | 8,395,637 | 1,464,663 |
| Events in quadrant C | 7,510,971 | 1,458,091 |
| Events in quadrant D | 12,375,842 | 1,347,503 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35630 | 5 |
| B | 0 | 36442 | 13 |
| C | 0 | 34534 | 6 |
| D | 0 | 48121 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 344 | 0 |
| B | 0 | 344 | 0 |
| C | 0 | 344 | 0 |
| D | 0 | 344 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16911 | 76 | 0.449412% |
| B | 16908 | 135 | 0.798439% |
| C | 16910 | 27 | 0.159669% |
| D | 16910 | 588 | 3.477232% |

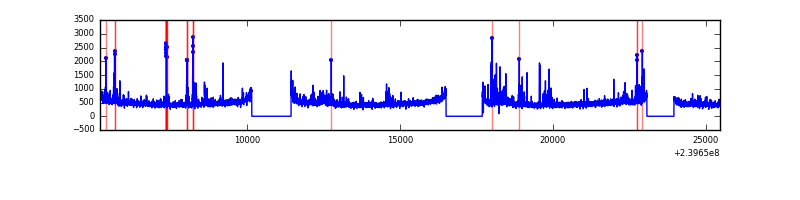

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20266 | 16914 | 15 | 15 | 0.07% | 0.09% |  |
| B | 20266 | 16913 | 25 | 25 | 0.12% | 0.15% |  |
| C | 20266 | 16913 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20266 | 16913 | 551 | 551 | 2.72% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 364431 | 923.68 | 1963 | 1921 | 392.5 |
| A | 15 | 174 | 70329 | 174.3 | 1963 | 1921 | 392.5 |
| A | 15 | 239 | 30283 | 72.27 | 1963 | 1921 | 392.5 |
| B | 4 | 81 | 434850 | 1151.93 | 1995 | 1946 | 375.8 |
| B | 4 | 239 | 98364 | 256.56 | 1995 | 1946 | 375.8 |
| B | 0 | 214 | 73220 | 189.66 | 1995 | 1946 | 375.8 |
| C | 13 | 61 | 14372 | 28.08 | 1922 | 1934 | 443.0 |
| C | 8 | 222 | 7891 | 13.45 | 1922 | 1934 | 443.0 |
| C | 14 | 67 | 7886 | 13.44 | 1922 | 1934 | 443.0 |
| D | 2 | 16 | 2562815 | 5366.62 | 1868 | 1820 | 477.2 |
| D | 8 | 195 | 1023652 | 2141.27 | 1868 | 1820 | 477.2 |
| D | 1 | 52 | 698874 | 1460.69 | 1868 | 1820 | 477.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

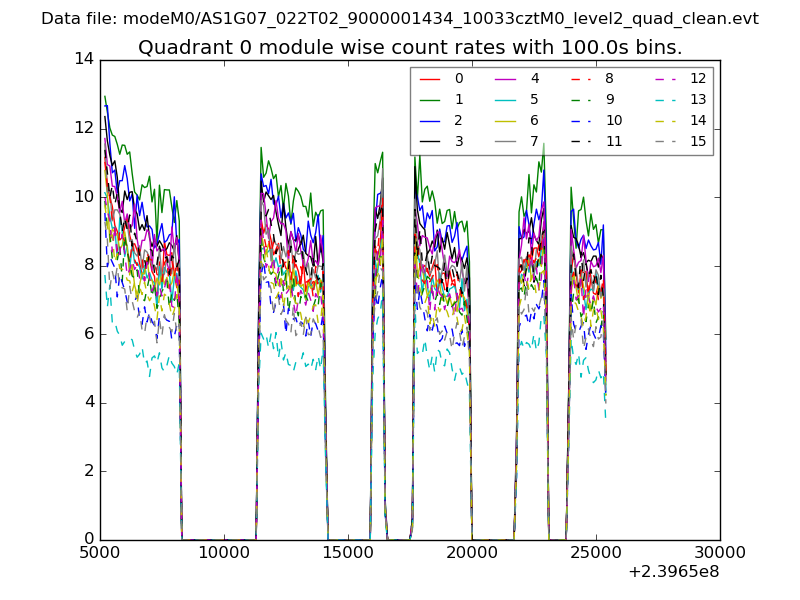

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

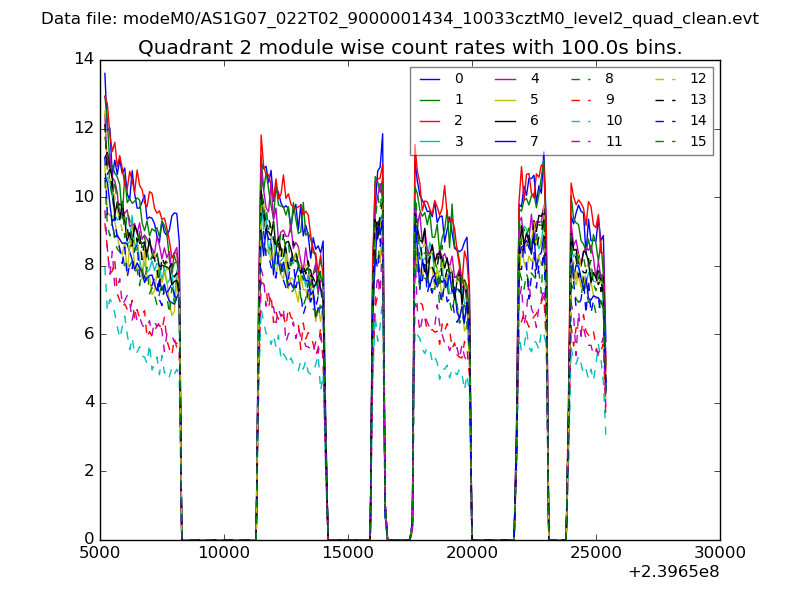

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

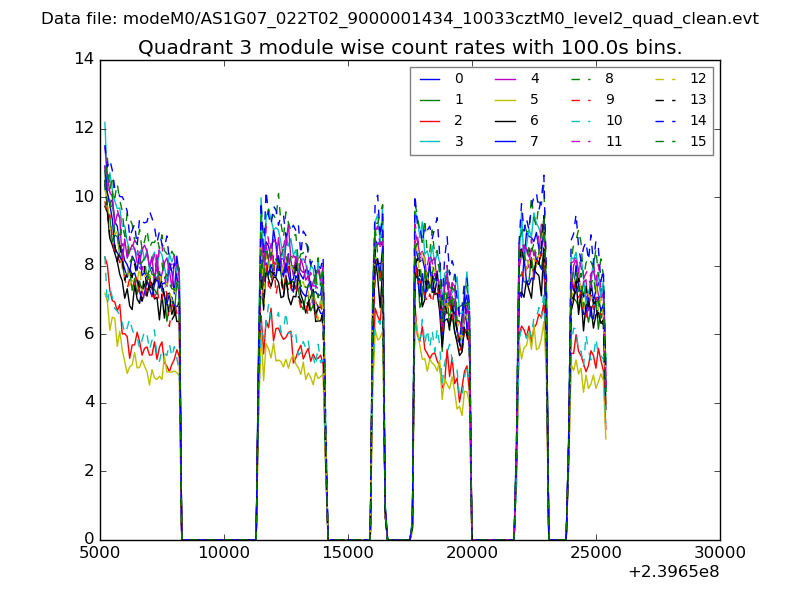

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

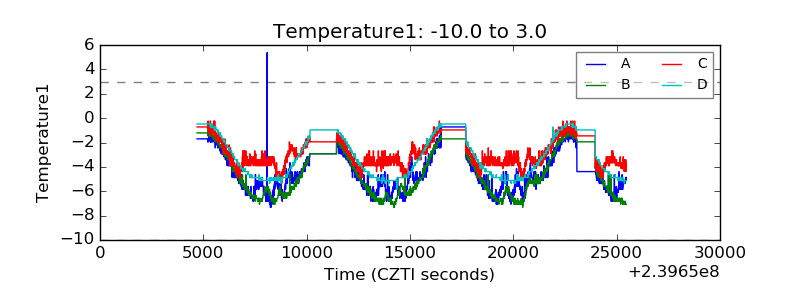

| Temperature 1 |  |
| Veto HV Monitor |  |

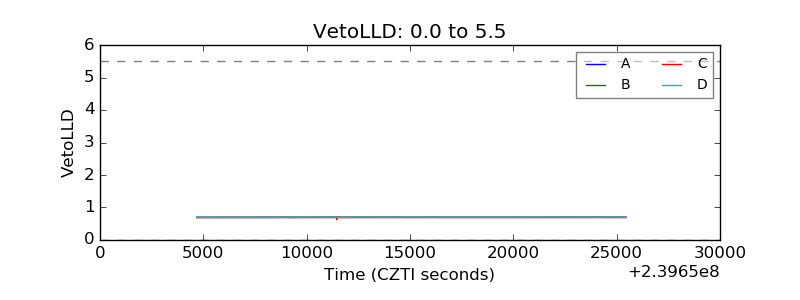

| Veto LLD |  |

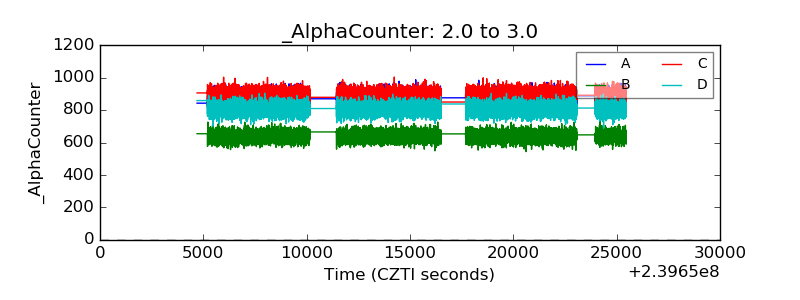

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

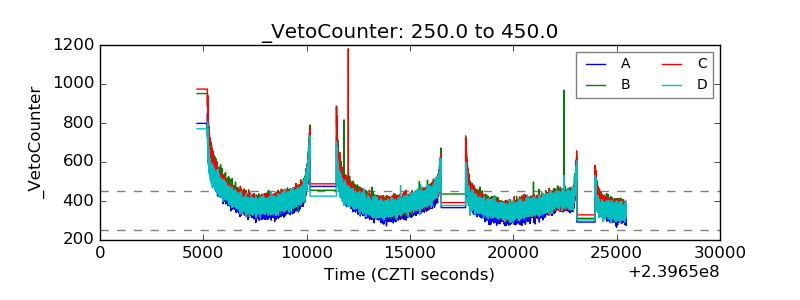

| Veto Counter |  |
