| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10040cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10040cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,304,960 | 94,057,920 |
| Size | 520.0 MB | 89.7 MB |
| Events in quadrant A | 3,887,993 | 556,173 |
| Events in quadrant B | 3,900,963 | 565,257 |
| Events in quadrant C | 3,674,674 | 582,494 |
| Events in quadrant D | 4,473,599 | 554,164 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17598 | 209 |
| B | 0 | 17681 | 200 |
| C | 0 | 17364 | 193 |
| D | 0 | 19086 | 255 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 2 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 4 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8494 | 49 | 0.576878% |
| B | 8501 | 60 | 0.705799% |
| C | 8501 | 42 | 0.494060% |
| D | 8488 | 85 | 1.001414% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9141 | 8590 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9141 | 8588 | 8 | 8 | 0.09% | 0.09% |  |
| C | 9141 | 8587 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9141 | 8588 | 39 | 39 | 0.43% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 112672 | 573.49 | 951 | 931 | 194.8 |
| A | 0 | 8 | 51492 | 259.5 | 951 | 931 | 194.8 |
| A | 13 | 251 | 33518 | 167.25 | 951 | 931 | 194.8 |
| B | 0 | 214 | 92166 | 501.7 | 954 | 930 | 181.9 |
| B | 12 | 111 | 20587 | 108.09 | 954 | 930 | 181.9 |
| B | 0 | 229 | 19260 | 100.79 | 954 | 930 | 181.9 |
| C | 8 | 128 | 8889 | 36.57 | 936 | 939 | 217.4 |
| C | 13 | 61 | 7050 | 28.11 | 936 | 939 | 217.4 |
| C | 8 | 112 | 4994 | 18.65 | 936 | 939 | 217.4 |
| D | 8 | 195 | 282150 | 1230.83 | 926 | 901 | 228.5 |
| D | 2 | 16 | 224272 | 977.54 | 926 | 901 | 228.5 |
| D | 1 | 52 | 170246 | 741.11 | 926 | 901 | 228.5 |

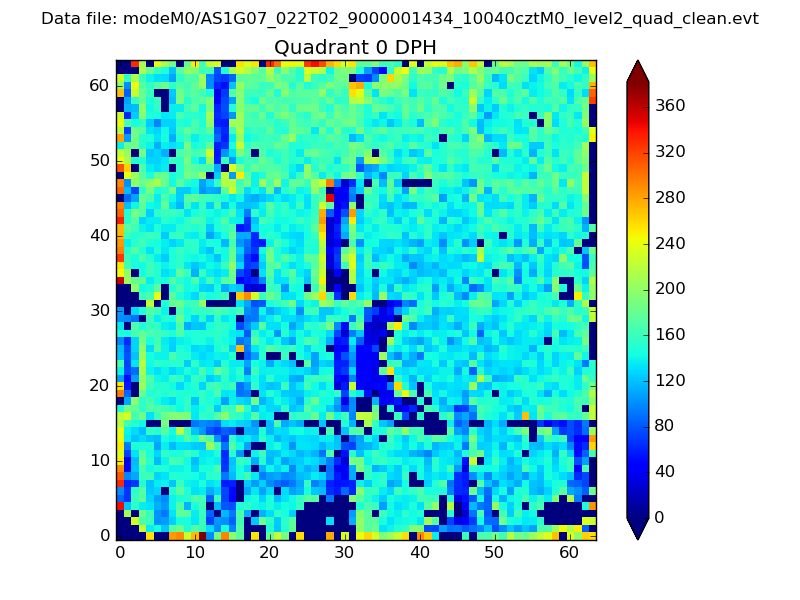

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

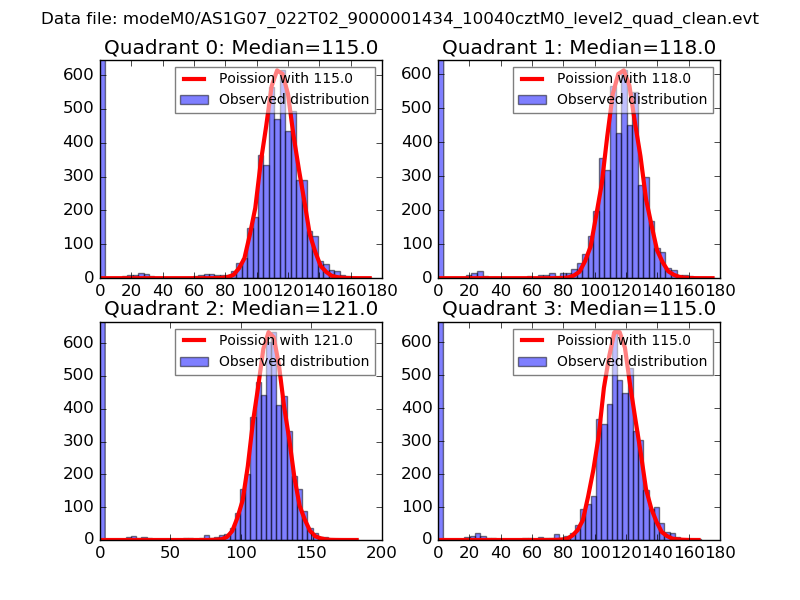

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

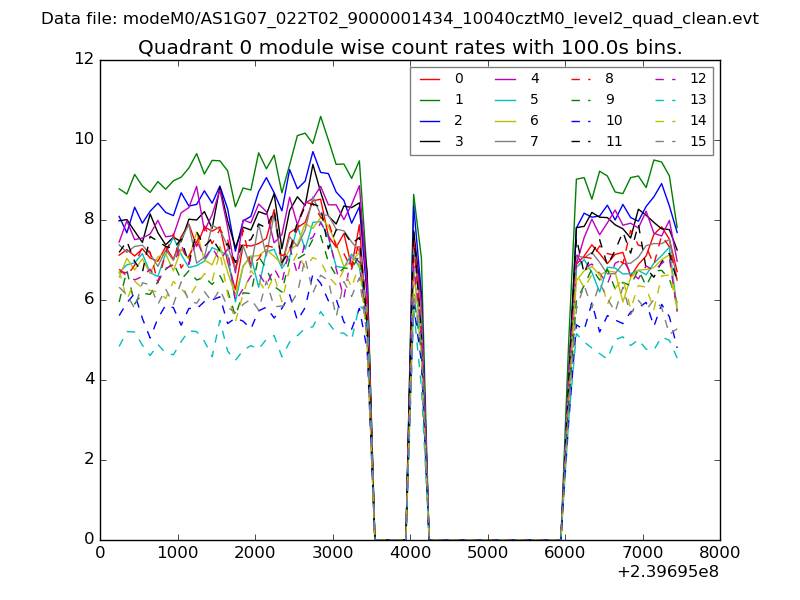

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

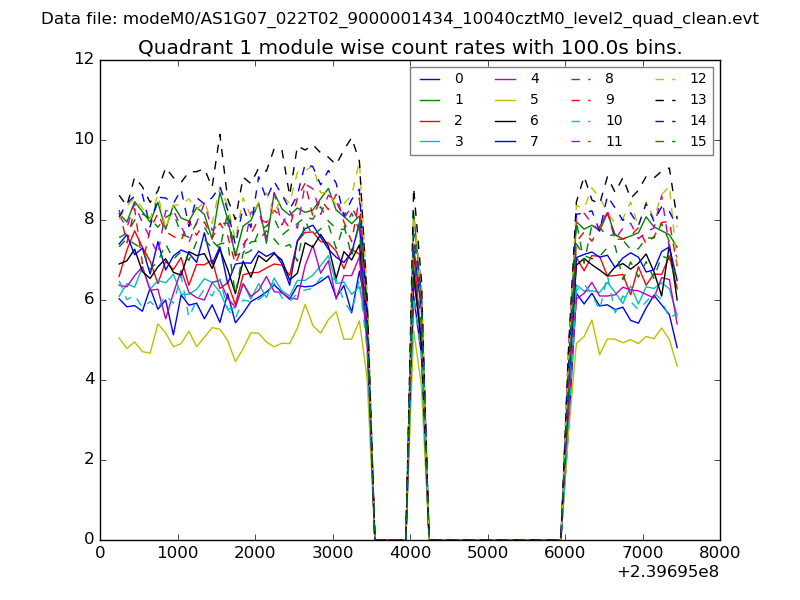

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

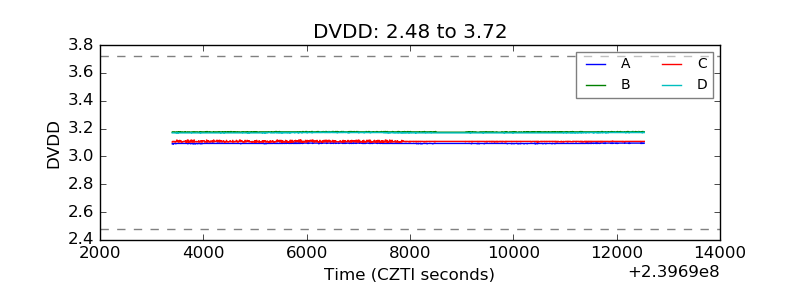

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

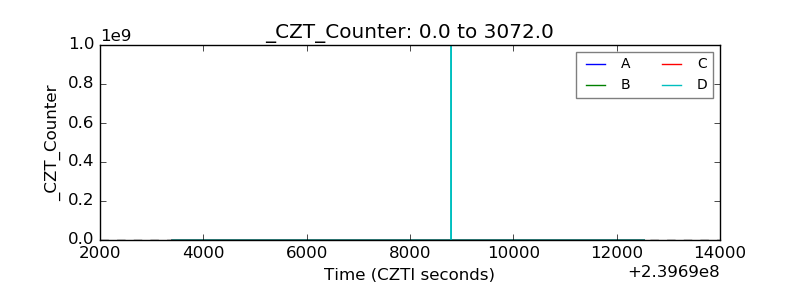

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
