| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_022T02_9000001434_10042cztM0_level2.evt | modeM0/AS1G07_022T02_9000001434_10042cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,828,160 | 95,281,920 |
| Size | 526.3 MB | 90.9 MB |
| Events in quadrant A | 3,933,344 | 563,957 |
| Events in quadrant B | 3,944,922 | 573,007 |
| Events in quadrant C | 3,714,861 | 589,411 |
| Events in quadrant D | 4,535,325 | 562,057 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17598 | 1 |
| B | 0 | 17683 | 3 |
| C | 0 | 17364 | 3 |
| D | 0 | 19088 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8596 | 50 | 0.581666% |
| B | 8595 | 62 | 0.721350% |
| C | 8595 | 43 | 0.500291% |
| D | 8596 | 87 | 1.012099% |

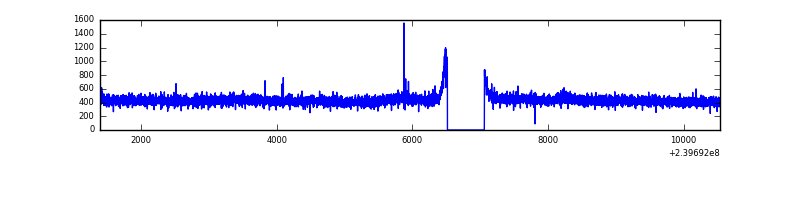

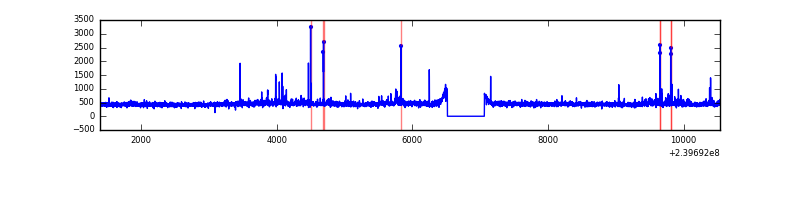

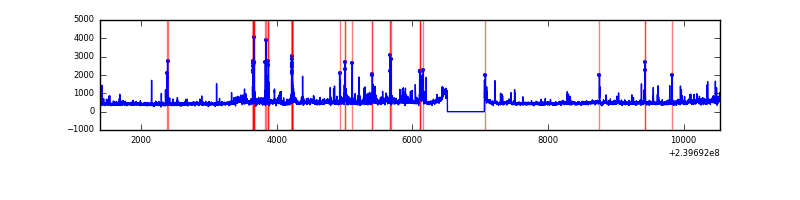

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9141 | 8596 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9141 | 8596 | 8 | 8 | 0.09% | 0.09% |  |
| C | 9141 | 8596 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9141 | 8596 | 41 | 41 | 0.45% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 113127 | 568.96 | 962 | 942 | 197.2 |
| A | 0 | 8 | 52138 | 259.65 | 962 | 942 | 197.2 |
| A | 13 | 251 | 33762 | 166.45 | 962 | 942 | 197.2 |
| B | 0 | 214 | 92335 | 497.0 | 965 | 942 | 183.9 |
| B | 12 | 111 | 20830 | 108.15 | 965 | 942 | 183.9 |
| B | 0 | 229 | 19483 | 100.83 | 965 | 942 | 183.9 |
| C | 8 | 128 | 9011 | 36.72 | 946 | 949 | 219.6 |
| C | 13 | 61 | 7119 | 28.1 | 946 | 949 | 219.6 |
| C | 8 | 112 | 5068 | 18.76 | 946 | 949 | 219.6 |
| D | 8 | 195 | 285241 | 1228.41 | 937 | 913 | 231.5 |
| D | 2 | 16 | 234292 | 1008.29 | 937 | 913 | 231.5 |
| D | 1 | 52 | 172407 | 740.92 | 937 | 913 | 231.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

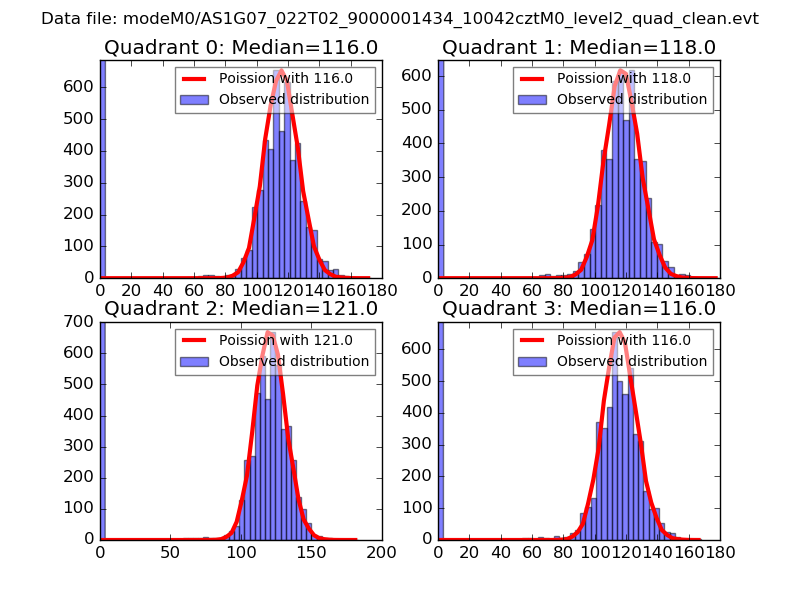

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

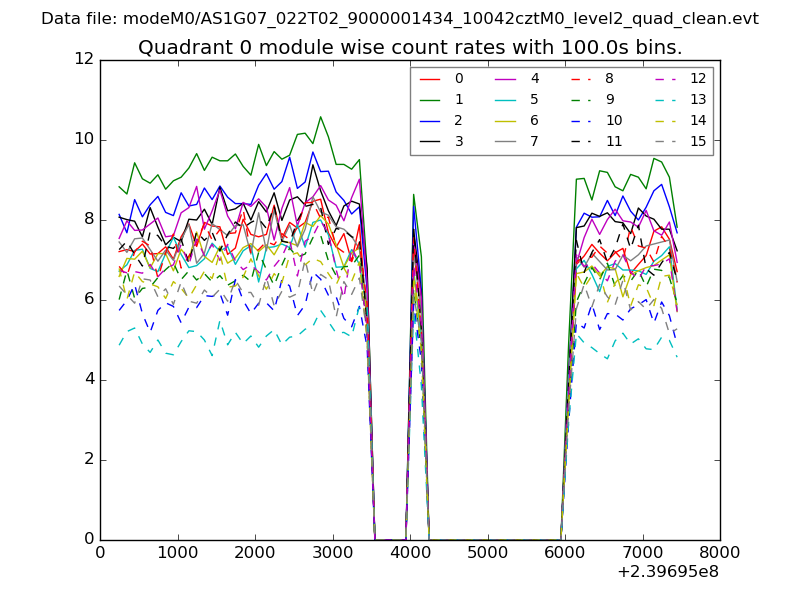

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

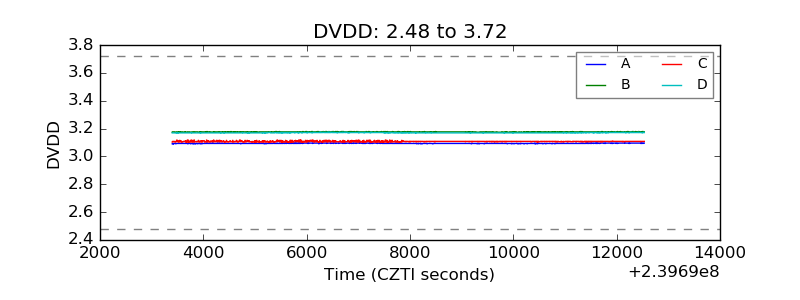

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

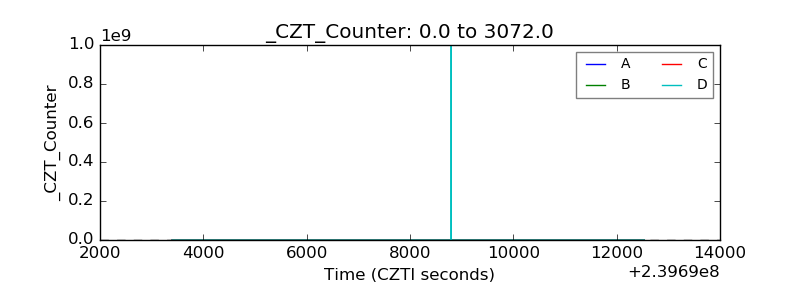

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
