| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_008T01_9000001442_10065cztM0_level2.evt | modeM0/AS1A03_008T01_9000001442_10065cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,115,840 | 105,969,600 |
| Size | 522.7 MB | 101.1 MB |
| Events in quadrant A | 3,855,224 | 662,383 |
| Events in quadrant B | 3,894,876 | 677,272 |
| Events in quadrant C | 3,831,919 | 662,062 |
| Events in quadrant D | 4,453,851 | 630,749 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17425 | 222 |
| B | 0 | 17437 | 218 |
| C | 0 | 17599 | 281 |
| D | 0 | 19433 | 248 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 4 |
| B | 0 | 172 | 8 |
| C | 0 | 172 | 4 |
| D | 0 | 172 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8307 | 136 | 1.637173% |
| B | 8312 | 166 | 1.997113% |
| C | 8286 | 60 | 0.724113% |
| D | 8301 | 203 | 2.445488% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

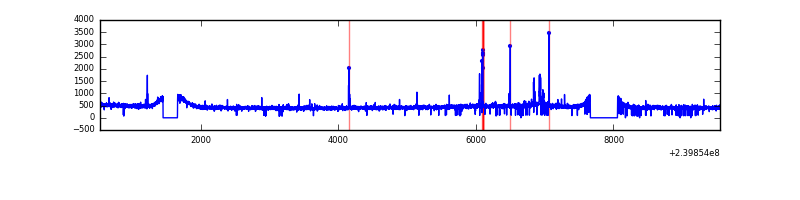

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9018 | 8407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9018 | 8407 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9018 | 8410 | 9 | 9 | 0.10% | 0.11% |  |
| D | 9018 | 8409 | 107 | 107 | 1.19% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 70056 | 347.6 | 975 | 951 | 198.8 |
| A | 0 | 8 | 24410 | 118.0 | 975 | 951 | 198.8 |
| A | 0 | 226 | 8825 | 39.61 | 975 | 951 | 198.8 |
| B | 0 | 214 | 34444 | 176.3 | 983 | 956 | 190.0 |
| B | 12 | 111 | 21677 | 109.08 | 983 | 956 | 190.0 |
| B | 11 | 111 | 17632 | 87.79 | 983 | 956 | 190.0 |
| C | 7 | 247 | 82386 | 367.53 | 952 | 954 | 221.6 |
| C | 14 | 234 | 21745 | 93.84 | 952 | 954 | 221.6 |
| C | 13 | 61 | 7320 | 28.73 | 952 | 954 | 221.6 |
| D | 1 | 52 | 277165 | 1152.94 | 938 | 916 | 239.6 |
| D | 2 | 16 | 267428 | 1112.3 | 938 | 916 | 239.6 |
| D | 10 | 199 | 87286 | 360.47 | 938 | 916 | 239.6 |

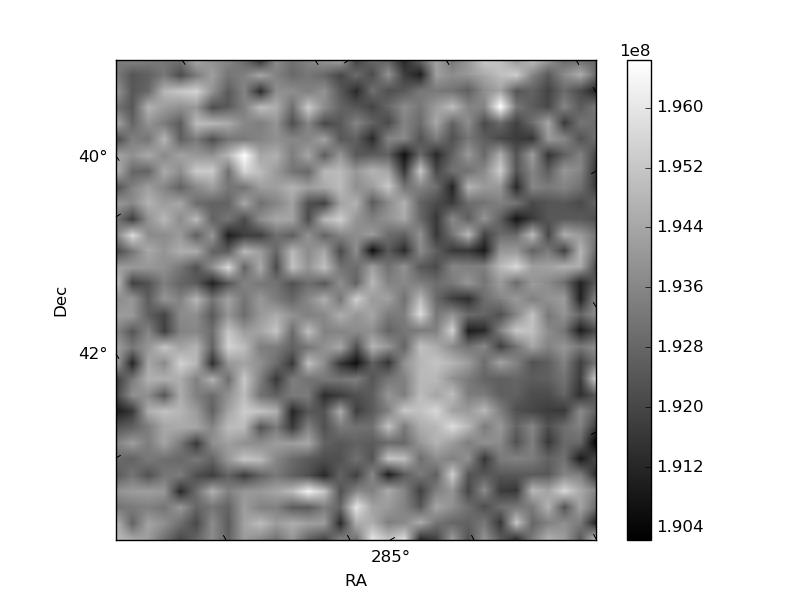

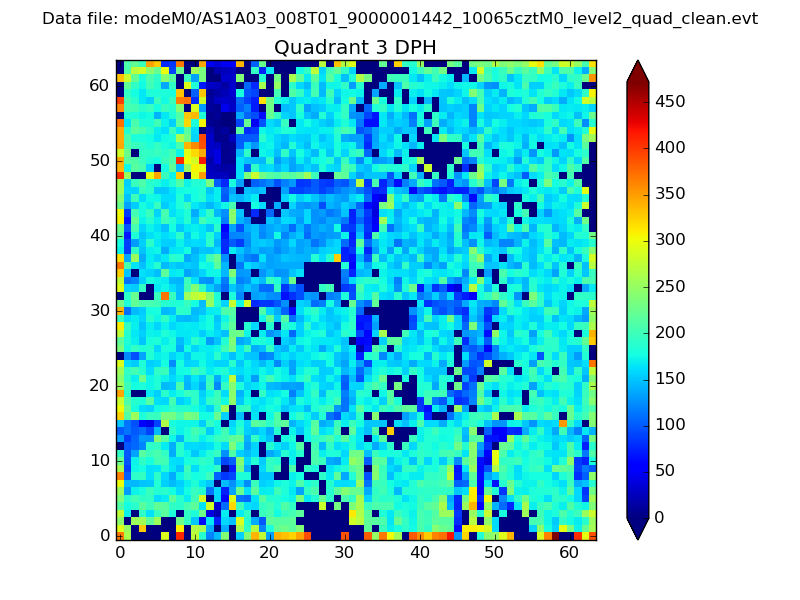

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

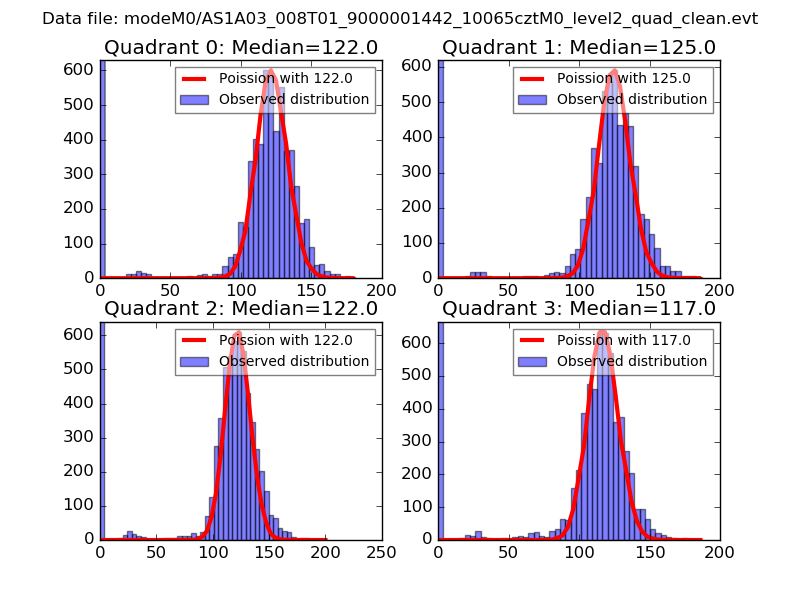

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

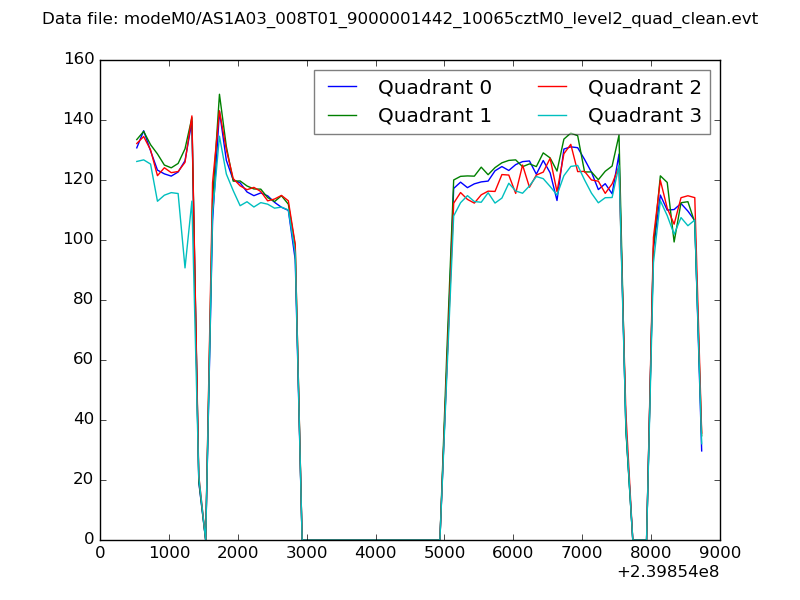

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

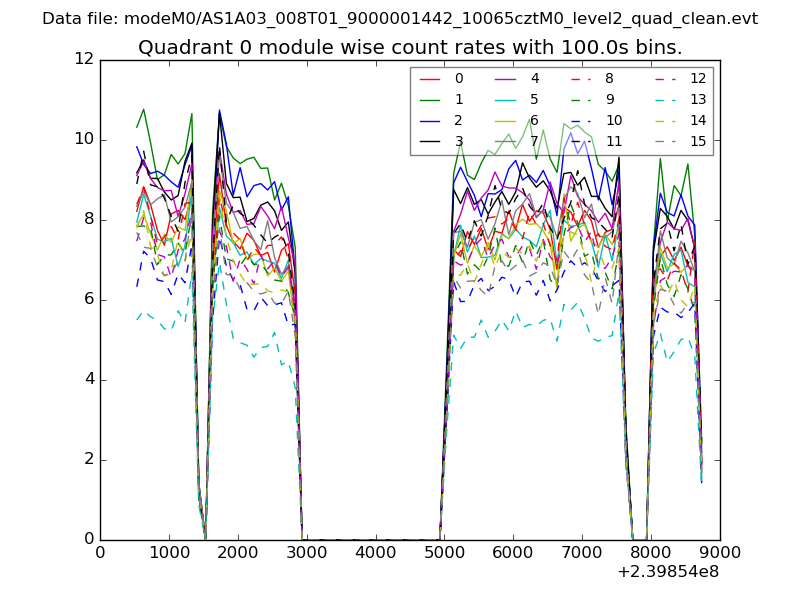

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

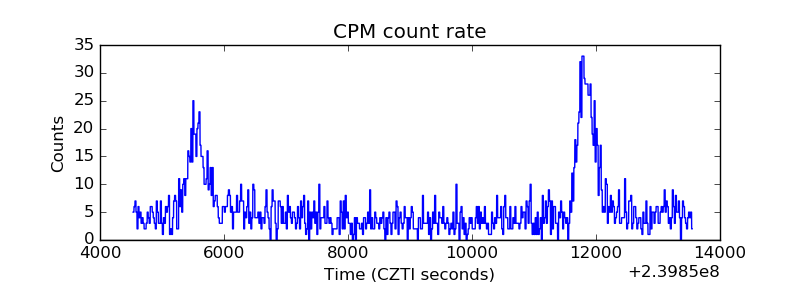

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

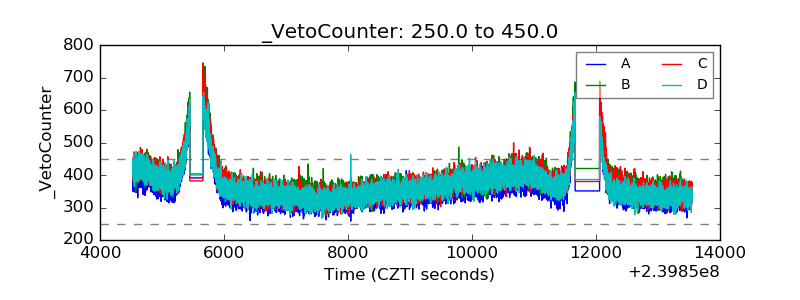

| Veto Counter |  |
