| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_033T01_9000001438_10053cztM0_level2.evt | modeM0/AS1A03_033T01_9000001438_10053cztM0_level2_quad_clean.evt |
| Size (bytes) | 759,556,800 | 133,145,280 |
| Size | 724.4 MB | 127.0 MB |
| Events in quadrant A | 5,425,509 | 819,656 |
| Events in quadrant B | 5,255,623 | 840,760 |
| Events in quadrant C | 4,871,414 | 822,875 |
| Events in quadrant D | 6,690,847 | 774,441 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27252 | 3457 |
| B | 0 | 26402 | 3277 |
| C | 0 | 25864 | 3197 |
| D | 0 | 31978 | 4889 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 1 |
| B | 0 | 15 | 1 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 30 |
| B | 0 | 259 | 29 |
| C | 0 | 258 | 31 |
| D | 0 | 259 | 33 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11219 | 136 | 1.212229% |
| B | 11233 | 119 | 1.059379% |
| C | 11243 | 54 | 0.480299% |
| D | 11005 | 276 | 2.507951% |

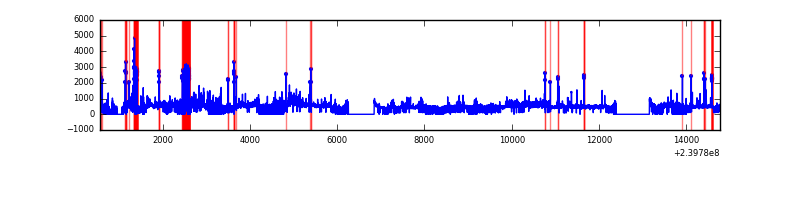

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14203 | 12115 | 23 | 23 | 0.16% | 0.19% |  |
| B | 14202 | 12121 | 18 | 18 | 0.13% | 0.15% |  |
| C | 14203 | 12134 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14202 | 11952 | 201 | 201 | 1.42% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 414668 | 1594.32 | 1281 | 1250 | 259.3 |
| A | 8 | 15 | 67630 | 255.99 | 1281 | 1250 | 259.3 |
| A | 0 | 226 | 11602 | 39.92 | 1281 | 1250 | 259.3 |
| B | 10 | 247 | 105018 | 419.6 | 1288 | 1256 | 247.3 |
| B | 0 | 214 | 76957 | 306.12 | 1288 | 1256 | 247.3 |
| B | 12 | 111 | 27985 | 108.09 | 1288 | 1256 | 247.3 |
| C | 14 | 67 | 10928 | 33.57 | 1245 | 1251 | 288.2 |
| C | 13 | 61 | 9163 | 27.45 | 1245 | 1251 | 288.2 |
| C | 8 | 222 | 7687 | 22.33 | 1245 | 1251 | 288.2 |
| D | 2 | 16 | 1206683 | 3952.17 | 1205 | 1172 | 305.0 |
| D | 8 | 195 | 242184 | 790.14 | 1205 | 1172 | 305.0 |
| D | 1 | 52 | 235702 | 768.89 | 1205 | 1172 | 305.0 |

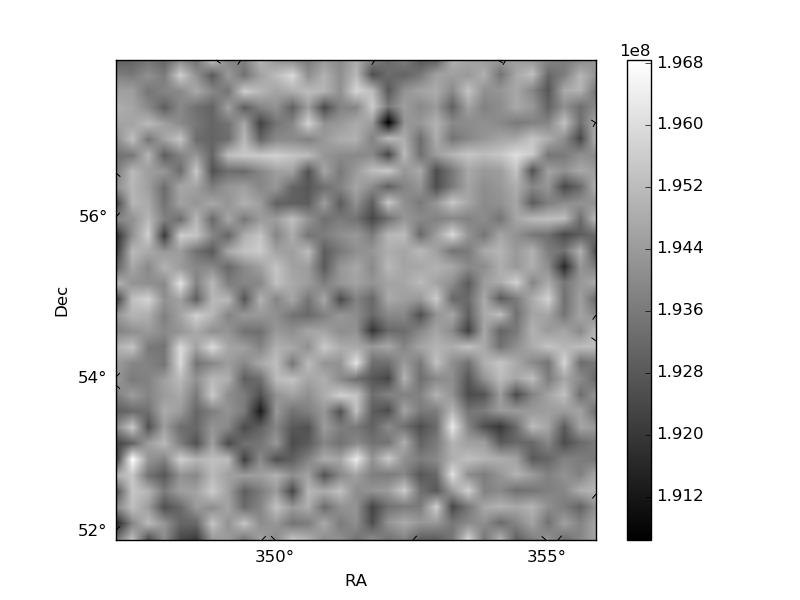

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

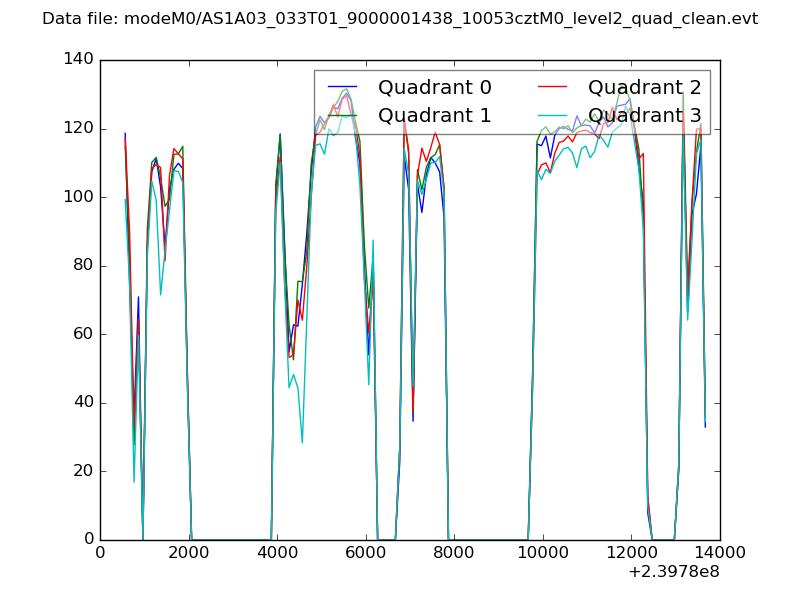

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

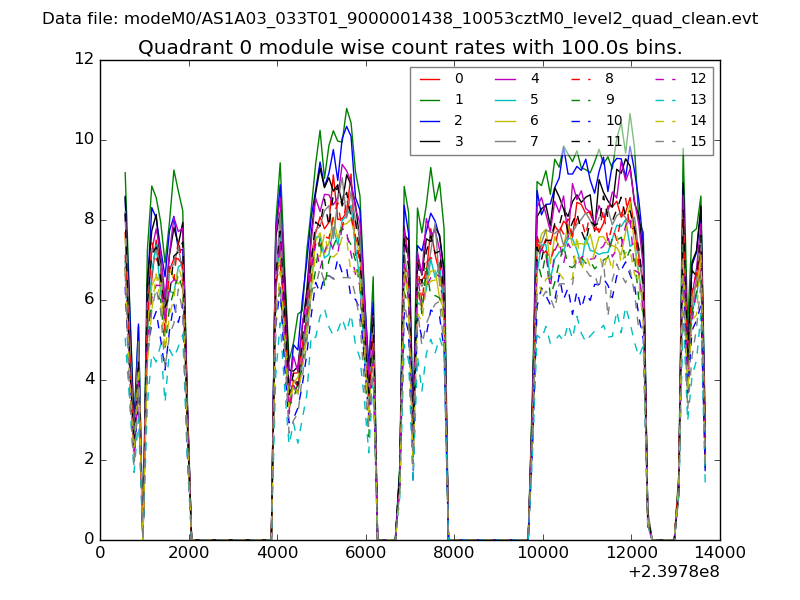

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

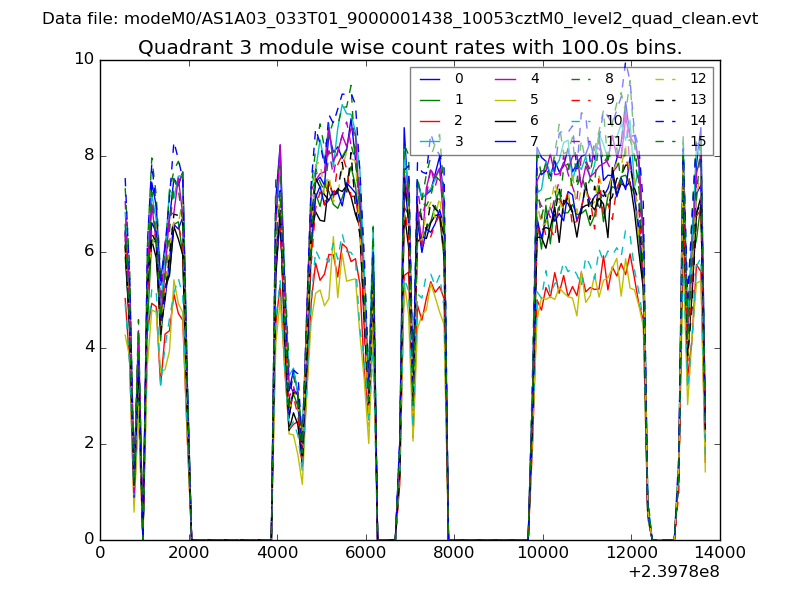

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

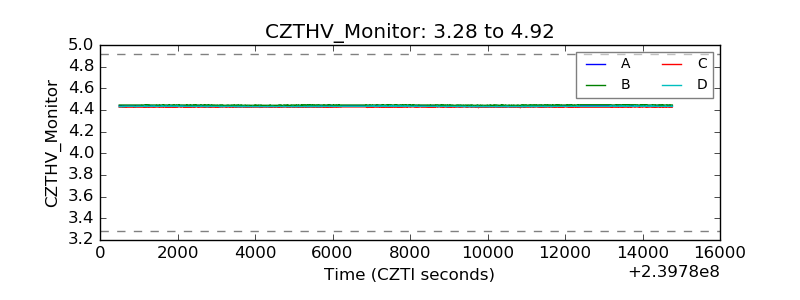

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

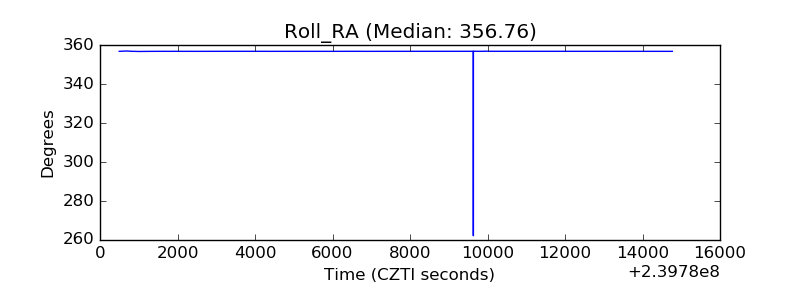

| _Roll_RA |  |

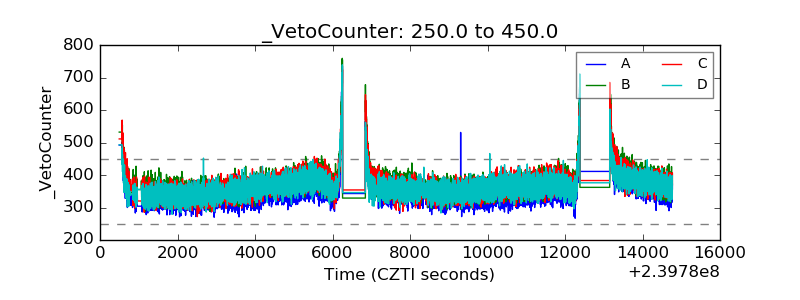

| Veto Counter |  |
