| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_033T01_9000001438_10056cztM0_level2.evt | modeM0/AS1A03_033T01_9000001438_10056cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,240,320 | 65,419,200 |
| Size | 444.6 MB | 62.4 MB |
| Events in quadrant A | 3,113,155 | 391,413 |
| Events in quadrant B | 3,332,370 | 392,910 |
| Events in quadrant C | 2,943,483 | 383,637 |
| Events in quadrant D | 4,298,846 | 369,283 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14104 | 693 |
| B | 0 | 14676 | 754 |
| C | 0 | 13740 | 710 |
| D | 0 | 17829 | 966 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 4 |
| B | 0 | 134 | 8 |
| C | 0 | 134 | 4 |
| D | 0 | 134 | 14 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6381 | 85 | 1.332080% |
| B | 6358 | 146 | 2.296320% |
| C | 6370 | 70 | 1.098901% |
| D | 6334 | 167 | 2.636565% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7758 | 6646 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7758 | 6647 | 46 | 46 | 0.59% | 0.69% |  |
| C | 7758 | 6650 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7758 | 6627 | 66 | 66 | 0.85% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 97136 | 613.38 | 779 | 763 | 157.1 |
| A | 13 | 248 | 13773 | 82.8 | 779 | 763 | 157.1 |
| A | 0 | 226 | 7292 | 41.55 | 779 | 763 | 157.1 |
| B | 10 | 247 | 233134 | 1585.39 | 773 | 754 | 146.6 |
| B | 0 | 214 | 30942 | 205.95 | 773 | 754 | 146.6 |
| B | 0 | 219 | 20945 | 137.75 | 773 | 754 | 146.6 |
| C | 14 | 234 | 11040 | 59.22 | 749 | 752 | 173.7 |
| C | 14 | 67 | 10651 | 56.98 | 749 | 752 | 173.7 |
| C | 13 | 61 | 5580 | 27.79 | 749 | 752 | 173.7 |
| D | 1 | 52 | 561476 | 3016.53 | 741 | 721 | 185.9 |
| D | 2 | 16 | 560960 | 3013.75 | 741 | 721 | 185.9 |
| D | 8 | 195 | 176243 | 944.2 | 741 | 721 | 185.9 |

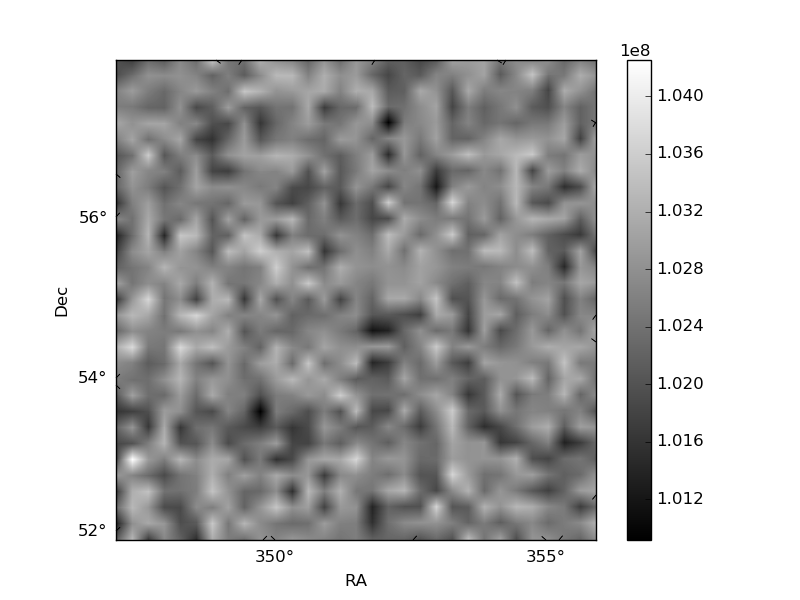

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

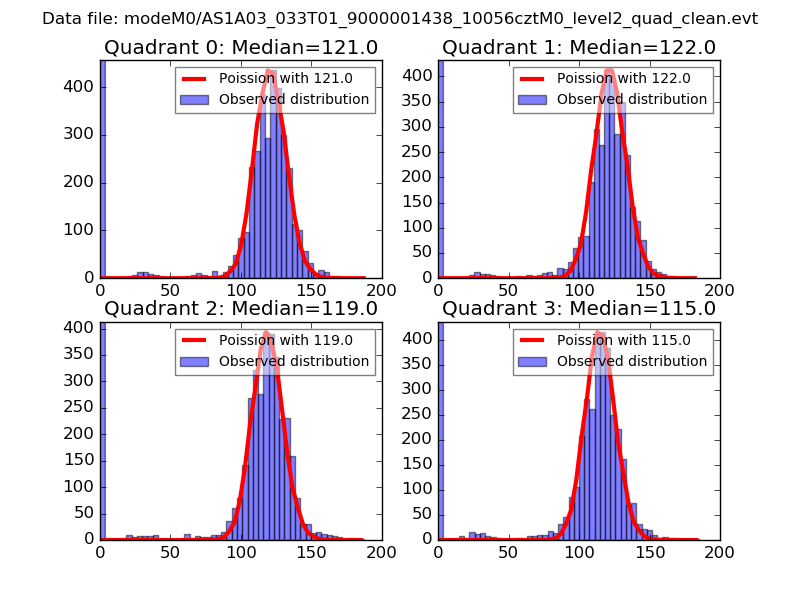

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

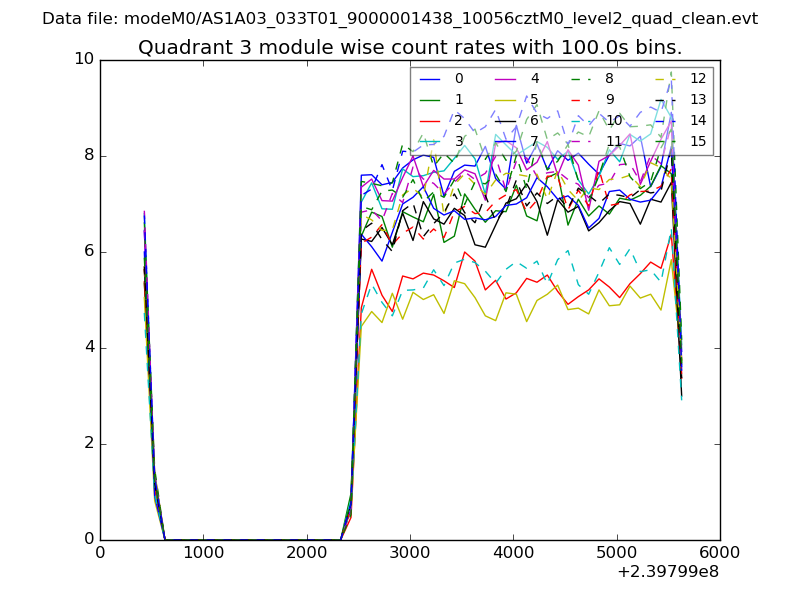

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

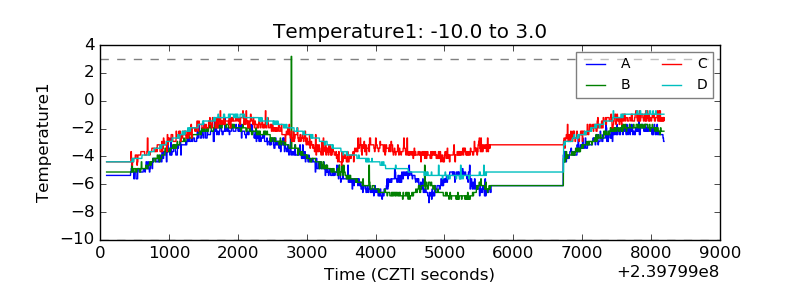

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

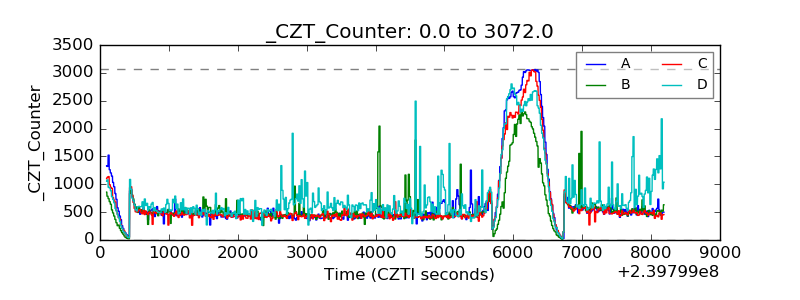

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

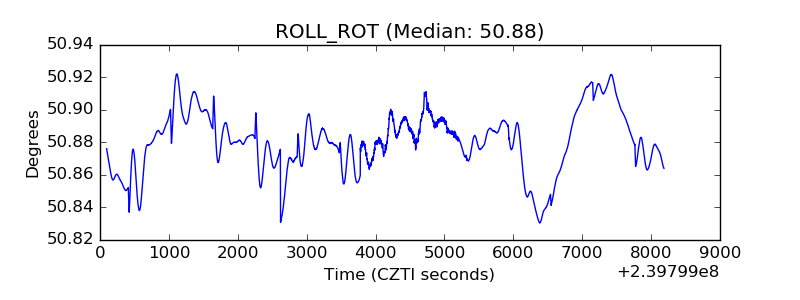

| _ROLL_ROT |  |

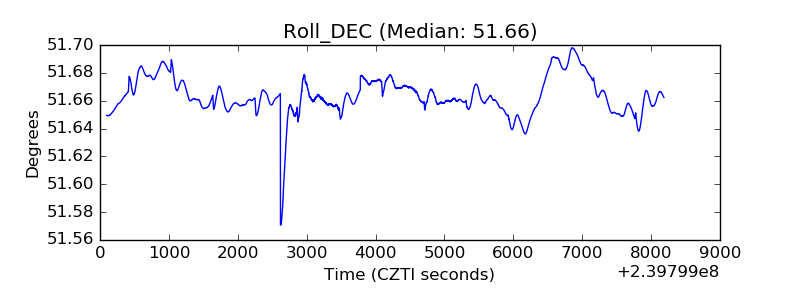

| _Roll_DEC |  |
| _Roll_RA |  |

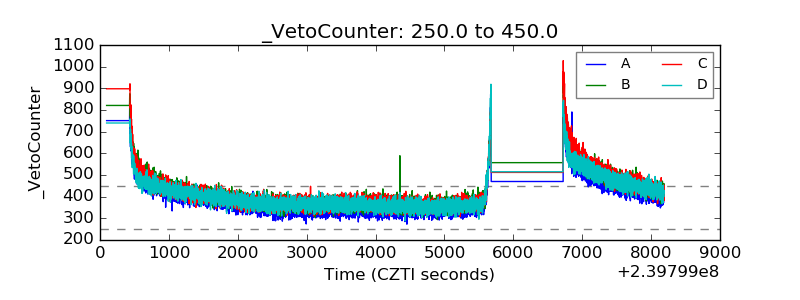

| Veto Counter |  |
