| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001440_10058cztM0_level2.evt | modeM0/AS1A03_084T01_9000001440_10058cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,667,840 | 105,840,000 |
| Size | 520.4 MB | 100.9 MB |
| Events in quadrant A | 3,364,509 | 710,644 |
| Events in quadrant B | 3,615,769 | 712,865 |
| Events in quadrant C | 3,125,477 | 688,251 |
| Events in quadrant D | 5,974,876 | 635,683 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14319 | 3 |
| B | 0 | 15077 | 2 |
| C | 0 | 13693 | 2 |
| D | 0 | 22265 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 67 | 1.021809% |
| B | 6557 | 85 | 1.296325% |
| C | 6557 | 34 | 0.518530% |
| D | 6557 | 573 | 8.738752% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7832 | 6557 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7832 | 6557 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7832 | 6558 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7832 | 6557 | 507 | 507 | 6.47% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 108820 | 642.85 | 839 | 823 | 168.0 |
| A | 15 | 239 | 16784 | 95.01 | 839 | 823 | 168.0 |
| A | 0 | 226 | 7993 | 42.68 | 839 | 823 | 168.0 |
| B | 4 | 81 | 140459 | 889.0 | 833 | 815 | 157.1 |
| B | 0 | 214 | 73960 | 465.66 | 833 | 815 | 157.1 |
| B | 0 | 219 | 47983 | 300.28 | 833 | 815 | 157.1 |
| C | 14 | 67 | 14948 | 76.93 | 795 | 801 | 183.9 |
| C | 13 | 61 | 6079 | 28.7 | 795 | 801 | 183.9 |
| C | 3 | 254 | 4763 | 21.55 | 795 | 801 | 183.9 |
| D | 2 | 16 | 1926902 | 9293.04 | 776 | 759 | 207.3 |
| D | 1 | 52 | 762055 | 3673.02 | 776 | 759 | 207.3 |
| D | 7 | 71 | 89578 | 428.52 | 776 | 759 | 207.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

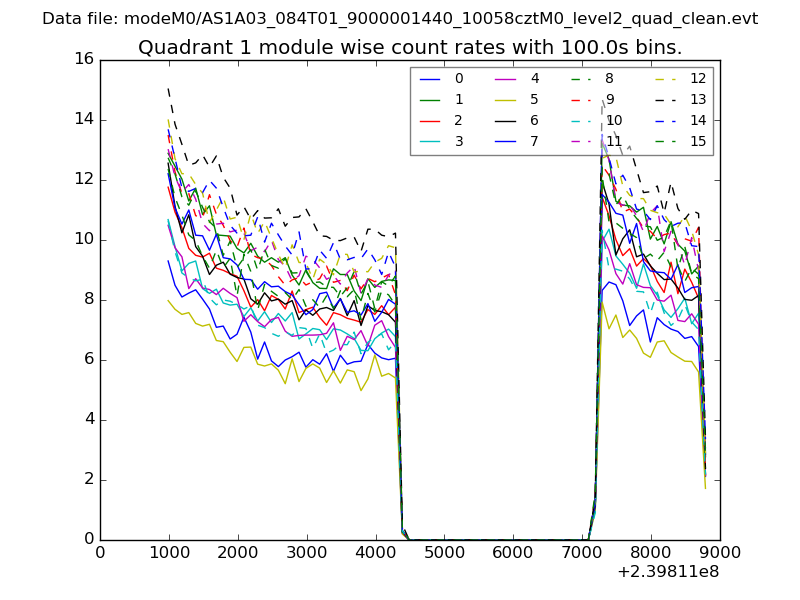

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

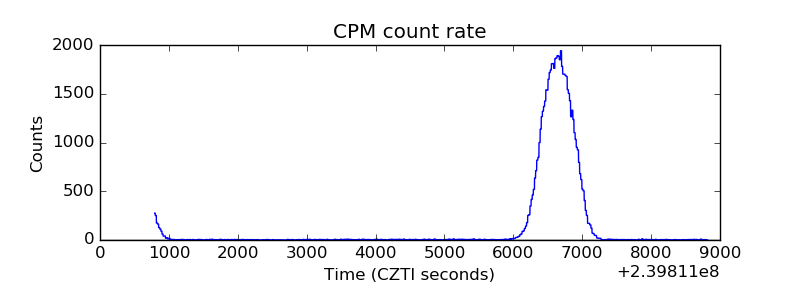

| _CPM_Rate |  |

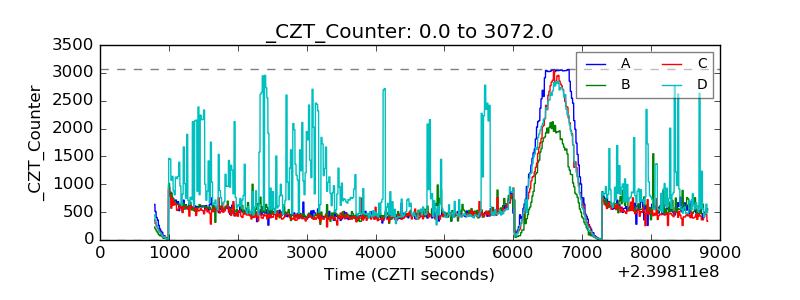

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

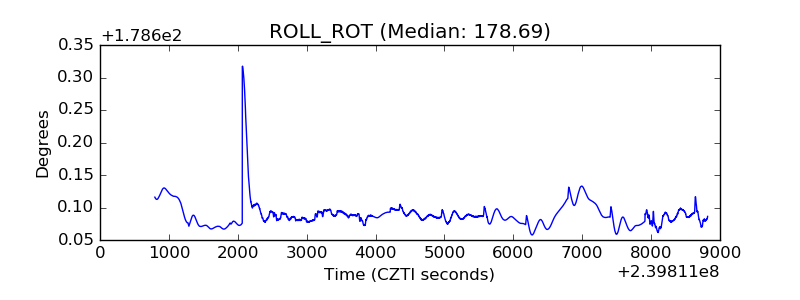

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
