| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001440_10060cztM0_level2.evt | modeM0/AS1A03_084T01_9000001440_10060cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,304,320 | 86,359,680 |
| Size | 503.8 MB | 82.4 MB |
| Events in quadrant A | 3,125,181 | 559,122 |
| Events in quadrant B | 3,214,832 | 568,750 |
| Events in quadrant C | 2,900,135 | 550,969 |
| Events in quadrant D | 6,338,805 | 503,408 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13602 | 171 |
| B | 0 | 13735 | 167 |
| C | 0 | 13031 | 162 |
| D | 0 | 23673 | 481 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 2 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6199 | 80 | 1.290531% |
| B | 6206 | 92 | 1.482436% |
| C | 6197 | 46 | 0.742295% |
| D | 6166 | 935 | 15.163801% |

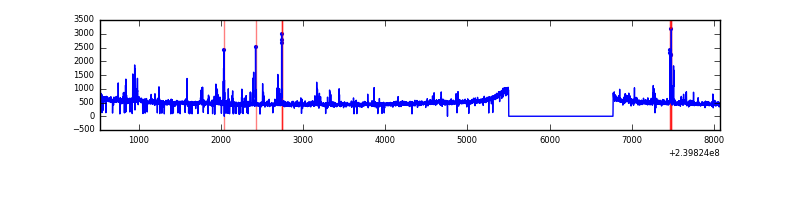

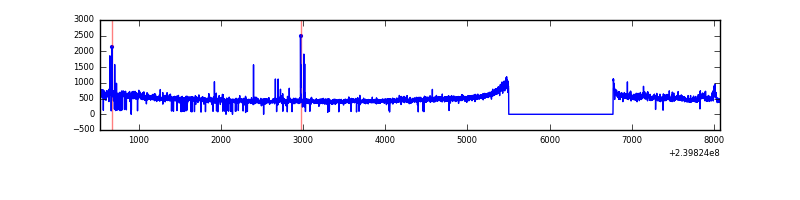

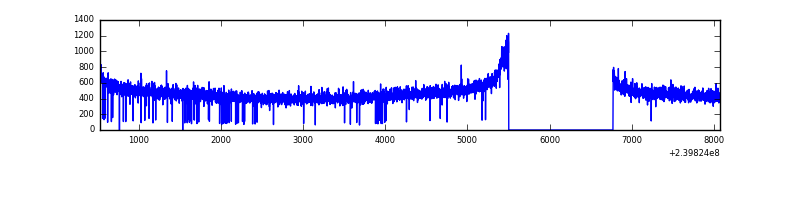

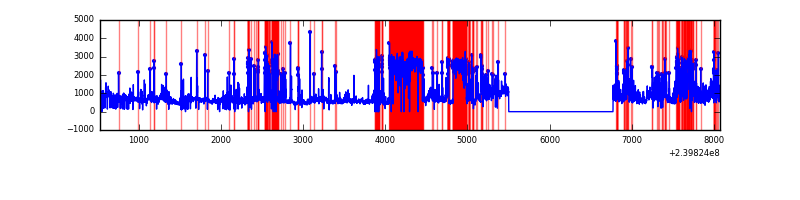

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6273 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7547 | 6275 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7547 | 6276 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7547 | 6256 | 819 | 819 | 10.85% | 13.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 64539 | 410.48 | 768 | 755 | 155.4 |
| A | 8 | 15 | 52720 | 334.42 | 768 | 755 | 155.4 |
| A | 15 | 174 | 44257 | 279.96 | 768 | 755 | 155.4 |
| B | 4 | 81 | 80964 | 542.85 | 771 | 753 | 147.8 |
| B | 4 | 239 | 70040 | 468.92 | 771 | 753 | 147.8 |
| B | 12 | 111 | 14413 | 92.45 | 771 | 753 | 147.8 |
| C | 14 | 67 | 21724 | 121.43 | 737 | 740 | 172.8 |
| C | 13 | 61 | 5799 | 29.28 | 737 | 740 | 172.8 |
| C | 8 | 222 | 3053 | 13.38 | 737 | 740 | 172.8 |
| D | 1 | 52 | 2106226 | 11587.55 | 674 | 661 | 181.7 |
| D | 4 | 95 | 1255517 | 6905.85 | 674 | 661 | 181.7 |
| D | 8 | 195 | 98632 | 539.16 | 674 | 661 | 181.7 |

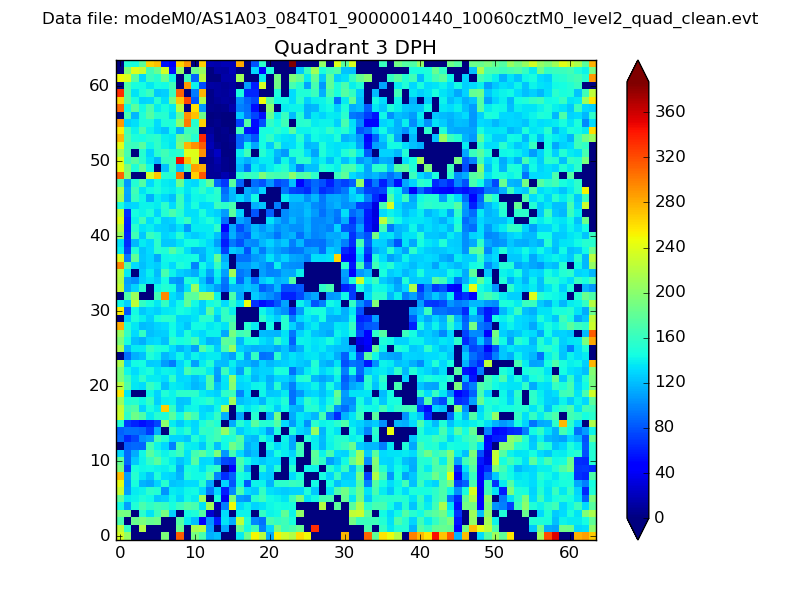

Histogram calculated using DETX and DETY for each event in the final _common_clean file

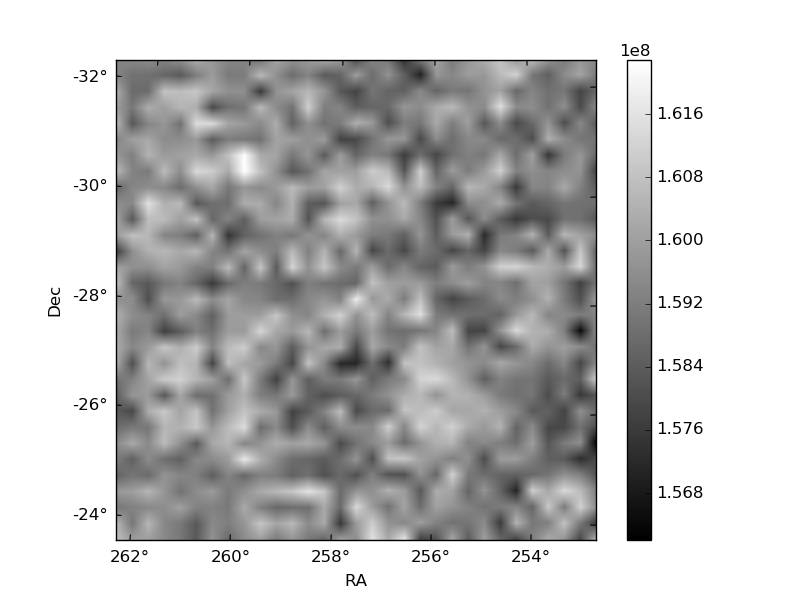

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

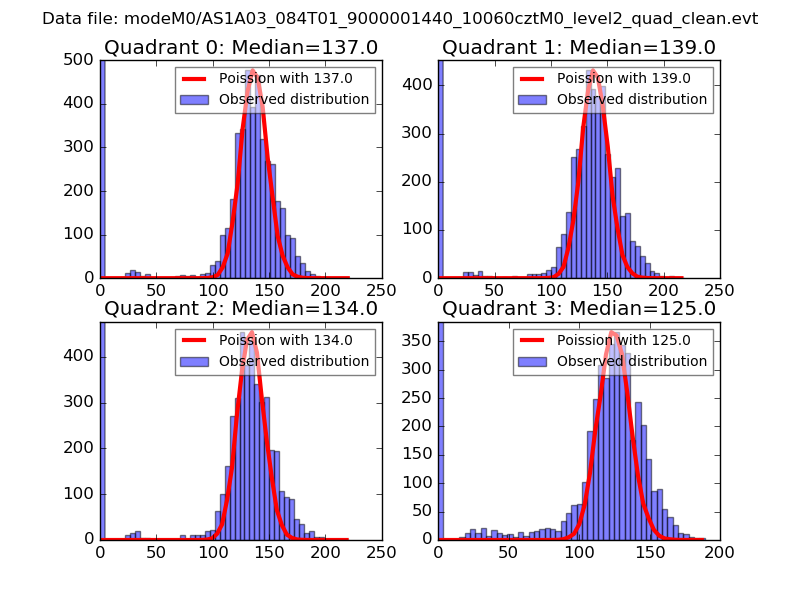

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

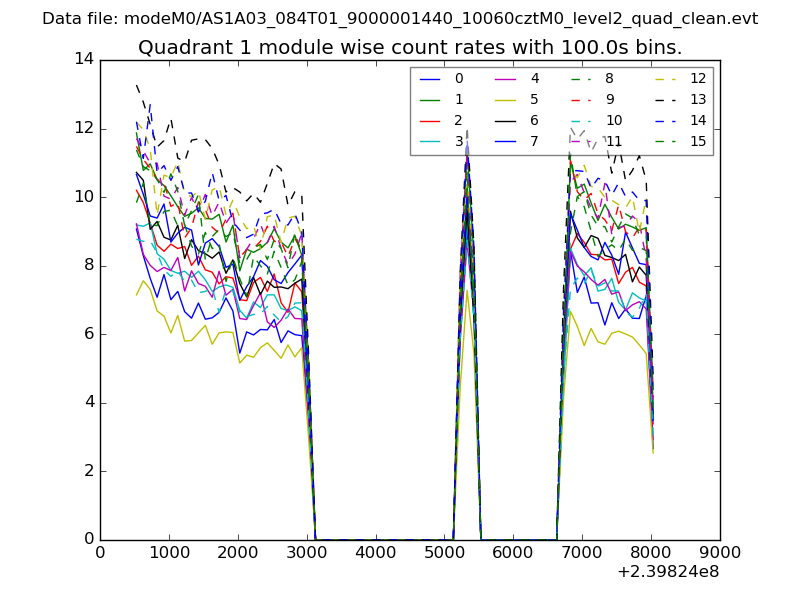

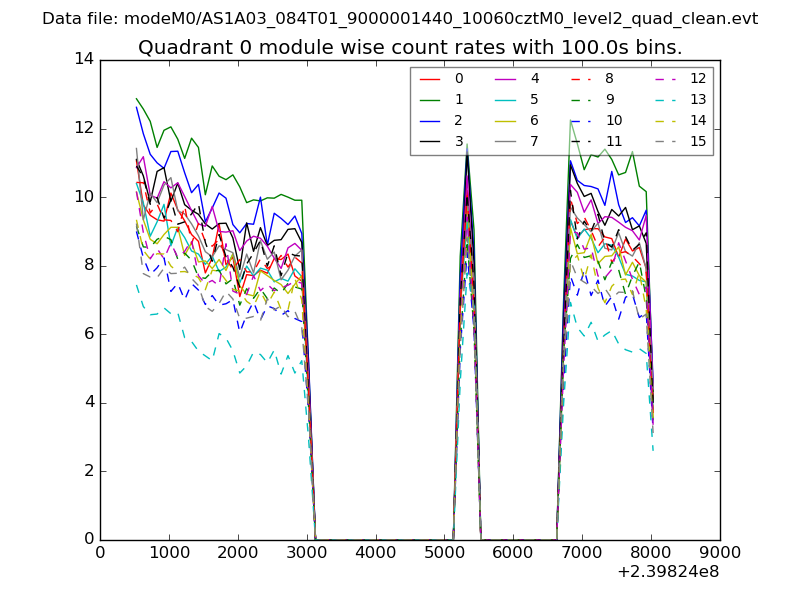

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

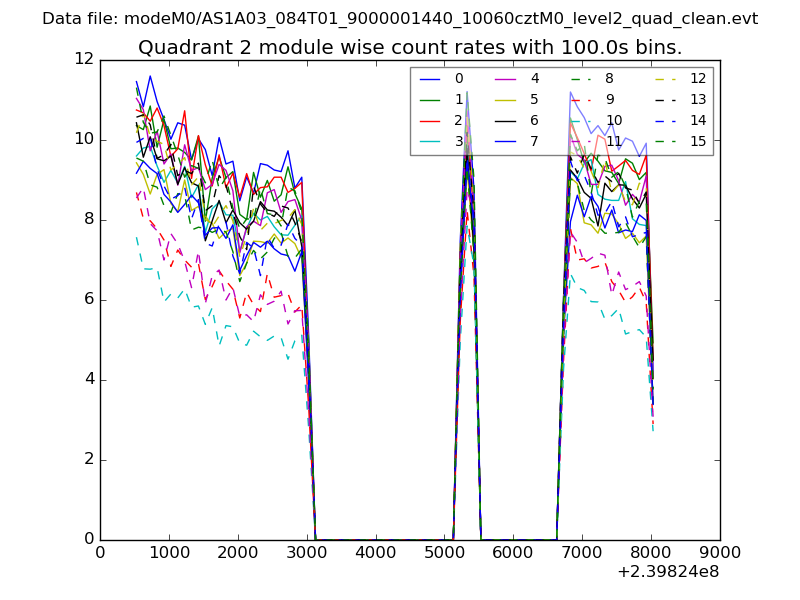

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

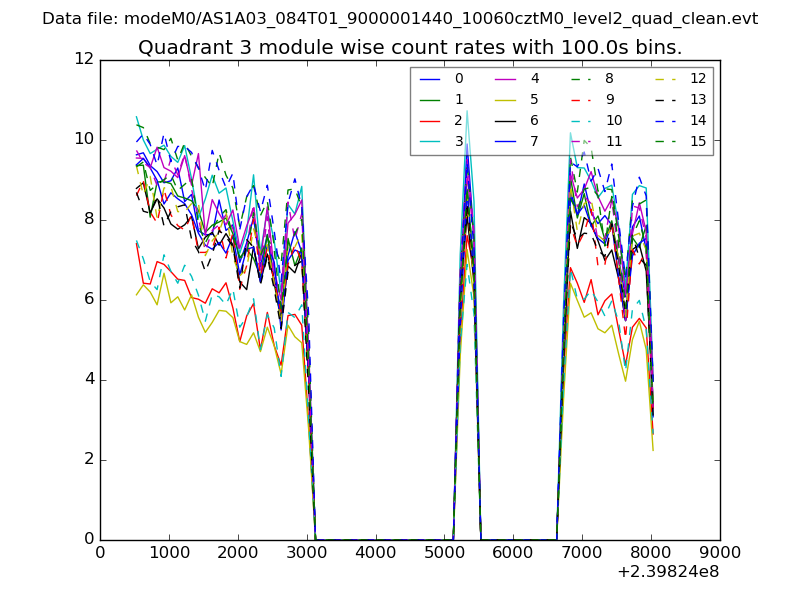

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

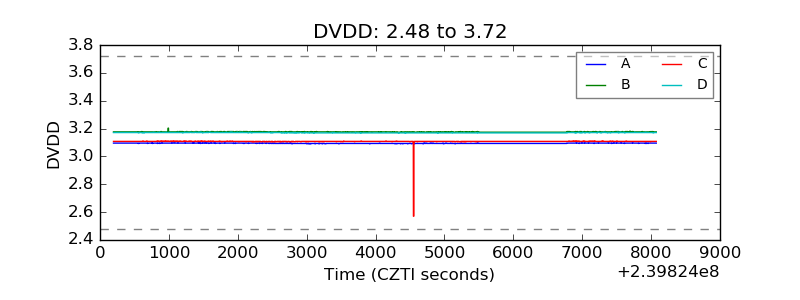

| D_VDD |  |

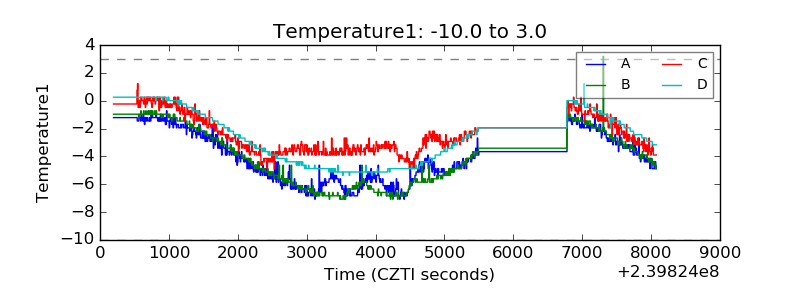

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

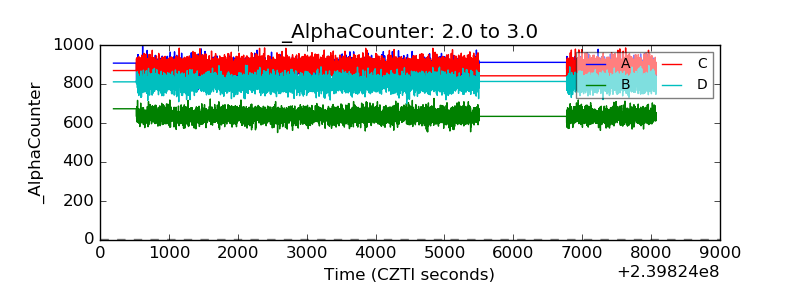

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

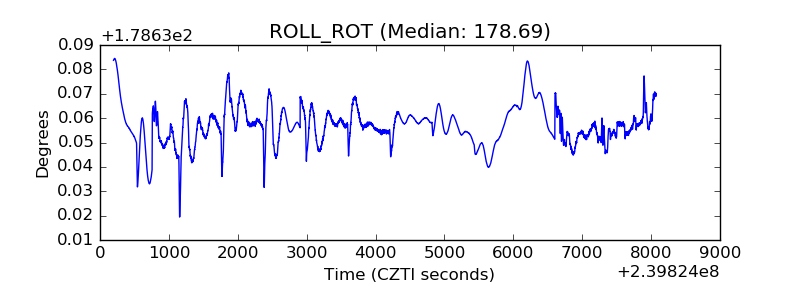

| _ROLL_ROT |  |

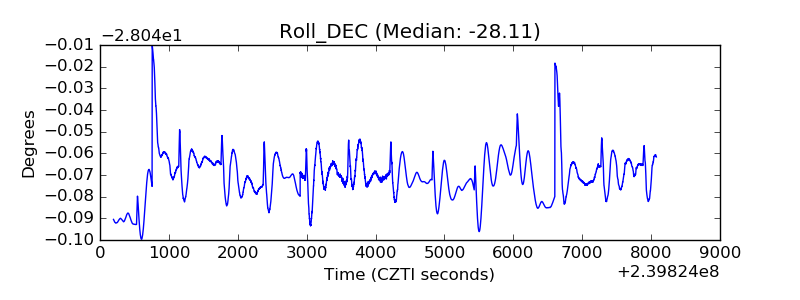

| _Roll_DEC |  |

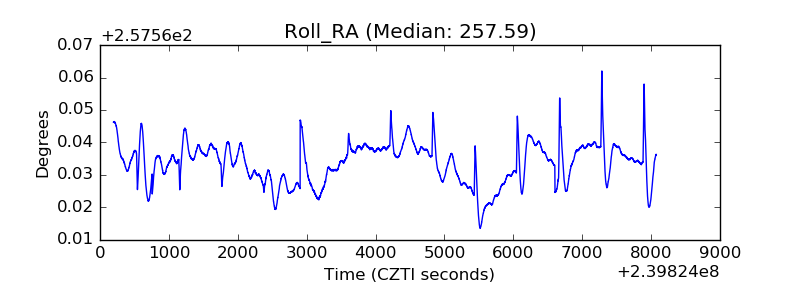

| _Roll_RA |  |

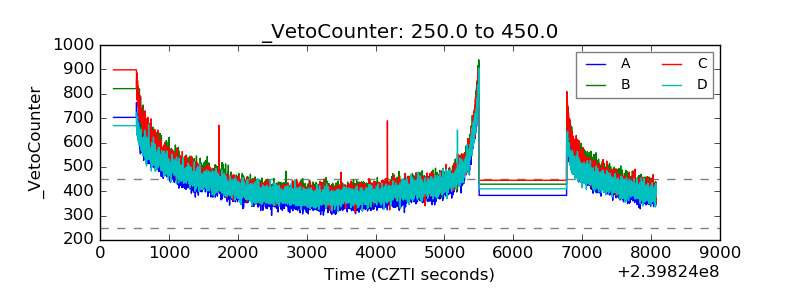

| Veto Counter |  |
