| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_039T01_9000001444_10071cztM0_level2.evt | modeM0/AS1G07_039T01_9000001444_10071cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,494,720 | 101,551,680 |
| Size | 456.3 MB | 96.8 MB |
| Events in quadrant A | 3,265,233 | 660,684 |
| Events in quadrant B | 3,487,502 | 669,758 |
| Events in quadrant C | 3,181,662 | 657,225 |
| Events in quadrant D | 4,105,816 | 624,881 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14089 | 11 |
| B | 0 | 14643 | 5 |
| C | 0 | 13902 | 8 |
| D | 0 | 16336 | 16 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6643 | 130 | 1.956947% |
| B | 6645 | 135 | 2.031603% |
| C | 6644 | 108 | 1.625527% |
| D | 6641 | 201 | 3.026653% |

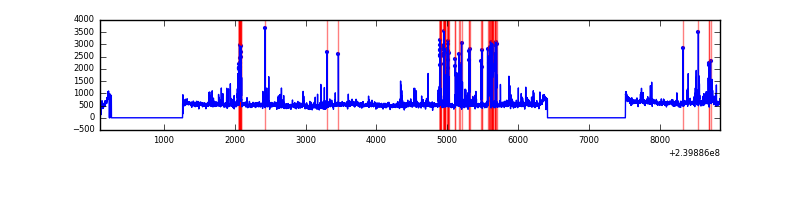

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8751 | 6644 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8751 | 6646 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8751 | 6645 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8751 | 6644 | 86 | 86 | 0.98% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 8446 | 44.41 | 843 | 826 | 171.6 |
| A | 0 | 226 | 7864 | 41.02 | 843 | 826 | 171.6 |
| A | 12 | 194 | 7076 | 36.42 | 843 | 826 | 171.6 |
| B | 0 | 214 | 118299 | 732.14 | 840 | 821 | 160.5 |
| B | 4 | 81 | 51071 | 313.17 | 840 | 821 | 160.5 |
| B | 12 | 111 | 16848 | 99.88 | 840 | 821 | 160.5 |
| C | 14 | 67 | 11198 | 55.12 | 812 | 815 | 188.4 |
| C | 13 | 61 | 6061 | 27.85 | 812 | 815 | 188.4 |
| C | 8 | 222 | 3348 | 13.45 | 812 | 815 | 188.4 |
| D | 8 | 195 | 375546 | 1784.9 | 809 | 787 | 210.0 |
| D | 1 | 52 | 301002 | 1429.86 | 809 | 787 | 210.0 |
| D | 12 | 233 | 109722 | 518.84 | 809 | 787 | 210.0 |

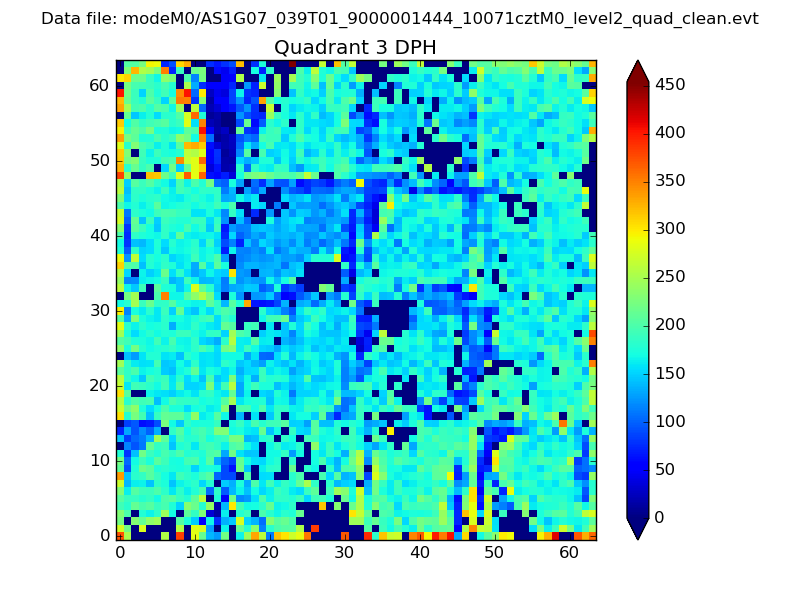

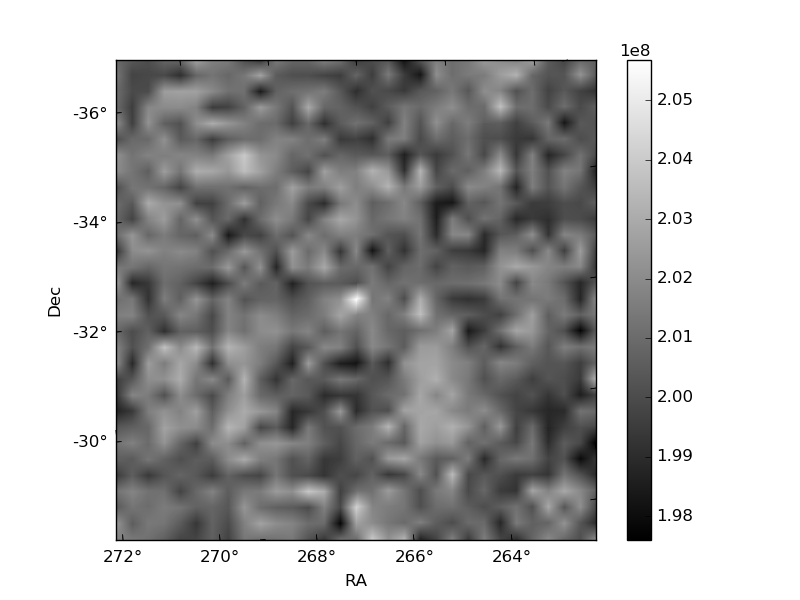

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

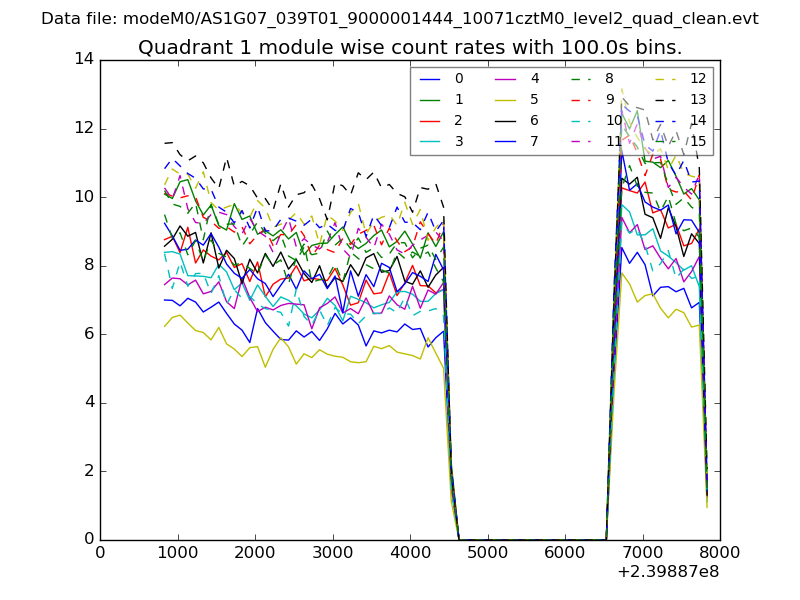

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

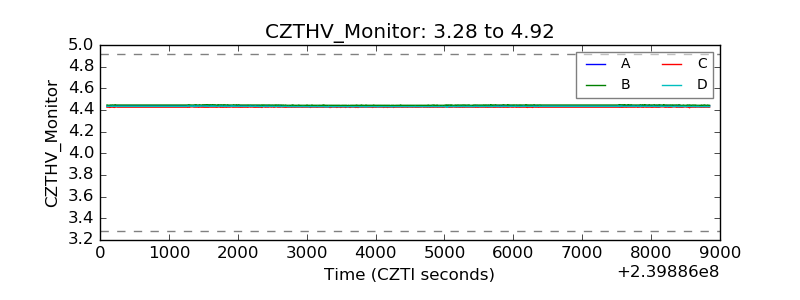

| CZT HV Monitor |  |

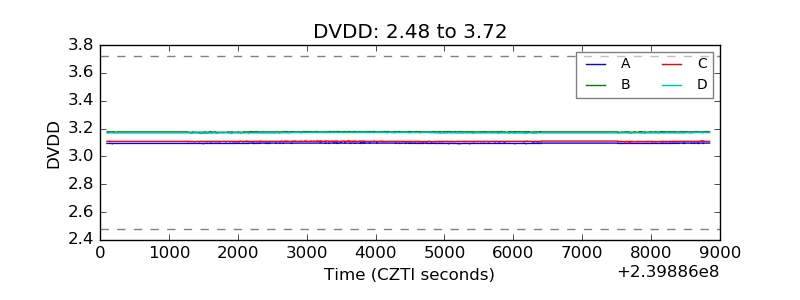

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

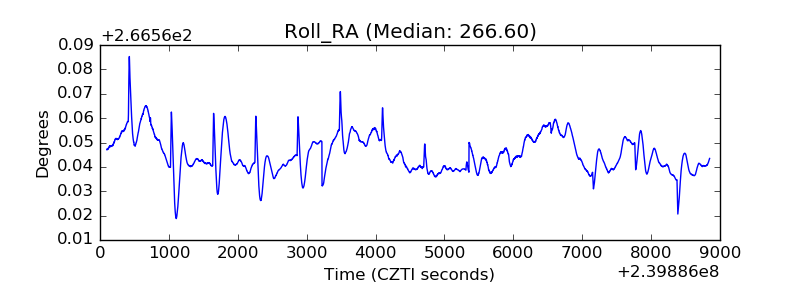

| _Roll_RA |  |
| Veto Counter |  |
