| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_014T01_9000001450_10089cztM0_level2.evt | modeM0/AS1G07_014T01_9000001450_10089cztM0_level2_quad_clean.evt |
| Size (bytes) | 187,372,800 | 50,405,760 |
| Size | 178.7 MB | 48.1 MB |
| Events in quadrant A | 1,180,184 | 341,699 |
| Events in quadrant B | 1,335,624 | 346,489 |
| Events in quadrant C | 1,122,663 | 340,837 |
| Events in quadrant D | 1,864,998 | 318,379 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5182 | 1 |
| B | 0 | 5695 | 1 |
| C | 0 | 5090 | 1 |
| D | 0 | 7226 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 273359709408 | 0 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2487 | 4 | 0.160836% |
| B | 2487 | 8 | 0.321673% |
| C | 2487 | 3 | 0.120627% |
| D | 2487 | 88 | 3.538400% |

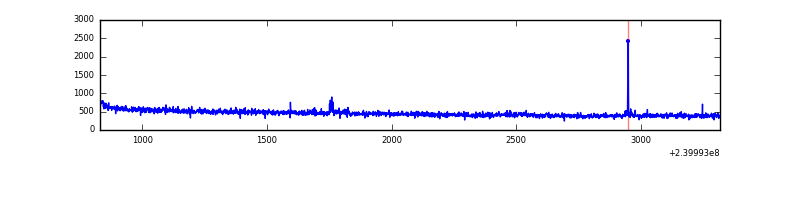

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2487 | 2487 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2487 | 2487 | 1 | 1 | 0.04% | 0.04% |  |
| C | 2487 | 2487 | 1 | 1 | 0.04% | 0.04% |  |
| D | 2487 | 2487 | 93 | 93 | 3.74% | 3.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 6862 | 105.45 | 302 | 298 | 62.2 |
| A | 15 | 174 | 3608 | 53.18 | 302 | 298 | 62.2 |
| A | 0 | 226 | 3056 | 44.31 | 302 | 298 | 62.2 |
| B | 4 | 174 | 57210 | 972.37 | 302 | 296 | 58.5 |
| B | 0 | 219 | 51978 | 882.98 | 302 | 296 | 58.5 |
| B | 4 | 81 | 28154 | 475.95 | 302 | 296 | 58.5 |
| C | 14 | 234 | 9670 | 140.95 | 283 | 285 | 66.6 |
| C | 4 | 175 | 3695 | 51.21 | 283 | 285 | 66.6 |
| C | 13 | 61 | 2119 | 27.54 | 283 | 285 | 66.6 |
| D | 1 | 52 | 344479 | 4890.94 | 284 | 276 | 70.4 |
| D | 2 | 16 | 208324 | 2956.25 | 284 | 276 | 70.4 |
| D | 8 | 195 | 114950 | 1629.46 | 284 | 276 | 70.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

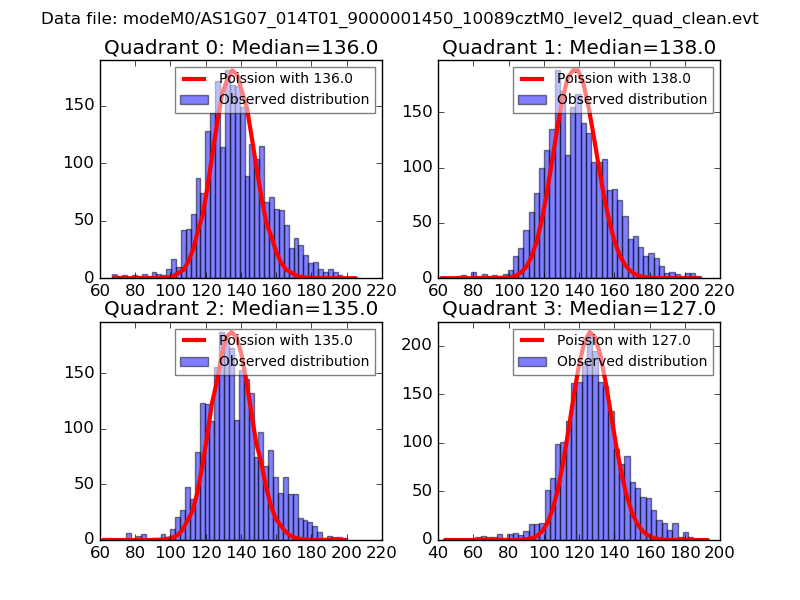

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

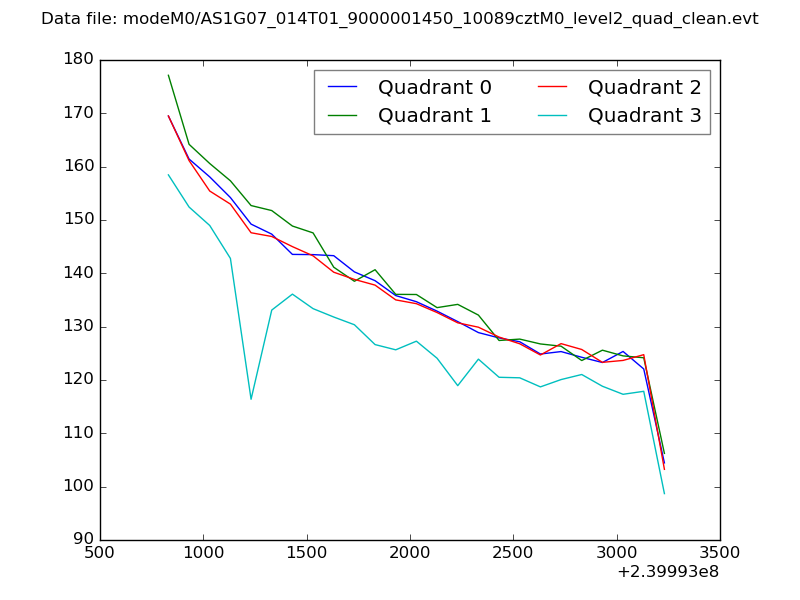

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

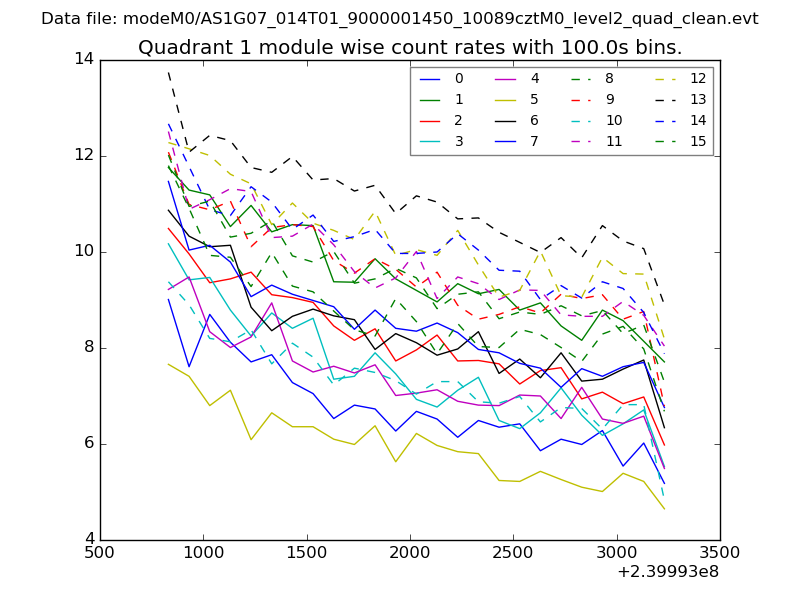

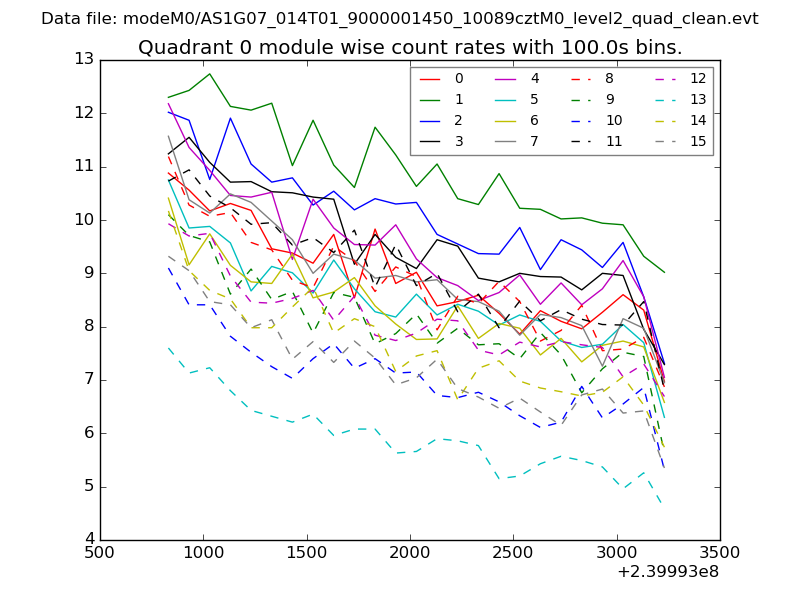

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

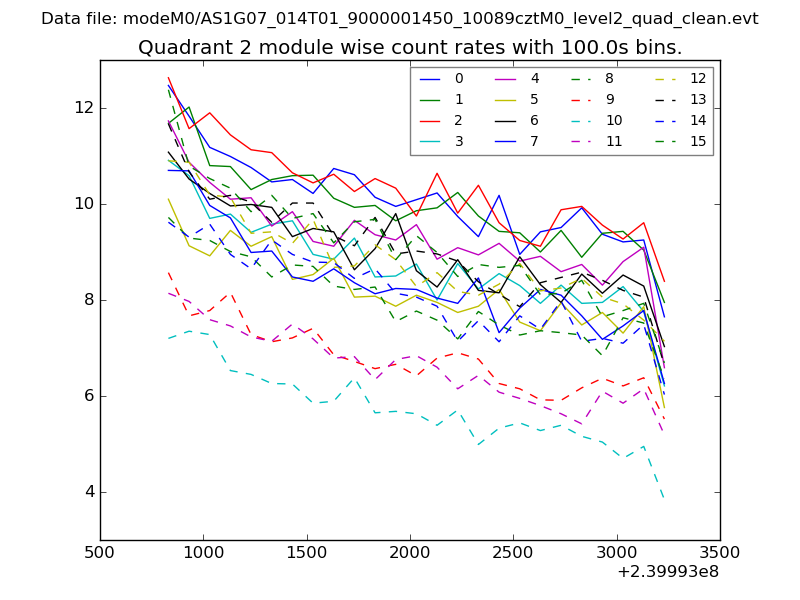

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

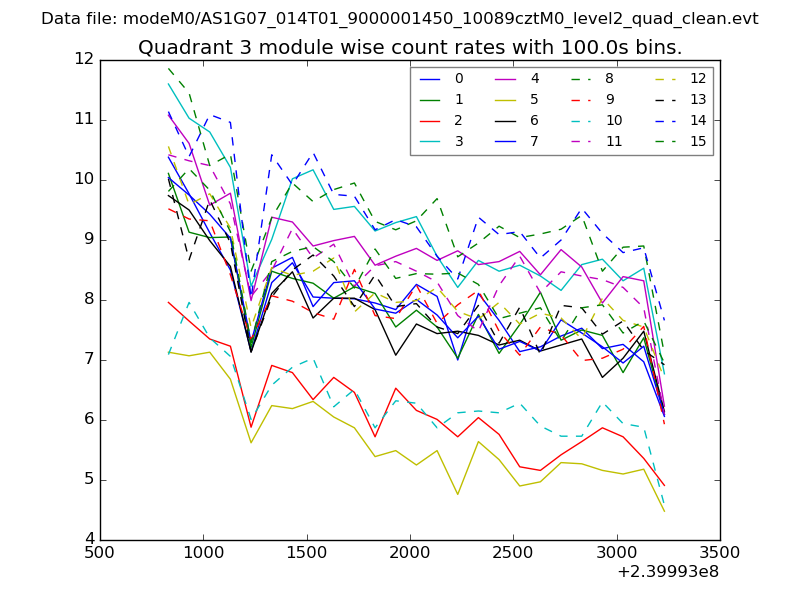

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

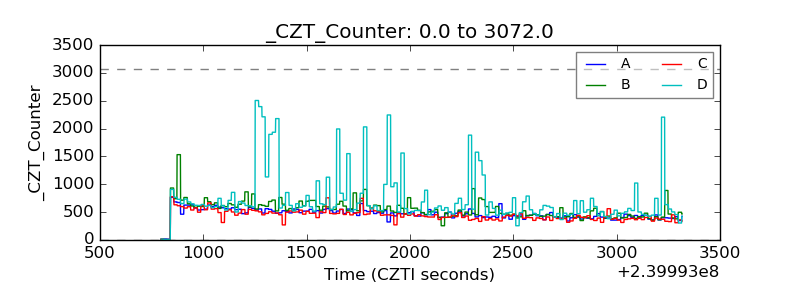

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
