| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T01_9000001454_10107cztM0_level2.evt | modeM0/AS1G07_065T01_9000001454_10107cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,860,800 | 114,117,120 |
| Size | 512.0 MB | 108.8 MB |
| Events in quadrant A | 3,763,242 | 731,269 |
| Events in quadrant B | 4,029,299 | 745,426 |
| Events in quadrant C | 3,661,981 | 726,078 |
| Events in quadrant D | 4,255,407 | 691,394 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16737 | 74 |
| B | 0 | 17369 | 79 |
| C | 0 | 16624 | 71 |
| D | 0 | 18036 | 66 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8068 | 39 | 0.483391% |
| B | 8070 | 56 | 0.693928% |
| C | 8068 | 11 | 0.136341% |
| D | 8076 | 60 | 0.742942% |

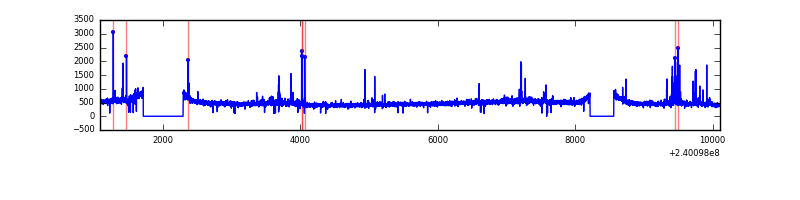

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

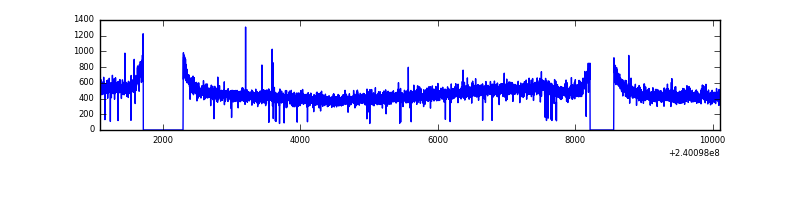

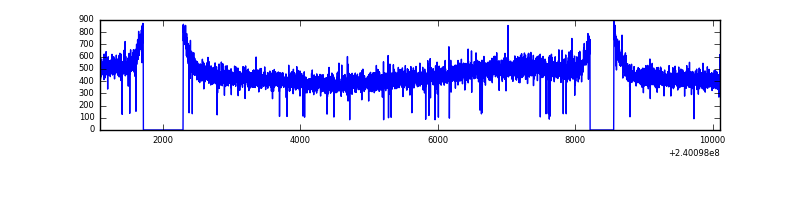

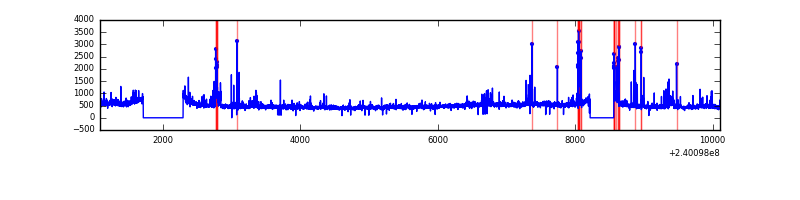

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9027 | 8104 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9027 | 8103 | 8 | 8 | 0.09% | 0.10% |  |
| C | 9027 | 8104 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9027 | 8103 | 34 | 34 | 0.38% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 10181 | 46.52 | 969 | 947 | 198.5 |
| A | 8 | 157 | 9358 | 42.37 | 969 | 947 | 198.5 |
| A | 0 | 226 | 9063 | 40.88 | 969 | 947 | 198.5 |
| B | 4 | 239 | 102524 | 544.24 | 973 | 950 | 186.6 |
| B | 0 | 214 | 82450 | 436.68 | 973 | 950 | 186.6 |
| B | 12 | 111 | 20333 | 103.86 | 973 | 950 | 186.6 |
| C | 14 | 67 | 9263 | 37.98 | 936 | 937 | 219.2 |
| C | 13 | 61 | 7026 | 27.77 | 936 | 937 | 219.2 |
| C | 8 | 222 | 2568 | 7.44 | 936 | 937 | 219.2 |
| D | 8 | 195 | 295741 | 1186.09 | 923 | 901 | 248.6 |
| D | 1 | 52 | 188807 | 755.91 | 923 | 901 | 248.6 |
| D | 2 | 152 | 89328 | 355.73 | 923 | 901 | 248.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

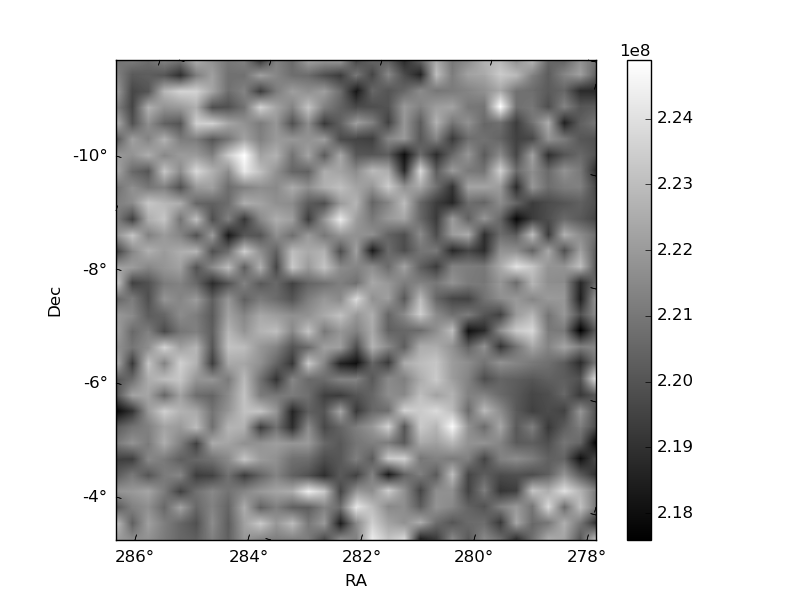

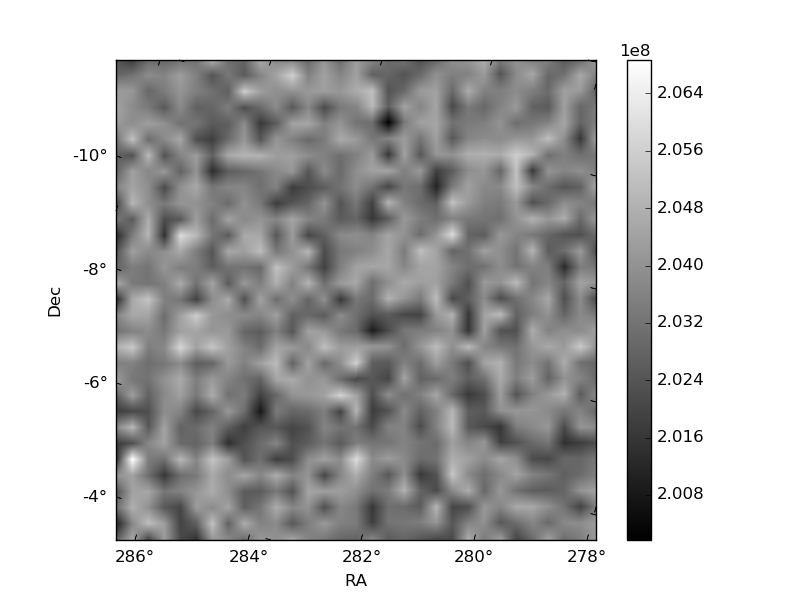

| Plot type | Count rate plots | Images |
|---|---|---|

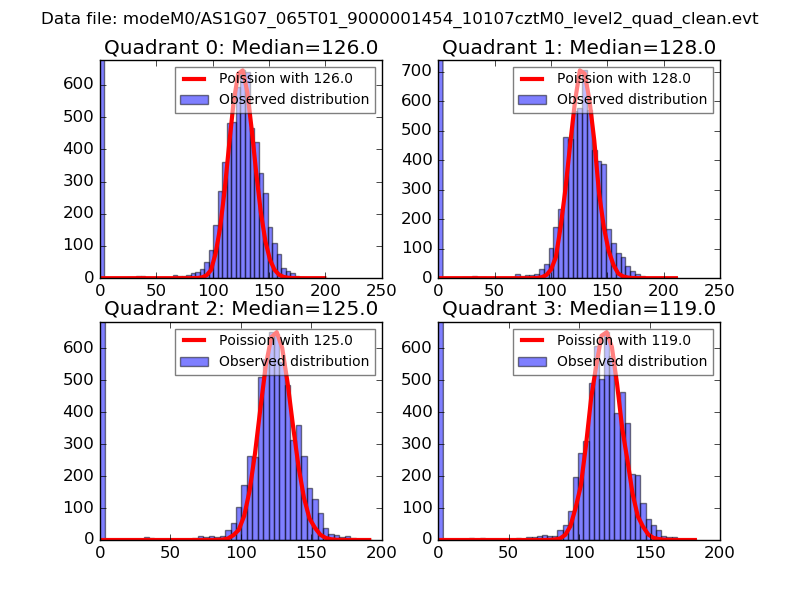

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

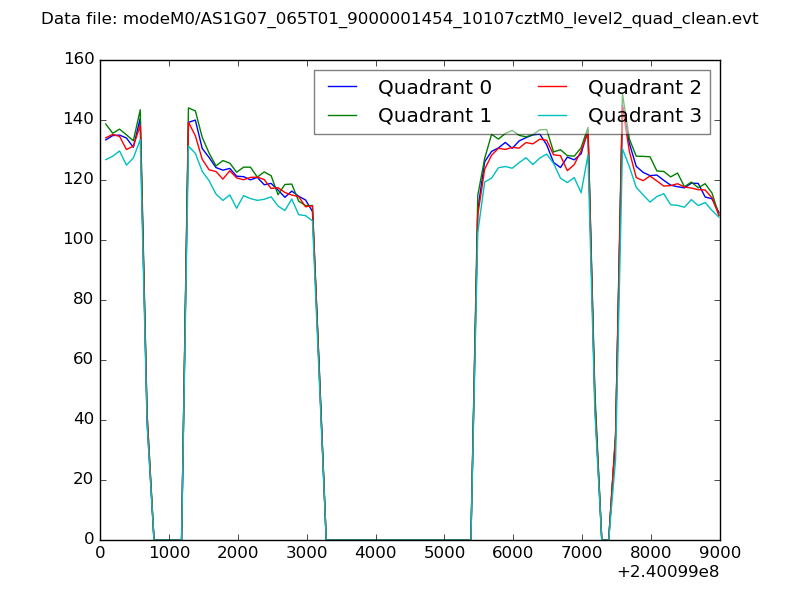

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

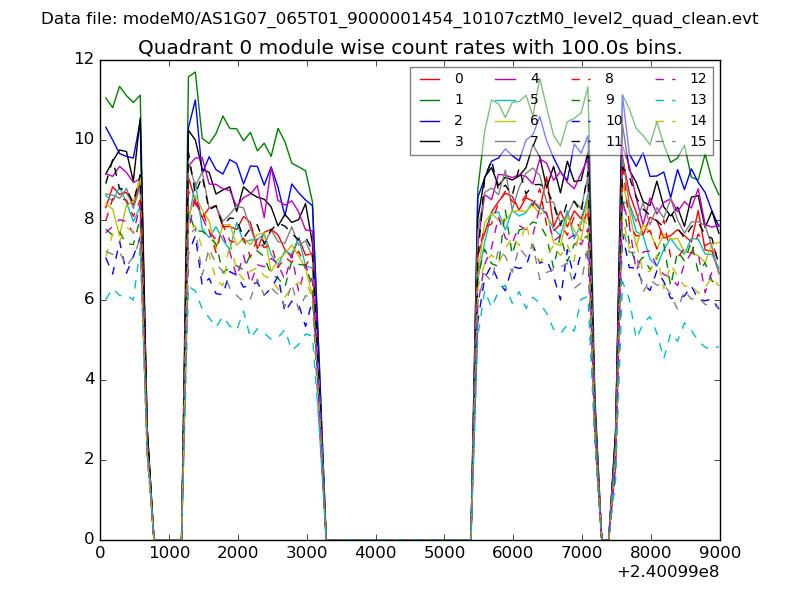

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

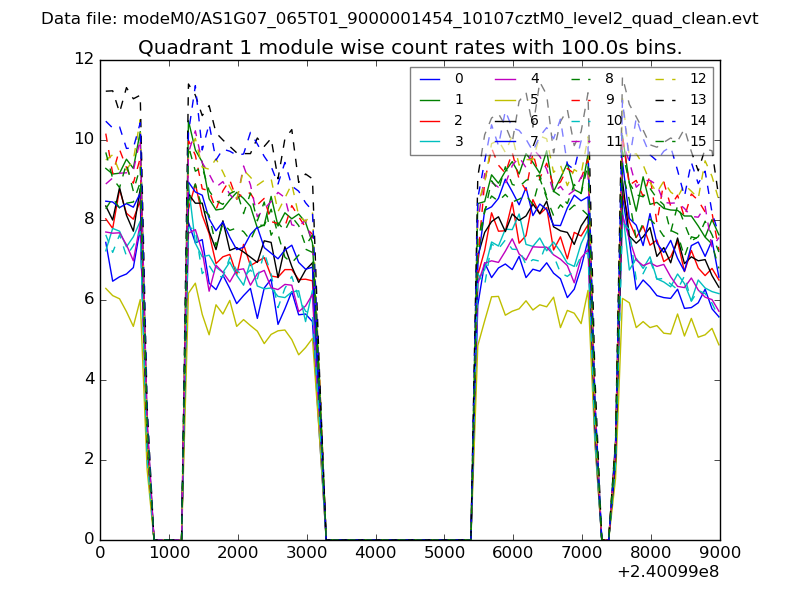

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

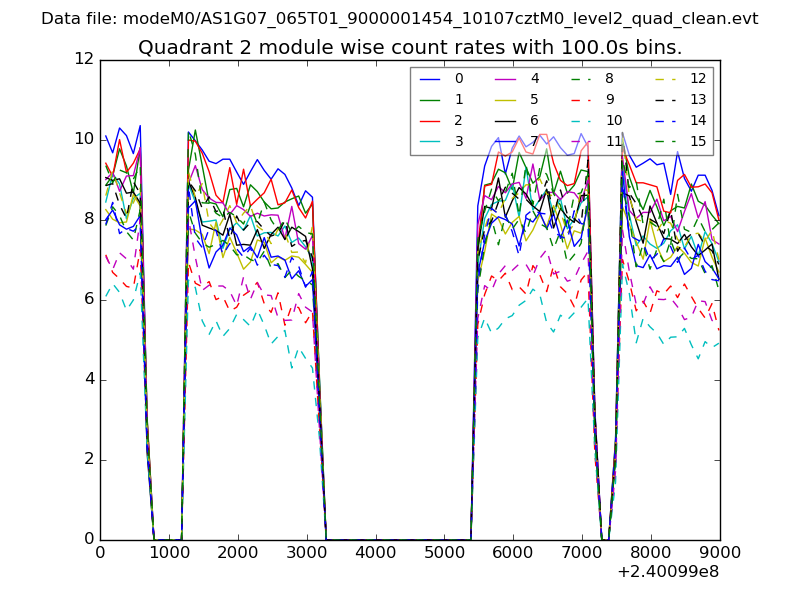

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

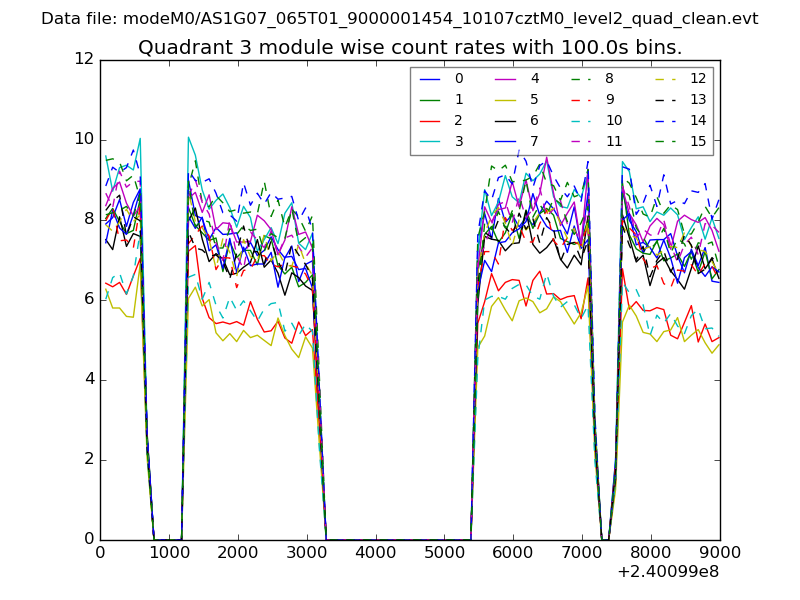

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

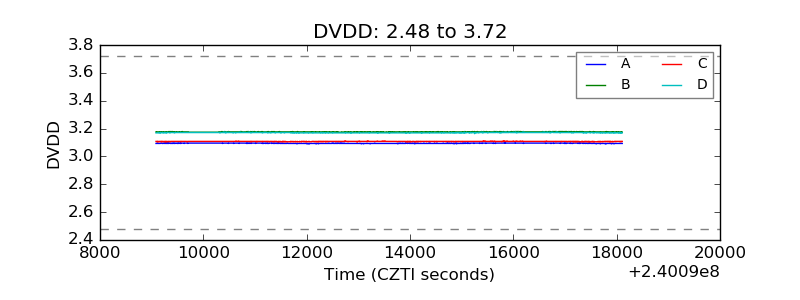

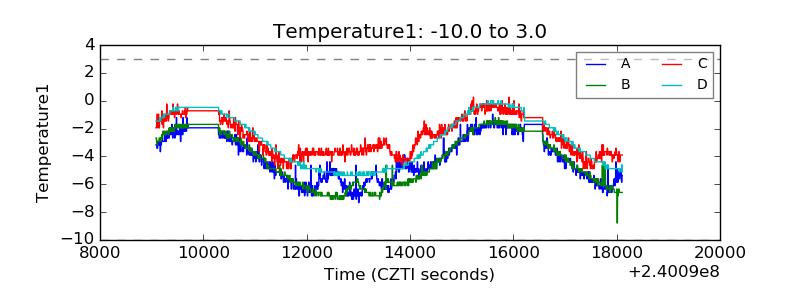

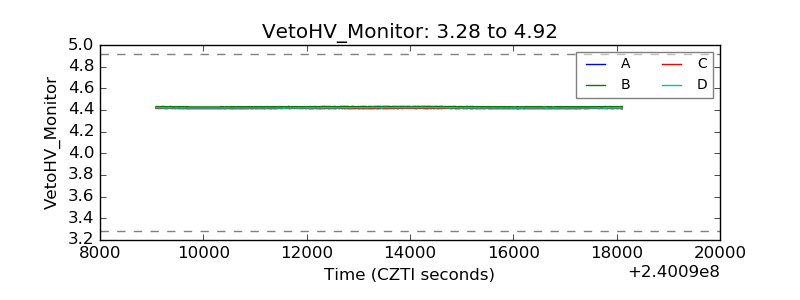

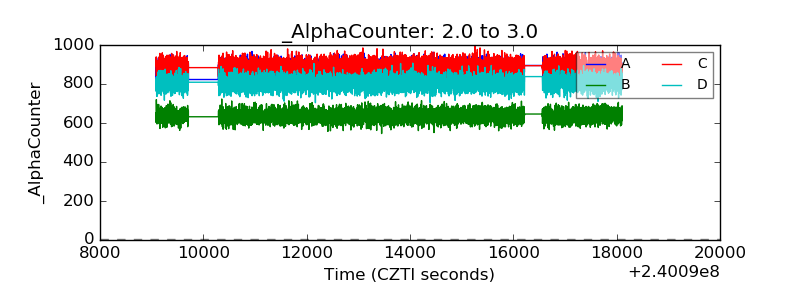

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

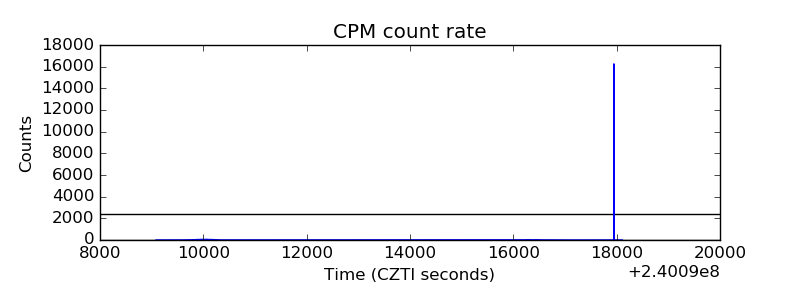

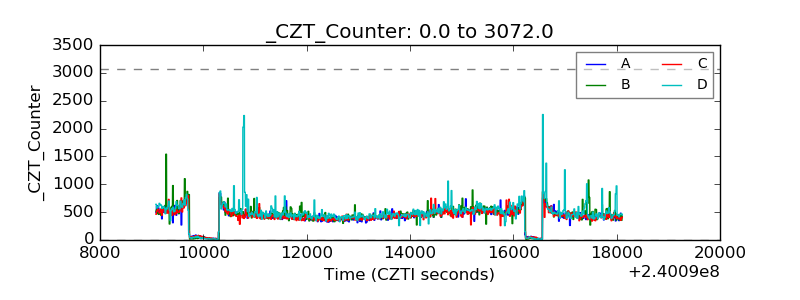

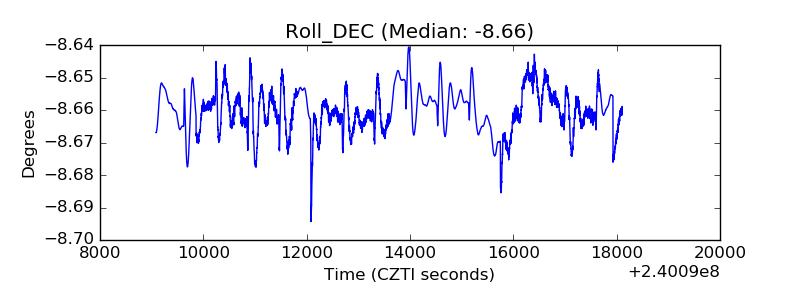

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

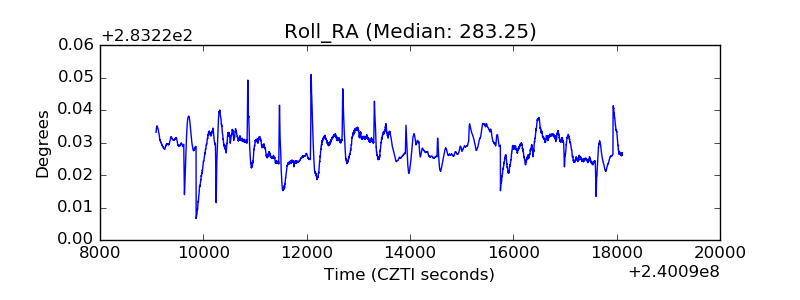

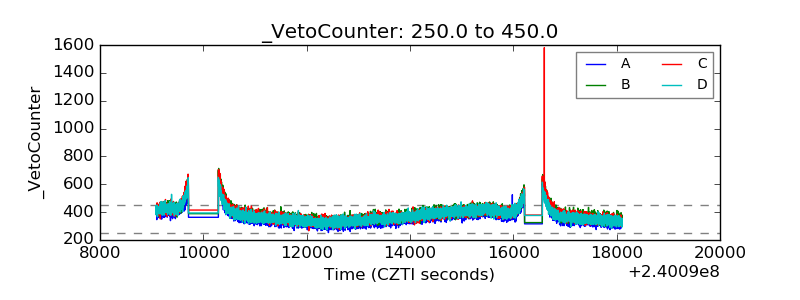

| _Roll_RA |  |
| Veto Counter |  |
